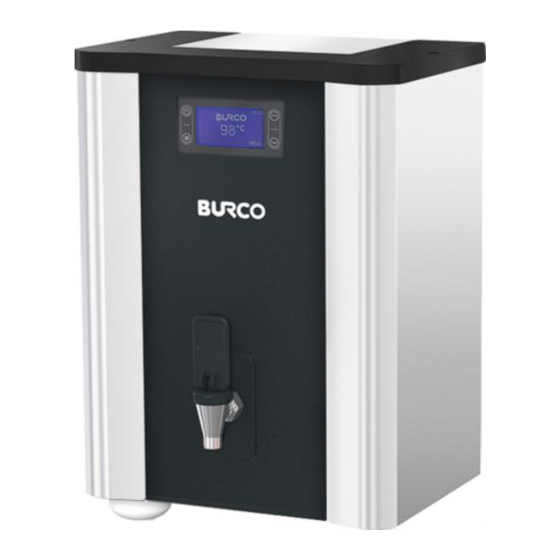

Autofill Wallmount Water Boilers
Burco Autofill Filtration
Burco Autofill (without Filter)
Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF.
Customer Service Tel: +44 [0]344 879 3588
Email: customer.services@glendimplex.com
© Glen Dimplex. All rights reserved. Material contained in this publication may not be reproduced in
whole or in part, without prior permission in writing of Glen Dimplex.
Instruction Manual
(Filtration & Non-Filtration models)
These instructions cover the following Burco models:
3L
N/A
069924
Glen Dimplex UK LTD, trading as,
Glen Dimplex Heating & Ventilation
Web: www.gdhv.com
www.burco.co.uk
5L
069801
N/A
1
7.5L
10L
N/A
069818
069931
N/A
08/54071/0 (Issue 3)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Burco AFF10WM
Summary of Contents for Burco AFF10WM
- Page 1 Instruction Manual Autofill Wallmount Water Boilers (Filtration & Non-Filtration models) These instructions cover the following Burco models: 7.5L Burco Autofill Filtration 069801 069818 Burco Autofill (without Filter) 069924 069931 Glen Dimplex UK LTD, trading as, Glen Dimplex Heating & Ventilation Web: www.gdhv.com...
-
Page 2: Table Of Contents
4.0 Introduction ............................... 5 5.0 Warranty Cover ............................5 6.0 Technical Data ............................6 7.0 Burco boiler Installation ..........................7 7.1 Mounting to wall ............................ 7 7.2 Before connecting to the power supply ....................8 7.3 Connecting to the water supply ......................8 7.4 Venting .............................. -
Page 3: About My Product
You can peel of the backing and stick in the box below: 2.0 Scope of delivery • Chosen Burco Boiler variant • Accessories kit (Descale Drain Tube, Water inlet hose containing 1 elbow 3/8-1/4 stem, Blanking Grommets, Wall Bracket, 3/4-1/4 Adaptor, ½” BSP x ¼” Push fit connector,) •... -
Page 4: Warnings And Precautions
3.0 Warnings and Precautions WARNING. THIS SYMBOL MEANS THERE IS A RISK OF PERSONAL INJURY. IMPORTANT. THIS SYMBOL MEANS THERE IS A RISK OF DAMAGING THE APPLIANCE THIS APPLIANCE MUST BE INSTALLED, COMMISSIONED AND SERVICED BY A QUALIFIED PERSON IN ACCORDANCE WITH THE NATIONAL AND LOCAL REGULATIONS IN FORCE IN THE COUNTRY OF INSTALLATION. -
Page 5: Introduction
5.0 Warranty Cover This Burco boiler comes with a comprehensive 1-year parts and labour warranty (069924 & 069931). If you have purchased a Burco boiler with a water filter, then the warranty is 2 years parts and labour (069801 & 069818). -
Page 6: Technical Data
Failure to descale your water boiler or replace your filter cartridge when prompted to do so, will invalidate your warranty. 6.0 Technical Data Model 7.5L Height (mm) Width (mm) Depth (mm) 234 (310 Inc. tap) Capacity (Litres) Weight (Kg) *dry 11.5 Ambient Temperature 5˚C –... -
Page 7: Burco Boiler Installation
7.0 Burco boiler Installation 7.1 Mounting to wall Please ensure there is at least 220mm of clearance below the boiler to allow for filter changes, the location must be frost free. The unit must be installed on a solid concrete / brick or other suitably robust wall, with appropriate fittings by a qualified fitter. -
Page 8: Before Connecting To The Power Supply
• In hard water areas, it is always advisable to fit an inline filtration unit to limit scale build-up. If you have purchased a Burco boiler that does not have a water filter system included, we recommend you fit a separate water filter between the boiler and the mains supply. -
Page 9: Electrical Connection
STEAM VENT 7.5 Electrical Connection • All electrical work must comply with all relevant wiring regulations and carried out by a qualified electrician. • To protect against fire, electric shock and personal injury, do not immerse cord, plug, or water boiler in water or any other liquid. -
Page 10: Overflow And Drainage
8.0 Overflow and Drainage As an option, the boiler overflow outlet may be connected to a drainage system. There may be some steam emitted from the vent at the base of the appliance during the initial fill stages (or if the tank is refilled after being fully emptied) but this will reduce as the volume of water increases in the tank. -
Page 11: Operating Instructions
9.0 Operating Instructions Burco boilers are designed for continuous operation and should only be switched off for the purpose of maintenance or emergency. 9.1 Boiler Overview This product is supplied with a power cord. Connection to electrical outlet is required and should be carried out by qualified personnel to the appropriate standards. -
Page 12: Controller Set Up
9.3 Controller Set Up Touch Screen Display (filtered models only): STANDBY STANDBY The LCD screen will illuminate with the Burco logo. The SETTINGS MENU default temperature and the time will flash waiting to be set. The hour figure will flash. Use the scroll buttons and press MENU to set when the correct time is shown. - Page 13 Set Temperature: Use the UP and DOWN buttons to adjust the temperature. Press and hold the UP or Down button for 3 seconds before setting desired temperature. Screen Settings: Press MENU and navigate down using the SCROLL button until SCREEN SETTINGS is highlighted, and then press MENU.
- Page 14 When no water is drawn from the boiler in 2 hours, the eco mode is engaged. The backlight turns off and the only data displayed is the Burco logo along with the time and the status indicator. Water should be drawn off to resume normal operation.
- Page 15 Power Down: To power down the product, the STANDBY button should be held when on the normal operation screen for 10 seconds. The shutdown screen will appear and using the scroll buttons, ‘Yes’ should be selected by pressing MENU. The unit will then shutdown.
-
Page 16: Cleaning And Descaling Advice And Information
10.0 Cleaning and Descaling advice and information 10.1 Descaling The descaling procedure must be performed by suitable personnel as it requires the removal of panels from the boiler and access to live electrical components. Always use a descaling agent suitable for stainless steel. 1. -
Page 17: Changing Water Filter (Filtered Models Only)
The boiler will alert when a new filter cartridge is required. The boiler should be descaled in conjunction with the filer change, see page 14 of instructions. The water filter cartridge is unique to Burco. Only Burco “BC02” replacement filter (Part No. 01/74334/0) will fit these models. Please either purchase a replacement from your catering equipment... -
Page 18: Cleaning Instructions
Failure to clean on a regular basis may invalidate your warranty. 13.0 Troubleshooting If you believe your Burco Boiler isn’t working correctly, please contact our Aftersales Team on +44 [0]344 879 3588. If you experience any problems with the water boiler, please contact our Aftersales team on +44 [0]344 879 3588. -
Page 19: Disposal
14.0 Disposal At the end of the appliance’s useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority for recycling facilities and advice in your area. For electrical products sold within the European Community. At the end of the electrical products useful life it should not be disposed of with household waste. -
Page 20: Spare / Replacement Parts
15.0 Spare / Replacement Parts Genuine replacement Burco parts must be fitted. If generic non-Burco parts are fitted, you may prevent your appliance from operating safely and in the most efficient manner and invalidate your warranty. Spare PN Description 069801... -
Page 21: Frequently Asked Questions (Faq's)
Q. What Warranty does my water boiler have? A. Your Burco boiler will come with a 1-year parts and labour warranty. If you have purchased a boiler with a water filter, it will come with a 2 years parts and labour warranty. Please see the ‘Warranty’ section on page 5 for details. -
Page 22: Warranty Information
Once we receive your information and proof of purchase, we will contact you to make the necessary arrangements. If your Burco product is not covered by this Burco Warranty there may be a charge to repair your product. However, we will contact you for agreement to any charges before any chargeable service is carried out. -
Page 23: Terms And Conditions
• You must provide to Burco or its authorised agents on request the original receipt as proof of purchase and - if required by Burco - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required. - Page 24 Disregarding the instructions given in this manual in its entirety and any relevant regulations, standards and code of practice will void the guarantee of this product. Glen Dimplex reserve the right to revise products, literature and guarantee terms without prior notice due to a policy of continuous improvement To speak to customer services please contact: Glen Dimplex UK LTD.
