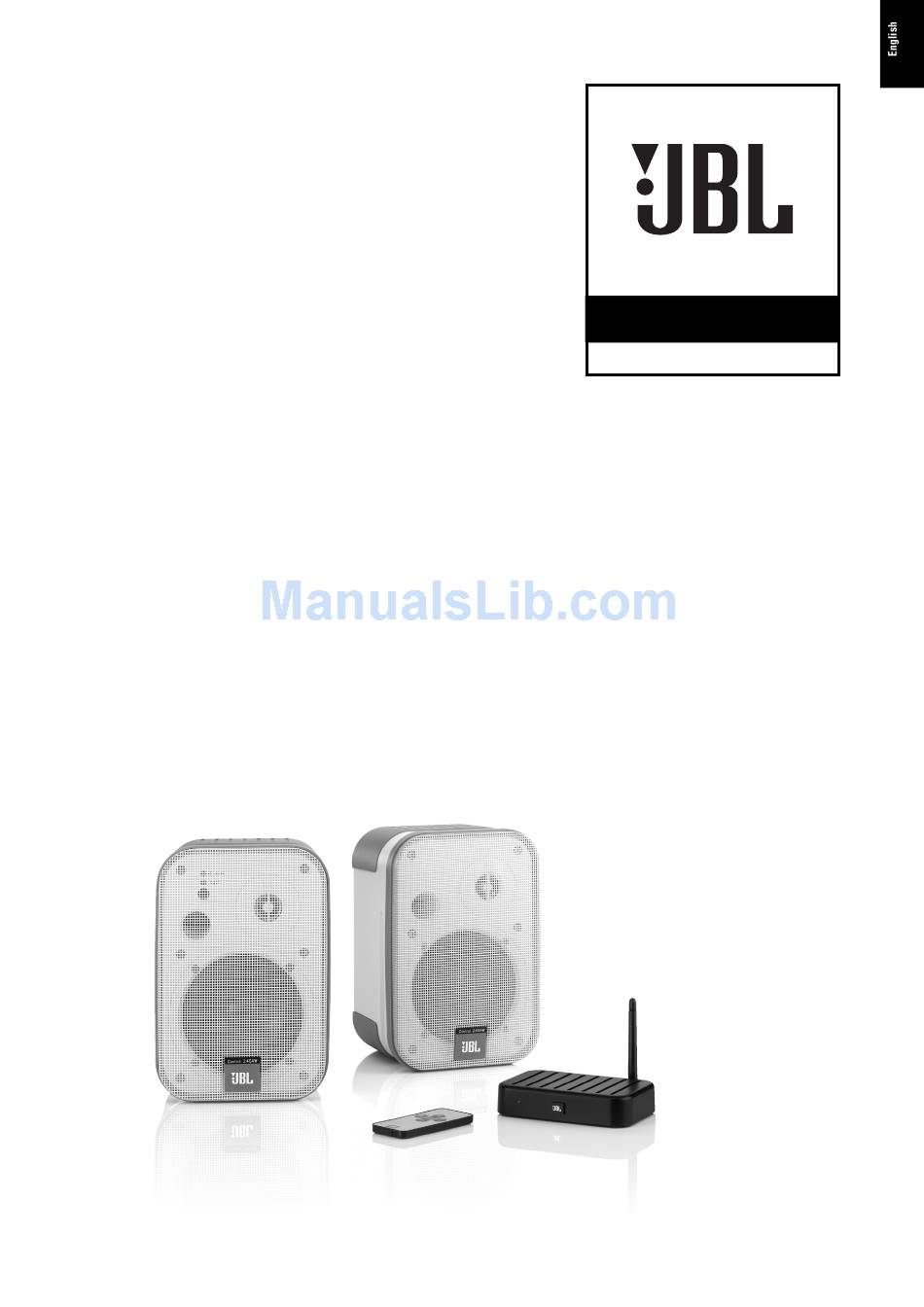

  • Page 1 ® ® ON AIR CONTROL ® 2.4G AW (230V) OWNER’S GUIDE...

  • Page 2: Federal Communications Commission Interference Statement

    FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 4: Unpacking The System

    THANK YOU FOR CHOOSING JBL For more than 60 years, JBL has been involved in every aspect of music and film recording and reproduction, from live performances to the recordings you play in your home, car or office. We’re confident that the JBL system you have chosen will provide every note of enjoyment that you expected –...
  • Page 5 This would apply to any device such as an A/V receiver, audio component, computer or portable music player. The JBL On Air may be connected to your source in several ways. First, determine how you would like to use the JBL On Air Control 2.4G AW;...
  • Page 6 If you would like to connect the computer to the JBL On Air Control 2.4G AW using preamp outputs on your computer, follow the steps in Connection A. Connection Option A Connecting using the preamp outputs on your source: Note: Make sure power is turned off on all components.
  • Page 7 When connected properly, the top LED on the front of the active speaker should be green. When first plugged in, it will sometimes take several seconds for the Control 2.4G AW active speaker to initialize and “wake up.” Until then, the top LED will be in red. Once the top LED is green, the bottom LED should flash green until the transmitter and active speaker “lock in.”...

  • Page 8: Operation

    Control 2.4G AW until its output level is balanced with the rest of the speakers in your surround system. From this point on, you will not be using the remote control of your Control 2.4G AW for volume settings. You will be increasing and decreasing the output level for the entire surround sound system using your A/V source’s...
  • Page 9 If desired, you may attach this holder to the wall and insert the speaker’s power supply. – Please note that while the Control 2.4G AW is an all-weather outdoor loud-speaker, it is not waterproof. Neither the speakers nor power TO LEFT SPEAKER supply should be submerged or directly exposed to water, ice, snow or sustained moisture.Do not install the transmitter module outdoors.

  • Page 10: Maintenance And Service

    Wall-Mounting the Speakers Using Third-Party Wall Brackets Each JBL On Air Control 2.4G AW wireless speaker contains a 1/4"-20 threaded insert on the back to facilitate the use of third-party wall brackets. Please consult your JBL dealer or distributor for recommendations.

  • Page 11: Specifications

    SPECIFICATIONS Frequency Range (±3dB): 80Hz – 20kHz Amplifier Output: 15 Watts per channel Low-Frequency Driver: 100mm (4") Magnetically shielded High-Frequency Driver: 12mm (1/2") Titanium-laminate, magnetically shielded Operating Range: Up to 21m (70') depending upon conditions RF Operating Frequency: 2.4GHz Dimensions Speaker (H x W x D): 229mm x 156mm x 140mm (9"...
  • Page 12 JBL and Control Series are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Pro Sound Comes Home are trademark of Harman International Industries, Incorporated. PRO SOUND COMES HOME ® Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, NY 11797, USA 8500 Balboa Boulevard, Northridge, CA 91329, USA 2, route de Tours, 72500 Château du Loir, France...
