- Page 1 CABINET PARTS REFRIGERATOR For Model: IF36BNNFSFPA (White) 1−09 Litho In U.S.A. (mat) (eeb) Part No. W10237827 Rev. A...
-

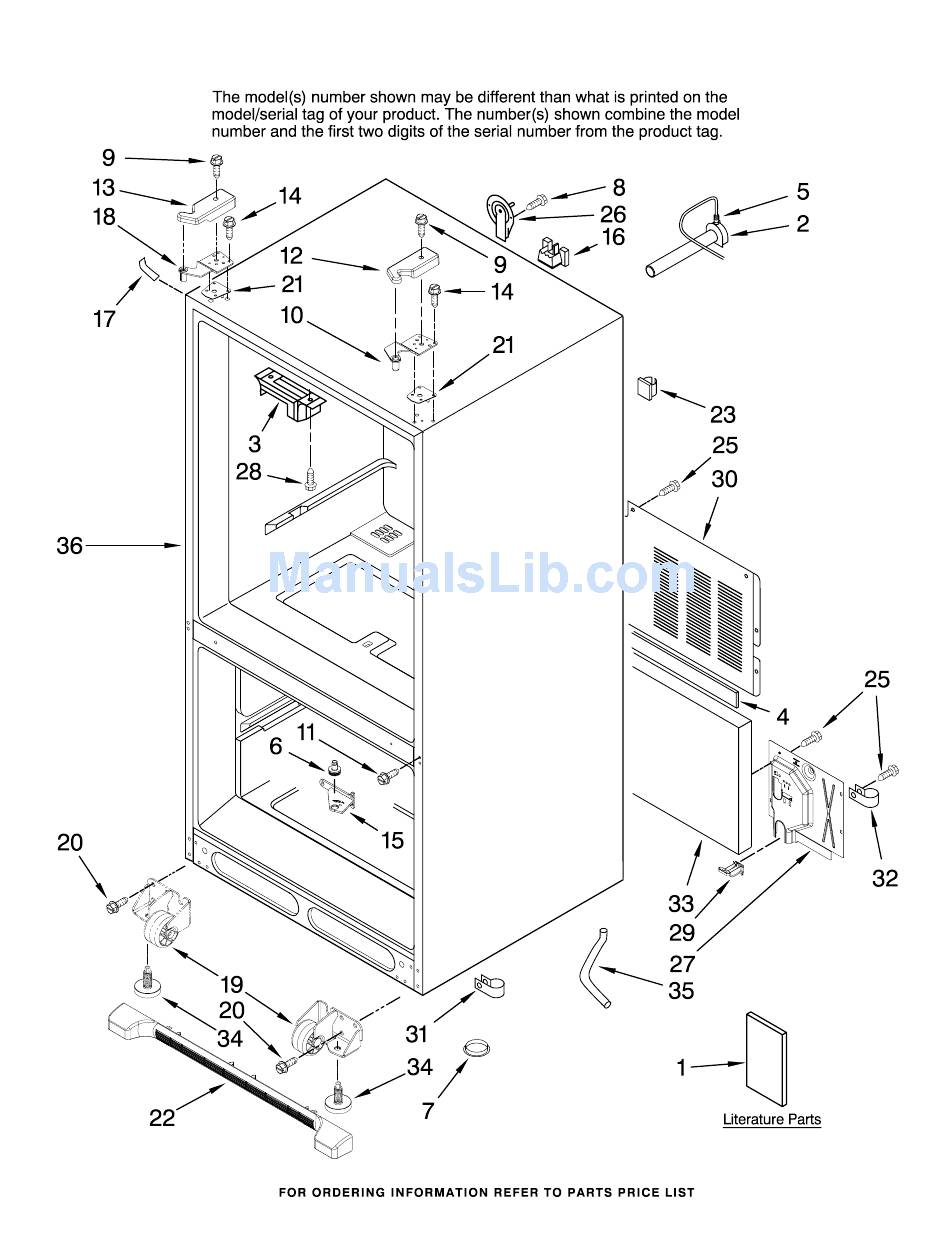

Page 2: Cabinet Parts
CABINET PARTS For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Literature Parts 67006616 Tech Sheet W10204314 Owners Manual W10217668 Tag, Energy 2 W10137519 Elbow, Fill Tube 67003405 Block, Pivot B5759649 Gasket 5 M0114003 Clip, Speed 67006642 Pin, Center Hinge A3076901 Plug, Button... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Model: IF36BNNFSFPA (White) W10237827... - Page 4 FREEZER LINER PARTS For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (Left) (Includes Item 7) 67003905 Cover, Light 67004017 Shaft Y12570701 Socket, Light 12002497 Gear (Right) (Includes Item 3) 67006473 Screw (8)
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: IF36BNNFSFPA (White) W10237827... - Page 6 REFRIGERATOR LINER PARTS For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67004078 Module, Light 3 W10216821 Overlay 4 W10185585 Housing, Control 5 W10207861 Board, Control C3680310 Switch, Light (2) 67003897 Cover, Light 67003901 Housing, Light 9 W10194422 Bulb, Light (2)
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: IF36BNNFSFPA (White) W10237827... - Page 8 REFRIGERATOR DOOR PARTS For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Door, Left 13024020BQ Black 67006906 Gripper, Medium 67003637 Door, Dairy 67001279 Tray, Dairy 67003775 Bin, Shelf (3) (Medium) 67006786 Screw 67006767 Screw Gasket, Door (2) W10163895 Black 67005698 Extension, French...
-
Page 9: Unit Parts
UNIT PARTS For Model: IF36BNNFSFPA (White) W10237827... - Page 10 UNIT PARTS For Model: IF36BNNFSFPA (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002041 Evaporator Kit 42 W10137529 Grommet, Cond (4) 67006433 Screw 67005491 Block, Condenser 2 W10156818 Blade, Fan (Incl. Evap., Heat 67005889 Basepan Shield, & Instr.
-
Page 11: Shelf Parts
SHELF PARTS For Model: IF36BNNFSFPA (White) W10237827... - Page 12 SHELF PARTS For Model: IF36BNNFSFPA (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Track, Pantry 67003530 Drawer, Pantry 67002332 Glass, Pantry 67005862 Left 67003791 Knob, Temperature 67002321 Divider, 67006912 Right Control Pantry Drawer 67002659 Pan, Crisper (2) 67005899 Door,...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Door, Freezer 13092218BQ Black 67002451 Clip, Handle 12521108S1 Trim, Bottom Gasket, Door W10164041 Black 67006767 Screw 12521109S1 Trim, Top 67006784 Trim, Vertical 67006769 Screw W10237827... -
Page 14: Icemaker Parts
ICEMAKER PARTS For Model: IF36BNNFSFPA (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10122527 Mold & Heater 67004710 Cover 627985 Thermostat Assembly (Also (Also Order 542369 626678 Module Assembly Order 542638 Cement) 489276 Screw (3) Grease) 628379 Clip... - Page 15 OPTIONAL PARTS (NOT INCLUDED) For Model: IF36BNNFSFPA (White) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108") 876370 Kit, Insulation (2 Pcs. x 3" x 24" X 48") 876305 Kit, Insulation (14 Pcs. x 3"...
