Cypress QU-14WE Operation Manual

V1.3 hdmi 1 to 4 mountable distribution amplifier

QU-14WE

v1.3 HDMI 1 to 4 Mountable

Distribution Amplifier

OPERATION MANUAL

Table of Contents

Need help?

Do you have a question about the QU-14WE and is the answer not in the manual?

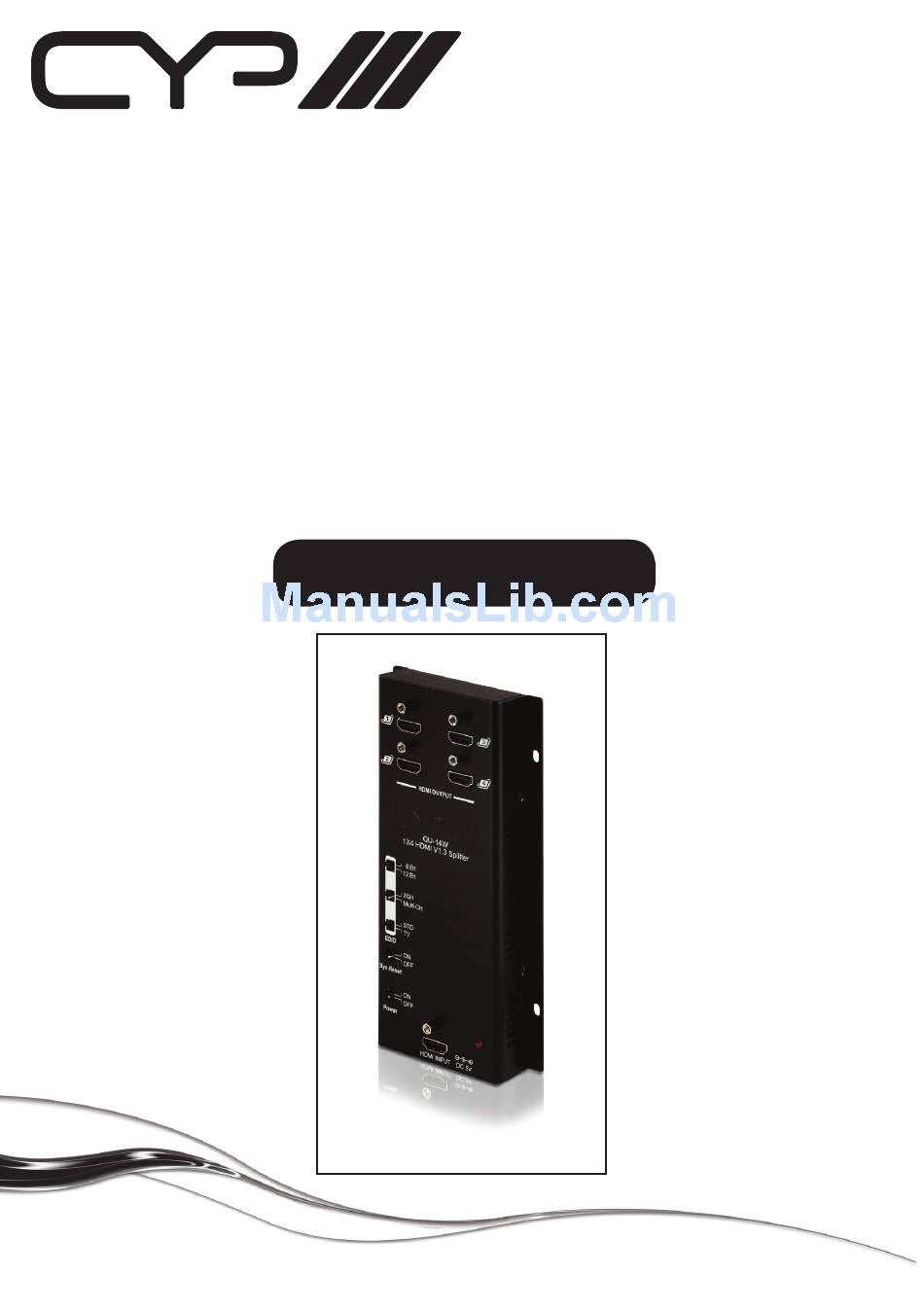

Page 1 QU-14WE v1.3 HDMI 1 to 4 Mountable Distribution Amplifier OPERATION MANUAL...
Page 2 Table of Contents Introduction Features Operation Controls and Functions Front Panel Diagram Connection Diagram Specifications...
Page 3 1. Introduction The QU-14WE Wall Mountable HDMI Distribution Amplifier has a single HDMI input with 4 HDMI outputs. The Explorer chipset based splitter is compatible with both Deep Colour and High Definition Audio, with EDID boost and System Reset Controls.
Page 4: Operation Controls And Functions
3. Operation Controls and Functions 3.1 Front Panel HDMI OUTPUT QU-14WE 1X4 HDMI V1.3 Splitter 8 Bit 12 Bit Multi CH EDID Sys.Reset Power HDMI INPUT DC 5V Page 2...
Page 5 2. EDID Control Switch: Default setting is TV (downstream). In this mode the QU-14WE will search all output ports (starting at output 1) for the highest video/audio settings connected to each of the outputs. The detection priority of the matrix is v1.3 HDMI, v1.2 HDMI, DVI. Switch to STD (fixed EDID) if you have any issues with the default setting (TV).
Page 6 4. Connection Diagram Page 4...
Page 7: Specifications
5. Specifications Input Port 1 x HDMI Output Port 4 x HDMI Power Supply 5V/3.2A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 94(W) x 187(D) x 32(H) Gross Weight (g) Net. Weight (g) Chassis Material Aluminium Colour Black Operating Temperature Operating from 0°C ~ 40°C Power Consumption 5.5W (max.)
Page 8 www.cypeurope.com...
