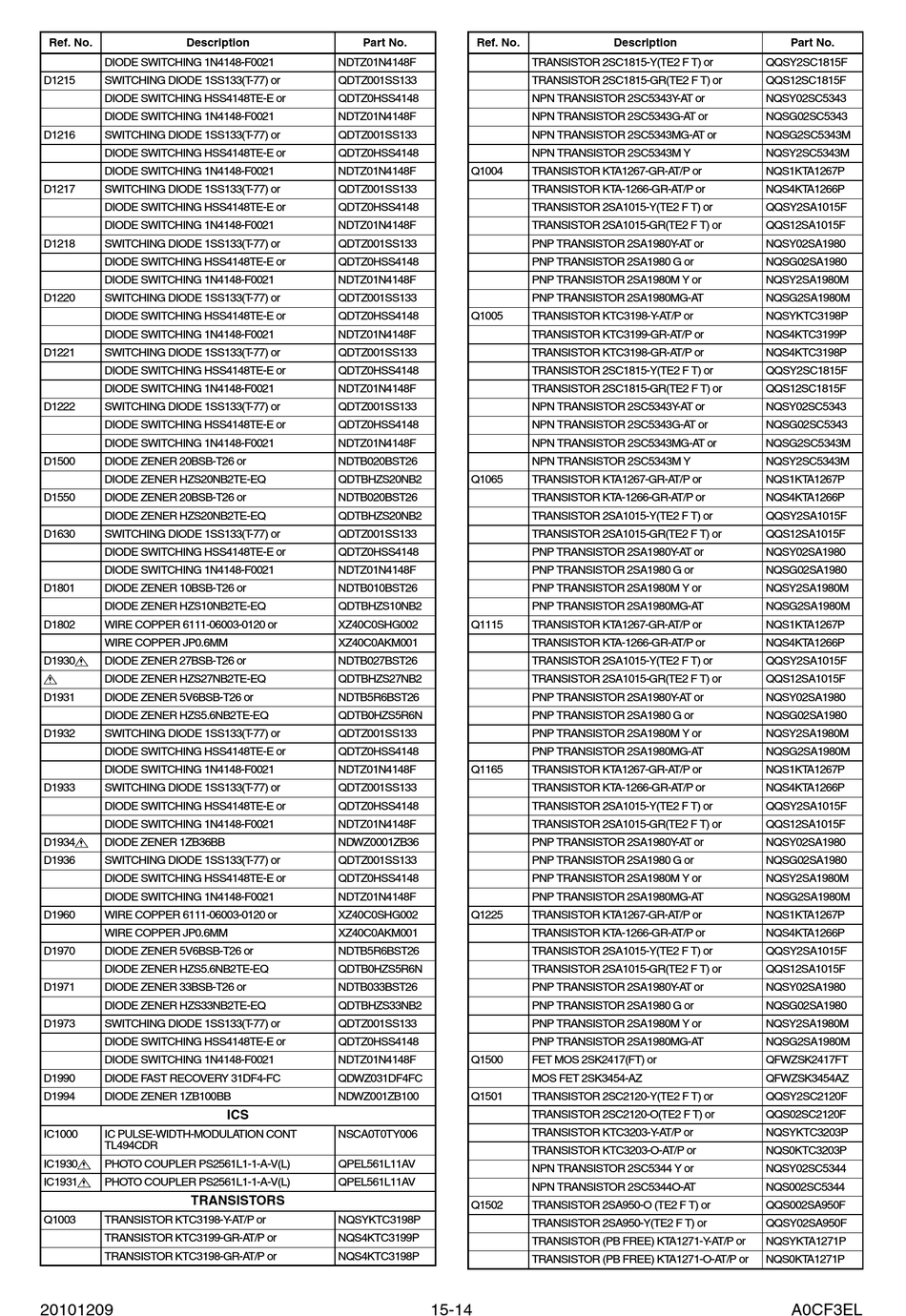

FUNAI LT850-M32 Service Manual page 71

Ref. No. Description
DIODE SWITCHING 1N4148-F0021
D1215 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1216 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1217 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1218 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1220 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1221 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1222 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1500 DIODE ZENER 20BSB-T26 or
DIODE ZENER HZS20NB2TE-EQ
D1550 DIODE ZENER 20BSB-T26 or
DIODE ZENER HZS20NB2TE-EQ
D1630 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1801 DIODE ZENER 10BSB-T26 or
DIODE ZENER HZS10NB2TE-EQ
D1802 WIRE COPPER 6111-06003-0120 or
WIRE COPPER JP0.6MM
D1930! DIODE ZENER 27BSB-T26 or
DIODE ZENER HZS27NB2TE-EQ
!
D1931 DIODE ZENER 5V6BSB-T26 or
DIODE ZENER HZS5.6NB2TE-EQ
D1932 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1933 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1934! DIODE ZENER 1ZB36BB
D1936 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1960 WIRE COPPER 6111-06003-0120 or
WIRE COPPER JP0.6MM
D1970 DIODE ZENER 5V6BSB-T26 or
DIODE ZENER HZS5.6NB2TE-EQ
D1971 DIODE ZENER 33BSB-T26 or
DIODE ZENER HZS33NB2TE-EQ
D1973 SWITCHING DIODE 1SS133(T-77) or
DIODE SWITCHING HSS4148TE-E or
DIODE SWITCHING 1N4148-F0021
D1990 DIODE FAST RECOVERY 31DF4-FC
D1994 DIODE ZENER 1ZB100BB
IC1000 IC PULSE-WIDTH-MODULATION CONT
TL494CDR
IC1930! PHOTO COUPLER PS2561L1-1-A-V(L)
IC1931! PHOTO COUPLER PS2561L1-1-A-V(L)
TRANSISTORS
Q1003 TRANSISTOR KTC3198-Y -AT/P or
TRANSISTOR KTC3199-GR-AT/P or
TRANSISTOR KTC3198-GR-AT/P or
20101209
Part No.
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
NDTB020BST26
QDTBHZS20NB2
NDTB020BST26
QDTBHZS20NB2
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
NDTB010BST26
QDTBHZS10NB2
XZ40C0SHG002
XZ40C0AKM001
NDTB027BST26
QDTBHZS27NB2
NDTB5R6BST26
QDTB0HZS5R6N
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
NDWZ0001ZB36
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
XZ40C0SHG002
XZ40C0AKM001
NDTB5R6BST26
QDTB0HZS5R6N
NDTB033BST26
QDTBHZS33NB2
QDTZ001SS133
QDTZ0HSS4148
NDTZ01N4148F
QDWZ031DF4FC
NDWZ001ZB100
ICS
NSCA0T0TY006
QPEL561L11AV
QPEL561L11AV
NQSYKTC3198P
NQS4KTC3199P
NQS4KTC3198P
Ref. No.
TRANSISTOR 2SC1815-Y(TE2 F T) or
TRANSISTOR 2SC1815-GR(TE2 F T) or
NPN TRANSISTOR 2SC5343Y -AT or
NPN TRANSISTOR 2SC5343G-AT or
NPN TRANSISTOR 2SC5343MG-AT or
NPN TRANSISTOR 2SC5343M Y
Q1004 TRANSISTOR KTA1267-GR-AT/P or
TRANSISTOR KTA-1266-GR-AT/P or
TRANSISTOR 2SA1015-Y(TE2 F T) or
TRANSISTOR 2SA1015-GR(TE2 F T) or
PNP TRANSISTOR 2SA1980Y-AT or
PNP TRANSISTOR 2SA1980 G or
PNP TRANSISTOR 2SA1980M Y or
PNP TRANSISTOR 2SA1980MG-AT
Q1005 TRANSISTOR KTC3198-Y-AT/P or
TRANSISTOR KTC3199-GR-AT/P or
TRANSISTOR KTC3198-GR-AT/P or
TRANSISTOR 2SC1815-Y(TE2 F T) or
TRANSISTOR 2SC1815-GR(TE2 F T) or
NPN TRANSISTOR 2SC5343Y -AT or
NPN TRANSISTOR 2SC5343G-AT or
NPN TRANSISTOR 2SC5343MG-AT or
NPN TRANSISTOR 2SC5343M Y
Q1065 TRANSISTOR KTA1267-GR-AT/P or
TRANSISTOR KTA-1266-GR-AT/P or
TRANSISTOR 2SA1015-Y(TE2 F T) or
TRANSISTOR 2SA1015-GR(TE2 F T) or
PNP TRANSISTOR 2SA1980Y-AT or
PNP TRANSISTOR 2SA1980 G or
PNP TRANSISTOR 2SA1980M Y or
PNP TRANSISTOR 2SA1980MG-AT
Q1115 TRANSISTOR KTA1267-GR-AT/P or
TRANSISTOR KTA-1266-GR-AT/P or
TRANSISTOR 2SA1015-Y(TE2 F T) or
TRANSISTOR 2SA1015-GR(TE2 F T) or
PNP TRANSISTOR 2SA1980Y-AT or
PNP TRANSISTOR 2SA1980 G or
PNP TRANSISTOR 2SA1980M Y or
PNP TRANSISTOR 2SA1980MG-AT
Q1165 TRANSISTOR KTA1267-GR-AT/P or
TRANSISTOR KTA-1266-GR-AT/P or
TRANSISTOR 2SA1015-Y(TE2 F T) or
TRANSISTOR 2SA1015-GR(TE2 F T) or
PNP TRANSISTOR 2SA1980Y-AT or
PNP TRANSISTOR 2SA1980 G or
PNP TRANSISTOR 2SA1980M Y or
PNP TRANSISTOR 2SA1980MG-AT
Q1225 TRANSISTOR KTA1267-GR-AT/P or
TRANSISTOR KTA-1266-GR-AT/P or
TRANSISTOR 2SA1015-Y(TE2 F T) or
TRANSISTOR 2SA1015-GR(TE2 F T) or
PNP TRANSISTOR 2SA1980Y-AT or
PNP TRANSISTOR 2SA1980 G or
PNP TRANSISTOR 2SA1980M Y or
PNP TRANSISTOR 2SA1980MG-AT
Q1500 FET MOS 2SK2417(FT) or
MOS FET 2SK3454-AZ
Q1501 TRANSISTOR 2SC2120-Y(TE2 F T) or
TRANSISTOR 2SC2120-O(TE2 F T) or
TRANSISTOR KTC3203-Y-AT/P or
TRANSISTOR KTC3203-O-AT/P or
NPN TRANSISTOR 2SC5344 Y or
NPN TRANSISTOR 2SC5344O-AT
Q1502 TRANSISTOR 2SA950-O (TE2 F T) or
TRANSISTOR 2SA950-Y(TE2 F T) or
TRANSISTOR (PB FREE) KTA1271-Y -AT/P or
TRANSISTOR (PB FREE) KTA1271-O-AT/P or
15-14
Description
QQSY2SC1815F
QQS12SC1815F
NQSY02SC5343
NQSG02SC5343
NQSG2SC5343M
NQSY2SC5343M
NQS1KTA1267P
NQS4KTA1266P
QQSY2SA1015F
QQS12SA1015F
NQSY02SA1980
NQSG02SA1980
NQSY2SA1980M
NQSG2SA1980M
NQSYKTC3198P
NQS4KTC3199P
NQS4KTC3198P
QQSY2SC1815F
QQS12SC1815F
NQSY02SC5343
NQSG02SC5343
NQSG2SC5343M
NQSY2SC5343M
NQS1KTA1267P
NQS4KTA1266P
QQSY2SA1015F
QQS12SA1015F
NQSY02SA1980
NQSG02SA1980
NQSY2SA1980M
NQSG2SA1980M
NQS1KTA1267P
NQS4KTA1266P
QQSY2SA1015F
QQS12SA1015F
NQSY02SA1980
NQSG02SA1980
NQSY2SA1980M
NQSG2SA1980M
NQS1KTA1267P
NQS4KTA1266P
QQSY2SA1015F
QQS12SA1015F
NQSY02SA1980
NQSG02SA1980
NQSY2SA1980M
NQSG2SA1980M
NQS1KTA1267P
NQS4KTA1266P
QQSY2SA1015F
QQS12SA1015F
NQSY02SA1980
NQSG02SA1980
NQSY2SA1980M
NQSG2SA1980M
QFWZSK2417FT
QFWZSK3454AZ
QQSY2SC2120F
QQS02SC2120F
NQSYKTC3203P
NQS0KTC3203P
NQSY02SC5344
NQS002SC5344
QQS002SA950F
QQSY02SA950F
NQSYKTA1271P
NQS0KTA1271P
Part No.
A0CF3EL
