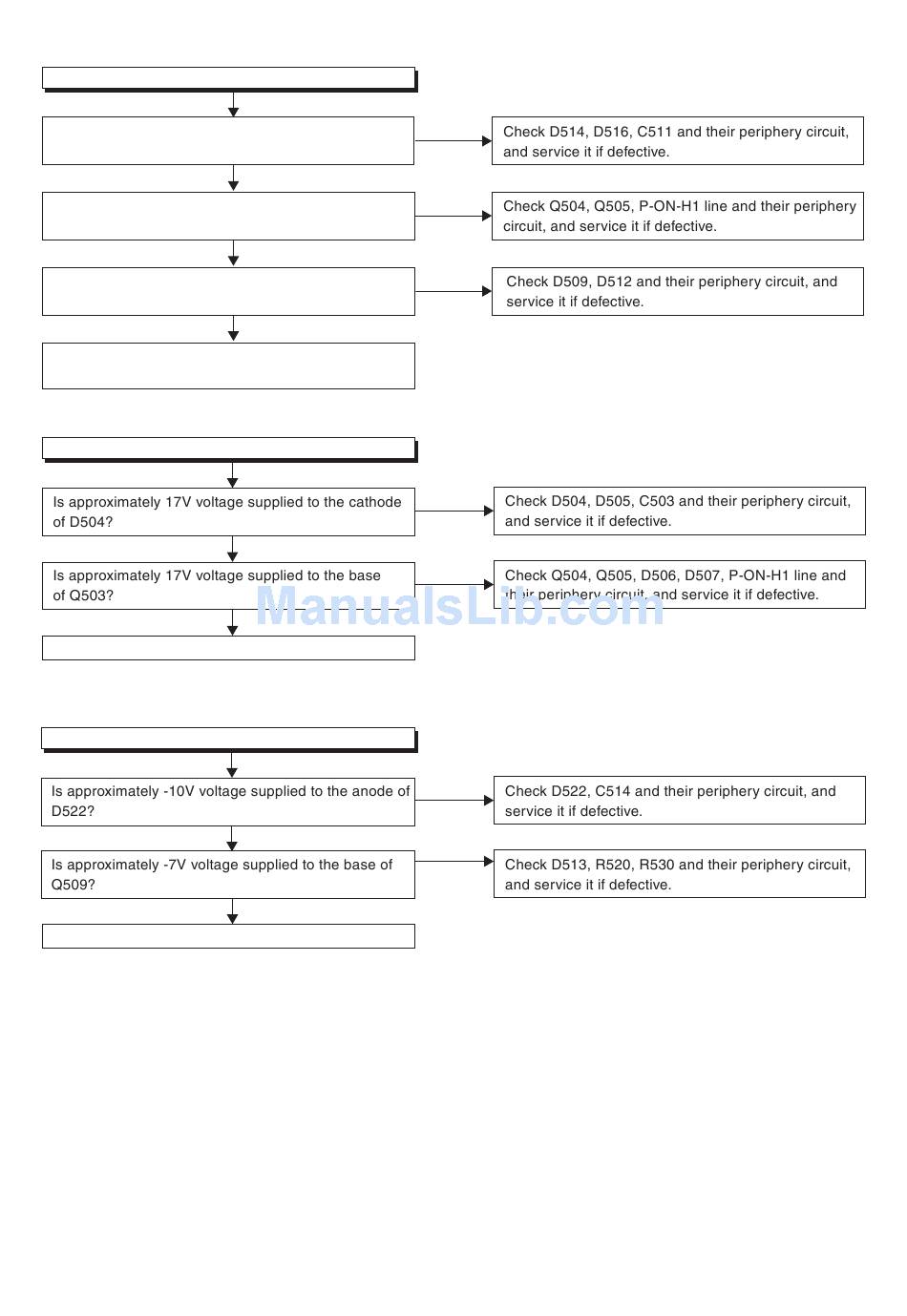

FLOW CHART NO.8

LCD+24V is not output.

Is approximately 32V voltage supplied to the cathode
of D514?
Is approximately 32V voltage outputted to the collector
of Q504?
Is approximately 24V voltage supplied to the emitter
of Q405?
Check Q404, Q405 and their periphery circuit, and
service it if defective.
FLOW CHART NO.9

LCD+16V is not output.

Replace Q503.
FLOW CHART NO.10

LCD-6.8V is not output.

Replace Q509.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
8-3
