Bryant Legacy 215B Product Data

Legacy series heat pump with puron refrigerant size 1--1/2 -- 5 nominal tons
Hide thumbs Also See for Legacy 215B:

Advertisement

Table of Contents

See also: Instruction and Installation Manual
215B

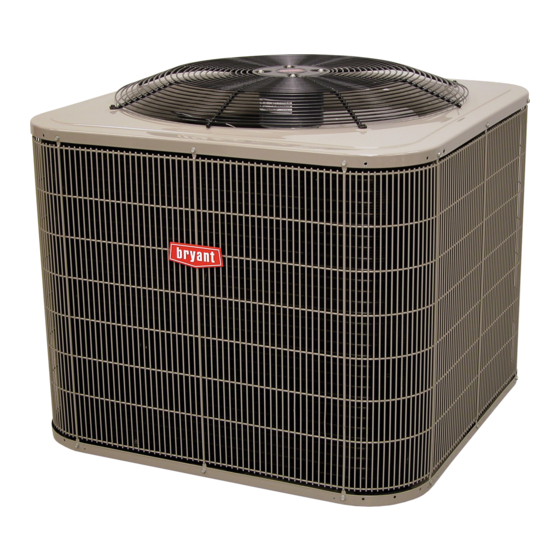

Legacyt Line Heat Pump
with Puronr Refrigerant
Size 1- - 1/2 - - 5 Nominal Tons
the environmentally sound refrigerant
Bryant heat pumps with Puronr refrigerant provide a collection of
features unmatched by any other family of equipment. The 215B
has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
This product has been designed and manufactured to meet Energy
Starr criteria for energy efficiency when matched with appropriate
coil components. Refer to the combination ratings in the Product
Data for system combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time.
Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S 15 SEER/ 12.5 EER / 8.0 - - 9.0 HSPF
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available
Sound
S Sound level as low as 69 dBA
S Sound levels as low as 68 dBA with accessory sound blanket
Comfort
S System supports Edger Thermidistatt or standard thermostat
controls
Reliability
S Puronr refrigerant - - environmentally sound, won't deplete the
ozone layer and low lifetime service cost.
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability
Durability
DuraGuardt protection package:
S Solid, durable sheet metal construction
S Dense wire coil guard standard
S Baked- -on powder paint
Applications
S Long- -line - - up to 250 feet (76.20 m) total equivalent length, up
to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.
(24.38 m) evaporator above condenser (See Longline Guide for
more information.)
S Low ambient cooling (down to - -20_F/- -28.9_C) with accessory
kit
