Consonance LP6.1 User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

LP6.1 Turntable
USER GUIDE
Congratulations on your new CONSONANCE!
Opera Audio products are based on a simple philosophy:
The component shall reproduce the original musical sound, purely and naturally.
The products are easy to operate and are manufactured according to the best quality
principles.
All CONSONANCE products are created with acoustical instruments in a concert situation
as point of reference. The music is reproduced exactly like the original and is limited only
by the quality of the recording.
Our aim is to give you the best possible music experience!
CONTENTS
Partlist p.1

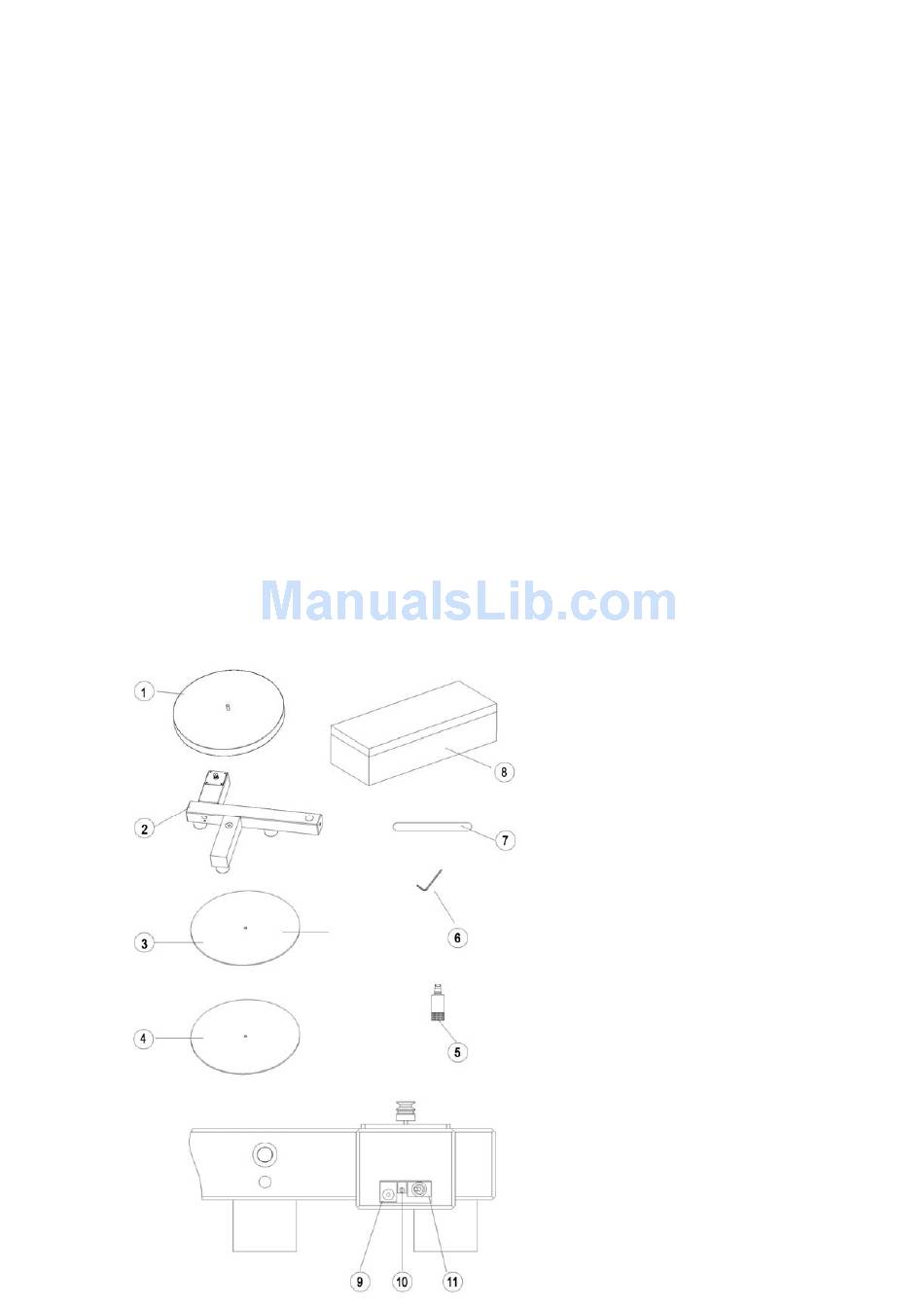

Partlist
1. Platter
2. Plinth
3. Strobe disc
4.Record mat
5. Lubrication oil
6. 5mm allen wrench
7. Belt
8. T988 tone-arm
9. Power supply socket
10.Speed adjustment POT
11. On-off switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP6.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Consonance LP6.1

Summary of Contents for Consonance LP6.1

  • Page 1: Table Of Contents

    The products are easy to operate and are manufactured according to the best quality principles. All CONSONANCE products are created with acoustical instruments in a concert situation as point of reference. The music is reproduced exactly like the original and is limited only by the quality of the recording.

  • Page 2: Assembling The Turntable

    Assembling the Turntable 1.Take out the plinth. 2.Fill the bearing with lubrication oil supplied to a level of approx 5mm above the bottom bearing.
  • Page 3 3. Installing the platter. Put on the cotton gloves and pick up the acrylic platter, with the dip for the record label uppermost. Hold it level over the bearing housing, locate it carefully and gently lower it until it seats fully over the bearing.
  • Page 4 4.There are two ruts on the pulley of motor. The above rut is for 33.3 rpm, and the other rut is for 45 rpm. Different ruts for the different speed. 5.Fitting the cartridge and tonearm adjustments.Please take tonearm manual as reference.The tonearm VTA adjustment should be according to the pictures below.

  • Page 5: Technical Specifications

    ⑩ is for tiny speed adjustment.If the speed has small distinction,you can use strobe disc to test and ⑩ adjust Motor power supply use DC 12V. TECHNICAL SPECIFICATION Wow and Flutter: Less than 0.03 Rumble: Greater than 80dB down Speed accuracy: Within 0.01% Motor power : DC 12V...

  • Page 6: Use & Placement

    USE & PLACEMENT The Consonance LP6.1 should be placed on a flat, hard surface for proper standing. The turntable performs best after being switched on for 5 minutes for running smooth. A certain space is required for tonearm moving above the turntable on the right side. The turntable must never be placed on a soft or unstable base.

  • Page 7: Warranty

    Please mail or e-mail the Registration Card to the address as follows: The Opera Audio Co., Ltd. No.2 JianXianQiaoLu ChaoYang District Beijing, China Tel: 86 10 59789461 Fax: 86 10 59789465 support@opera-consonance.com www.opera-consonance.com Registration Card Name Address City State Email...
