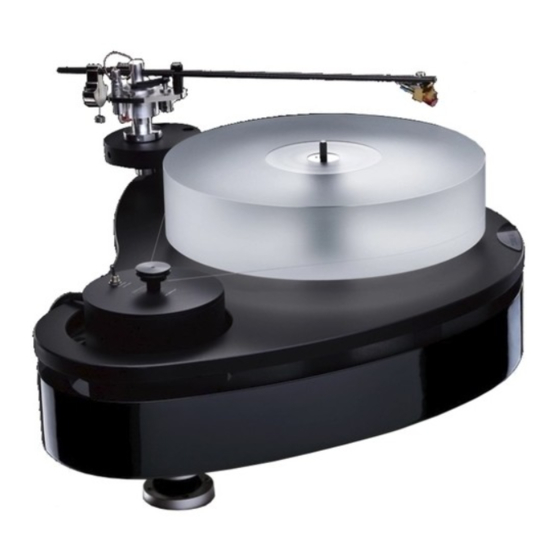

Droplet LP5.0 MKII Turntable
USER GUIDE
Congratulations on your new CONSONANCE!
Opera Audio products are based on a simple philosophy:
The component shall reproduce the original musical sound, purely and naturally.
The products are easy to operate and are manufactured according to the best
quality principles.
All CONSONANCE products are created with acoustical instruments in a concert
situation as point of reference. The music is reproduced exactly like the original
and is limited only by the quality of the recording.
Our aim is to give you the best possible music experience!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Consonance Droplet LP5.0 MKII
Summary of Contents for Consonance Droplet LP5.0 MKII
- Page 1 The products are easy to operate and are manufactured according to the best quality principles. All CONSONANCE products are created with acoustical instruments in a concert situation as point of reference. The music is reproduced exactly like the original and is limited only by the quality of the recording.
- Page 2 Partlist 1. plinth 2. ball for bearing (ceramic) 3. bearing 4. platter 5. met 6. Strobe Disc 7. lubrication oil 8. arm base 9. belt 10. allen wrench 11. DC motor speed controller 12. tone-arm...
- Page 3 Assembling the Turntable 1. Open the box and take out the turntable plinth. 2. Put ceramic ball (2) in the bearing house, a few drops of lubricant into it and Insert the bearing (3) .Gently rotate the bearing using your finger to ensure it is covered with a thin film of oil to ensure it runs smoothly.
- Page 4 4. Connecting the speed controller to the DC motor socket safely. Take out one of the drive 'belts' and run it round the motor spindle and then round the platter. Put the Strobe Disc on the platter, and adjust the speed controller knob to get the 33.3rpm or 45rpm.
- Page 5 5. Fix the tone-arm base with height on the main turntable base. last step Use the adjustable feet of the turntable to level the turntable using the extra spirit level.
- Page 6 100V~240V 50Hz / 60Hz AC dependent on country. USE & PLACEMENT The Consonance LP5.0 MK2 should be placed on a flat, hard surface for proper standing. The turntable performs best after being switched on for 5 minutes for running smooth. A certain space is required for tonearm moving above the turntable on the right side.
- Page 7 Please mail or e-mail the Registration Card to the address as follows: The Opera Audio Co., Ltd. No.2 JiuXianQiaoLu ChaoYang District Beijing, China Tel: 86 10 59789461 Fax: 86 10 59789265 support@opera-consonance.com operaamp@vip.163.com http://www.opera-consonance.com Registration Card Name Address City State...
