Bugera 6262 User Manual
Hide thumbs Also See for 6262:

Advertisement

A50-62113-00007
6262/6262-212/6260/6260-212

User Manual

en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6262 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bugera 6262

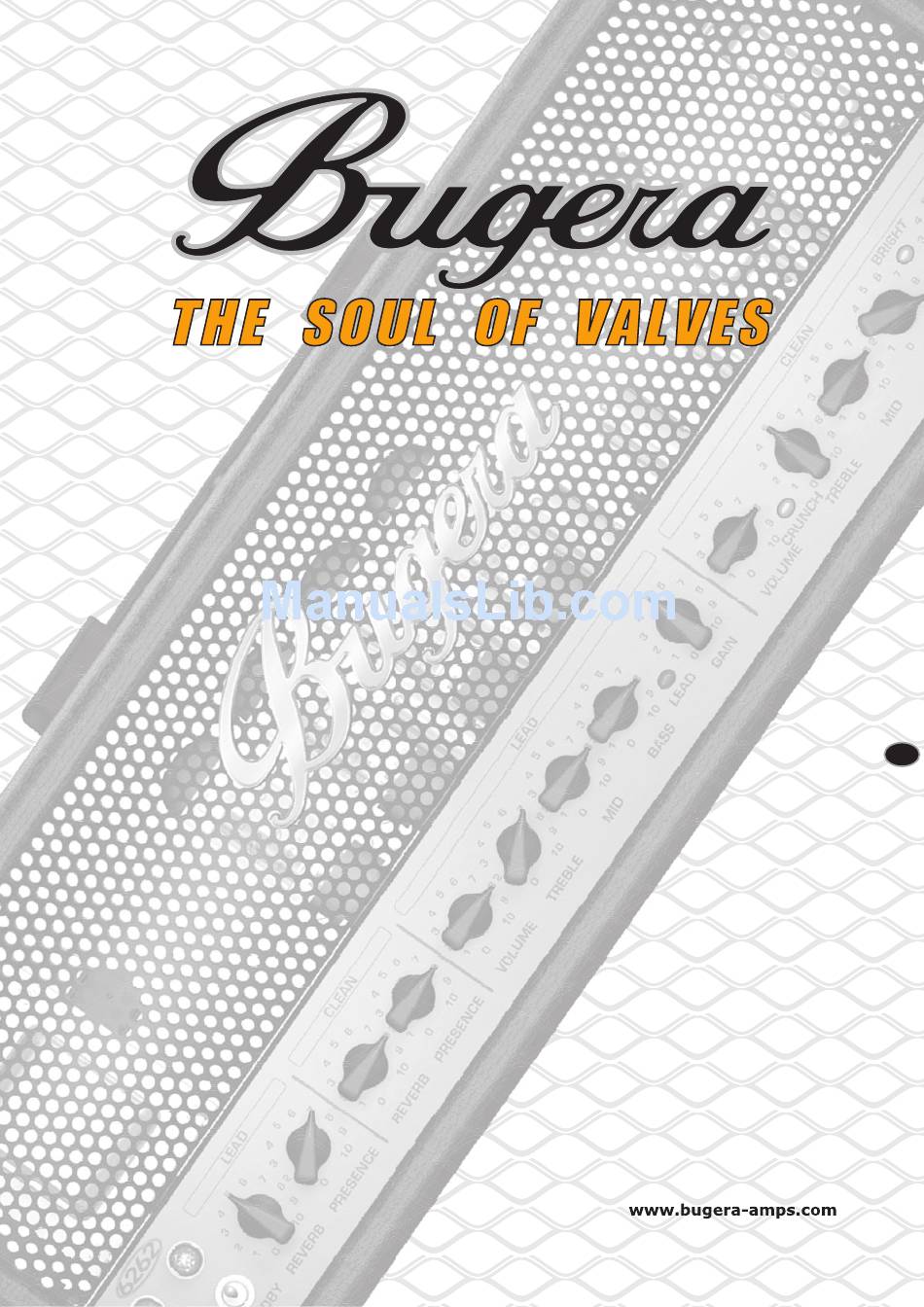

  • Page 1: User Manual

    A50-62113-00007 6262/6262-212/6260/6260-212 User Manual...
  • Page 2: Important Safety Instructions

    Important safety instructions CAUTION: High voltage! Risk of death! High voltages of up to 500 V DC may be present inside the casing for long periods after being disconnected from the mains. To avoid lethal electric shock, do not open the casing. There are no user-serviceable components inside.
  • Page 3: Table Of Contents

    Online registration ......................4 Control elements ................5 Front panel ........................5 Rear panel ........................6 Footswitch ........................6 Inside the BUGERA ......................7 Instructions for qualified service personnel only ..............7 Wiring the BUGERA ................8 Audio connections ................9 Specifications ................. 10 Limited warranty ................11...
  • Page 4: Important Notice

    Clean channel and much more. This way you’re in full control and can get down to the nitty-gritty—your music! Discover the killer sound of the BUGERA and be inspired by its versatility. Whatever style you play, this monster amp gives you the full valve power that you require.
  • Page 5: Control Elements

    CLEAN switch activates the CLEAN channel (switch glows green). REVERB control determines the amount of the You can also activate both channels with the built-in reverb effect. The 6262 (and 6262-212) supplied footswitch. Refer to „Footswitch“ for features individual REVERB controls for the LEAD details.
  • Page 6: Rear Panel

    FOOTSW(itch) connector of the cabinet(s). The minimum impedance is 4 Ohms. The BUGERA amplifier. Be sure to make a connection IMPEDANCE switch should always be set to match before switching on the amplifier.
  • Page 7: Inside The Bugera

    Please take care that the BIAS SE- To avoid lethal electric shock, do not open LECT switch (34) is set correctly. The BUGERA amp the casing. There are no user-serviceable is supplied with 6L6GC power amp valves when it components inside.
  • Page 8: Wiring The Bugera

    To avoid burning yourself, make all connections while the unit is still cold. ATTENTION! TO AVOID DAMAGE TO YOUR AMP, NEVER USE THE BUGERA VALVE AM- PLIFIER WITHOUT A LOUDSPEAKER CON- NECTED! The BUGERA amplifier has two paralleled LOUDSPEAKER outputs which are used to connect one or two speaker cabinets.
  • Page 9: Audio Connections

    Audio connections The following figure shows a setup of the 6262-212 to- gether with an external effects unit connected over the FX LOOP. And the PREAMP OUT is connected to the line The inputs and outputs of the BUGERA amplifier use input of a mixer in order to send the signal to a recording mono jack connectors.
  • Page 10: Specifications

    Specifications PREAMP SECTION Valves Type 1 x 12AX7A 1 x 12AX7B 3 x 12AX7C (6260 and 6260-212) 4 x 12AX7C (6262 and 6262-212) Preamp high-gain input Impedance 470 kΩ Clean channel Nominal input level -34 dBV Min. input level -50 dBV Max.
  • Page 11: Limited Warranty

    Technical specifications and appearance are subject to change without notice. The information contained herein is correct at the time of printing. All trade- marks (except BUGERA, the BUGERA logo, and THE SOUL OF VALVES) mentioned belong to their respective owners, and such use neither constitutes a claim of the trademarks by RED CHIP COMPANY LTD nor affiliation of the trademark owners with RED CHIP COMPANY LTD.
  • Page 12 Phone/Fax No.: Phone: +1 425 672 0816 Fax: +1 425 673 7647 BUGERA 6262/6262-212/6260/6260-212 complies with the FCC rules as mentioned in the following paragraph: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
