- Page 1 RemoteMix 4 Portable Broadcast Mixer User Guide JK Audio...

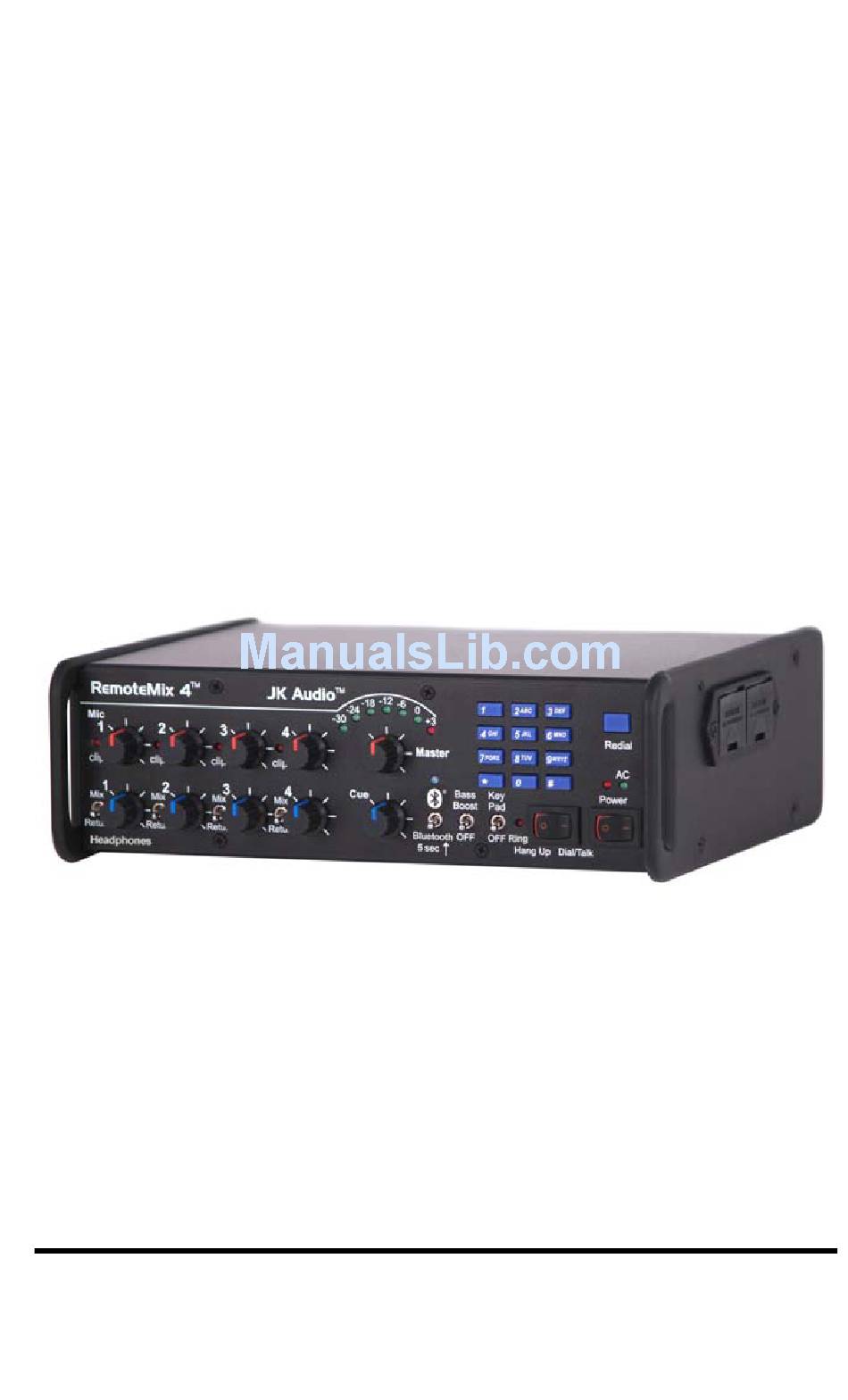

- Page 2 Introduction RemoteMix 4 is a four channel field mixer combined with a four channel headphone amplifier. It includes a telephone line hybrid and keypad, as well as a universal PBX handset interface and a 2.5 mm wireless phone interface. All this comes in a tough, port- able unit that's smaller than a lunch box.
- Page 3 Connection 1. Mic inputs 1 and 2 are balanced XLR jacks with low-noise am- plifiers. 2. Mic inputs 3 and 4 are balanced XLR jacks with low-noise am- plifiers. A mic/line selector switch adds a 40 dB pad for a line level balanced input.
-
Page 4: Operation
Operation 1. Connect your audio equipment, microphones, cue input, and headphones to the input and output jacks on RemoteMix 4. 2. (a) Connect the jack marked "Phone Line" to any standard analog telephone line, or (b) Disconnect the handset on an existing telephone and plug... - Page 5 Operation Phone Line The RemoteMix 4 has an RJ-11 jack that can be connected to any standard, single line analog telephone line. This jack should not be connected directly to digital PBX or ISDN phone systems. Handset Interface If you do not have access to an analog phone line or if the phone system is a digital or analog PBX, ISDN, or a key telephone system, you can use the built-in handset interface.
- Page 6 If you are having level problems that cannot be corrected with the controls on the RemoteMix 4, try adjusting the level on the wireless telephone itself. Bluetooth Wireless Technology This switch activates the Bluetooth Wireless Technology.
- Page 7 Dial / Talk position. Ringer RemoteMix 4 does not have an audible ringer but there is a visual ring indicator that will flash for incoming calls. This red LED is lo- cated directly below the keypad.
- Page 8 We also provide a high quality, regulated AC to DC adapter to power RemoteMix 4 when AC power is available. Simply plug it into the back of RemoteMix 4 and plug the transformer into a wall outlet. This is a switching power supply so you can connect to a 110 or 220 VAC power source.
- Page 9 4 will automatically disconnect Bluetooth in two minutes. *The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license. Other trademarks and trade names are those of their respective owners.
- Page 10 Why doesn't my RemoteMix 4 ring when a call comes in? The audible ringer found on some of our other RemoteMix units was replaced with a visual ring indicator on the RemoteMix 4. This red LED flashes when a call comes in. The Ring indicator is located directly below the keypad on the front of the unit.
- Page 11 Mic 4 input can be switched to accept a line level signal from a mixer or other equipment. I've lost my power supply for my RemoteMix 4 unit. I have another power supply that fits from a different product. Can I use this in-...
-
Page 12: Block Diagram
Block Diagram... -
Page 13: Specifications
Specifications Inputs: Microphones(4): Female XLR 2k ohm (-25 dBu nom.) Channels 3 & 4 have -40 dB Mic/Line pad switch Line = +4 dBu nom., +16 dBu max., 50k ohms Line Input: 3.5mm Stereo line input, 20k ohms (-10 dBu nom.) Headphone Cue In: 1/4"... -
Page 14: Fcc Registration
FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. 1. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack. - Page 15 Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company. FCC-A Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 16: Warranty
Warranty RemoteMix 4 is covered by a two year warranty to be free from defective workmanship and materials. In the event that the RemoteMix 4 needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
