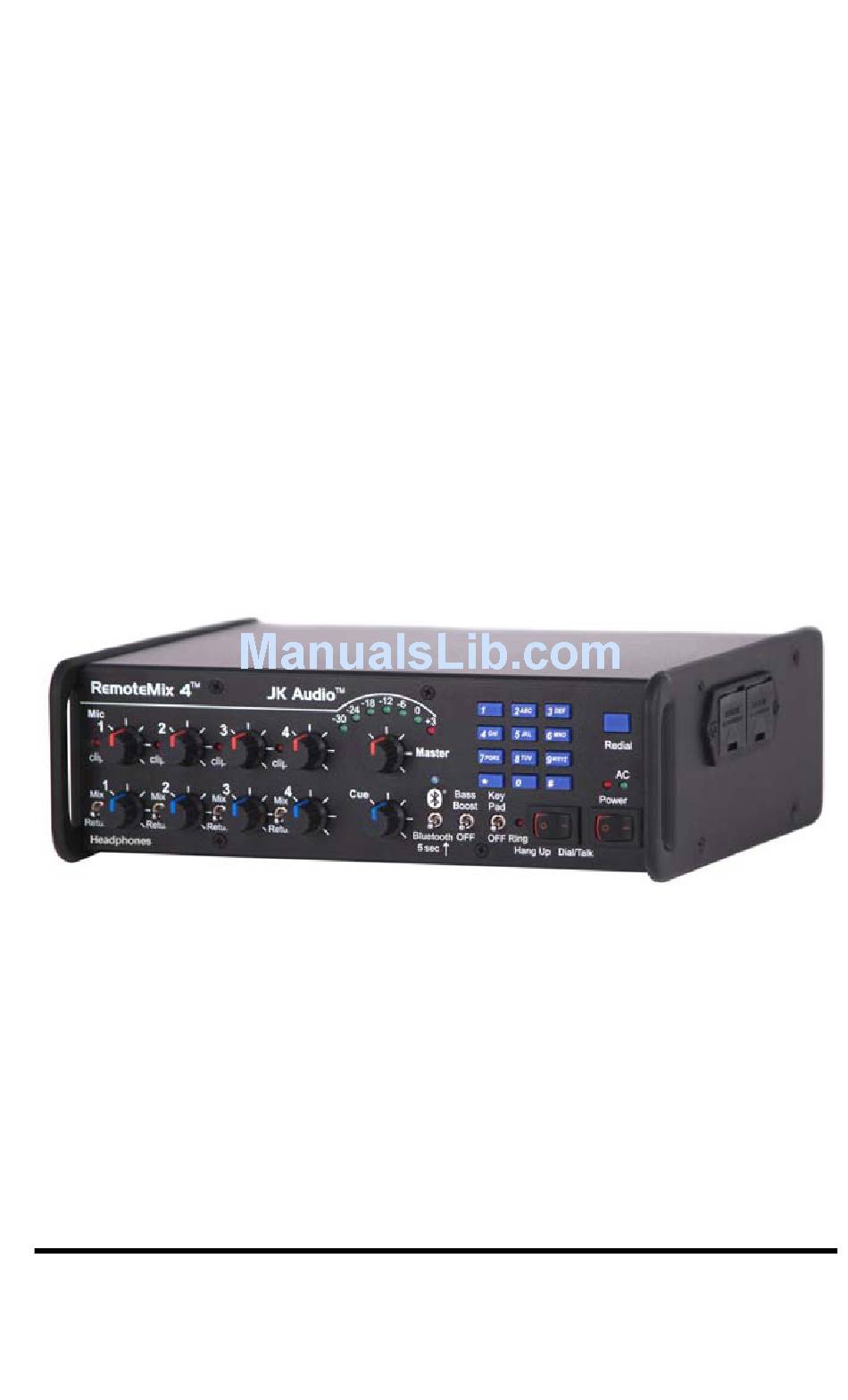

  • Page 1 RemoteMix 4 Portable Broadcast Mixer User Guide JK Audio...
  • Page 2 *The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license. Other trade- marks and trade names are those of their respective owners.
  • Page 3 Connection 1. Mic inputs 1 and 2 are balanced XLR jacks with low-noise amplifi- ers. 2. Mic inputs 3 and 4 are balanced XLR jacks with low-noise amplifi- ers. A mic/line selector switch adds a 40 dB pad for a line level balanced input.
  • Page 4 Connection 1. Connect your audio equipment, microphones, cue input, and headphones to the input and output jacks on RemoteMix 4. 2. (a) Connect the jack marked "Phone Line" to any standard analog telephone line, or (b) Disconnect the handset on an existing telephone and plug the...

  • Page 5: Operation

    Operation Phone Line The RemoteMix 4 has an RJ-11 jack that can be connected to any standard, single line analog telephone line. This jack should not be connected directly to digital PBX or ISDN phone systems. Handset Interface If you do not have access to an analog phone line or if the phone system is a digital or analog PBX, ISDN, or a key telephone system, you can use the built-in handset interface.
  • Page 6 Features Mic Level Controls Each of the four XLR inputs has a level control knob with a separate red Clip LED to indicate clipping on each channel. If you see more than an occasional flash of the Clip LED you should decrease the level for that channel.
  • Page 7 Ringer RemoteMix 4 does not have an audible ringer but there is a visual ring indicator that will flash for incoming calls. This red LED is lo- cated directly below the keypad.
  • Page 8 Features If using the phone line or handset interface for an IFB feed, the bal- anced male XLR output may be used to feed an IFB earpiece or other device. If using the 1/4” cue input / wireless adapter jack for the telephone connection, the IFB feed must be taken from one of the 1/4”...
  • Page 9 RemoteMix 4 when AC power is available. Simply plug it into the back of RemoteMix 4 and plug the transformer into a wall outlet. This is a switching power supply so you can connect to a 110 or 220 VAC power source.
  • Page 10 Monitor the Bluetooth audio path on headphones in the "Return" position on the RemoteMix 4. Pull up on the Bluetooth multi-function switch on the front of the RemoteMix 4 and hold for approximately 5 seconds. You will hear a beep in your headphones, followed by a second beep or beeps.
  • Page 11 To disconnect from the Bluetooth device, simply pull up on the Bluetooth multi-function switch and hold for 5 seconds. If left un- used in Idle mode or if a live call is disconnected, the RemoteMix 4 will automatically disconnect Bluetooth in two minutes.
  • Page 12 Page 10 of this User Guide for detailed information. What is the range of the Bluetooth transmitter/receiver? The RemoteMix 4 will transmit and receive audio signals up to 25 feet from your Bluetooth device. Because transmitting signals over longer distances will require more power, you should keep the RemoteMix 4 as close as possible to your Bluetooth device to conserve battery power.
  • Page 13 Why doesn't my RemoteMix 4 ring when a call comes in? The audible ringer found on some of our other RemoteMix units was replaced with a visual ring indicator on the RemoteMix 4. This red LED flashes when a call comes in. The Ring indicator is lo- cated directly below the keypad on the front of the unit.
  • Page 14 No. You may use rechargeable batteries, but you must remove and recharge the batteries outside of the RemoteMix 4. I've lost my power supply for my RemoteMix 4 unit. I have a power supply that fits from a different product. Can I use this...
  • Page 15 Notes...

  • Page 16: Block Diagram

    Block Diagram...

  • Page 17: Specifications

    Specifications Inputs: Microphones(4): Female XLR 2k ohm, (-25 dBu nom.) Channels 3 & 4 have -40 dB Mic/Line pad switch Line = +4 dBu nom., +16 dBu max., 50k ohms Line Input: 3.5mm Stereo line input, 20k ohms (-10 dBu nom.) Headphone Cue In: 1/4"...

  • Page 18: Fcc Registration

    FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. 1. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack.
  • Page 19 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment. FCC-B Part 15 Compliance This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 20: Warranty

    Warranty RemoteMix 4 is covered by a two year warranty to be free from defective workmanship and materials. In the event that the RemoteMix 4 needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
