Energenie EG-PM2 User Manual

Programmable power outlet strip
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
EG-PM2
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
PROGRAMMABLE POWER OUTLET STRIP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG-PM2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Energenie EG-PM2

Summary of Contents for Energenie EG-PM2

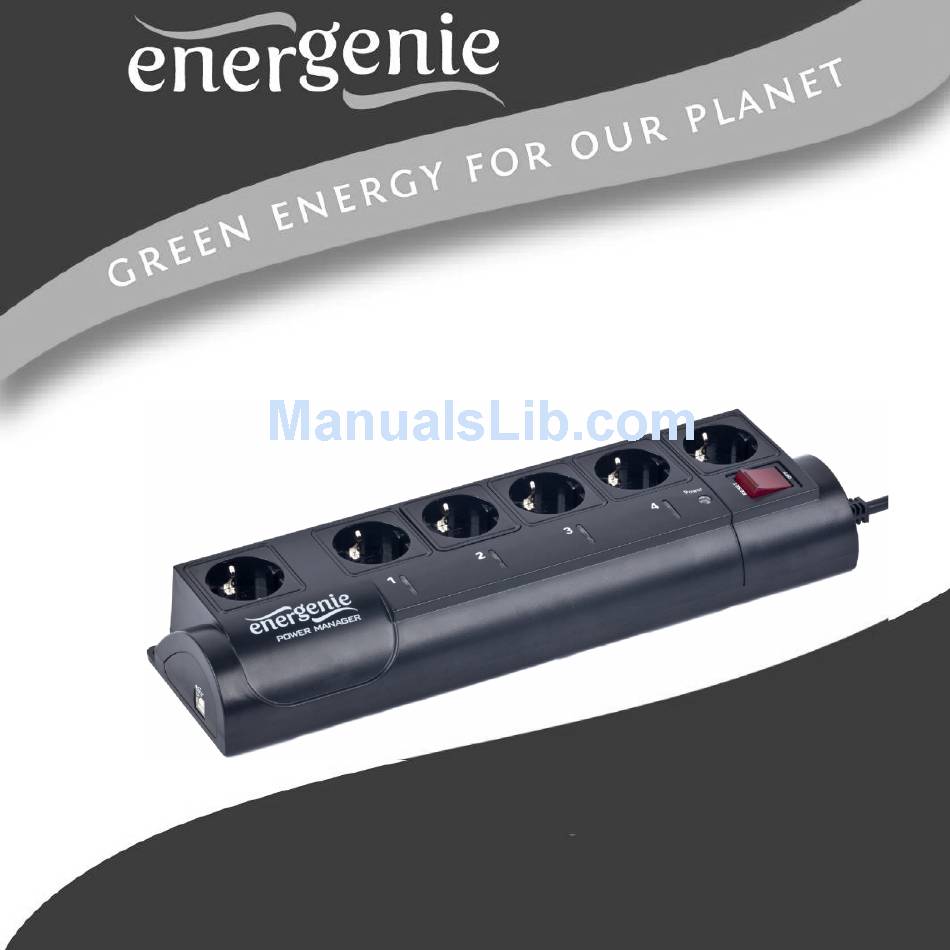

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EG-PM2 РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ КЕРІВНИЦТВО КОРИСТУВАЧА PROGRAMMABLE POWER OUTLET STRIP...
  • Page 2 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP PROGRAMMABLE POWER OUTLET STRIP PROGRAMMABLE POWER OUTLET STRIP PROGRAMMABLE POWER OUTLET STRIP BANDE PROGRAMMABLE PRISE DE COURANT ПРОГРАММИРУЕМЫЙ ЭЛЕКТРИЧЕСКИЙ УДЛИНИТЕЛЬ ПРОГРАМОВАНИЙ ЕЛЕКТРИЧНИЙ ПОДОВЖУВАЧ Do not plug several sockets in line   Do not use if covered ...
  • Page 3 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP 1. Introduction Your EG-PM2 is an advanced power outlet strip with power management features. Four sockets are individually manageable by the computer via USB interface. The sockets can be switched on/off by a timer schedule, by user or different events.

  • Page 4: Specifications

    1.2. Specifications  Input voltage: max 250 VAC, 50 – 60 Hz  Maximum load current: 10 A  Maximum power consumed by EG-PM2: 2.5 W  Built-in power supply  Hardware schedule features:  Maximum number of independent hardware schedule events – 16 per socket ...

  • Page 5: Hardware Requirements

    EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  Net weight: 1.0 kg 1.3. Hardware requirements  Computer running Windows® 2000/XP/Vista or Windows 7 / 8 is required for using the Power Manager software  One free USB port 1.4. Package contents The package contains: ...
  • Page 6 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP 2. Indicators and controls of EG-PM2 Figure #1 Main rocker switch (Z) with self-restoring fuse Power Socket 4 Socket 3 Socket 2 Socket 1 Non-manageable socket Non-manageable socket Indicator Socket 4 Indicator Socket 3 Indicator Socket 2...

  • Page 7: Indicators And Switches

    3. Installation  It is strongly recommended to avoid damp or wet places for installation.  EG-PM2 should be connected to the European AC wall socket of the standard DIN 49 440.  Do not plug several sockets in line ...

  • Page 8: Getting Started

    – so they are called non-manageable sockets in this manual.  If EG-PM2 is switched on then the Power indicator is lit. In this case both non-manageable sockets are now live and connected to the power supply.

  • Page 9: Power Manager Installation

    NOTE: If the total power consumption (or peak power) of the devices, connected to EG-PM2 exceeds 2500 Watts, the circuit breaker may power EG-PM2 off. In this case, please, remove the excessive load first and then (after 2-3 minutes) press the main rocker switch (Z) to restore the power supply.
  • Page 10 After a successful installation a socket icon will appear in your system tray. 4.1. Managing EG-PM2 Double click on the socket icon in the system tray or select Open from the popup menu, you will get the windows with device list (see Figure #2 below).
  • Page 11 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Push the Device settings button (bottom right here) to set the device- specific options (see Figure #3 below) Figure #3 Double click on the device and you will get the window of the main control panel shown on the Figure #4 below.
  • Page 12 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #4 Double click over each socket will switch it on and off (green color means the socket is switched off; red color means the socket is switched All brands and logos are registered trademarks of their respective owners...
  • Page 13 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP on). Click the Settings button for each socket to access the Settings dialog box (see Figure #5 below). Figure #5 You can choose a different device and another socket from the Device and Socket drop down list-boxes.
  • Page 14 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  It is possible to give a name to the device and socket (for example Printer or Scanner) using the Rename button  Check the System tray checkbox if you want to put the icon of the socket into the system tray.

  • Page 15: Setting Up The Hardware Schedule

    EG-PM2 PROGRAMMABLE POWER OUTLET STRIP 4.2. Setting up the hardware schedule Using the Hardware schedule button available from the Settings window you can create the hardware timer schedule (see Figure #6 below). To add a new record, click the Add button.
  • Page 16 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  The window Add entry will appear (see Figure #7 below). In the dialog box, specify the required time and the action Figure #7  To edit the record, select it and click the Edit button or just double click on the entry.
  • Page 17 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #8  To remove the record, select it and click the Remove button (see Figure #6 above). You can select multiple entries using Ctrl and Shift keys. You can also remove all entries from the schedule by clicking the Clear button (see Figure #6 above) ...
  • Page 18 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #9  After the schedule record has been created, click the Apply button (see Figure #6 above) to save the hardware timer schedule changes. In case of incorrect entries, these will be highlighted and an error message will appear.
  • Page 19 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  The new event time should be in the future  There can not be a duplicate entry  The total quantity of events can not exceed 16 per socket  The total quantity of events also depends on the total execution period of the schedule ...
  • Page 20 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP 4.3. Setting up the software schedule Using the Software schedule button available from the Settings window you can create the software timer schedule (see Figure #10 below). NOTE: the software timer schedule will only be executed if the managing computer is on and the Power Manager is launched.
  • Page 21 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  To add a new task, click the Add button. The Add task window will appear (see Figure #11 below) Figure #11 In the Add task window, check Switch ON time and/or Switch OFF time checkboxes and specify the time to switch the socked on and/or off.
  • Page 22 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP uncheck the Enabled checkbox and to enable the task again, re-check the checkbox.  To edit the task, select it (see Figure #10 above) and click the Edit button or just double click on the task. The Edit task window will...

  • Page 23: Setting Up Application Events

    EG-PM2 PROGRAMMABLE POWER OUTLET STRIP  To remove the task select it and click the Remove button (see Figure #9 above). You may select multiple tasks using Ctrl and Shift keys. You can also remove all tasks by clicking the Clear button HINT: Use the popup menu which can be activated by the right mouse button click over the table (see Figure #10 above).
  • Page 24 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #13  To add a new program event, click the Add app button. The Add program event dialog will appear (see Figure #14 below) All brands and logos are registered trademarks of their respective owners...
  • Page 25 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #14 Specify the application title and path to it using the Browse (…) button or typing it manually in the Title and Path name fields. If you use the Browse (…) button you can also select a shortcut to the application.
  • Page 26 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP via the shortcut if possible. After you have specified the application, check On run and/or On exit and choose the event (switch on or off). NOTE: The On run event will take place when the first window of the selected application is opened.
  • Page 27 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #15 Specify the path to the folder you would like to monitor using the Browse (…) button or typing it manually in the Path name field. Specify the File name mask using wildcard characters: *, ?. Check then On placing and/or On removal checkboxes and select the event and delay.
  • Page 28 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP HINT: Your device is an advanced standby-killer. Use the Add folder button to assign c:\\system32\\spool\\printers folder to switch your printer on whenever you start printing and to switch it off again whenever you are ready with printing.
  • Page 29 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Figure #16  To remove the event, select it and click the Remove button (see Figure #13 above). You can select multiple events using Ctrl and Shift keys. You can also remove all events by clicking the Clear...
  • Page 30 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP 5. Managing EG-PM2 via your own software To let you switch the sockets from your own applications the following command line interface syntax is supported:  pm.exe -[on | off] -device name -socket name Examples: ...
  • Page 31 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP NOTE: Each use of this command line option totally overrides the data in Info.ini file. NOTE: Power Manager should be active. All brands and logos are registered trademarks of their respective owners...

  • Page 32: Troubleshooting

    The rocker switch turns off. the EG-PM2-LAN should be disconnected before the rocker switch can be turned on The switching command is not There is no power supply to the EG-PM2. carried out and indicators are Please, make sure EG-PM2 not lit.
  • Page 33 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP All brands and logos are registered trademarks of their respective owners...
  • Page 34 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For sowohl der Umwelt als auch der menschlichen...
  • Page 35 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The warranty period is 24 months and begins with the sale to the end user. The receipt must clearly list Die Garantie beträgt 24 Monate ab Verkaufsdatum the date of purchase and the part number, in addition an den Endverbraucher.
  • Page 36 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE De garantietermijn bedraagt 24 maanden en gaat in Garantie est de 24 mois a partir de la date d’achat de l'utilisateur final. op de aankoopdatum van het product door de Le talon de garantie doit énumérer clairement la date...
  • Page 37 EG-PM2 PROGRAMMABLE POWER OUTLET STRIP ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
