Energenie EG-PMS-LANU User Manual

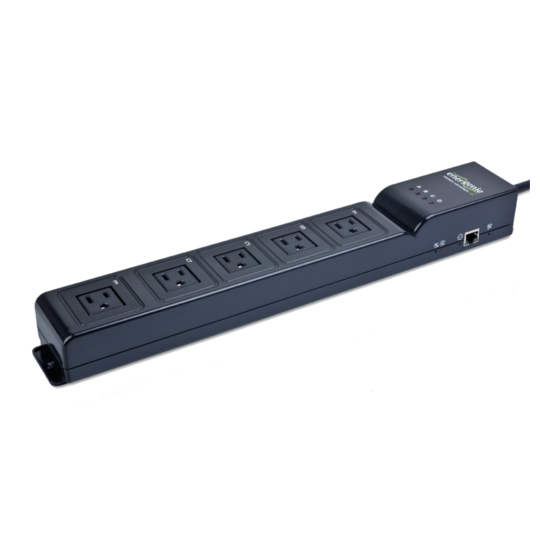

Energenie programmable power strip with lan interface
Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
EG-PMS-LANU ENERGENIE PROGRAMMABLE
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
POWER STRIP WITH LAN INTERFACE
КЕРІВНИЦТВО КОРИСТУВАЧА

Advertisement

loading
Need help?

Need help?

Do you have a question about the EG-PMS-LANU and is the answer not in the manual?

Questions and answers

Related Manuals for Energenie EG-PMS-LANU

Summary of Contents for Energenie EG-PMS-LANU

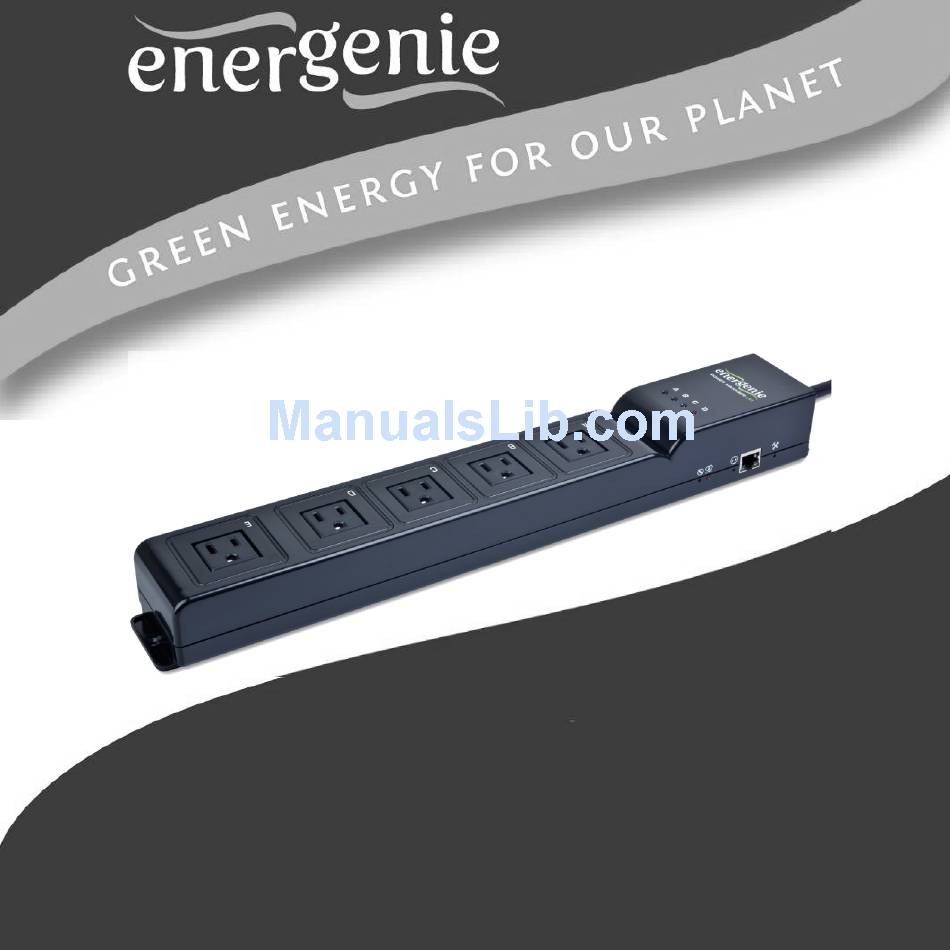

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EG-PMS-LANU ENERGENIE PROGRAMMABLE РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ POWER STRIP WITH LAN INTERFACE КЕРІВНИЦТВО КОРИСТУВАЧА...
  • Page 2 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Programmable surge protector with LAN interface Programmier- und steuerbare Steckdosenleiste mit LAN-Anschluss Programmeerbare power outlet strip met LAN interface Boîtier commandé à distance et programmable avec prise LAN Программируемый фильтр питания с...
  • Page 3 LAN and use it elsewhere. The device can be used as an advanced standby-killer. With your free personal user account at EnerGenie.com you can manage your EG-PMS-LANU via the Internet from all over the world, even from your Smartphone. 1.1. Features ...
  • Page 4 IP-filter and 64-bit password protected data encryption guarantees secure Internet access to EG-PMS-LANU  EG-PMS-LANU has a built-in battery for the timer schedule, so the timer schedule remains active even when EG-PMS-LANU is temporarily turned off Real time Voltage monitor provides information about the actual status of each manageable socket (on or off).

  • Page 5: Specifications

    EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 1.2. Specifications  Input voltage: up to 125 VAC, 50…60 Hz  Maximum load current: 15A  Maximum power consumption: 2.5 W  Built-in power supply  Power cord: 1.2 m AWG14 ...
  • Page 6 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 1.3. Hardware requirements  Local area network with RJ45 sockets  Any Internet-enabled computer connected to the local area network  Computer running Windows® 2000/XP/Vista or Windows 7 is required for using the Power Manager software (use of this software is not compulsory) 1.4.
  • Page 7 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 2. Indicators and controls of the EG-PМS-LAN Figure #1 Socket indicator: A, B, C, D, E (close up view IP Config Manageable socket A Button (C) Manageable socket B LAN socket Indicator...
  • Page 8 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #2 Main rocker switch (Z) and Power indicator with built-in self recovering fuse Figure #3 (close up view) All brands and logos are registered trademarks of their respective owners...
  • Page 9 2.1. Indicators  Main rocker switch Z (see Figure #1 above) is lit – this means that EG-PMS-LANU is connected to the power supply and active  The indicator Socket A (B,C,D,E) (see Figure #1 above) is lit – this means that this particular socket is switched on ...
  • Page 10 It is strongly recommended to avoid damp or wet places for installation. 3.1. Getting started  Connect EG-PMS-LANU to the wall socket first and then to the LAN socket (or your computer LAN card) with the provided patch cord or vice-versa. ...
  • Page 11 2-3 minutes, and then press the Power switch button to restore the power supply (see Figure #2 above). To be able to use EG-PMS-LANU you will now have to complete its LAN configuration. All brands and logos are registered trademarks of their respective owners...
  • Page 12 Before configuring EG-PMS-LANU hardware settings, please, let it obtain its IP address. Follow the steps below:  Make sure EG-PMS-LANU is connected to the local network with the provided RJ-45 cable (option A - recommended) NOTE: by default the factory setting of EG-PMS-LANU is DHCP enabled.
  • Page 13 IP filtering: disabled  Power Manager client port: 5000 ... EG-PMS-LANU then searches for an IP address from your eventual DHCP server. If no DHCP server is found within 1 minute, EG-PMS-LANU will then automatically revert to the default settings (see above, with IP: 192.168.0.254).
  • Page 14 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 3.3. Power Manager installation It is now time to identify which IP address has been obtained by EG-PMS-LAN. We need to carry out the following:  Insert the Power Manager CD into a PC CD-ROM drive. This PC can be connected either to the same LAN where the device is (if you chose option A section 3.2) or directly to the device with the...
  • Page 15 255.255.255.0. After the searching the IP addresses of the found EG-PMS-LANU devices will appear in the list box. Select EG-PMS-LANU which you want to access, and press the Open button (see Figure #4 below). All brands and logos are registered trademarks of their respective owners...
  • Page 16 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #4 The window of your default internet browser will be then opened to give you access to the built-in web-server. See section 4 below for the further details. All brands and logos are registered trademarks of their respective owners...
  • Page 17 Explorer (or other browser) and input the IP address of EG-PMS-LANU (for example http://192.168.1.241). If you have used Find EG-PMS-LANU utility to locate EG-PMS-LANU then you will be taken to this webpage automatically. Login page will then be displayed (see Figure #5 below).
  • Page 18 4.2. EnerGenie page With the help of EnerGenie page (see Figure #6 below) you will be able to see the status of all your four manageable sockets, and to switch the sockets on and off manually. The status of your sockets, as well as the buttons to switch them on/off are located at the top of the page.
  • Page 19 To register the device, simply push the button Register on this page (see Figure #6 below). You will then be redirected to Login page of EnerGenie.com. If you already own an account at EnerGenie.com then just enter your login and password on this page and you are done.
  • Page 20 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure # 6 All brands and logos are registered trademarks of their respective owners...
  • Page 21 After a successful registration and activation the button Register will be renamed to Login (and will then open the Login page of EnerGenie.com) and the button Activate will turn into Deactivate. If by any reason you would eventually decide to stop managing your EG- PMS-LANU from Internet use then Deactivate button to stop communication of the device with EnerGenie.com server.
  • Page 22 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #7 The socket shown on the Figure #7 is currently on, it will be turned on again automatically on the 9th of July at 14:40:30 and on the same day at 14:50:45 it will be switched off. Next day it will be turned on at 14:20:00 and at 14:30:15 it will be switched off.
  • Page 23 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Below the page you can see the current time of the web-server and eventual information about the last successful timer synchronization. Automatic timer synchronization is used if Use NTP for timer correction option is enabled (see section 4.6 below).
  • Page 24 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #8 Choose the date and time of the scheduled event. If you wish the event to be executed periodically then choose Periodic option and set the loop period. To commit to your changes press the Apply button. To delete the entry press the x button.
  • Page 25 On the Socket name settings page (see Figure #9 below) you can assign an applicable name to your sockets. These names will be shown on EnerGenie page (see section 4.2 above) as well as on the Socket pages (see section 4.3 above).
  • Page 26 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #9 All brands and logos are registered trademarks of their respective owners...
  • Page 27 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 4.5. LAN settings page Figure #10 All brands and logos are registered trademarks of their respective owners...
  • Page 28 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE On the LAN settings page (see Figure #10 above) you can set up DHCP, IP address, Subnet mask, Gateway, DNS server and IP filter (up to 3 IP addresses can then be enabled for remote access).
  • Page 29 STRIP WITH LAN INTERFACE 4.6. Device settings page On the device settings page you can setup name, password and internal time of EG-PMS-LANU (see Figure #11 below). Figure #11 All brands and logos are registered trademarks of their respective owners...
  • Page 30 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE To be able to setup the schedule of EG-PMS-LANU you have to first setup its internal clock correctly. Enter the current local time and date. Alternatively if the option Use NTP for timer correction is enabled (by default) then the time will be taken from NTP server.
  • Page 31 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Don’t forget to push the Apply button to save your settings. 4.7. Web-server logout Having finished working with EG-PMS-LAN, choose Log Out in the main menu. If you don’t do this, you will be logged automatically after 10 minutes of inactivity.
  • Page 32 EG-PMS-LANU from anywhere in the world using any Internet-enabled device (desktop PC, laptop, smartphone etc). See section 4.2 above on how to register your EG-PMS-LANU on the server and setup the connection. 5.1. Logging in...
  • Page 33 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Check Remember me checkbox for automatic login in the future (the website will then save a cookie on your computer). If you lost your password, click Forgot password button. 5.2. Device management page After a successful login you will see the list of your registered devices and their corresponding sockets (see Figure # 13 below).
  • Page 34 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE This page will automatically update itself and will keep showing you the time when your device was last seen online (the latest time when the device communicated with the server) and the status of each socket.
  • Page 35 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 6. Power Manager software The Power Manager software is designed to support not only EG- PMS-LANU but also other power management family products (please visit www.energenie.com) . 6.1. Finding EG-PMS-LAN To be able to manage preconfigured EG-PMS-LANs, please, do the following: ...
  • Page 36 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #14 The LAN devices window (see Figure #15 below) will appear, click Add button there to add a new EG-PMS-LANU device. All brands and logos are registered trademarks of their respective owners...
  • Page 37 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #15 In the Add LAN device window (see figure #16 below) please, enter correct IP address, port number (5000 by default) and password (1 by default) as configured on the Device settings page (see section 4.6 above) of the web server.
  • Page 38 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #16 Specified device should then appear with a green square next to it and Connected status in the LAN devices window (see Figure #17 below). All brands and logos are registered trademarks of their respective owners...
  • Page 39 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #17  To edit the LAN device, select it and click the Edit button, or just double click on the LAN device  To remove the LAN device, select it and click the Remove button.
  • Page 40 PC is not connected to the local network  You are trying to access EG-PMS-LANU from the PC which is not allowed to do so. Change PC IP address or change IP filter list in EG-PMS-LANU hardware settings (see section 4.5 above) ...
  • Page 41 STRIP WITH LAN INTERFACE Figure #18  EG-PMS-LANU is connected to local network (ping test is ok) but not responding. Reset EG-PMS-LANU by pressing the Reset button (A) on the side control panel (see Figure #2 above) or switch it off...
  • Page 42 6.2. Managing EG-PMS-LAN After successful connection, close LAN devices window. You can now start managing EG-PMS-LANU via the Power Manager interface. Double click on the socket icon in the system tray or select Open from the popup menu (see Figure #14 above). You will get the window of the main control panel shown on the Figure #19 below.
  • Page 43 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Sockets should switch on and off (green color means the socket is switched on; red color means the socket is switched off) when you double click on them. Click the Settings button for each socket to access the Settings dialog box (see Figure #20 below).
  • Page 44 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE  It is possible to give a name to the device and socket (for example Printer or Scanner) using the Rename button  Check the System tray checkbox if you want to put the icon of the socket into the system tray.
  • Page 45 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 7. Power Manager core features 7.1. Setting up the hardware schedule Using the Hardware schedule button available from the Settings window (see section 6.2 above) you can create the hardware timer schedule (see Figure #21 below). To add a new record, click the Add button.
  • Page 46 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE  The window Add entry will appear (see Figure #22 below). In the dialog box, specify the required time and the action Figure #22  To edit the record, select it and click the Edit button or just double click on the entry (see Figure #21 above).
  • Page 47 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #21 above) and specify the loop time period in the Edit loop period window (see Figure #23 below) Figure #23  After the schedule record has been created, click the Apply button (see Figure #21 above) to save the hardware timer schedule changes.
  • Page 48 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE NOTE: The hardware schedule keeps running even when the device is powered off. However it is recommended not to power off the device for longer than 1 week, because the built-in battery might get discharged then.
  • Page 49 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #24  To add a new task, click the Add button. The Add task window will appear (see Figure #25 below) All brands and logos are registered trademarks of their respective owners...
  • Page 50 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #25 In the Add task window, check Switch ON time and/or Switch OFF time checkboxes and specify the time to switch the socked on and/or off. If you want the same event to be performed periodically, check Perform task every checkbox and specify the time interval.
  • Page 51 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE  To edit the task, select it (see Figure #24 above) and click the Edit button or just double click on the task. The Edit task window will appear (see Figure #26 below) Figure #26 ...
  • Page 52 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Shift keys. You can also remove all tasks by clicking the Clear button HINT: Use the popup menu which can be activated by the right mouse button click over the table (see Figure #24 above).
  • Page 53 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #27  To add a new program event, click the Add app button. The Add program event dialog will appear (see Figure #28 below) All brands and logos are registered trademarks of their respective owners...
  • Page 54 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #28 Specify the application title and path to it using the Browse (…) button or typing it manually in the Title and Path name fields. If you use the Browse (…) button you can also select a shortcut to the application.
  • Page 55 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE NOTE: The On run event will take place when the first window of the selected application is opened. The On exit event will take place when the last window of the application is closed.
  • Page 56 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Specify the path to the folder you would like to monitor using the Browse (…) button or typing it manually in the Path name field. Specify the File name mask using wildcard characters: *, ?. Check then On placing and/or On removal checkboxes and select the event and delay.
  • Page 57 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #30  To remove the event, select it and click the Remove button (see Figure #27 above). You can select multiple events using Ctrl and Shift keys. You can also remove all events by clicking the Clear...
  • Page 58 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 8. Power Manager advanced features The following information is for advanced users which wish to have full access to the advanced features of EG-PMS-LAN. Click the Advanced features button available from the Settings window (see section 6.2 above).
  • Page 59 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE 8.1. Processing the alarms Whenever the actual measured voltage on the manageable socket deviates from the status set by your switching tasks, it is called a Voltage alarm. The Voltage alarm can for example be caused by a blackout and will be resolved after power returns.
  • Page 60 8.2. Setting up network devices You don’t need to let every user in your local network have direct access to EG-PMS-LANU via IP address. Instead you can declare EG- PMS-LANU as a shared device on your server and let the other users access it via the server.
  • Page 61 NOTE: The port 6100 should be open. Contact your LAN administrator for further details. To be able to use this shared EG-PMS-LANU on a client PC choose Shared devices from the Main menu (see Figure #14 above). You will get the following window (see Figure #34 below).
  • Page 62 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Figure #34 To add a new remote device, press the Add button. You will see the window Add network device (see Figure #35 below). All brands and logos are registered trademarks of their respective owners...
  • Page 63 Figure #35 Enter the network name of the server which is connected to EG-PMS-LANU in the field Hostname. Enter the name of the target EG-PMS-LANU in the field Device name. Enter access password in the field Password. To disconnect from the device uncheck the option Enable, set this option on again to regain the access.
  • Page 64 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE device will appear. Choose the proper server and then the device and click OK button. To edit the network device, select it and click the Edit button, or just double click on the network device (see Figure #34 above). The Edit network device window will appear (see Figure #36 below).
  • Page 65 HINT: Use the popup menu which is available with the right mouse button click over the table. 8.3. Managing EG-PMS-LANU via your own software To let you switch the sockets from your own applications the following command line interface syntax is supported: ...
  • Page 66 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE For each of the connected devices the following information will then be provided and placed into Info.ini file in the Power Manager folder:  DeviceName - the user specified device name ...

  • Page 67: Troubleshooting

    (see Figure #2 above) or switch it off and ok) but not responding. then on again using the Main rocker switch Z (see Figure #1 above). Make sure EG-PMS-LANU is connected to Connection to EG-PMS-LANU LAN and switched on. Launch Find EG-PMS- is lost. It seems something is LANU utility.
  • Page 68 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE All brands and logos are registered trademarks of their respective owners...
  • Page 69 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For...
  • Page 70 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The warranty period is 24 months and begins with the sale to the end user. The receipt must clearly list Die Garantie beträgt 24 Monate ab Verkaufsdatum the date of purchase and the part number, in addition an den Endverbraucher.
  • Page 71 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE De garantietermijn bedraagt 24 maanden en gaat in Garantie est de 24 mois a partir de la date d’achat de l'utilisateur final. op de aankoopdatum van het product door de Le talon de garantie doit énumérer clairement la date...
  • Page 72 EG-PMS-LANU ENERGENIE PROGRAMMABLE POWER STRIP WITH LAN INTERFACE ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
