TV One C2-1000 Series Operation Manual

Video processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C2-1000 Series
Video Processor Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2-1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV One C2-1000 Series

Summary of Contents for TV One C2-1000 Series

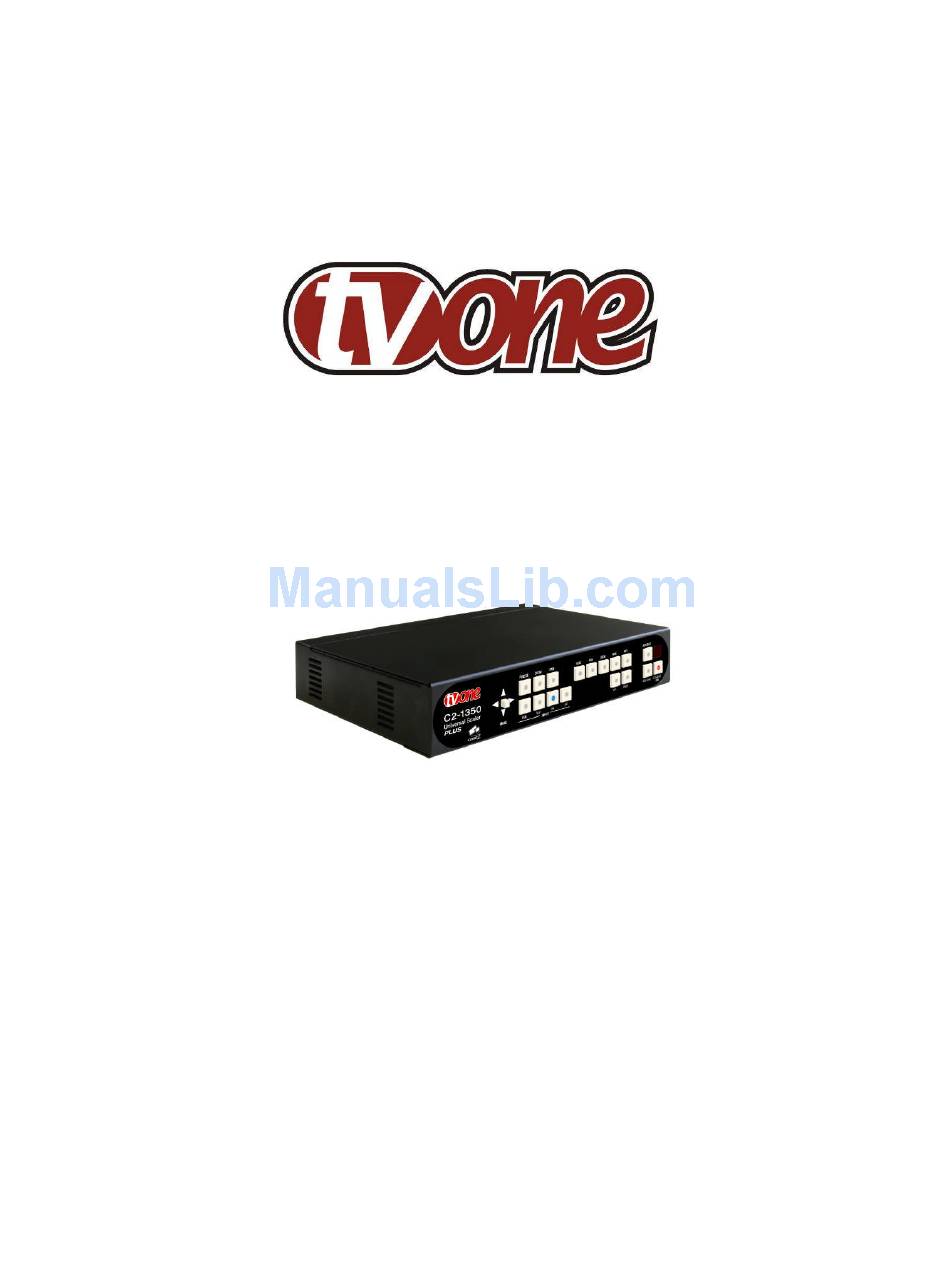

  • Page 1 C2-1000 Series Video Processor Operation Manual...
  • Page 2 C2-1000 S ERIES PERATION ANUAL...

  • Page 3: Table Of Contents

    C2-1000 S ERIES PERATION ANUAL Table of Contents DISCLAIMER....................1 Regulatory Agency Acceptance................1 FCC Statement....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTIONS ............3 DEVICE SUMMARY ................... 13 Device Capabilities.................... 13 Device Features ....................14 PRODUCT IMAGES ...................
  • Page 4 C2-1000 S ERIES PERATION ANUAL Edge Blend items within the Adjust keyers group ..........36 Items Associated with the Adjust sources group..........37 8.6.1 Menu items common to all inputs ..............37 8.6.2 DVI Source Menu Items ..................40 8.6.3 RGB Source Menu Items...................
  • Page 5 C2-1000 S ERIES PERATION ANUAL 11.8 Edge-blending guide lines ................. 82 11.9 Alignment of projectors..................83 11.10 Gamma correction..................... 85 11.11 Brightness compensation .................. 85 11.12 Aspect ratio adjustment ..................86 11.13 Locking both outputs together ................86 11.14 Other setup approaches ..................87 12 WINDOWS CONTROL PANEL..............
  • Page 6 C2-1000 S ERIES PERATION ANUAL 13.13 Image is flashing, snow is present, or source image does not appear..... 103 14 RETURN PROCEDURE ................104 14.1 Are you sure there's a fault?................104 14.2 To return a unit for repair ................. 104 15 WARRANTY POLICY ................

  • Page 7: Disclaimer

    C2-1000 S ERIES PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in flight or as an adjunct to any surface, airborne or marine navigation system or any offshore marine activity, including control of any watercraft, or any use similar to those specifically herein mentioned is prohibited.

  • Page 8: Manual Version Information

    Release Date: November, 2010 Manual Copyright Notice This Operation Manual is the intellectual property of TV One, ©2006, 2007, 2008, 2009, 2010. No portion of this manual may be copied or reproduced in any manner or by any means, including, but not limited to electronic and electro-mechanical,...

  • Page 9: Important Safety Instructions

    C2-1000 S ERIES PERATION ANUAL IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside.
  • Page 10 C2-1000 S ERIES PERATION ANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
  • Page 11 C2-1000 S ERIES PERATION ANUAL 2.0 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez- le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection. Aucune pièce réparable par l’utilisateur à...
  • Page 12 C2-1000 S ERIES PERATION ANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que l’unité...
  • Page 13 C2-1000 S ERIES PERATION ANUAL 2.0 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato. No hay piezas utilizables dentro.
  • Page 14 C2-1000 S ERIES PERATION ANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación. Para asegurar una operación eficaz, se debe evitar la obstrucción de estos agujeros y también asegurar que el aparato se instale en una zona con adecuada ventilación.
  • Page 15 C2-1000 S ERIES PERATION ANUAL 2.0 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
  • Page 16 C2-1000 S ERIES PERATION ANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden.
  • Page 17 C2-1000 S ERIES PERATION ANUAL 2.0 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 18 C2-1000 S ERIES PERATION ANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze betrouwbaar werkt.

  • Page 19: Device Summary

    ERIES PERATION ANUAL DEVICE SUMMARY Device Capabilities ® The C2-1000 series uses the proprietary CORIO 2 Engine to perform its functions, ® ® being the second generation of the successful CORIO products. The CORIO technology is a powerful toolset for any application requiring high quality video signal conversion or image manipulation.

  • Page 20: Device Features

    Ultimate flexibility The C2-1000 series’ output signal format flexibility assures that the Native Resolution of virtually any display can be matched. Because of the resolution calculator (included in the Windows® Control Panel), even new resolutions can be added to the unit.

  • Page 21: Product Images

    C2-1000 S ERIES PERATION ANUAL PRODUCT IMAGES Your C2-1000 product should look like one of the units below. Each unit has a different main function (Down Converter, Video Scaler, Universal Scaler) and a subsequently different ability to process video signals.

  • Page 22: Front Panel Controls

    C2-1000 S ERIES PERATION ANUAL FRONT PANEL CONTROLS The range of buttons on the front of the unit provides the user with quick easy access for selecting a variety of inputs and features. Since all the units in the C2- 1000 series are different, not all of the descriptions below will be applicable to the unit in question.

  • Page 23: Multi-Directional Switch

    C2-1000 S ERIES PERATION ANUAL RESTORE Hold in briefly to restore to last-saved (power-on) defaults – this is useful to ‘escape’ from non-displayable configurations. Hold in for longer (two beeps) to perform a Factory reset of user settings. STANDBY Hold in to put the unit into Standby (power-save) mode. Hold in briefly to come out of Standby mode.

  • Page 24: Factory Reset

    C2-1000 S ERIES PERATION ANUAL The STANDBY/ON LED will flash when the unit’s buttons are locked. 5.4.2 Factory Reset If you wish to restore all operational parameters to their original condition, first ensure the unit’s in the operational mode, not in Standby where the red power led is illuminated.

  • Page 25: Audio / Video Inputs And Outputs

    PERATION ANUAL AUDIO / VIDEO INPUTS AND OUTPUTS The C2-1000 series has a number of different inputs and outputs – see earlier front and rear panel diagrams to see what is available on your unit. Computer & Video inputs The PC/HD input can accept:...

  • Page 26: Audio Inputs And Outputs

    C2-1000 S ERIES PERATION ANUAL RGBS (separate sync at TTL levels) YUV/YPbPr (including tri-level). However, please note that on some units such as Down Converters, the RGB output is there just to loop the PC image through to the PC monitor. On Video Scalers, bypass mode (with the unit in Standby) will feed PC/HD in to PC/HD out directly.
  • Page 27 C2-1000 S ERIES PERATION ANUAL On the back of audio-equipped units are 5 x 3-way connector blocks. These can be removed individually (with care), or can be left in-situ whilst connections are made (by releasing each terminal using a small screwdriver, and then by clamping it back down again once a new cable has been inserted).

  • Page 28: Infra-Red Remote Control

    C2-1000 S ERIES PERATION ANUAL INFRA-RED REMOTE CONTROL Your unit is compatible with an optional infra-red remote control as shown below: Resets back to power-on defaults Stores current Selects input: settings 1/2/3=RGB/CV/YC Enables Keyer Enables Lock & Mix mode Fades in/out Starts AutoSet Locks the IR &...

  • Page 29: Menu Layout And Settings Adjustment

    C2-1000 S ERIES PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in your unit and, more importantly, the individual menu items that allow you to take advantage of the power of the unit. You’ll be using the multi-directional switch and the on-screen display (OSD) to view the options and settings available to you.

  • Page 30: Group Names And Descriptions

    There are two screens that appear before the Group Menus (sub-menus) are accessed. CORIO2 TV One The first is the ‘welcome’ display shown above indicating the model of the unit. www.tvone.com SW: 65. PT: 12, BT: 13 Moving to the next menu item displays the firmware information screen (the numbers on your unit will be different to those shown).

  • Page 31: Items Associated With The Adjust Outputs Group

    C2-1000 S ERIES PERATION ANUAL Items Associated with the Adjust outputs group This menu group allows adjustments to be made that specifically affect the output of the unit, including output resolution and locking/overlaying onto a computer or video source. 800 x 600 60Hz Lock mode [Off] [RGB1] This menu item allows the lock mode to be selected and the lock source to be...
  • Page 32 C2-1000 S ERIES PERATION ANUAL Before turning the Lock feature on, you first must select a valid Lock source. Some units may not have all Lock sources available, depending on hardware limitations – see Specifications for details of limitations on your unit. If the Lock source you choose is not valid, then Genlock or Lock &...
  • Page 33 C2-1000 S ERIES PERATION ANUAL Status Description Effect message No display There is no display attached Nothing will be output on the DVI connector. (HOTPLUG is low). Unavailable The device attached is not As the DVI output cannot be HDCP encrypted, then a capable of support ing HDCP.

  • Page 34: Items Associated With The Adjust Windows Group

    C2-1000 S ERIES PERATION ANUAL Adjust outputs Stand. [NTSC-M/PAL-BDGHI] This menu item is only available when the Output resolution is set to PAL or NTSC. With this you can change the output type to the PAL or NTSC standard with the further option of changing the output to the additional PAL &...
  • Page 35 C2-1000 S ERIES PERATION ANUAL This menu item only appears on units with multiple windows or PIPs. It is used to select which one you want to modify. Alternatively, use one of the dedicated buttons on the front panel to choose the window to adjust. NTSC / 60Hz Source [ YC1]...
  • Page 36 C2-1000 S ERIES PERATION ANUAL By adjusting the H/V values, you can crop out the black areas to correct the size on the final output screen. Note that it does not change the shape or aspect ratio of the image – but just removes the parts of the image that are not required. Adjust windows H/V out shift [ 0] [ 0]...
  • Page 37 C2-1000 S ERIES PERATION ANUAL This is a feature only present in advanced units only. It greatly improves the method of frame-rate conversion, by allowing the unit to merge frames together during the process. When ‘Off’, the unit will use frame-repetition when converting 50Hz to 60Hz (i.e. it has to duplicate every 5th frame), or frame-dropping when converting 60Hz to 50Hz (i.e.

  • Page 38: Extended Scaling Controls

    C2-1000 S ERIES PERATION ANUAL Adjust windows Audio bars Certain units can display audio bar measurements and this menu item displays how many stereo-bars are shown. A maximum of 4 stereo bars (8 bars in total, with left- right pairs next to each other) can be shown. Audio channels are always numbered from left to right, balanced to display bars on both sides of the each.

  • Page 39: Aspect Adjust' = 'Advanced

    C2-1000 S ERIES PERATION ANUAL Simple Advanced Pixel Zoom level % [100] Zoom H/V [100]100 1.333:1 In [ 0],0 640,480 H/V zoom pan% [50] 50 H/V zoom pan% [50] 50 Out [ 0],0 640,480 H/V crop % [ 0] 0 H/V crop % [ 0] 0 Shrink level % [50] Off ShrnkH/V [50] 50 1.333:1...

  • Page 40: Items Associated With The Adjust Keyers Group

    C2-1000 S ERIES PERATION ANUAL The diagram below should help to clarify the function of these values: 1024 1024 In the example above, ‘In’ has been set to 300,150 as its top-left source co-ordinate, with a size of 750,400. ‘Out’ has been set to 50,50 (i.e. close to the top left) with a size of 250,300.
  • Page 41 C2-1000 S ERIES PERATION ANUAL Normally, your foreground is the input (window) source and your background is the lock source. This then allows you to superimpose any graphics or video input on top of the lock source by keying out a certain color or range of colors in the input source. Swapping them means that the input source moves to the background and the lock source is now in front of it.

  • Page 42: Edge Blend Items Within The Adjust Keyers Group

    C2-1000 S ERIES PERATION ANUAL Setting it to Off will cause the colour range that’s defined to be removed - remove the desired colors. Setting it to On will cause the colour range that’s defined to be kept - key out all other colors. The descriptions above behave identically on the remaining U Key Invert &...

  • Page 43: Items Associated With The Adjust Sources Group

    C2-1000 S ERIES PERATION ANUAL to the voltage within the video signal. These values are best adjusted once any overlapping images are aligned with each other Adjust keyers Eb comp cent/side [ 0] [ 0] This controls a ‘compensation’ value that sets the minimum brightness of the centre and side areas during edge-blending.
  • Page 44 C2-1000 S ERIES PERATION ANUAL This menu item will be used to correct the aspect ratio of the video source when converted into the final output resolution. The following table details what happens in the available modes: Setting Result Fill The source is stretched to fill the output.
  • Page 45 C2-1000 S ERIES PERATION ANUAL If an external audio switcher is connected via the OPTION bus, then this menu item selects the desired Audio input for use with the active video source, allowing an audio-follow-video function. In most situations, the Audio input values would be different for each video source – so that when the first video source is selected, so is the first audio source (this is called ‘audio follow video’).

  • Page 46: Dvi Source Menu Items

    C2-1000 S ERIES PERATION ANUAL Mode Function Normal/weave The two interlaced fields are simply combined/weaved together. This will often show artifacts on moving images, but can be used when the input is known to be still. Auto Automatically selects Film 3:2 or Medium Range Motion Compensation (M.
  • Page 47 C2-1000 S ERIES PERATION ANUAL Status Description Effect message Inactive HDCP is not active HDCP-encrypted material cannot be received by at the DVI the unit. connector. Active HDCP is active at HDCP-encrypted material can be received by the DVI connector. the unit, but only if a HDCP-compliant display or device is attached to the unit’s output.

  • Page 48: Rgb Source Menu Items

    C2-1000 S ERIES PERATION ANUAL If your unit allows ‘HDMI’ to be selected, this can also enable certain audio features depending on the abilities of your unit. Source: DVI1 EDID capture [ 1] Grab This menu provides a simple way of capturing EDID data from an attached DVI or HDMI monitor and storing it in one of the user-definable EDID memory data blocks (Mem1 to Mem6) –...

  • Page 49: Cv & Yc Source Menu Items

    C2-1000 S ERIES PERATION ANUAL To make this adjustment, select an RGB source and then provide an image from that source with fine detail, preferably with very sharp vertical lines. Adjust this value until you see the sharpest image. Alternately, adjust this value to give the worst (noisiest/softest) image, and then add or subtract 16 to get the optimum value.

  • Page 50: Still Image Store / Testcard Source Menu Items

    C2-1000 S ERIES PERATION ANUAL Source: YC1 Sharpness Within limits, you can enhance or soften the appearance of detail within an image. The Sharpness values go both negative and positive, with 0 being the default. Note that over-enhancing an image has the side effect of making it appear to be noisy and under-enhancing an image gives the appearance of poor video quality.

  • Page 51: Items Associated With The Adjust Resolutions Group

    C2-1000 S ERIES PERATION ANUAL If you select ‘Cut’ or ‘Fade’, the only remaining menu items will be ‘Switching Fade Time’ and ‘Exit’. Selecting ‘Wipe’ or ‘Push’ exposes additional parameters. Adjust transitions Switching fade time [ .5] This parameter controls how long a transition from one input to another takes. The value can be 0 (a cut) or several minutes - adjustable in 1/10 second increments.
  • Page 52 C2-1000 S ERIES PERATION ANUAL Making adjustments here risks creating a non-standard resolution that is not displayable on a monitor. The resolutions and values within the database are industry standards and should not normally be altered by the user. That said, there might be times when it is necessary to create a custom resolution with specific parameters.
  • Page 53 C2-1000 S ERIES PERATION ANUAL 800 x 600 60 Hz Clks/l [1056] = 40.000MHz This option changes the total number of image pixels on one line of monitor video including the Horizontal sync pulse and blanking time. This is normally in a multiple of 8.

  • Page 54: Items Associated With The System Group

    C2-1000 S ERIES PERATION ANUAL 800 x 600 60 Hz H/V Sync [ 128] x 4 There are standards for all current computer and broadcast resolutions that specify the correct width of both Vertical and Horizontal synchronizing pulses. If you are creating a special, non-standard resolution, you may wish to adjust the pulse width to fit your new requirements.
  • Page 55 C2-1000 S ERIES PERATION ANUAL System SW date: 2006-7-11 This is an information page showing when the currently installed software was released. The information is useful to the user as he or she compares the date to the website information describing the current software release. Normally, the user will examine the added features of each new software release and determine if an update is worth doing in their particular operation.
  • Page 56 C2-1000 S ERIES PERATION ANUAL System LED brightness % [ 90] This parameter is available on certain units and controls how bright the LEDs on the front panel appear. System LCD backlight [On] This parameter is available on certain units and allows the LCD backlight to be turned on and off.
  • Page 57 C2-1000 S ERIES PERATION ANUAL System Buzzer [ On] The screen labeled ‘Buzzer’ is actually the control for turning the “Beep” “On” or “Off”. Normally this is left in the “On” position to provide positive feedback that your data entries and parameter changes have been accepted. System CC-300 A/B bus mode [ Off]...
  • Page 58 C2-1000 S ERIES PERATION ANUAL System Hours in Use This is another informational display for usage audit purposes. System Temp.C 30 33 43 45 Certain units have built-in temperature sensors, and if yours has such a feature then the above menu item will appear. If the ambient temperature of the internal components becomes excessively high or low, the unit will shut down to prevent harm.

  • Page 59: Serial Port

    C2-1000 S ERIES PERATION ANUAL SERIAL PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’ plug on them.
  • Page 60 C2-1000 S ERIES PERATION ANUAL Note: Any command you send to the unit will be replied to either with an error code or with the actual changed value. This may be different to the one you sent; for example, if trying to set a value too high or too low.

  • Page 61: Serial / Ip Control Specification

    C2-1000 S ERIES PERATION ANUAL SERIAL / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support Serial and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via a Serial or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 62: Packet Format

    C2-1000 S ERIES PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 63 C2-1000 S ERIES PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use. Bit 2 = 1 This bit *must* be set.

  • Page 64: Function List

    C2-1000 S ERIES PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 65 C2-1000 S ERIES PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16 0xD0 = OUT1, 0xD1 = OUT2 0xF0 = TC1, 0xF1 = TC2 Lock method...
  • Page 66 C2-1000 S ERIES PERATION ANUAL 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp. Volume -16 to 15 AES/SDI Chan.
  • Page 67 C2-1000 S ERIES PERATION ANUAL In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High Image smoothing...
  • Page 68 C2-1000 S ERIES PERATION ANUAL E.blnd size H 0.. limited by H width E.blnd size V 0.. limited by V height E.blnd gamma H 1..150 1=0.01, 150=1.50 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99 Logos (on certain models only) Logo enable...
  • Page 69 C2-1000 S ERIES PERATION ANUAL Label H. Size 10..5F 249 0..8 Label V. Size 10..5F 24A 0..8 Label H. Position 10..5F 24D 0..3 (Off / Left / Center / Right) Label V. Position 10..5F 24E 0..3 (Off / Top / Middle / Bottom) Label char.
  • Page 70 C2-1000 S ERIES PERATION ANUAL (Film mode detected) 10..FF 0E3 0..1 = Not detected, Detected Diagonal interpolation 10..FF 22B 0..1 = Off, On Noise reduction 10..5F 23F 0..1 = Off, On Bright 30..5F 0BB 0..180 Contrast 30..5F 0BC 0..180 Saturation 30..5F 0B9 0..180 30..5F 0BA...
  • Page 71 C2-1000 S ERIES PERATION ANUAL 2 = Presets Tally input number 1 to 8 Tally preset to load 1 to 50 Adjust resolutions Note: You MUST set the 'Image to adjust' value to the correct value first, and only then change the other values - otherwise you may be adjusting the wrong entry. The user should not adjust the 'Image to adjust' entry using the front panel whilst also accessing it via RS232 Image to adjust...

  • Page 72: Examples

    C2-1000 S ERIES PERATION ANUAL Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm) Read only Led brightness 0..100 LCD backlight 0..1 = Off, On Serial type 0 = RS-232 (See Specs to see if your 1 = RS-422...

  • Page 73: Reading And Writing Macros

    C2-1000 S ERIES PERATION ANUAL Set output 1 window B Source to RGB2 000011 D9 CR 000011 19 CR Set output 1 window A to Enable advanced aspect control Note checksum is ?? for debugging 000001 ?? CR 000001 8A CR Set 1A Shrink to 110 –...

  • Page 74: Reading A Previously Stored Macro

    C2-1000 S ERIES PERATION ANUAL Menu text CHA FUNC Range of adjustment (decimal) (Hex) Macro Run macro 0..7 F1 0..1 = Run, Erase macro Number of items within 0..7 F4 Read Only macro Function to adjust 0..7 F2 0..4095 Value 0..7 F3 Value for Function 10.5.1 Reading a previously stored Macro...

  • Page 75: Run And Restore Macros

    C2-1000 S ERIES PERATION ANUAL 000001 3A CR 000001 7A CR Write the function for first item in macro 3 = Zoom 000086 C1 CR 000011 01 CR Write data for the first item = 100 000064 9E CR 000011 DE CR Write the function for the second = shrink 000087 C2 CR 000011 02 CR...
  • Page 76 C2-1000 S ERIES PERATION ANUAL Set to 720p 60Hz output 0000EC Cycle presets (demo mode) 0100EE Select DVI-I1 as source 000200 Select DVI-I2 as source 000201 Select DVI-I3 as source 000202 Select DVI-I4 as source 0002A2 Select CV1 as source 000203 Select CV2 as source 000204...
  • Page 77 C2-1000 S ERIES PERATION ANUAL Run Macro 6 000267 Run Macro 7 000268 Add to Macro 1 020119 Add to Macro 2 02011A Add to Macro 3 02011B Add to Macro 4 02011C Add to Macro 5 02011D Add to Macro 6 020167 Add to Macro 7 020168...
  • Page 78 C2-1000 S ERIES PERATION ANUAL Select CV2 as source for window A 000240 Select CV3 as source for window A 000241 Select YC1 as source for window A 000242 Select YC2 as source for window A 000243 Select YC3 as source for window A 000244 Select TC1 as source for window A 000245...
  • Page 79 C2-1000 S ERIES PERATION ANUAL Select YUV1 as source 000264 Logo 1A toggle on/off 000265 Logo 2B toggle on/off 000266 Window 1A toggle on/off 00026D Window 2B toggle on/off 00026E Go to Lock menu item 00027E Output 1 toggle on/off 00027F Output 2 toggle on/off 000280...

  • Page 80: Reset Command

    C2-1000 S ERIES PERATION ANUAL Erase Preset 4 280194 Erase Preset 5 280195 Erase Preset 6 280196 Erase Preset 7 280197 Erase Preset 8 280198 Erase Preset 9 280199 Erase Preset 10 28019A Set output to BLACK 00029B Set output to WHITE 00029C Toggle edge blend lines on/off 00029D...

  • Page 81: Common Operations

    C2-1000 S ERIES PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 10.6 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation When adjusting the values, please bear in the mind the following: The Y value is the Luminance value, so 0 is black and 255 is very bright (white).
  • Page 82 C2-1000 S ERIES PERATION ANUAL to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 83: Edge-Blending Setup

    This guide is intended to summarise how to setup such projectors when used with a suitable number of TV One’s CORIO®2 scaling engines. The C2-7000 series are dual processors and therefore require only a single unit to perform both tasks, whereas other units will generally require two units to be used together, with a distribution amplifier on the input so that both units receive an identical video source.

  • Page 84: Edge-Blending Requirements

    C2-1000 S ERIES PERATION ANUAL S-curves for left and right projectors, with edges blended. S-curves, when properly overlapping, will add together to result in full brightness. 11.2 Edge-blending requirements To obtain the best edge-blending results, you will need: 1. A perfectly flat projection screen. This is vital, or it will not be possible to perfectly align your two projected images with each other.

  • Page 85: Basic Setup Of The Two Projectors

    C2-1000 S ERIES PERATION ANUAL 11.3 Basic setup of the two projectors Basic video projector setup showing overlap. The above diagram shows how the two projects should be placed to create a wider than normal image. The amount by which they overlap is very important, as this will also relate to the zooming values to be used for each of the CORIO®2 scaling engines.

  • Page 86: Initial Setup

    C2-1000 S ERIES PERATION ANUAL For use with dual-channel scalers such as the C2-7000 series, connect your video source (e.g. a DVD player or computer) to an input on the C2-7000 unit. It is not necessary to feed two signals – the C2-7000 unit can use the same signal for both outputs.

  • Page 87: Edge-Blending Activation

    C2-1000 S ERIES PERATION ANUAL 20% overlap are usually around 180%. In other words, not quite 2x zooming (since that would give no overlap at all). Figure ‘a’ shows the original image and ‘b’ shows the two zoomed images. Note that the two images are at different ‘Pan’...

  • Page 88: Edge-Blending Guide Lines

    C2-1000 S ERIES PERATION ANUAL E = 2 * H * (1 – Z/200) [pixels] For example, with zoom (Z) at 190%, output resolution of 1024x768 (H=1024), we can calculate E as: E = 2 * 1024 * (1 – 190/200) = 102.4 [pixels] There is also a formula for calculating the zoom value (Z) from the edge blend size (E) and horizontal pixel width of the output (H): Z = (1 –...

  • Page 89: Alignment Of Projectors

    C2-1000 S ERIES PERATION ANUAL Outputs 1 and 2 with guide lines shown. G R R G Outputs 1A and 2B partly overlapping. Outputs 1A and 2B perfectly overlapping – the red and green lines turn to yellow when aligned together.
  • Page 90 C2-1000 S ERIES PERATION ANUAL Too far apart – you need around 15% overlap, such that the red and green lines overlap. Offset – make sure your projectors are perfectly R R G aligned both horizontally and vertically. Key-stoning – ensure your projectors have the same...

  • Page 91: Gamma Correction

    C2-1000 S ERIES PERATION ANUAL Perfect alignment – your red and green vertical lines should overlap to produce yellow ones. 11.10 Gamma correction By now you should have two perfectly aligned projectors, but possibly with a brighter than normal overlap. This is most probably because a projector’s luminance is not perfectly linear and therefore will need to have what’s called ‘gamma correction’...

  • Page 92: Aspect Ratio Adjustment

    C2-1000 S ERIES PERATION ANUAL The compensation is needed because most projectors cannot output pure black – there’s always some light ‘leaking’ to the projection screen. Thus when you’re trying to output black, there will be a ‘hot area’ where the two projectors are now overlapping, of twice the projector’s ‘black level’...

  • Page 93: Other Setup Approaches

    C2-1000 S ERIES PERATION ANUAL 1. Either use a 2 output from the unit with Output 1, or a distribution amplifier to generate a 2 identical signal. Feed this into RGB1 on the unit handling Output 2. 2. Go to ‘Adjust outputs’ for Output 2 3.
  • Page 94 C2-1000 S ERIES PERATION ANUAL E.blnd H 640x480 800x600 1024x768 1280x720 1280x1024 1600x1200 1920x1080i...

  • Page 95: Windows Control Panel

    C2-1000 S ERIES PERATION ANUAL WINDOWS CONTROL PANEL A powerful utility is available for the C2 product range and can be downloaded from our support web site or found on the Product CD (where supplied). To install the application click on the setup file and follow the on screen instructions. Once installed you will be able to control your unit via either Ethernet or Serial (RS232) and be able to change and store all the settings of the unit.

  • Page 96: Connecting To A Unit

    C2-1000 S ERIES PERATION ANUAL In the Ethernet section be sure to set the IP address to the same as the address you have set on the unit (units Ethernet menu). The port number used should also reflect the port number on the unit. If there are multiple units on the network then this port number should be the same for all units, only the IP address must be unique.
  • Page 97 C2-1000 S ERIES PERATION ANUAL Figure 4 Detecting a unit Once the application detects and connects to a unit you will be asked if you wish to “synchronize with the unit”, this will read all the settings from the connected unit and update the application.

  • Page 98: Application Menu's

    C2-1000 S ERIES PERATION ANUAL 12.3 Application menu’s 12.3.1 File menu Figure 6 File menu Across the top of the application are the toolbar menu options. The first menu item is File within this menu you can Save and Load previous setups into the application, these setups contain all the settings of the unit.

  • Page 99: Tools Menu

    C2-1000 S ERIES PERATION ANUAL The Program Buttons menu will program the button assignments into the unit The Program Resolutions menu will program the resolutions into the unit as defined on the resolutions Tab. The Program Settings menu will program all adjustments into the unit 12.3.3 Tools menu Figure 8 Tools menu The tools menu provides access to the scripting tool, image loader and show...

  • Page 100: Image Loader

    C2-1000 S ERIES PERATION ANUAL Figure 10 Scripting button screen Up to 24 buttons/functions can be defined, and each of these buttons/functions can perform multiple actions. Figure 11 Script editor In order to edit or create a script select Script->Edit from the menu, this will then present the script editor as shown above.

  • Page 101: Loading Still Images / Testcards

    C2-1000 S ERIES PERATION ANUAL 12.5.1 Loading Still Images / Testcards Figure 12 Image loader To program a Still Image / Testcard into the unit select the ‘Testcards’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 102: Loading Logos

    C2-1000 S ERIES PERATION ANUAL 12.5.2 Loading Logos Figure 13 Logo Loader To program a logo into the unit select the ‘Logos’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 103: Maximum Image Size - How Large Can My Logo / Still Image / Testcard Be

    C2-1000 S ERIES PERATION ANUAL 12.5.3 Maximum Image size – how large can my Logo / Still Image / Testcard The image size for a Logo or Still Image / Testcard is limited by the amount of memory available in the unit; this is approximately 128kbytes of compressed image for a Still Image / Testcard and approximately 32kbytes for a Logo.
  • Page 104 C2-1000 S ERIES PERATION ANUAL There are 2 ways to create a resolution using this tool. The easiest, shown on the New resolution tab at the side, allows you to create a new resolution using the minimum information of Horizontal and Vertical size and the desired refresh rate. It’s also possible to constrain the Vertical size of the resolution by selecting a custom, 4:3 or 16/9 aspect ratio and then left clicking your mouse on the Vertical Resolution box which will then automatically calculate the Vertical Resolution for the given...
  • Page 105 C2-1000 S ERIES PERATION ANUAL Figure 16 Add resolution to table Once your new resolution is added, you can program the resolution into the Scaler using the Communications menu and then selecting Program into unit and then selecting Program Resolutions. The application will proceed to program all the resolutions on the list into the scaler.
  • Page 106 C2-1000 S ERIES PERATION ANUAL Figure 17 Resolution editor - advanced timings In order to modify an existing resolution simply click on the resolution table at the bottom of the screen and it parameters will be editable within the Timings tab. Once the edits are complete click on Update to modify the settings for the selected resolution or Create New to keep the selected resolution and create a new resolution with modified parameters.

  • Page 107: Troubleshooting And Technical Support

    C2-1000 S ERIES PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of the problem handy: Whether the problem happens only at specific times or has only just started occurring (and what other things have changed at the same time).

  • Page 108: There Is Excessive Flicker On The Output

    C2-1000 S ERIES PERATION ANUAL 13.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 109: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    C2-1000 S ERIES PERATION ANUAL 13.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 110: Return Procedure

    14.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued. You should provide...
  • Page 111 C2-1000 S ERIES PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in warranty for repair without a Return Authorization Number...

  • Page 112: Warranty Policy

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This...

  • Page 113: Connector Pinouts

    C2-1000 S ERIES PERATION ANUAL CONNECTOR PINOUTS 16.1 HD15 connector 1. Red / Pr / R-Y 2. Green / Y 3. Blue / Pb / B-Y 4. ID2 (input & output linked) 5. GND 6. GND 7. GND 8. GND 9.

  • Page 114: Multi-Way Audio Connector

    C2-1000 S ERIES PERATION ANUAL 16.4 Multi-way audio connector L = Left signal G = Signal ground (shared with left and right) R = Right signal 16.5 UTP output 1. Red+ 2. Red- 3. N/C 4. Green+ 5. Green- 6. N/C 7.

  • Page 115: Specifications

    C2-1000 S ERIES PERATION ANUAL SPECIFICATIONS See product front and rear diagrams for details of product I/O. Not all units have all the inputs and outputs listed here. 17.1 Video Inputs Input impedance: 75 Ohm Television standards supported: NTSC and PAL Composite video via BNC S-Video (YC) via 4-Pin mini-DIN Connector CV/YC video decoder: 8-bit Digital...

  • Page 116: Audio Input/Output (Certain Models Only)

    C2-1000 S ERIES PERATION ANUAL PC Resolutions: any up to 2048x2048 (user adjustable) HDTV Resolutions: any up to 1080p Vertical Refresh Rate: any to 250Hz 17.5 Audio input/output (certain models only) Inputs: 4 x unbalanced stereo via screw terminals Output: 1 x unbalanced stereo via screw terminals Switching resistance: approx.

  • Page 117: Environmental

    C2-1000 S ERIES PERATION ANUAL 17.10 Environmental Operating Temperature 0° to +45° C (+32° to +113° F) Operating Humidity 10% to 85%, Non-condensing Storage Temperature -10° to +70° C (+14° to +158° F) Storage Humidity 10% to 85%, Non-condensing 17.11 Power Requirement External power supply: 12V DC @1A maximum.

  • Page 118: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...

Table of Contents
