4533H-English_Manuals 4/1/11 10:49 AM Page 1

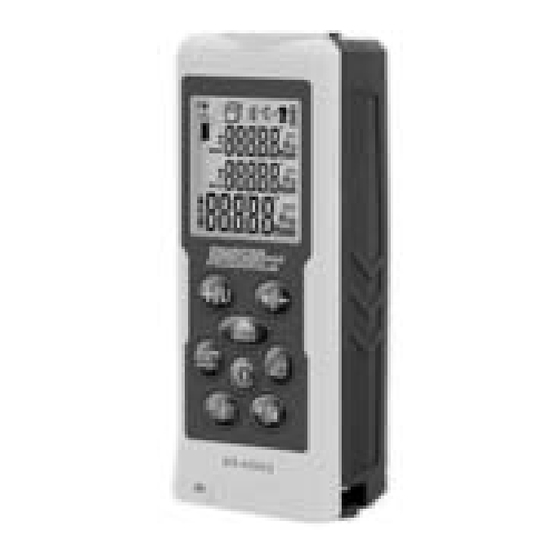

Laser Distance Measure
Model No. 40-6005
Instruction Manual
Congratulations on your choice of this Laser Distance Measure. We
suggest you read this instruction manual thoroughly before using the
instrument. Save this instruction manual for future use.
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
The laser also complies with EMC Test according to EN61000-6-3;
2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3,
EN 60825, FCC Test according to PART 15.
©2011 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6005 and is the answer not in the manual?

Questions and answers

Related Manuals for Johnson Level & Tool 40-6005

Summary of Contents for Johnson Level & Tool 40-6005

  • Page 1 1040.10 and 1040.11 as well as international safety rule IEC 285. The laser also complies with EMC Test according to EN61000-6-3; 2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3, EN 60825, FCC Test according to PART 15. ©2011 Johnson Level & Tool...

  • Page 2: Table Of Contents

    4.Location of Parts/ 8.Product Warranty..pg. 21 Components ..pg. 4-5 9.Product Registration . . pg. 22 1. Kit Contents Description for Model 40-6005 Qty. Laser Distance Measure Protection Cover Wrist Strap “AA”...

  • Page 3: Location/Content Of Warning Labels

    • Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. 3. Location/Content of Warning Labels ©2011 Johnson Level & Tool...

  • Page 4: Location Of Parts/Components

    4. Measure Function 10. Power Button/Clear/Escape Area 11. Measuring Reference Position/ Volume Continuous Laser Mode Stake-Out 12. Receiver Window 5. Countdown Measure/ 13. Battery Cover Memory Recall 14. Corner Measurement 6. Wrist Strap Bracket Extension Piece ©2011 Johnson Level & Tool...
  • Page 5 9. Main Screen and (Partial Height) Units of Measure 3. Measuring Function 10. Countdown Measuring Timer Area Measuring 11. Memory Counter Volume Measuring 12. Battery Status 4. Measurement Reference Position 13. Sub-Screen and Units of Measure ©2011 Johnson Level & Tool...
  • Page 6 This is most important if the instrument has been exposed to abnormal use. Always confirm accuracy before and during important measurements. Keep the laser distance measure optic clean and inspect for damage. ©2011 Johnson Level & Tool...

  • Page 7: Start Up - Battery Installation

    Power Button Press Power Button to power up. Press and hold Power Button to power off. Automatic Shutoff Laser will turn off after 30 seconds Unit will turn off after 3 minutes of inactivity ©2011 Johnson Level & Tool...

  • Page 8: Using The Product

    The following units can be set: Distance Volume 0.000 m 0.000 m 0.000 m 0.00 ft 0.00 ft 0.00 ft 0’0” 0.00 ft 0.00 ft 1/32 0.00 in 0.00 ft 0.00 ft 0.00 ft 0.00 ft 1/32 ©2011 Johnson Level & Tool...
  • Page 9 Recorded measurements (up to 20 measurements will be stored automatically and available for recall, see Memory Recall page 18). Press and release to clear screen. Press and hold to power down unit ©2011 Johnson Level & Tool...
  • Page 10 Press and release the button to activate laser. (If inactive.) Press and release the button to record second measurement. Press and release to add measurement 1 (stored in sub value position) and measurement 2 together. ©2011 Johnson Level & Tool...
  • Page 11 Minimum working range is 2-inches. Maximum working range is 230-feet. Press and hold the button to activate continuous measuring mode. To pause Continuous Measuring mode press To resume Continuous Measuring mode press or to exit Continuous Measuring mode press ©2011 Johnson Level & Tool...
  • Page 12 Area calculation will be presented in sub value position at top of screen. Note: Unit of measure for area calculation will be displayed in decimal form in square feet or square meters on main screen. ©2011 Johnson Level & Tool...
  • Page 13 Volume calculation will be presented in sub value position at top of screen. Note: Unit of measure for cube calculation will be displayed in decimal form in cubic feet or cubic meters on main screen. ©2011 Johnson Level & Tool...
  • Page 14 Third Press for Double Second Press for Double Pythagoras Pythagoras (Partial Measurement) Pythagoras (Summary) Calculates distance between Calculates distance between Calculates distance between Point 1 and Point 2 Point 1 and Point 2 Point 1 and Point 3 ©2011 Johnson Level & Tool...
  • Page 15 Measure button to record second measurement. Hold instrument position and pivot to aim laser at third target. Press and release Measure button to record third measurement. Pythagoras calculation (full height) will be presented in main screen position bottom. ©2011 Johnson Level & Tool...
  • Page 16 4. Press to increase your value. 5. Press to decrease your value. 6. Hold for two seconds to shift to positions. 7. Once value is set, press to enter. ©2011 Johnson Level & Tool...
  • Page 17 Please note that in some situations the unit may have difficulty reading the surface you try to measure if lighting or sunlight is intense and/or the surface being measured does not reflect the laser beam appropriately. ©2011 Johnson Level & Tool...
  • Page 18 Err05 Low Battery Install a new battery Err06 Temperature is outside of working range Measure in an environment within specified working temperature range Err07 Ambient light is too strong Measure in a darker place (shadow target) ©2011 Johnson Level & Tool...
  • Page 19 Extend the material off the corner and butt the LDM up to the material. Then take measurement. Place a white sheet of paper over the targeted measuring surface if error message Err02 occurs to improve the return signal. ©2011 Johnson Level & Tool...

  • Page 20: Technical Specifications

    3 minutes *The working range and accuracy is dependent on how well laser light is reflected from the surface for the target and with increased brightness of the ambient light intensity measuring accuracy may deteriorate. ©2011 Johnson Level & Tool...

  • Page 21: Product Warranty

    4533H-English_Manuals 4/1/11 10:49 AM Page 21 8. Product Warranty Johnson Level & Tool offers a two year limited warranty on our laser distance measure products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level &...

  • Page 22: Product Registration

    PLEASE NOTE THAT IN ADDITION TO ANY OTHER LIMITATIONS OR CONDITIONS OF JOHNSON LEVEL & TOOL'S LIMITED WARRANTY, JOHNSON LEVEL & TOOL MUST HAVE RECEIVED YOUR PROPERLY COMPLETED WARRANTY CARD WITHIN 30 DAYS OF YOUR...
