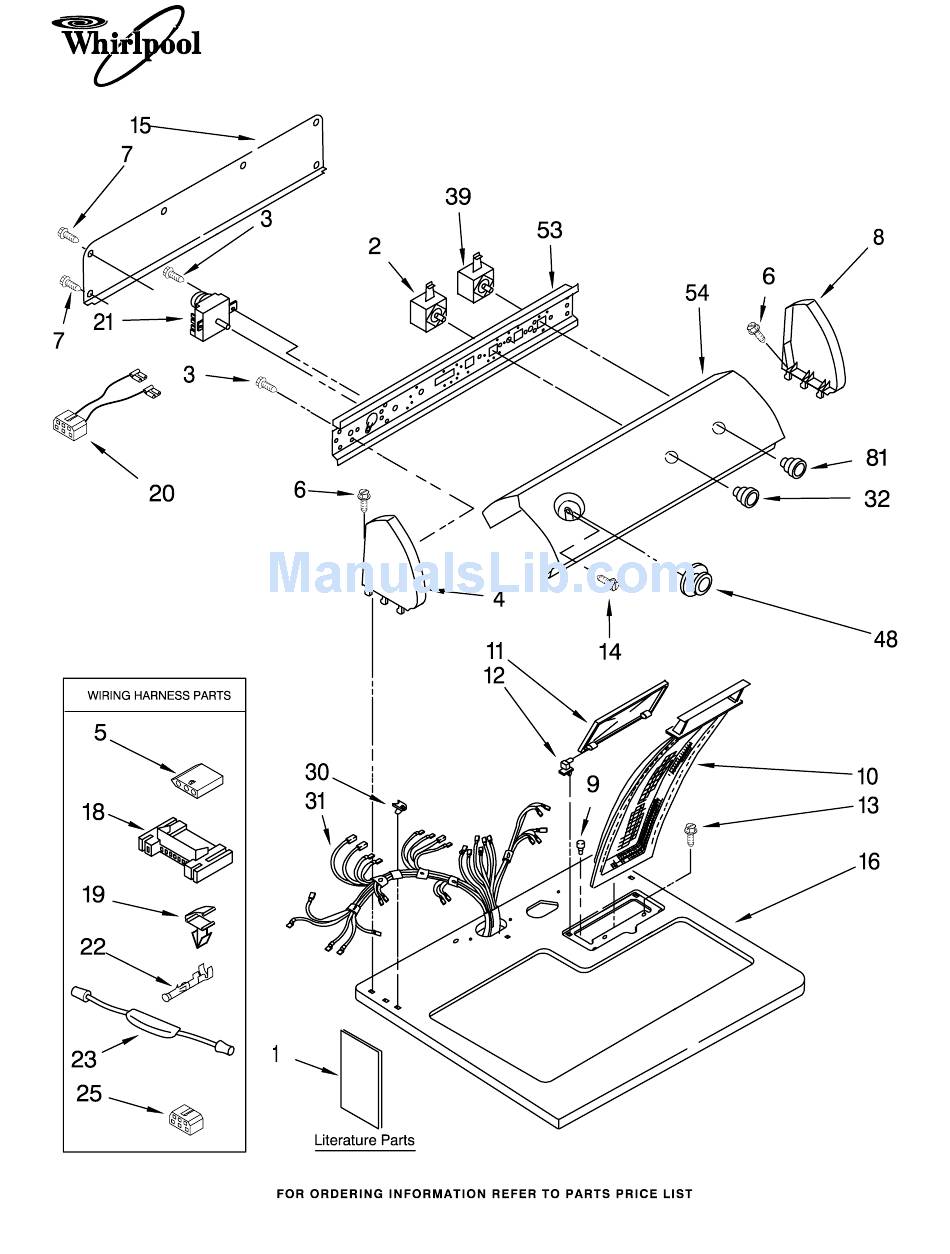

- Page 1 TOP AND CONSOLE PARTS 29" ELECTRIC DRYER For Model: LER3634JW0 (White) Part No. 4320161 6−00 Litho in U.S.A. (djc)
- Page 2 TOP AND CONSOLE PARTS For Model: LER3634JW0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3936144 Connector 3976575 Timer, 60 Hz. Literature Parts 388326 Screw, Console 94614 Terminal LIT8314844 Guide, Use & Care 693995 Screw, Hex Head 3401076 Resistor Assembly LIT3397618 Instructions, 8271361 Cap, End (R.H.)
-
Page 3: Cabinet Parts
CABINET PARTS For Model: LER3634JW0 (White) 4320161... - Page 4 CABINET PARTS For Model: LER3634JW0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3393008 Screw, 10−16 x 1/2 3399580 Cabinet 3397659 Block, Terminal 343641 Screw, 10−16 x 1/2 (Includes Illus. 238088 Hinge, Top (2) 3396795 Cover, Terminal Nos. 5,7,16,29 3394332 Idler &...
- Page 5 BULKHEAD PARTS For Model: LER3634JW0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 694283 Lint Chute Assembly 3397566 Box, Heater 690997 Ring, Tri 3977358 Drum Hole 3399693 Thermostat, 3399506 Shaft, L.H. 250 F Plug 3399507 Shaft, R.H. (121.1 C) (60 Hz.)
