Whirlpool LER3624BW3 Parts List
Whirlpool LER3624BW3 Parts List

Whirlpool LER3624BW3 Parts List

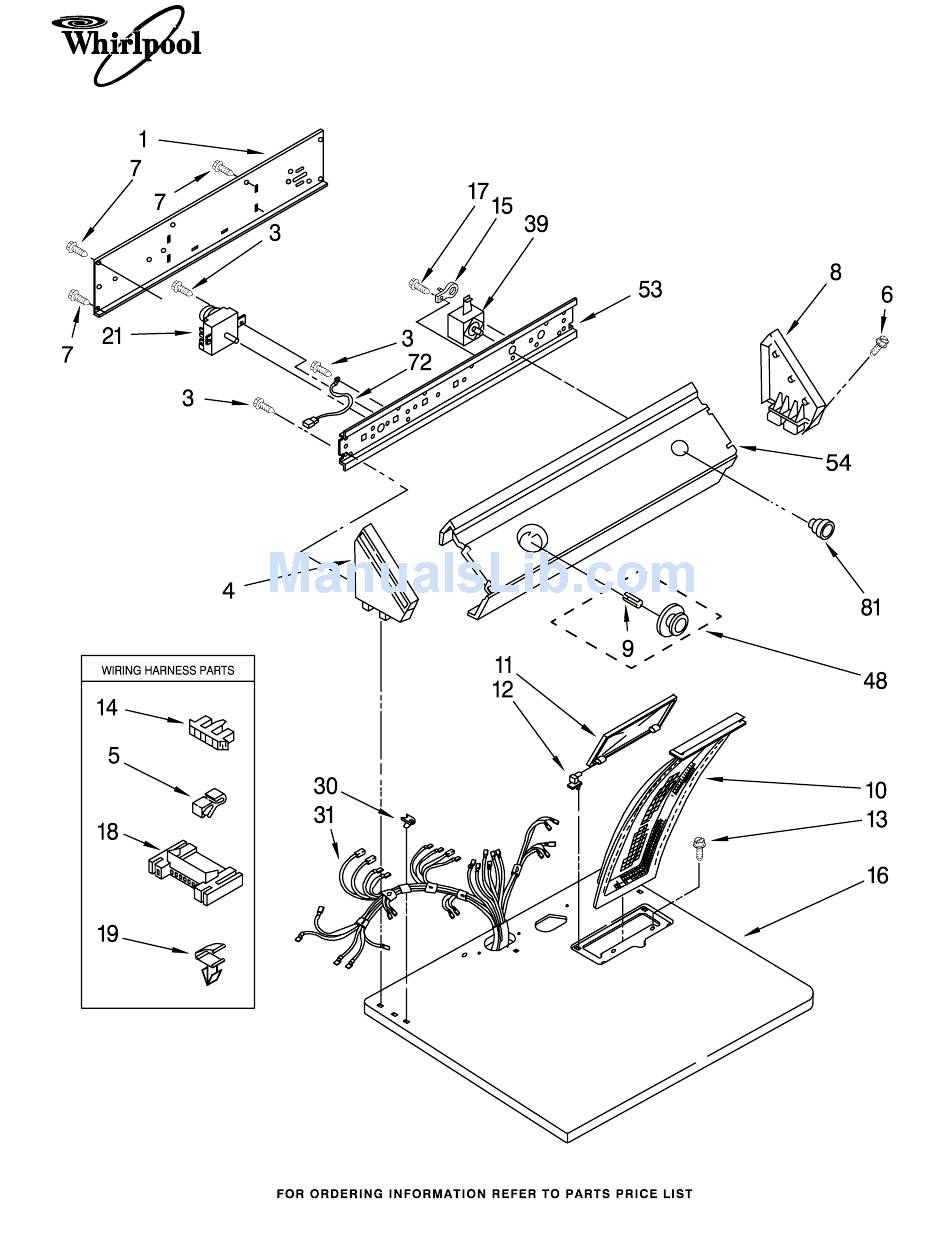

Whirlpool electric dryer top and console parts

Advertisement

Quick Links

TOP AND CONSOLE PARTS
ELECTRIC DRYER
For Models: LER3624BW3, LER3624BN3
(White)
(Almond)
2−96 Litho in U.S.A. (tpm)
1
Part No. 4377659

Advertisement

loading
Need help?

Need help?

Do you have a question about the LER3624BW3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool LER3624BW3

  • Page 1 TOP AND CONSOLE PARTS ELECTRIC DRYER For Models: LER3624BW3, LER3624BN3 (White) (Almond) 2−96 Litho in U.S.A. (tpm) Part No. 4377659...
  • Page 2 TOP AND CONSOLE PARTS For Models: LER3624BW3, LER3624BN3 (White) (Almond) Illus. Part DESCRIPTION 3397545 Panel, Rear Console 3390646 Screw, 8−18 x 5/16 Cap, End (L.H.) 3358531 White 3358532 Almond 689180 Clip, Retainer 388326 Screw, Console 693995 Screw, Hex Head Cap, End (R.H.)
  • Page 3: Cabinet Parts

    CABINET PARTS For Models: LER3624BW3, LER3624BN3 (White) (Almond) 4377659...
  • Page 4 CABINET PARTS For Models: LER3624BW3, LER3624BN3 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3393008 Screw, 10−16 x 1/2 690363 Lock, Front 279393 Terminal Block 343641 Screw, 10−16 x 1/2 Top (2) Kit For 3396795 Cover, Terminal...
  • Page 5 BULKHEAD PARTS For Models: LER3624BW3, LER3624BN3 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3390291 Thermostat, 690997 Ring, Tri 694283 Lint Chute Assembly High Limit 250 F 3399506 Shaft, L.H. 3388703 Washer, Support (121.1 C) (60 Hz.) 3399507 Shaft, R.H.
  • Page 6 OPTIONAL PARTS (NOT INCLUDED) For Models: LER3624BW3, LER3624BN3 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION LITERATURE PARTS OPTIONAL PARTS NOT INCLUDED Following May Be Purchased LIT3401083 Guide, Use & Care PAINT, TOUCH−UP (1/2oz.) LIT3397597 Instructions, DO−IT−YOURSELF...
