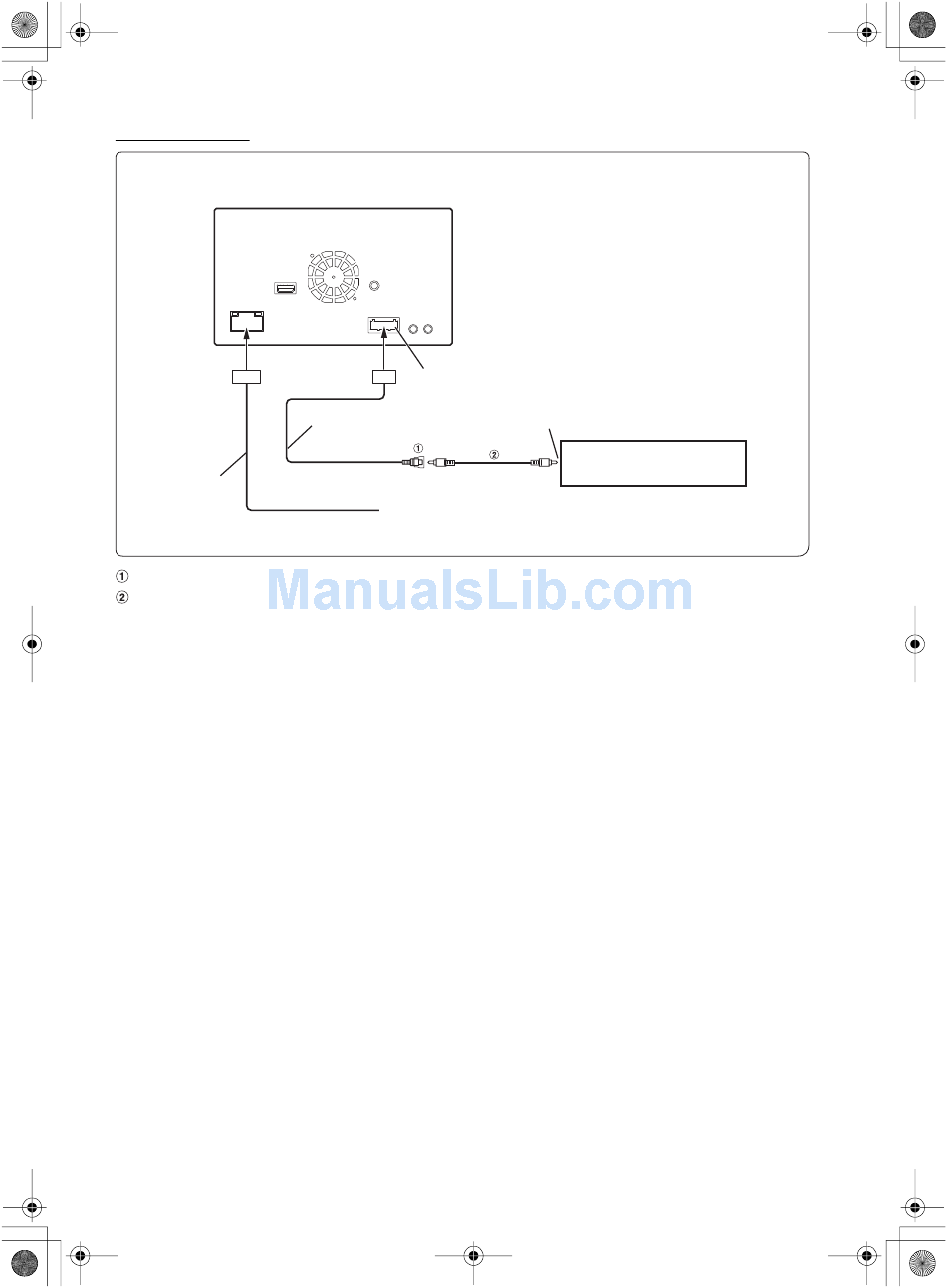

Connection of camera
Power Supply Connector
CAMERA Input RCA Connector (CAMERA)
RCA Extension Cable (sold separately)
01GB06IVE-W554ABT.fm
CAMERA/AUX/PRE OUT Connector
CAMERA/AUX/PRE OUT cable
(Yellow)
Reverse Lead
Connect to the plus side of the
(Orange/White)
car's reverse lamp.
To Video Output terminal
Camera with RCA video output (sold
separately)
HCE-C105, etc.
