Summary of Contents for Elisa Viihde

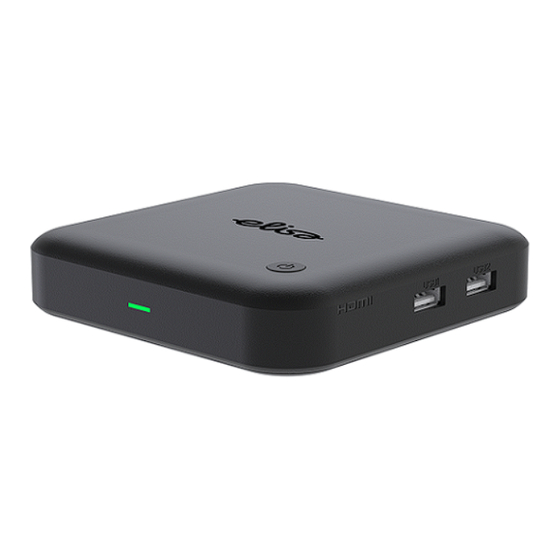

- Page 1 Elisa Viihde TV service manual...
-
Page 2: Table Of Contents
5.1.2 Channel list 5.2 Time settings 5.3 Programme Guide and programme recording with the aid of the remote control 5.4 Elisa Viihde menu 5.4.1 Recorded programmes and playing back recorded programmes 5.4.2 Video Store 5.4.3 Pay channels 5.4.4 News releases 6. -
Page 3: Kit Contents
1. Kit contents The Elisa Viihde kit includes one digibox and all the necessary accessories. Elisa Viihde digibox Elisa Viihde remote control Antenna cable HDMI cable Ethernet cable Power supply unit 2. Remote control... -
Page 4: Remote Control
2.1 Remote control The Elisa Viihde digibox is operated with the aid of the remote control included in the kit. The functions assigned to the remote control buttons may vary depending on the operation mode. When the remote control signal is sent to the digibox, the power button LED will flash, indicating that the digibox is receiving a signal from the remote control. -
Page 5: Digibox Installation
Connect the digibox to the Elisa Viihde broadband modem. Connect one end of the network cable to the digibox Network port and the other end of the cable to the free network port in the Elisa Viihde broadband modem. Digibox network port and network cable... -
Page 6: How To Start Using The Remote Control
Connect one end of the HDMI cable to the digibox HDTV port and the other end to the HDMI port in your TV (for TVs with HD Ready and Full HD labels). If you use the SCART port, connect one end of the SCART cable to the digibox TV port (TV) and the other end to the SCART port in your TV SCART and HDMI cables... -
Page 7: Digibox Connection To Your Stereo Or Home Theatre
TV a separate HDMI cable connection between the home theatre and TV is necessary. Please note that the Elisa Viihde kit does not include audio cables for digibox connection to a stereo/home theatre. Audio ports – optical port on the left and RCA port on the right... -
Page 8: Tv Service Access
4. TV service access 4.1 Quick guide to TV service access Start using Elisa Viihde TV services by following the TV screen instructions and the instructions below: Turn on your TV and select the input interface (normally AV). If you are using HDMI for the digibox connection to the TV, select the appropriate symbols by following the TV’s on-screen... -
Page 9: Language Selection
4.2.2 Language selection Select Finnish or English as the user language. Display mode selection for HDMI cable connection 4.2.3 Image settings If you are using an HDMI cable for the digibox connection to the TV, you will need to select the desired image settings at the beginning of service access. -
Page 10: Aspect Ratio Selection
4.2.4 Aspect ratio selection Select your TV screen type: 16:9 Normaali or 4:3 Pan & Scan. After selecting the desired aspect ratio, save the selection and continue by pressing the OK button on the remote control. TV screen type selection 4.2.5 Network selection Select the connection type and press OK. -
Page 11: Parental Control Pin Code
Note! All TV channels found will be displayed in the channel list, including encrypted channels available via antenna or cable network. Encrypted channel viewing with the aid of the Elisa Viihde digibox is not possible. Pay channels can be ordered via the Elisa Viihde menu and will be delivered to the digibox by broadband network. -
Page 12: Broadband Connection
For further information, please refer to section 6.3.6. You can subscribe to pay channels either via the Elisa Viihde TV screen menu or the elisaviihde.fi website. More information is available in section 5.4.3 of this manual. -
Page 13: Time Settings
Pay TV and additional free channel programmes cannot be recorded. To exit from Programme Guide press the Programme Guide key or “Return” button on the remote control. You can view recorded programmes using the Elisa Viihde menu. For more details, please see the next section. -
Page 14: Elisa Viihde Menu
To access the Elisa Viihde menu press the blue Elisa Viihde Portal button. You can also access the Elisa Viihde menu by pressing the Menu button and selecting Elisa Viihde. Elisa Viihde menu Use the Up, Down, Left and Right navigation keys to navigate in the Elisa Viihde menu. -
Page 15: Video Store
To order a movie, enter the PIN1-code in the appropriate field and press the OK button. Now you can watch the movie as many times as you want in the next 24 hours. The rental fee will be included in your Elisa Viihde invoice for the following month. -
Page 16: Pay Channels
Elisa Elokuvat and Viaplay. 5.4.3 Pay channels In the Pay Channels sections of the Elisa Viihde menu you can see you existing subscriptions and subscribe to additional pay channels. Further information on channel packages is available at www.elisa.fi/viihde. -
Page 17: Menu Button
6. Menu button Press the Menu button to go to the Elisa Viihde menu, TV Programme Guide and Settings section. Select Settings to launch, for example, the troubleshooting help function. You can also restart the digibox or restore the factory settings. -
Page 18: Settings
6.3 Settings Select the Elisa Viihde digibox settings, for example, to restore factory settings, perform channel search, create favourite listings, adjust sound and picture, activate Parental Control function and check network service settings. 6.3.1 Picture If necessary, you can select the digibox image, resolution and aspect ratio settings. -
Page 19: Network
6.3.4 Network Elisa Viihde network parameters are set automatically. We recommend that you do not change them. Network settings 6.3.5 Channel search Channel search works in the same way as during the initial installation of the device. If necessary, channel search is used after relocation, addition of new channels to the service or channel relocation. -
Page 20: Diagnostics
(unique device network card identifier), hardware and software data (firmware, software), Internet connection performance, number of TV channels and the Elisa Viihde digibox operation time (uptime). In the TV Signal section, you can see the TV channel signal values. In the Network section, you can see the time of device connection to... -
Page 21: Computer Access To The Services
You can use remote programming and management of your recordings through the Elisa Viihde service from a PC with access to the Internet. For Web access to the service, go to www.elisaviihde.fi. Web access requires login to the system using a personal username and password. - Page 22 To record programmes from the Programmes page, click the link at the desired programme. A small programme info window with will pop up. At the bottom of programme info window a “Record programme” text button will be displayed. Click on this text button to load the programme.
-
Page 23: Mobile Access To The Services
Programme recording can be managed via mobile access to the Elisa Viihde services. You can use on your mobile phone the Web interface in accordance with section 5 or an alternative simplified mobile phone interface. For Android and Nokia phones, Elisa Viihde mobile software is available for download. -
Page 24: Smartphone Remote Access
8.2 Smartphone remote access You can download applications for Android, iPhone and Nokia touchscreen phones from the Elisa Viihde section of the application on- line stores (Android Market, ApsStore and Nokia Ovi Store). On the home page of the application programme recordings and Video Store new arrivals are displayed. -
Page 25: Digibox Settings
9. Digibox settings 9.1 TV settings To access the sound and picture menu, press the Menu button on the remote control and then select Settings and Picture. From this menu you can change the sound and picture settings. With an HDMI connection you can choose from the four available options the one that is most appropriate for your TV. - Page 26 • use an HDMI connection). SCART ports (for digibox connection to a TV). • Network port (for digibox connection to Elisa Viihde broadband • modem via network cable (RJ-45)). Power port (for digibox connection to power supply source). Note! •...
