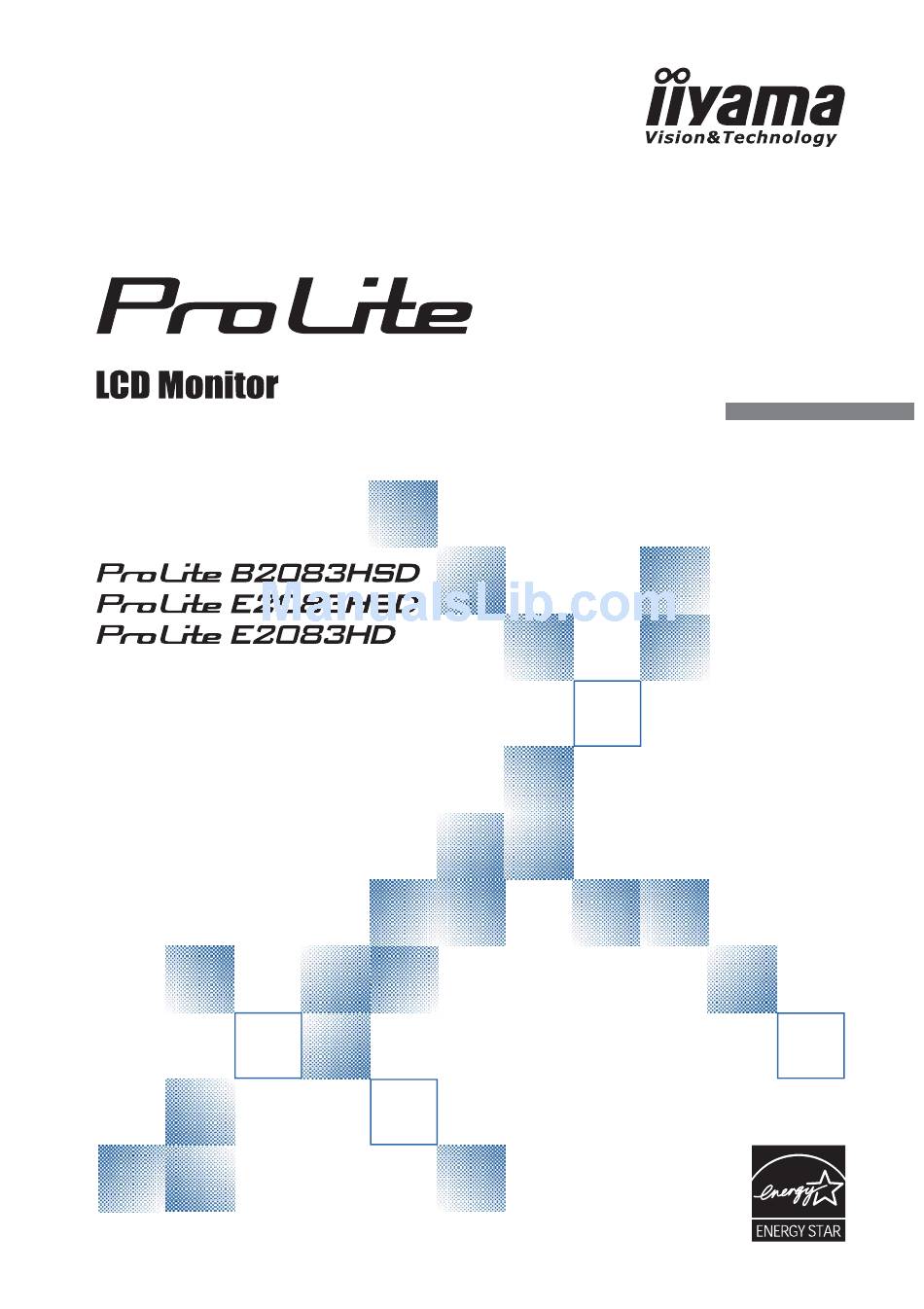

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... - Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
-
Page 4: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 5: Table Of Contents
BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE : ProLite B2083HSD ....6 FITTING AND REMOVAL OF BASE : ProLite E2083HSD / ProLite E2083HD ...........7 CONTROLS AND CONNECTORS : ProLite B2083HSD ....8 CONTROLS AND CONNECTORS : ProLite E2083HSD / ProLite E2083HD ...........9... -
Page 6: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base : Prolite B2083Hsd
FITTING AND REMOVAL OF BASE : ProLite B2083HSD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 12: Fitting And Removal Of Base : Prolite E2083Hsd / Prolite E2083Hd
FITTING AND REMOVAL OF BASE : ProLite E2083HSD / ProLite E2083HD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Controls And Connectors : Prolite B2083Hsd
CONTROLS AND CONNECTORS : ProLite B2083HSD <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (MENU) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) -
Page 14: Controls And Connectors : Prolite E2083Hsd / Prolite E2083Hd
CONTROLS AND CONNECTORS : ProLite E2083HSD / ProLite E2083HD <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (MENU) Scroll Up / Volume * Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Auto Button (AUTO) Speakers *... -
Page 15: Connecting Your Monitor : Prolite B2083Hsd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 16: Connecting Your Monitor : Prolite E2083Hsd / Prolite E2083Hd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 17: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 30: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E2083HSD / ProLite E2083HD For optimal viewing it is recommended to look at the full face of the monitor. -
Page 18: Adjusting The Height And The Viewing Angle : Prolite B2083Hsd
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B2083HSD For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 30. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Pixel Clock and Phase Auto Adjust * Direct automatically. * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 20 for SCREEN ADJUSTMENTS. - Page 21 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide Phase To correct fl ickering text or lines Color Adjustment Item Problem / Option Button to Press Bluish white...
- Page 22 Language Adjustment Item Problem / Option Button to Press Español Spanish English English Dutch Français French Nederlands Language Japanese Deutsch German Simplifi ed Chinese Italiano Italian Polski Polish Russian Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Recall All Return to Menu.
- Page 23 Adv. Contrast Typical Contrast Ratio Full Expansion display Display Mode Aspect Expansion display of Aspect iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. 18 OPERATING THE MONITOR...
- Page 24 Mute On and Off are switched as follows by pressing the Button successively. NOTE * Available for ProLite B2083HSD / ProLite E2083HSD only. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.
-
Page 25: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 26 Press the AUTO Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 27 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. ...
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 30: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 25... -
Page 31: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B2083HSD Size Category 20" Panel Technology TN Panel Size Diagonal: 19.5" (49.4cm) Pixel pitch 0.271mm H × 0.271mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available... -
Page 32: Specifications : Prolite E2083Hsd
SPECIFICATIONS : ProLite E2083HSD Size Category 20" Panel Technology TN Panel Size Diagonal: 19.5" (49.4cm) Pixel pitch 0.271mm H × 0.271mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical) Display Colours... -
Page 33: Specifications : Prolite E2083Hd
SPECIFICATIONS : ProLite E2083HD Size Category 20" Panel Technology TN Panel Size Diagonal: 19.5" (49.4cm) Pixel pitch 0.271mm H × 0.271mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical) Display Colours... -
Page 34: Dimensions : Prolite B2083Hsd
DIMENSIONS : ProLite B2083HSD 469.5mm/18.5” 59.5mm/2.3” 435.5mm/17.1” 250.0mm/9.8” ) : Maximum adjustment range DIMENSIONS : ProLite E2083HSD / ProLite E2083HD 469.5mm/18.5” 59.5mm/2.3” 435.5mm/17.1” 238.0mm/9.4” APPENDIX 29... -
Page 35: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz VESA 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz SXGA...
