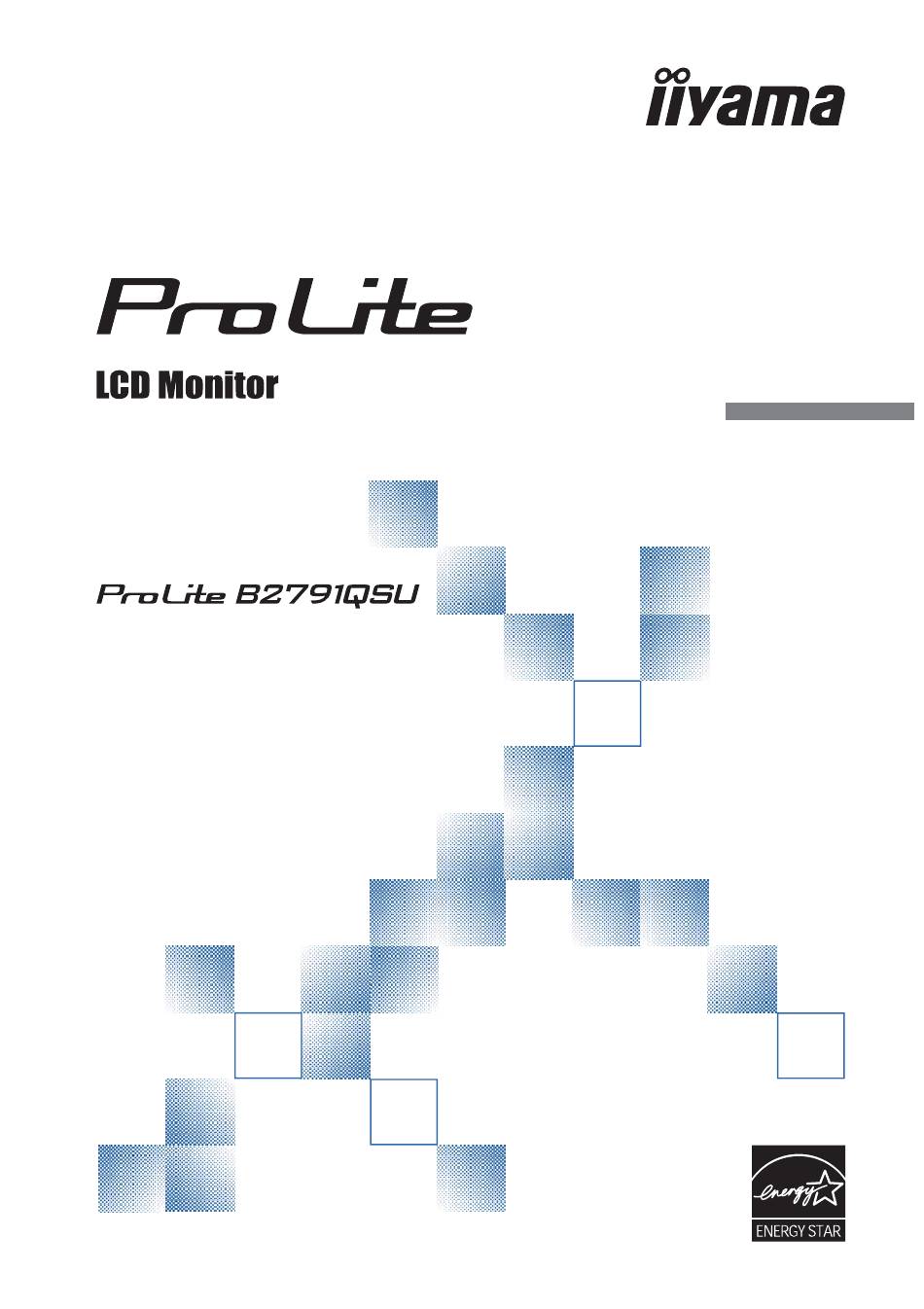

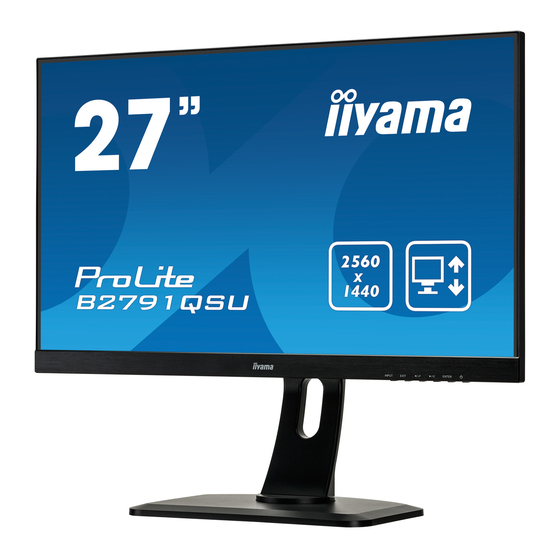

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite B2791QSU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLite B2791QSU

Summary of Contents for Iiyama ProLite B2791QSU

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
  • Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2791Q We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9...

  • Page 6: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 8: Special Notes On Lcd Monitors

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.  For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it.

  • Page 9: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 10: Wall Mounting

    WALL MOUNTING WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

  • Page 11: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE  Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 12: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Down / Volume Button ( Scroll Up / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector ( USB Upstream Connector (...

  • Page 13: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 14: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 2: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.

  • Page 15: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below.

  • Page 16: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Adjust * ProLite B2791QSU PICTURE ADJUST BRIGHTNESS COLOR SETTINGS CONTRAST LANGUAGE RECALL MODE1 MISCELLANEOUS BLUE LIGHT REDUCER MODE1 INPUT SELECT ADV. CONTRAST AUDIO SETTINGS OVERDRIVE Adjustment Item Problem / Option Button to Press Too dull 1,2,4...
  • Page 17 Color Settings ProLite B2791QSU PICTURE ADJUST COLOR TEMPERATURE COLOR SETTINGS 7500K 9300K 6500K USER PRESET LANGUAGE RECALL GREEN MISCELLANEOUS BLUE INPUT SELECT AUDIO SETTINGS I-STYLE COLOR CINEMA Adjustment Item Problem / Option Button to Press 9300K Bluish white Color Temperature *...
  • Page 18 ProLite B2791QSU PICTURE ADJUST ON SCREEN DISPLAY SETTINGS COLOR SETTINGS OSD HORIZONTAL POSITION OSD VERTICAL POSITION LANGUAGE RECALL OSD TIME MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position...
  • Page 19 Recall ProLite B2791QSU PICTURE ADJUST RECALL ALL? COLOR SETTINGS RECALL LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Recall 14 OPERATING THE MONITOR...
  • Page 20 Full Expansion display Video Mode Adjust * Aspect * Expansion display of Aspect iiyama Logo does not display when the monitor Off is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
  • Page 21 Input Select ProLite B2791QSU PICTURE ADJUST INPUT SOURCE Direct COLOR SETTINGS AUTO MANUAL MANUAL LANGUAGE SELECT RECALL HDMI SELECT MISCELLANEOUS DISPLAYPORT (DP) SELECT INPUT SELECT AUDIO SETTINGS Problem / Option Button to Press Adjustment Item Search for an available input source and Auto select automatically.
  • Page 22 Audio Settings ProLite B2791QSU PICTURE ADJUST VOLUME COLOR SETTINGS OPTIONS LANGUAGE MUTE AUDIO RECALL AUDIO INPUT HDMI LINE-IN MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Off Return the sound volume to the previous level.
  • Page 23 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.

  • Page 24: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 25: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 26: Recycling Information

    A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21...

  • Page 27: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 27" Panel technology Size Diagonal: 27" (68.5cm) Pixel pitch 0.233mm H × 0.233mm V Brightness 350cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time...

  • Page 28: Dimensions

    DIMENSIONS 611.0mm/24.1” 54.0mm/2.1” 605.5mm/23.8” 300.0mm/11.8” ) : Maximum adjustment range COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz SXGA 1280 ×...
