Intermatic HB51RC75 Instructions

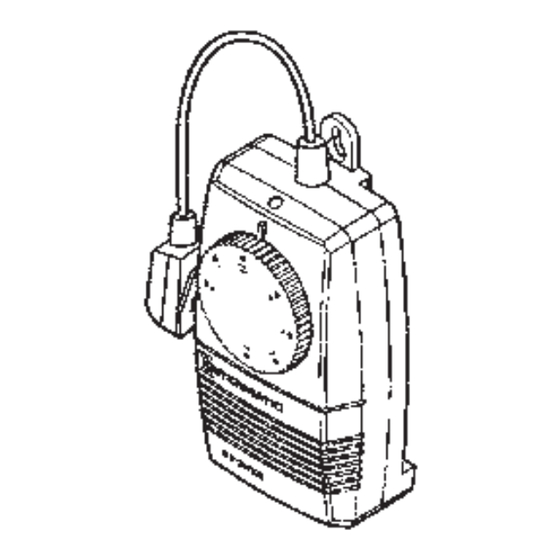

Outdoor lighting timer with light sensor

Outdoor Lighting Timer with Light Sensor

OPERATING INSTRUCTIONS

1. Before installing your Outdoor Timer with Light Sensor,

it is important to keep your timer from:

a. the lights being timed ON/OFF

b. other night time light sources, e.g. street lights, porch lights

c. reflective surfaces such as aluminum siding

(Please refer to Item 2 under Other Important Notes)

For this reason, it is recommended that a 3-conductor grounded

outdoor extension cord be used between the timer and the lights.

2. If you are using an outdoor extension cord, plug it into your timer

receptacle. If you are not using an outdoor extension cord, plug your

outdoor Christmas or other incandescent lights into your timer

receptacle. The total cumulative wattage of all the lights must not

exceed 1000 watts.

3. Plug the timer into a grounded 120 volt outlet.

AFTER THE LIGHT SENSOR SENSES DARKNESS, YOUR

TIMER WILL TAKE APPROXIMATELY TWO (2) MINUTES

BEFORE TURNING THE LIGHTS ON. THIS IS TO ENSURE

THAT THE LIGHTS WILL NOT TURN ON IN A REACTION

TO TEMPORARY DARKNESS.

Instructions for the

HB51RC75

IMPORTANT NOTE:

Table of Contents

Do you have a question about the HB51RC75 and is the answer not in the manual?

Page 1: Operating Instructions
Instructions for the Outdoor Lighting Timer with Light Sensor HB51RC75 OPERATING INSTRUCTIONS 1. Before installing your Outdoor Timer with Light Sensor, it is important to keep your timer from: a. the lights being timed ON/OFF b. other night time light sources, e.g. street lights, porch lights c.
Page 2 If it is daylight: Your lights will remain on for a minute or two and will then turn off. Then, at dusk, your lights will automatically turn on and will stay on in accordance with the preset program. If further assistance is required call: INTERMATIC 815-675-2321 158SB10160...
