Summary of Contents for royer SF-1
-
Page 1: Users Guide

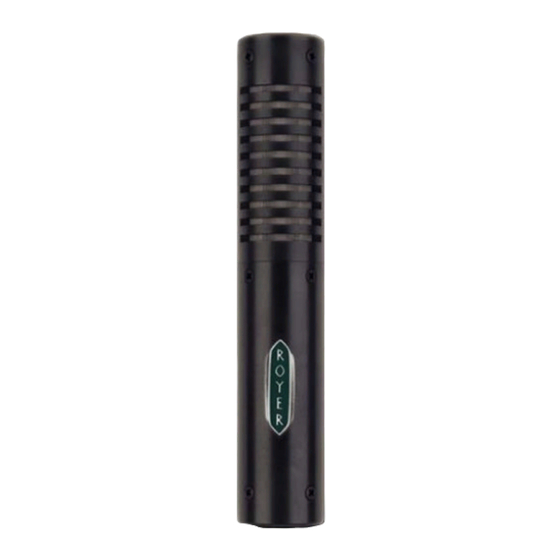

R R R R O O O O Y Y Y Y E E E E R R R R L L L L a a a a b b b b s s s s Model SF Ribbon Velocity Microphone Operation Instructions Manual &... -
Page 2: Table Of Contents
T T T T A A A A B B B B L L L L E E E E O O O O F F F F C C C C O O O O N N N N T T T T E E E E N N N N T T T T S S S S M M M M o o o o d d d d e e e e l l l l S S S S F F F F R R R R i i i i b b b b b b b b o o o o n n n n M M M M i i i i c c c c r r r r o o o o p p p p h h h h o o o o n n n n e e e e Table of Contents page 1... -
Page 3: Applications
It is important to note that Royer ribbon microphones are known to be tough and durable. While all Royer’s are built to last a lifetime, the thicker ribbon element in our R-121 ribbon mic can take more abuse than the finer, somewhat more delicate ribbon element in your SF-1. - Page 4 3. The Royer model SF-1 requires no power supply and is safe to use on consoles with phantom microphone powering, provided that the cabling is properly wired. It should be noted that not all ribbon microphones are compatible with phantom-powering systems, so check the manufacturer’s recommendations before using other ribbon microphones.
- Page 5 blown ribbon could result. 6. Always provide adequate protection for your SF-1, or any ribbon microphone. 7. If the microphone is to remain set-up on a stand when not in use, place a “mic sock” over it until it is to be used. Do not carry the microphone around without placing a “mic sock”...
- Page 6 For example: If the mic is rated at 300 Ohms (as Royer’s are), the preamp should have an input-impedance of at least 1500 Ohms. If the impedance of the preamp is too low, the microphone will lose low end and body.
-
Page 7: Equalization And Ribbon Microphones
With vintage ribbon microphones that employ large bulky magnet structures, the problem can be worse. Royer SF-1 and SF-12 microphones are designed to minimize the effects of unwanted radiation by integrating the transducer barrel as part of the magnetic return circuit. With this design, the barrel housing the transducer serves to complete the North-South magnetic return and neutralizes the effects of outside magnetic radiation. -
Page 8: The Sweet Spot
produce hum on their own. Unwanted noise (hum) can only come from an external source. Fortunately, there is a simple procedure that can be used to identify the source of the noise and eliminate it. Repositioning a dynamic and ribbon microphone is the number-one way to get rid of unwanted noise. -
Page 9: Other Types Of Microphones
2. Frequency response variation due to treble losses as a result of absorption and narrowing of the pattern at high frequencies-causing weakening of highs as the microphone is moved away from the sound source. 3. Rise in treble response on-axis due to diffraction. 4. -
Page 10: General Tips For Using Ribbon Microphones
Typical relationship of microphone distance to frequency response for ribbon-velocity bi- directional microphone. Another area where proximity effect can be turned to an advantage is in making things sound “more real than real.” For example, many voices and certain musical instruments produce fundamental frequencies within the bass range (below 150HZ or so) but the fundamentals are weak. - Page 11 piano at a distance of one foot to several feet, depending on taste. A more direct up front sound will be achieved when the microphone is placed closer to the soundboard. For capturing a piano in stereo, place the microphones apart, one over the bass strings and the other over the high strings.
-
Page 12: Microphone Technique
Figure 1 Classic Blumlein or “coincident miking technique Mid-Side Technique: In the early days of stereo radio broadcasting, there was a need for a mic setup that would allow for simultaneous stereo and mono feeds from the same mic array and for electronic fiddling with the severity of the stereo effect. - Page 13 Figure 2 – Typical M-S miking technique Figure 3 – Typical M-S connection set-up...
- Page 14 C C C C a a a a r r r r e e e e a a a a n n n n d d d d M M M M a a a a i i i i n n n n t t t t e e e e n n n n a a a a n n n n c c c c e e e e The SF-1 is a well-built precision instrument.
- Page 15 them. The new designs were compact, rugged and sensitive. It wasn’t long before the television industry embraced these new designs. Radio followed the trend shortly afterward. Further technological development of ribbon microphones was considered unnecessary and the beloved ribbon soon faded into obscurity. It is a fate reminiscent of that of the vacuum tube when transistors hit the scene.
-
Page 16: Warranty
Warranty: Unconditional (repair or replace at Royer’s option) P P P P o o o o l l l l a a a a r r r r P P P P a a a a t t t t t t t t e e e e r r r r n n n n... - Page 17 This warranty does not apply if the product has been damaged by accident or misuse, or as a result of repair or modification by other than a Royer Labs customer service facility authorized to service this product. To validate this warranty, the registration card and a photocopy of the sales receipt from an authorized Royer Labs dealer must be on file with Royer Labs.
