- Page 1 User Guide...
-
Page 3: Dimensions And Installation

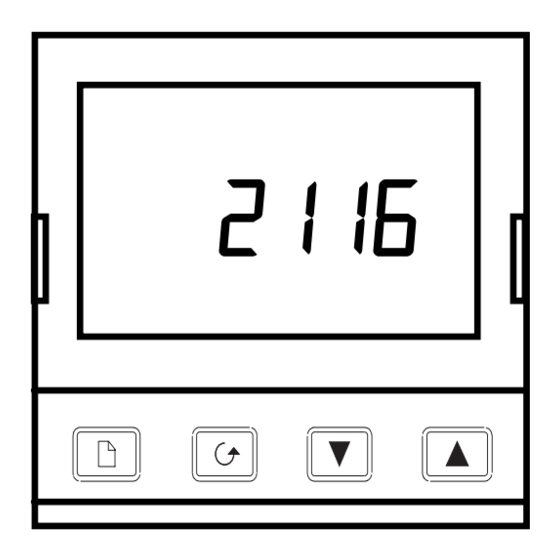

Installing and Operating Instructions Models 2132i/ND and 2116i/ND are Indicator only units Thank you for choosing the 2132i or 2116i indicator and which come without the alarm relay output or logic I/O fitted. alarm unit. It will provide accurate measurement and display... -
Page 4: Operation
(Return for repair) Alarm 3 Power failure. The line voltage is too low. Pwr.F Press Press together to change the setpoint. return to the HOME display. 2116i.2132i – Applies to versi ons 1.3 & 1.4 HA026248 – I ssue 4 08/07... - Page 5 Pnt.H High calibration point User cal. OFS.H OFS.H High point offset Displayed Value Factory ACCS Access list Used for re-configuring the indicator. OFS.L Factory calibration Pnt.L Pnt.H 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07...
- Page 6 Auto = 1.5KΩ, Hi=5KΩ, HiHi = Sensor break input impedance 15KΩ Exit to select YES After 2 Press secs the display will blink and return to the HOME display in Operator level. 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07...
-
Page 7: Technical Specification
Pollution degree 2. All isolated inputs and outputs have reinforced insulation to protect against electric shock. Atmosphere Not suitable for use above 2000m or in explosive or corrosive atmospheres Panel sealing IP65 (EN 60529), or NEMA 4X 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07... -
Page 8: Safety And Emc Information
Isopropyl alcohol may be used to clean labels. A mild soap solution may be used to clean other exterior surfaces of the product. 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07... - Page 9 Where it is impractical to do this, use shielded cables with the shield grounded at both ends. In general keep cable lengths to a minimum. 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07...
- Page 10 SJ/T11363-2006. Approval Name: Position: Signature: Date: Martin Greenhalgh Quality Manager This indicator meets the European directives on safety and EMC 2116i.2132i – Applies to versions 1.3 & 1.4 HA026248 – Issue 4 08/07...
- Page 12 E-mail info.de@eurotherm.com E-mail info.nl@eurotherm.com Invensys, Eurotherm, the Eurotherm logo, Chessell, EurothermSuite, Mini8, Eycon, Eyris and Wonderwear are trademarks on Invensys plc, its subsidiaries and affiliates. All other brands may be trademarks of their respective owners. © Copyright Eurotherm Limited 2007 All rights are strictly reserved.
