MODEL 4103 MEMORY CARD REROFIT KIT INSTRUCTIONS
9. Fit the card eject mechanism to the memory card drive board as shown in figure 7. Replace the ejector button
with the one supplied with the kit. Secure the card eject mechanism to the memory card, and the combined
assembly to the bulkhead, using the M2 fixings supplied (figure 8).
10. As shown in figure 9, re-fit the bulkhead (now complete with memory card driver) to the recorder chassis,
ensuring that the memory driver card is fitted correctly under its retainers, before latching the bulkhead into
position. If fitted, re-assemble the power on/off push rod to its button. The location of the circuit board is
most easily accomplished by placing the assembly such that the connector ear lies behind the chassis
backplate,then fitting the circuit board under the card guide on the left sideplate, then pulling the whole assem-
bly towards the front of the chassis, ensuring that the connector ear slides into its slot.

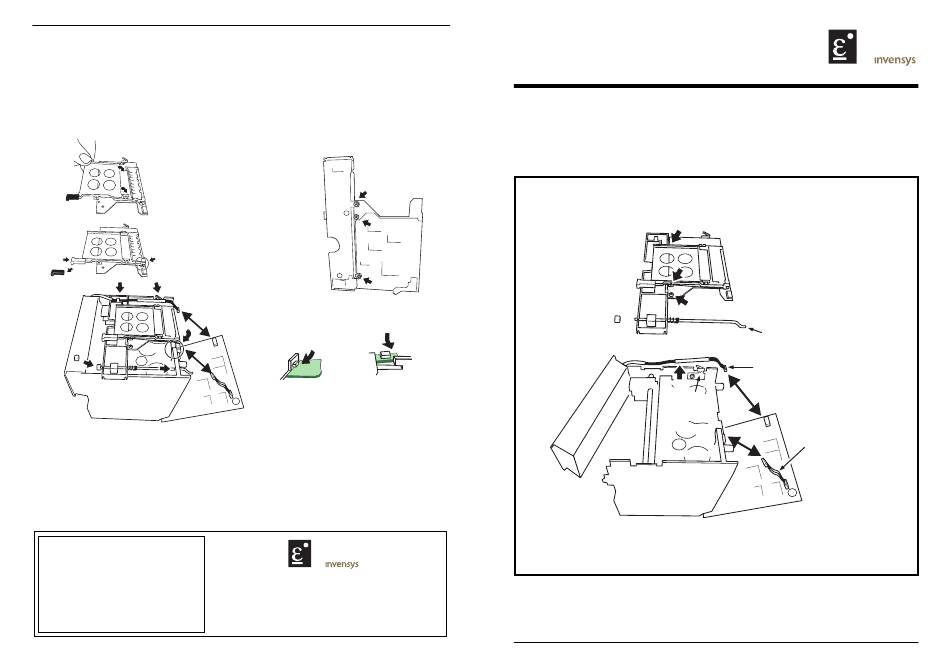

Figure 7
Assemble the card eject
mechanism to the circuit board
Figure 9 Fit the bulkhead, re-fit the power on/off pushrod, connect circuit boards.
11. For multi-point recorders, re-fit the flexi cable protection plate using the plastic rivet previously removed.
12. Connect the memory card connector (CON 20) and the display loom (CON 18) to the rear circuit board, and
re-secure the circuit board using the plastic rivets provided.
13. Return the recorder to the case, carefully re-fitting the flexi-cable to Con 16, ensuring that the cable emerges
perpendicular to the connector. Fit the new Option key, or refit the old key as applicable.
14. Re-fit the pens/printhead and chart cassette and return the recorder to service.
Specification subject to change without notice. ©Eurotherm Limited.
Figure 8
Secure card and eject mechanism to bulkhead
CON18
Insert under
card guide
Board location detail
CON20
E U ROT H E R M
EUROTHERM LIMITED
Faraday Close, Durrington, Worthing, West Sussex, BN13 3PL
Telephone: 01903 695888 Facsimile: 01903 695666
e-mail: info@eurotherm.co.uk
Website: http://www.eurotherm.co.uk
HA250559/3 (CN14392)
Push rod cap
Insert connector
'ear' into slot
HA250559
Issue 3 Feb 03
Memory Card Retro-fit kit instructions
M2 Screw (2 places)
M2 Screw and nut (1 place)
Power supply on/off push rod
(not current recorders)
Display loom
Discard
EMC Spring
CON 18
Figure 1 Memory Card Retrofit kit components
