J-SHA
II
Whirlpool Bath
Installation / Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-SHA and is the answer not in the manual?

Questions and answers

Summary of Contents for Jacuzzi J-SHA

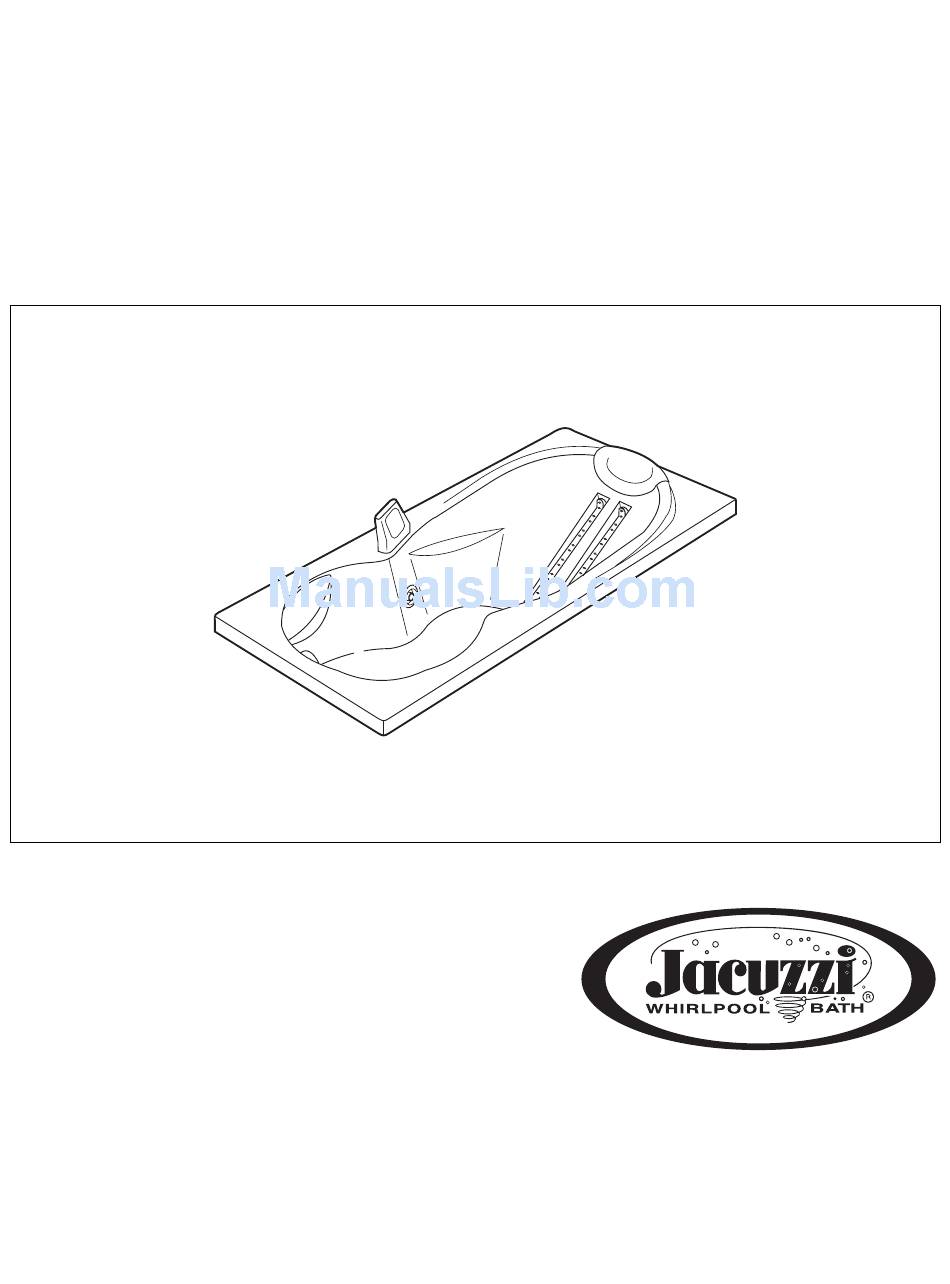

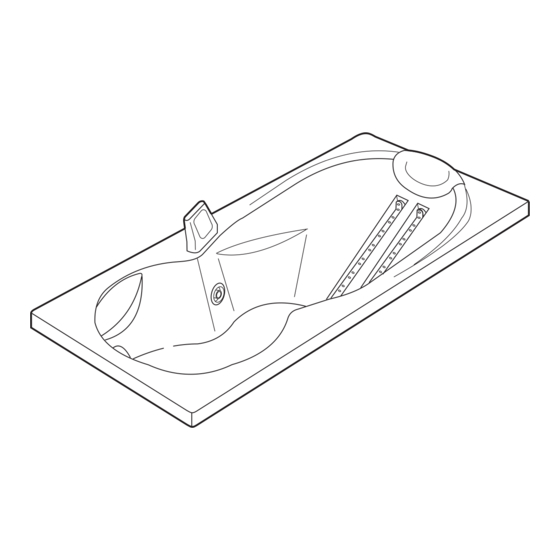

  • Page 1 ™ J-SHA Whirlpool Bath Installation / Operating Instructions...
  • Page 2: Read And Follow All Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING; CHILDREN SHOULD NOT USE HYDROMASSAGE BATHTUB WITHOUT ADULT SUPERVISION. WARNING : TO AVOID INJURY, EXERCISE CAUTION WHEN ENTERING OR EXITING THE HYDROMASSAGE BATHTUB WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING;...
  • Page 3 Note: This is a professional grade product. A knowledge of construction techniques, plumbing and electri- cal installation according to codes are required for proper installation and user satisfaction. We recom- mend that a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our war- ranty does not cover improper installation related problems.
  • Page 4: Table Of Contents

    Jacuzzi Whirlpool Bath is not responsible for any defect that could have been discovered, repaired, or avoided by following this inspection and testing procedure.
  • Page 5: Specifications

    J-Sha II Owner's Manual Specifications DIMENSIONS MOTOR/PUMP 71-3/4" (1822 mm) L 115 VAC 36" ( 914 mm) W Single phase 21-1/4" ( 546 mm) H 60 Hz. 18" (456 mm) 36" (914 mm) 5-3/8" 21-1/4" (540 mm) PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 6: Framing And Support

    J-Sha II Owner's Manual Framing and Support The floor structure beneath the bath must be able to support a total weight of bath, water, and bather. If the subfloor is level, no other preparation is necessary. You can proceed to install the bath. If the subfloor is not level, you MUST level the entire surface prior to installing the bath.
  • Page 7: Electrical Connections

    J-Sha II Owner's Manual Electrical Connections Two separate circuits are required for this unit: 1. Whirlpool bath controller. 2. Rapid Heat. 1. J-Sha II Install a 120 VAC 20 AMP dedicated circuit protected by a Ground Fault Circuit Interrupter (GFCI).
  • Page 8: Drain Information

    Note: the bath must be propped up due to the length of the tail pipe. NOTE: Watertight installation of the drain is the installer's responsibility. Drain leakage is excluded from the Jacuzzi Whirlpool Bath warranty of this product. 1-1/2" TO 1-1/4" BUSHING (2) 1-1/4"...
  • Page 9: Plumbing And Water Supply

    Before securing the bath to the floor, a test should be made for possible water leaks. Fill the bath until the nozzles on the back rest are covered. If leaks are detected, notify your Jacuzzi Whirlpool Bath Dealer. Do not install the unit.
  • Page 10: Water Level Sensor

    J-Sha II Owner's Manual WATER LEVEL SENSOR The bath is equipped with a water level sensor. When the water level is below the sensor, the pump/motor can not be activated. When the water goes above the level sensor, the pump/motor can then be activated. If the water level drops below the level sensor, the pump/motor will shut off.
  • Page 11: Operation

    J-Sha II Owner's Manual Operation LEDs Control Panel Control Panel Functions ON/OFF Button: Turns system on or off. BODY JET Button: Turns the body jets on or off. BACK JET Button: Selects the massage cycle. MIX Button: Selects both body jets and back jets.
  • Page 12 J-Sha II Owner's Manual ROLLING WAVE Button: Turns on the rolling whirlpool jet action pattern. SQUARE WAVE Button: Turns on the square whirlpool jet action pattern. TONIC/RELAX Button: Select either the Tonic or Relax cycle. The LED will light to indicate which cycle is selected.
  • Page 13 & LED START UP Press ON/OFF button. On start-up the J-Sha II will be in the default mode: BACK JET LED lights up. Back jets operate after about 2 seconds. The TONIC indicator will be on. The flow from the jets is from the bottom upward.
  • Page 14: Whirlpool Operation

    J-Sha II Owner's Manual ROLLING WAVE BUTTON & LED ON/OFF BUTTON & LED BODY JETS BUTTON & LED AIR INCREASE & DECREASE BUTTONS & LED SQUARE WAVE BUTTON & LED WHIRLPOOL Press BODY JETS button: The body jets led will come on while the TONIC indi- cator, 110-150 LED and the SPEED scale will all turn off.
  • Page 15: Operation

    J-Sha II Owner's Manual MIX OPERATION (BACK AND BODY JETS) ON/OFF BUTTON & LED MIX BUTTON AIR INCREASE & DECREASE BUTTONS & LED Both back jets and body jets operate in this mode. Press MIX button: BACK JETS and BODY WEIGHT LEDs remain off.
  • Page 16: Maintenance

    Cleaning the J-Sha To clean your J-Sha whirlpool bath, simply use a mild nonabrasive liquid detergent or commercially prepared bathtub cleaner. Do not use abrasive cleaners. You can protect and restore the gloss to a dulled surface by applying a polish specifically designed for use on acrylic finishes.
  • Page 17: Repairs To The Surface

    Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of this product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.
  • Page 19: Warranty

    NOTICE: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. There are no warranties applicable to Jacuzzi Whirlpool Bath products except as expressly stated herein or as implied by applicable state and federal laws. The Company will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any authorized literature or specifications furnished by the Company.
  • Page 20 The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty; the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period;...
