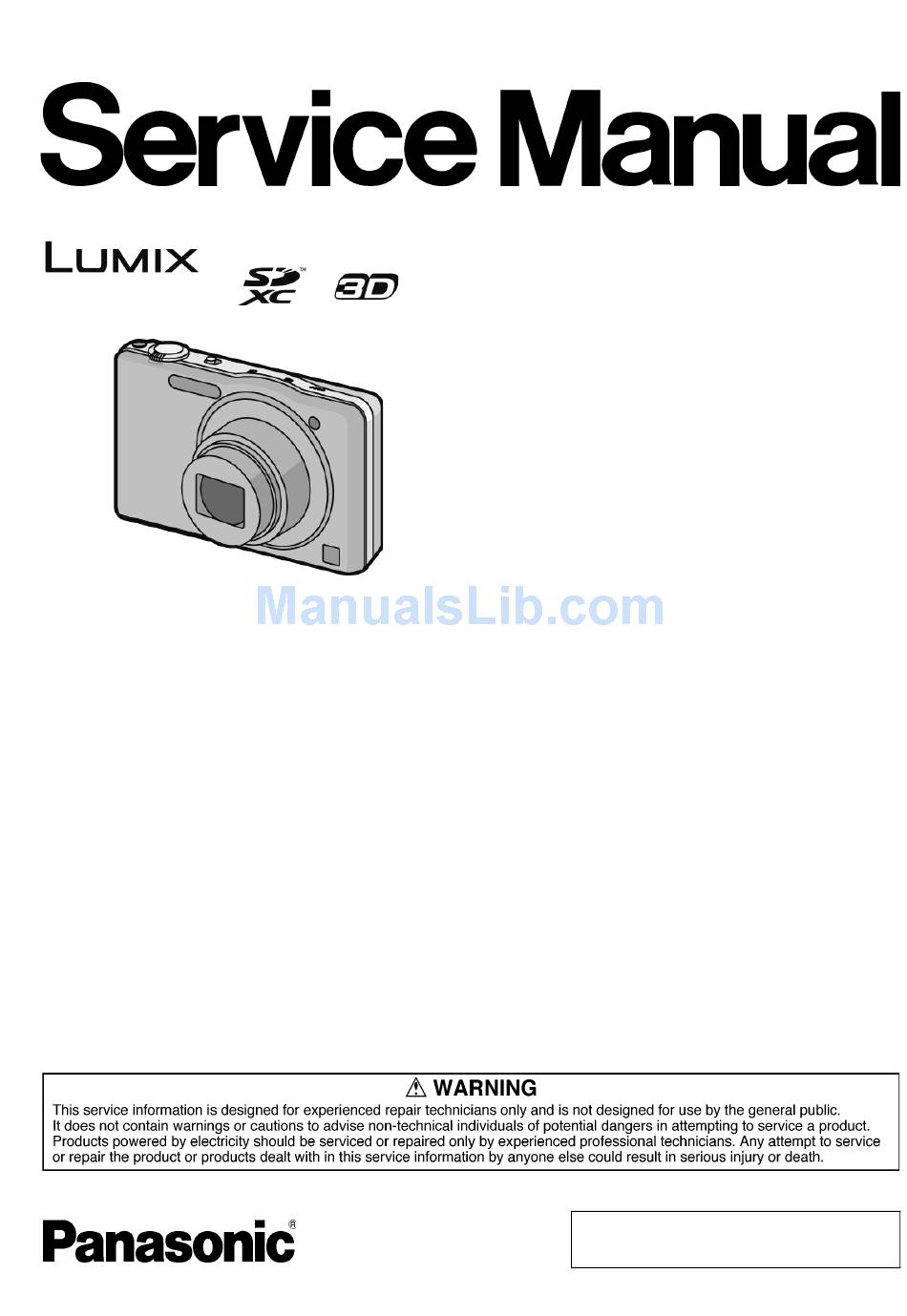

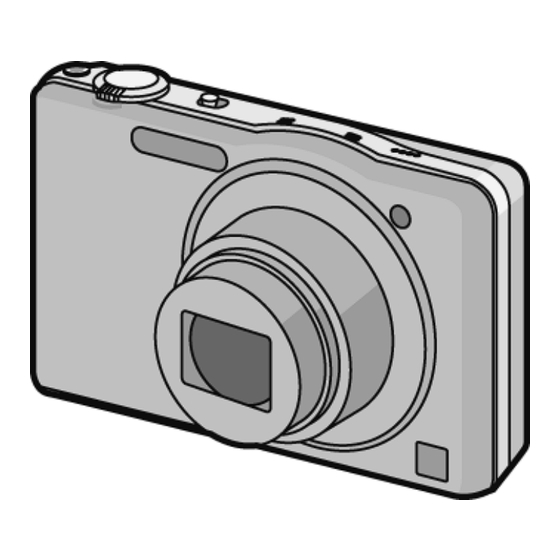

Panasonic Lumix DMC-SZ7P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Digital Camera
  5. Lumix DMC-SZ7P
  6. Service manual

Panasonic Lumix DMC-SZ7P Service Manual

Lumix digital camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMC-SZ7P
Model No.
DMC-SZ7PC
DMC-SZ7PU
DMC-SZ7EB
DMC-SZ7EE
DMC-SZ7EF
DMC-SZ7EG
DMC-SZ7EP
DMC-SZ7GA
DMC-SZ7GC
DMC-SZ7GF
DMC-SZ7GK
DMC-SZ7GN
Colour
(K)...........Black Type
(P)...........Pink Type (only PU/GA/GC/GF/GK/GN)
(T)...........Brown Type (except P/PC/PU/EP/GC/GN)
(W)..........White Type (except P/PU/EE/EF/EP/GC)
© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC1202007CE
B26

Digital Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumix DMC-SZ7P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic Lumix DMC-SZ7P

Summary of Contents for Panasonic Lumix DMC-SZ7P

  • Page 1: Digital Camera

    DMC-SZ7PU DMC-SZ7EB DMC-SZ7EE DMC-SZ7EF DMC-SZ7EG DMC-SZ7EP DMC-SZ7GA DMC-SZ7GC DMC-SZ7GF DMC-SZ7GK DMC-SZ7GN Colour (K)...Black Type (P)...Pink Type (only PU/GA/GC/GF/GK/GN) (T)...Brown Type (except P/PC/PU/EP/GC/GN) (W)..White Type (except P/PU/EE/EF/EP/GC) © Panasonic Corporation 2012 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the E.Capacitor on Flash Top P.C.B. ----------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1.) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The E.capacitor On Flash Top P.c

    1.4. How to Discharge the E.Capacitor on Flash Top P.C.B. CAUTION: 1. Be sure to discharge the E.capacitor on FLASH TOP P.C.B.. 2. Be careful of the high voltage circuit on FLASH TOP P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and remove the necessary parts/unit. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

  • Page 6: How To Replace The Lithium Battery

    NOTE: This Lithium battery is a critical component. (Type No.: ML421 Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use.

  • Page 7: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.5. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of DMC-SZ7, regardless of the colours. • a) DMC-SZ7 (Japan domestic model) • b) DMC-SZ7P/PC • c) DMC-SZ7EB/EF/EG/EP • d) DMC-SZ7EE • e) DMC-SZ7GK • f) DMC-SZ7GN •...

  • Page 9: Initial Settings

    3.5.2. INITIAL SETTINGS: After replacing the MAIN P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, make sure to read the following CAUTIONS. 2.
  • Page 10 • Step 4. Display the INITIAL SETTING: While pressing [ MENU/SET ] button and “[ RIGHT ] of Cursor button” simultaneously, turn the Power off. The “INITIAL SETTINGS” menu is displayed. There are two kinds of “INITIAL SETTINGS” menu form as follows: [CASE 1.
  • Page 11 1) As for your reference, major default setting condition is as shown in the following table. • Default setting (After “INITIAL SETTINGS”) MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS a) DMC-SZ7(Japan domestic model) NTSC Japanese Year/Month/Date b) DMC-SZ7P NTSC English Month/Date/Year c) DMC-SZ7PC NTSC English Month/Date/Year d) DMC-SZ7PU NTSC Spanish...

  • Page 12: Specifications

    4 Specifications...

  • Page 13: Location Of Controls And Components

    5 Location of Controls and Components Flash Lens Self-timer indicator AF Assist Lamp LCD monitor [MENU/SET] button [DISP.] button [Q.MENU] / (Delete/ Cancel) button [MODE] button REC/PLAY switch 10 Charging lamp 11 Cursor buttons /Exposure compensation /Macro Mode AF Tracking /Self-timer /Flash setting 12 Strap eyelet...

  • Page 14: Selecting The Recording Mode

    Basic Selecting the Recording Mode Slide the REC/PLAY switch to [ Press [MODE]. Press / / / to select the Recording Mode. Press [MENU/SET]. List of Recording Modes Intelligent Auto Mode The subjects are recorded using settings automatically selected by the camera. Normal Picture Mode The subjects are recorded using your own settings.

  • Page 15: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to FLASH-ROM when the unit has just before powered off.
  • Page 16 • 3. Error Code List The error code consists of 8 bits data and it shows the following information.
  • Page 17 Important notice about "Error Code List" 1) About "*" indication: The third digit from the left is different as follows. - In case of 0 (example: 18001000) When the third digit from the left shows "0", this error occurred under the condition of INITIAL SETTINGS has been completed.

  • Page 18: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit.

  • Page 19: When Replacing The Main P.c.b

    7.2. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The service software is available at “TSN Website”. To download, click on “Support Information from NWBG/VDBG-AVC”. 7.3. Service Position This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing. Table S1 Extension Cable List Parts No.

  • Page 20: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart 8.3. Disassembly Procedure This is a disassembling chart. When assembling, perform this chart conversely. Item Removal Front Case Unit (Fig. D1) Card Rear Case Unit Battery 3 Screws (A) 1 Screw (B) 2 Screws (C) (Fig.
  • Page 21 8.3.1. Removal of the Front Case Unit and Rear Case Unit (Fig. D1) (Fig. D2)
  • Page 22 8.3.2. Removal of the Jack Door 8.3.3. Removal of the Sub Operation P.C.B. and PCB Spacer (Fig. D4) (Fig. D3)
  • Page 23 8.3.4. Removal of the LCD Unit and Frame 8.3.5. Removal of the Top Case Unit Plate (Fig. D6) (Fig. D5)
  • Page 24 8.3.6. Removal of the Flash Top P.C.B. and Microphone Unit (Fig. D8) 8.3.7. Removal of the Flash Unit and Speaker (Fig. D9) (Fig. D7)
  • Page 25 8.3.8. Removal of the Lens Unit (W/MOS) 8.3.10. Removal of the Battery Case (Fig. D12) (Fig. D10) 8.3.11. Removal of the Battery Door Unit 8.3.9. Removal of the Main P.C.B. (Fig. D13) NOTE: (When Installing) Make sure to confirm the following points when installing: •...

  • Page 26: Lens Disassembly Procedure

    8.4. Lens Disassembly Procedure Precaution: 1. Do not remove the MOS FPC unit when disassembling or reassembling the lens in order to maintain it clean. The screw fitting the MOS FPC unit to the master flange unit is fixed by the bond lock with the adjustment of the installation angle of the MOS FPC unit against the lens (optical axis adjustment) finished.
  • Page 27 8.4.2. Removal of the Master Flange Unit 8.4.3. Removal of the Outside Direct Frame Unit / 1st-3rd Lens Frame Unit 8.4.4. 1st-3rd Lens Frame Unit...

  • Page 28: Removal Of The Focus Motor

    8.5. Removal of the Focus Motor 8.6. Application Grease Method The grease application parts of lens unit are as follows. Apply grease additionally in the specified position if necessary. When the grease is applied, use a toothpick and apply thinly. •...

  • Page 29: Removal Of The Mos Fpc Unit

    8.7. Removal of the MOS FPC Unit When remove the MOS FPC unit once (the screw(E) is loos- ened even a little), the optical tilt adjustment is required. When loosen the screw(E), necessary the optical tilt adjustment at the end of assembling. (Refer to item "9.3.2.") To prevent the MOS FPC unit from catching the dust and dirt, do not remove the MOS FPC unit except for replacing.

  • Page 30: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Introduction When servicing this unit, make sure to perform the adjustments necessary based on the part(s) replaced. Before disassembling the unit, it is recommended to back up the camera data stored in flash-rom as a data file. IMPORTANT NOTICE (After replacing the MAIN P.C.B.) After replacing the MAIN P.C.B., it is necessary to use the “DIAS”...
  • Page 31 9.2.2. Flash-Rom Data Backup When trouble occurs, it is recommended to backup the Flash-rom data before disassembling the unit. There are two kinds of Flash-rom data backup methods: [ ROM_BACKUP (Method of Non-PC backup) ] 1. Insert the SD-card into the camera. 2.

  • Page 32: Details Of Electrical Adjustment

    9.3. Details of Electrical Adjustment 9.3.1. How to execute the Electrical Adjustment It is not necessary to connect the camera to a PC to perform adjustments. “Flag reset operation” and “Initial setting operation” are required when carrying out the alignment, follow the procedure below. 9.3.1.1.
  • Page 33 9.3.1.3. Execute Adjustment (In case of “OIS Adjustment”) 1. Perform step “9.3.1.1.” to “9.3.1.2.”, to reset the OIS flag status “F” (Set) to “0” (Reset) 2. Press [ DISP. ] button after Flag reset. OIS Adjustment screen is displayed on the LCD panel. (Refer to Fig.3-3) 3.
  • Page 34 9.3.2. Adjustment Specifications The following matrix table shows the relation between the replaced part and the Necessary Adjustment. When a part is replaced, make sure to perform the necessary adjustment(s) in the order indicated. The table below shows all the information necessary to perform each adjustment.

  • Page 37: After Adjustment

    9.4. After Adjustment 9.4.1. Initial Setting Since the initial setting has been released to execute the built-in adjustment software, it should be set up again before shipping the camera to the customer. Refer to the procedure described in “3.5.2. INITIAL SETTINGS” for details. [ IMPORTANT ] 1.

  • Page 38: Maintenance

    10 Maintenance 10.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the its surface. Note: The Lens Cleaning KIT ;...

  • Page 39: Block Diagram

    11 Block Diagram 11.1. Overall Block Diagram OVERALL BLOCK DIAGRAM (25mm ~ 250mm) MOS SENSOR X6001 (24MHz) 1/2.33" 14.1 MEGA PIX ZOOM OIS UNIT IRIS SHUTTER FOCUS CARD COLOR LCD IC9101 PANEL SYSTEM IC 3.0" PANEL MOTOR DRIVE, 460k dots OIS DRIVE&...

  • Page 40: System Control Block Diagram

    11.2. System Control Block Diagram SYSTEM CONTROL BLOCK DIAGRAM FLASH TOP P.C.B. IC6001 SAFETY GND (VENUS ENGINE) IC6002 TL8007 (SDRAM/1Gbit, NAND FLASH ROM/1Gbit) (SHUT FULL) PP9001 PS8001 GPIO51 TL8004 SDRAM AREA/1Gbit 8-10,13-15 8-10,13-15 BA0D DRBA0 (TELE WIDE) Bank Adr. Bank Adr. PP9001 PS8001 BA1D...

  • Page 41: Video/Audio Process Block Diagram

    11.3. Video/Audio Process Block Diagram VIDEO/AUDIO PROCESS BLOCK DIAGRAM IC6002 (SDRAM/1Gbit, NAND FLASH ROM/1Gbit) SDRAM AREA/1Gbit NAND FLASH ROM AREA/1Gbit FP9004 A0D A12D DQ0D DQ31D IO0N IO7N FP9004 D0-D15 IC6001 DATA DATA 13bit ADDRESS 32bit 8bit FP9004 (VENUS ENGINE) DRA0 DRA12 DRD0 DRD31 CPUD16 CPUD23 (CLK18 LCD)

  • Page 42: Lens Drive Block Diagram

    11.4. Lens Drive Block Diagram LENS DRIVE BLOCK DIAGRAM IC6001 (VENUS ENGINE) X6001 (24MHz) FP9002 CD BARREL & FOCUS ENC FZHP LED MCK24I GPIO65 (G FZHP) FZHP ABS GPIO55 MCK24O SUB OPERATION P.C.B. FP9002 IC7101 ZENC1 LED PW A3.1V (GYRO SENSOR & AMP) ZENC2 LED (G ZENC1) ZENC1 ABS...

  • Page 43: Power Block Diagram

    11.5. Power Block Diagram POWER BLOCK DIAGRAM CL1001 JK2001 CL2004 UNREG (AV OUT/DIGITAL TERMINAL) F2002 USB VBUS CL2003 CL1010 USB+ CL2004 PW 5.2V USB- IC1010 (REGLATOR) CL1011 4 VIN VOUT PW HDMI5V PW A3.1V PGND CL1020 Q1501 FLASH TOP P.C.B. SYSTEM PW 3.6V P8002...

  • Page 44: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Interconnection Diagram INTERCONNECTION DIAGRAM SPEAKER PS8001 RL8042 RL8041 FP8051 P8002 FLASH TOP P.C.B. (COMPONENT SIDE) BATTERY ECM(L) ECM(R) (STEREO MICROPHONE) FP9001 AVDD AVDD AVDD VDD18 VDD18 RSTN MCLK MOS THERMO MOS SENSOR VDD12 VDD12 VDD12 VDD12 (MOS/AFE) SDODA0M...
  • Page 45 Model No. : DMC-SZ7 Schematic Diagram Note...
  • Page 46 Model No. : DMC-SZ7 Parts List Note...
  • Page 47 Model No. : DMC-SZ7 Power (P) (Main P.C.B.)
  • Page 48 Model No. : DMC-SZ7 USB (U) (Main P.C.B.)
  • Page 49 Model No. : DMC-SZ7 Jack (J) (Main P.C.B.)
  • Page 50 Model No. : DMC-SZ7 LCD (L) (Main P.C.B.)
  • Page 51 Model No. : DMC-SZ7 Digital (D) (Main P.C.B.)
  • Page 52 Model No. : DMC-SZ7 SD Card (SD) (Main P.C.B.)
  • Page 53 Model No. : DMC-SZ7 System Driver (SY) (Main P.C.B.)
  • Page 54 Model No. : DMC-SZ7 Main Connection (MC) (Main P.C.B.)
  • Page 55 Model No. : DMC-SZ7 Sub Operation (R) (Sub Operation P.C.B.)
  • Page 56 Model No. : DMC-SZ7 Gyro (GY) (Sub Operation P.C.B.)
  • Page 57 Model No. : DMC-SZ7 Flash Top (Flash Top P.C.B.)
  • Page 58 Model No. : DMC-SZ7 MOS (MOS P.C.B.)
  • Page 59 Model No. : DMC-SZ7 Lens Flex (Lens Flex P.C.B.)
  • Page 60 Model No. : DMC-SZ7 Main P.C.B. (Component Side)
  • Page 61 Model No. : DMC-SZ7 Main P.C.B. (Foil Side)
  • Page 62 Model No. : DMC-SZ7 Sub Operation P.C.B. (Component Side)
  • Page 63 Model No. : DMC-SZ7 Sub Operation P.C.B. (Foil Side)
  • Page 64 Model No. : DMC-SZ7 Flash Top P.C.B. (Component Side)
  • Page 65 Model No. : DMC-SZ7 Flash Top P.C.B. (Foil Side)
  • Page 66 Model No. : DMC-SZ7 MOS P.C.B. (Component Side)
  • Page 67 Model No. : DMC-SZ7 MOS P.C.B. (Foil Side)
  • Page 68 Model No. : DMC-SZ7 Lens Flex P.C.B.
  • Page 69 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C1001 F1J1A106A024 C.CAPACITOR CH 10V 10U C1002 F1J1A106A024 C.CAPACITOR CH 10V 10U C1003 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1004 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1010 F1J1C106A059 C.CAPACITOR CH 16V 10U...
  • Page 70 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C6015 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C6017 F1H0J1060009 C.CAPACITOR CH 6.3V 10U C6019 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C6020 F1G1A1040006 C.CAPACITOR CH 10V 0.1U C6021 F1G1H100A565 C.CAPACITOR CH 50V 10P...
  • Page 71 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks CX6001 F5A84103A020 CAPACITOR NETWORKS D1060 B0JCFC000003 DIODE 1 E.S.D. D1501 B0JCFC000003 DIODE 1 E.S.D. D2001 DB2S31100L DIODE 1 E.S.D. D6001 DA2S10100L DIODE 1 E.S.D. D8001 B3ADB0000142 DIODE...
  • Page 72 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks LB8052 J0JCC0000397 FILTER P6401 K1NA09E00098 SD CARD CONNECTOR P8002 K4ZZ03000344 CONNECTOR 4P PP9001 K1KA30BA0342 CONNECTOR 30P PP9501 K1KY16AA0749 CONNECTOR 16P PS8001 K1KB30AA0123 CONNECTOR 30P PS9001 K1KY16AA0748 CONNECTOR 16P Q1501...
  • Page 73 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8003 D0GB820JA065 CHIP RESISTOR R8005 ERJ6GEYJ514V M.RESISTOR CH 1/8W 510K R8006 ERJ6GEYJ514V M.RESISTOR CH 1/8W 510K R8013 ERJ2RHD1621X M.RESISTOR CH 1/16W 1620 R8021 D0GA303JA023 CHIP RESISTOR R8022 D0GA103JA023...
  • Page 74 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks T8001 G5DYA0000135 TRANSFORMER VA9021 D4ED18R0A014 VARISTOR VA9022 D4ED18R0A014 VARISTOR X6001 H0J240500068 CRYSTAL OSCILLATOR X9101 H0J327200225 CRYSTAL OSCILLATOR...
  • Page 75 Model No. : DMC-SZ7 Frame and Casing Section...
  • Page 76 Model No. : DMC-SZ7 Packing Parts and Accessories Section (1)
  • Page 77 Model No. : DMC-SZ7 Packing Parts and Accessories Section (2)
  • Page 78 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VEP56148A MAIN P.C.B. 1 (RTL), E.S.D. P,PC,PU,EE,GC,GF,GA,GK,GN VEP56148B MAIN P.C.B. 1 (RTL), E.S.D. EG,EP,EF,EB VEP58166A FLASH TOP P.C.B. 1 (RTL), E.S.D. VEP59108A SUB OPERATION P.C.B. 1 (RTL), E.S.D.
  • Page 79 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L6DAYYYD0005 ZOOM MOTOR UNIT VMB4603 TILT SPRING VMB4603 TILT SPRING VXP3819 1ST-3RD LENS FRAME UNIT 1 (-K,-T) VXP3818 1ST-3RD LENS FRAME UNIT 1 (-W,-P) VXP3760 OUTSIDE DIRECT FRAME UNIT 1 (-K,-T)
  • Page 80 Model No. : DMC-SZ7 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VFF0933-S CD-ROM 1 EG [SPC] See "Notes" VFF0934-S CD-ROM 1 EP,EF,EB [SPC] See "Notes" VFF0935-S CD-ROM 1 EE [SPC] See "Notes" VFF0936-S CD-ROM 1 GC,GF,GA,GN [SPC] See "Notes" VFF0938-S CD-ROM 1 GK [SPC] See "Notes"...

This manual is also suitable for:

Lumix dmc-sz7pcLumix dmc-sz7puLumix dmc-sz7ebLumix dmc-sz7eeLumix dmc-sz7efLumix dmc-sz7eg ... Show all

Table of Contents
