Panasonic Lumix DMC-SZ7 Basic Operating Instructions Manual

Panasonic Lumix DMC-SZ7 Basic Operating Instructions Manual

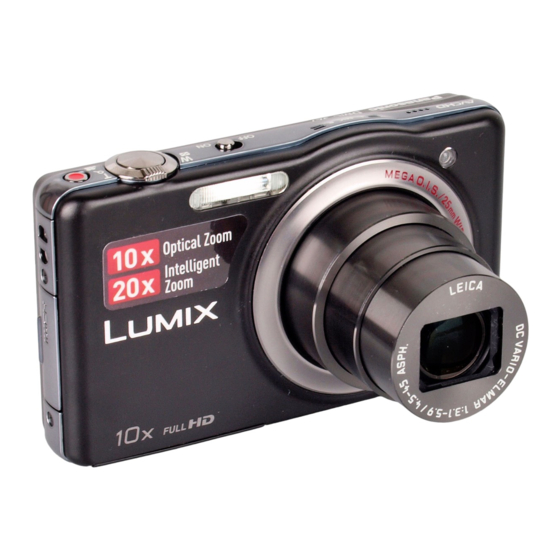

Digital camera model no. dmc-sz7
Hide thumbs Also See for Lumix DMC-SZ7:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Basic Owner's Manual

Basic Operating Instructions

Digital Camera

DMC-SZ7
Model No.
Before use, please read these instructions completely.
More detailed instructions on the
operation of this camera are
contained in "Operating
Instructions for advanced features
(PDF format)" in the supplied CD-ROM. Install it
on your PC to read it.
Web Site: http://www.panasonic-europe.com
Model number suffix "EB" denotes UK model.
VQT3Y91
EB
F1211MR0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix DMC-SZ7

Summary of Contents for Panasonic Lumix DMC-SZ7

  • Page 1: Basic Operating Instructions

    More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. Web Site: http://www.panasonic-europe.com Model number suffix “EB” denotes UK model. VQT3Y91 F1211MR0...

  • Page 2: Information For Your Safety

    Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc.

  • Page 3: About The Battery Pack

    ∫ About the battery pack CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. • When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. •...

  • Page 4: Cautions For Use

    Always use a genuine Panasonic AV cable (DMW-AVC1: optional). • Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30: optional). Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet) Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).
  • Page 5 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/ 96/EC and 2006/66/EC.

  • Page 6: Table Of Contents

    Contents Information for Your Safety..................2 Before Use ........................7 Accessories ........................8 Names and Functions of Main Parts ................ 10 Inserting and Removing the Card (optional)/the Battery ........11 Charging the Battery....................12 Sequence of operations .................... 13 Reading the Operating Instructions (PDF format) ..........14 Installing supplied software..................

  • Page 7: Before Use

    Before Use ∫ Care of the camera • Do not subject to strong vibration, shock, or pressure. • This camera is not dust/splash/water proof. Avoid using the camera in places with a lot of dust, water, sand, etc. ∫ About Condensation (When the lens is fogged up) •...

  • Page 8: Accessories

    Accessories Check that all the accessories are supplied before using the camera. Product numbers correct as of January 2012. These may be subject to change. Battery Pack (Indicated as battery pack or battery in the text) Charge the battery before use. AC Adaptor Can be used for charging and playback.

  • Page 9: Optional Accessories

    Or go on line through our Internet Accessory ordering application at www.pas-europe.com. • Most major credit and debit cards accepted. • All enquiries transactions and distribution facilities are provided directly by Panasonic UK. • It couldn’t be simpler! • Also available through our Internet is direct shopping for a wide range of finished products.

  • Page 10: Names And Functions Of Main Parts

    Names and Functions of Main Parts 12 13 14 15 16 17 Motion picture button Charging lamp Shutter button REC/PLAY switch Camera ON/OFF switch Strap eyelet • Flash Be sure to attach the strap when using the camera to ensure that you Microphone will not drop it.

  • Page 11: Inserting And Removing The Card (Optional)/The Battery

    Inserting and Removing the Card (optional)/the Battery • Check that this unit is turned off. • We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. • Always use genuine Panasonic batteries (DMW-BCK7E).

  • Page 12: Charging The Battery

    Charging the Battery Use the dedicated AC adaptor (supplied), USB connection cable (supplied) and battery. • The battery is not charged when the camera is shipped. Charge the battery before use. • Charge the battery with the AC adaptor (supplied) indoors [10 oC to 30 oC (50 oF to 86 oF)].

  • Page 13: Sequence Of Operations

    Sequence of operations Slide the REC/PLAY switch to [!] and then turn the camera • The clock is not set when the camera is shipped. Set the date and time before using the camera. Press the shutter button halfway to focus and then press it fully to take the picture.

  • Page 14: Reading The Operating Instructions (Pdf Format)

    Reading the Operating Instructions (PDF format) More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).

  • Page 15: Installing Supplied Software

    Installing supplied software • The supplied CD-ROM includes the following software. – PHOTOfunSTUDIO 8.0 AE (Windows XP/Vista/7) – LoiLoScope 30 day full trial version (Windows XP/Vista/7) (This will only install a shortcut to the trial version download site.) • Before inserting the CD-ROM, close all running applications. Check the environment of your PC.

  • Page 16: Specifications

    Specifications Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.3 W (When recording) 0.9 W (When playing back) Camera effective 14,100,000 pixels pixels Image sensor 1/2.33q MOS sensor, total pixel number 15,300,000 pixels, Primary colour filter Lens Optical 10k zoom, fl4.5 mm to 45 mm (35 mm film camera equivalent: 25 mm to 250 mm)/F3.1 (Wide) to F5.9 (Tele)
  • Page 17 Minimum Approx. 8 lx (when i-low light is used, the shutter speed is Illumination 1/25th of a second) Shutter speed 8 seconds to 1/1600th of a second Exposure (AE) Auto (Programme AE) Metering mode Multiple LCD monitor 3.0q TFT LCD (4:3) (Approx.
  • Page 18 Terminal [AV OUT/DIGITAL] Dedicated jack (8 pin) [HDMI] MiniHDMI TypeC Dimensions Approx. 99.0 mm (W)k59.4 mm (H)k21.0 mm (D) (excluding the [3.9q(W)k2.4q(H)k0.9q(D)] projecting parts) Mass Approx. 133 g/0.30 lb (with card and battery) Approx. 116 g/0.26 lb (excluding card and battery) Operating 0 oC to 40 oC (32 oF to 104 oF) temperature...
  • Page 19 AC Adaptor (Panasonic VSK0775): Information for your safety Input: 110 V to 240 V, 50/60 Hz, 0.2 A Output: 5 V, 800 mA Battery Pack (lithium-ion) (Panasonic DMW-BCK7E): Information for your safety Voltage/capacity: 3.6 V/680 mAh (ENG) VQT3Y91...
  • Page 20 • SDXC Logo is a trademark of SD-3C, LLC. • “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. • Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
