REV.7

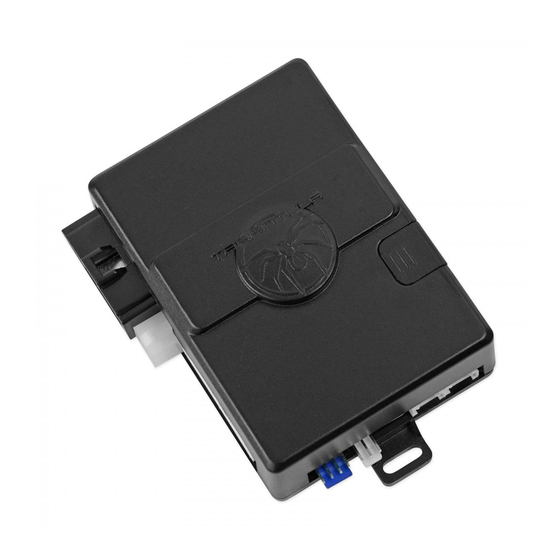

ARS.1
REMOTE STARTER & ALARM SYSTEM
INSTALLATION GUIDE
www.security.soundstream.com
FCC ID NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance void the user's authority to operate
this device.
