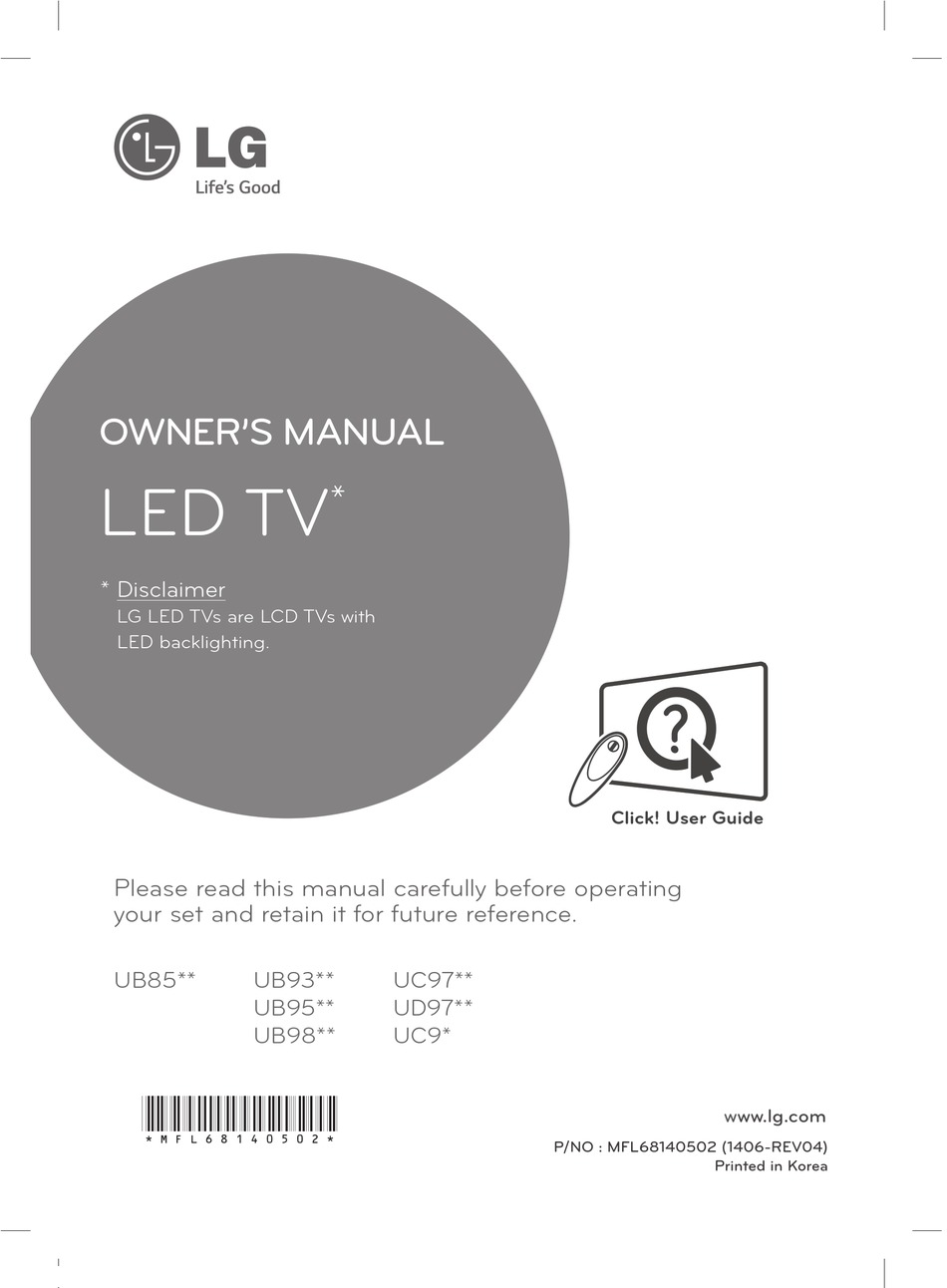

OWNER'S MANUAL
LED TV
* Disclaimer
LG LED TVs are LCD TVs with
LED backlighting.
Please read this manual carefully before operating
your set and retain it for future reference.
UB85**
UB93**
UB95**
UB98**
*MFL68140502*
*
UC97**
UD97**
UC9*
Click! User Guide
www.lg.com
P/NO : MFL68140502 (1406-REV04)
Printed in Korea

Advertisement

Table of Contents
loading

Summary of Contents for LG UB85 Series

  • Page 1 OWNER’S MANUAL LED TV * Disclaimer LG LED TVs are LCD TVs with LED backlighting. Click! User Guide Please read this manual carefully before operating your set and retain it for future reference. UB85** UB93** UC97** UB95** UD97** UB98** UC9* *MFL68140502* www.lg.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS LICENSES REMOTE CONTROL OPEN SOURCE SOFTWARE MAGIC REMOTE FUNCTIONS NOTICE Registering Magic Remote How to use Magic Remote Precautions to Take when Using the EXTERNAL CONTROL DEVICE Magic Remote SETUP USING THE USER GUIDE SAFETY INSTRUCTIONS Viewing 3D Imaging MAINTENANCE...
  • Page 3: Licenses

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING y Make sure to connect Mains cable to y Do not place the TV and/or remote control compliant AC mains socket with Grounded in the following environments: earth pin.
  • Page 5 SAFETY INSTRUCTIONS y When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock /fire hazard. y Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall.
  • Page 6 SAFETY INSTRUCTIONS y Unplug the TV from AC mains wall socket if you y Do not allow any impact, shock or any do not intend to use the TV for a long period of objects to fall into the unit, and do not time.
  • Page 7 SAFETY INSTRUCTIONS y If you install the TV on a stand, you need y Do not place non-rechargeable batteries to take actions to prevent the product from in charging device. overturning. Otherwise, the product may y Make sure there are no objects between fall over, which may cause injury.
  • Page 8 SAFETY INSTRUCTIONS y Take care not to touch the ventilation y When cleaning the product and its openings when watching the TV for long components, unplug the power first periods as the ventilation openings may and wipe it with a soft cloth. Applying become hot.
  • Page 9 SAFETY INSTRUCTIONS y Contact the service centre once a year to y You may find different brightness and clean the internal parts of the product. colour of the panel depending on your Accumulated dust can cause mechanical viewing position(left/right/top/down). failure. This phenomenon occurs due to the characteristic of the panel.
  • Page 10: Viewing 3D Imaging (Only 3D Models)

    3D contents. distance. Cautions when using the 3D glasses Symptoms which require discontinuation y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos or refraining from watching 3D contents properly. y Do not watch 3D contents when you feel...
  • Page 11: Installation Procedure

    INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using.
  • Page 12 ASSEMBLING AND PREPARING ENERGY AV MODE INPUT ENERGY AV MODE INPUT SAVING SAVING FLASHBK FLASHBK LIST LIST MARK MARK MUTE MUTE MENU INFO Q.MENU INFO MENU Q.MENU ENTER ENTER BACK EXIT L/R SELECT BACK EXIT L/R SELECT FREEZE FREEZE RATIO RATIO Magic remote, Batteries Remote control, Batteries...
  • Page 13 ASSEMBLING AND PREPARING Stand Body / Stand Base Stand Body / Stand Base Stand Screws 4EA, M4 x L10 (Only UB85**, UB93**, (Only UC97**) 4EA, M4 x L20 UB95**) (See p.22) (Only UC97**) (See p.20) (See p.22) Component gender cable Composite gender cable Cable Managements (See p.30)
  • Page 14 ASSEMBLING AND PREPARING NOTE y The items supplied with your product may vary depending on the model. y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width.
  • Page 15: Separate Purchase

    Contact your dealer to buy these items. These devices only work with certain models. AG-F***DP AG-F*** AN-MR500 Dual Play Glasses Cinema 3D Glasses Magic Remote AN-VC5** LG Audio Device Tag on Video Call Camera UB85** UB95** UB98** Compatibility UB93** UC97**...
  • Page 16: Parts And Buttons

    Speakers Remote control and Remote control and Joystick Button Intelligent sensors Intelligent sensors Joystick Button Power Indicator LG Logo light B Type : UB93**, UB95** D Type : 79UB98** Screen Built-in Camera Screen Speakers Speakers Remote control and Intelligent sensors...
  • Page 17 Screen Screen Speakers Speakers Remote control and Joystick Button Intelligent sensors Joystick Button LG Logo light F Type : UC97** Screen Speakers Remote control and Joystick Button Intelligent sensors Power Indicator 1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
  • Page 18: Using The Joystick Button

    ASSEMBLING AND PREPARING NOTE y You can set the LG Logo Light or power indicator light to on or off by selecting GENERAL in the main menus. Using the joystick button You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
  • Page 19: Lifting And Moving The Tv

    ASSEMBLING AND PREPARING Lifting and moving the TV y When transporting a large TV, there should be at least 2 people. y When transporting the TV by hand, hold the Please note the following advice to prevent the TV as shown in the following illustration. TV from being scratched or damaged and for safe transportation regardless of its type and size.
  • Page 20: Setting Up The Tv

    ASSEMBLING AND PREPARING Setting up the TV Image shown may differ from your TV. Attaching the stand UB85**, UB93**, UB95** Stand Body (L) Stand Body (R) Stand Base 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. 2 Attach the stand to the TV using the lower connection on the back of the TV.
  • Page 21 ASSEMBLING AND PREPARING UB98** (Only 84UB98**) Stand Base Wrench M6 x L52 (Insulation Holders) CAUTION (Only 65/79UB98**) y Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Wrench (Only 65UB98**) M6 x L47...
  • Page 22 ASSEMBLING AND PREPARING UC97** M4 x L10 M4 x L20 Stand Body Stand Body Stand Base CAUTION y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  • Page 23: Mounting On A Table

    ASSEMBLING AND PREPARING Mounting on a table Securing the TV to a wall (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation.
  • Page 24: Mounting On A Wall

    55UC97** 65UB98** 65UC97** When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device VESA (A x B) 400 x 400 400 x 400 is adequately secured to the wall with enough Standard space to allow connectivity to external devices.
  • Page 25: Tidying Cables

    TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. (Only UC97**) Cable Holder...
  • Page 26: Using Built-In Camera

    ASSEMBLING AND PREPARING Using Built-in Camera (Only UC97**) 1 Gather and bind the cables with the cable holder. (Only UB98**, UC9*) 2 Fix the Cable Management firmly to the TV. You can make a Skype video call or use the motion recognition function using the built-in camera of the TV.
  • Page 27: Assembling And Preparing 38

    ASSEMBLING AND PREPARING Preparing Built-in Camera 3 Push down the built-in camera when you are not using it. 1 Pull up the slide at the back of the TV. Angle Adjustment Lever Slide Name of Parts of Built-in Camera Protective film Microphone Camera Lens NOTE...
  • Page 28: Making Connections

    MAKING CONNECTIONS MAKING CONNECTIONS Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). This section on MAKING CONNECTIONS mainly uses diagrams for the 65UB980T models. Connect various external devices to the TV and switch input modes to select an external device.
  • Page 29: Hdmi Connection

    MAKING CONNECTIONS HDMI connection 1) HDMI specifications may be different for each input port, so make sure to check the device specifications before connecting. Transmits the digital video and audio signals from an external device to the TV. Connect the 2) Contact customer service for more information external device and the TV with the HDMI cable on the HDMI specifications of each input port.
  • Page 30: Dvi To Hdmi Connection

    MAKING CONNECTIONS DVI to HDMI connection Component connection Transmits the digital video signal from an Transmits analog video and audio signals external device to the TV. Connect the external from an external device to the TV. Connect the device and the TV with the DVI-HDMI cable as external device and the TV with a component shown.
  • Page 31: Composite Connection

    MAKING CONNECTIONS Composite connection Audio connection Transmits analog video and audio signals You may use an optional external audio system from an external device to the TV. Connect the instead of the built-in speaker. external device and the TV with the composite cable as shown.
  • Page 32: Headphone Connection

    MAKING CONNECTIONS Headphone connection USB connection Transmits the headphone signal from the TV to Connect a USB storage device such as a USB an external device. Connect the external device flash memory, external hard drive, or a USB and the TV with the headphone as shown. memory card reader to the TV and access the SmartShare menu to use various multimedia files.
  • Page 33: Mhl Connection

    MAKING CONNECTIONS MHL connection Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. MHL passive cable (*Not Provided) Mobile phone NOTE y Connect the mobile phone to the HDMI(4K@60Hz)/DVI IN 4 (MHL) port to view the phone screen on the TV.
  • Page 34: Remote Control

    REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover.
  • Page 35: Magic Remote Functions

    MAGIC REMOTE FUNCTIONS MAGIC REMOTE FUNCTIONS When the message “Magic Remote battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover.
  • Page 36: Registering Magic Remote

    MAGIC REMOTE FUNCTIONS How to use Magic Remote Voice recognition (Depending on model) Network connection is required to use the y Shake the Magic Remote voice recognition function. slightly to the right and left 1 Press the Voice recognition button. or press (Home), 2 Speak when the voice display window...
  • Page 37: Precautions To Take When Using The Magic Remote

    MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE USING THE USER GUIDE Precautions to Take when Using the Magic Remote y Use the Magic Remote within the User Guide allows you to more easily access the maximum communication distance (10 detailed TV information.
  • Page 38: Maintenance

    MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION y Make sure to turn the power off and disconnect the power cord and all other cables first. y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.
  • Page 39: Environmental Information

    ENVIRONMENTAL INFORMATION ENVIRONMENTAL INFORMATION (Only India) WEEE Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the e-waste (Management and Handling) Rules, 2011. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
  • Page 40: Specifications

    SPECIFICATIONS SPECIFICATIONS (Only UB98**, UC9*) Wireless module(LGSWF41)Specifications Standard IEEE 802.11a/b/g/n/ac 2400 to 2483.5MHz Frequency Range 5150 to 5250 MHz 5725 to 5850 MHz(for Non EU) 802.11a: 14.5 dBm 802.11b: 16 dBm 802.11g: 13.5 dBm Output Power (Max.) 802.11n - 2.4GHz: 14 dBm 802.11n - 5GHz: 15.5 dBm 802.11ac - 5GHz : 16 dBm y Because band channel used by the country could be different, the user can not change or...
  • Page 41 SPECIFICATIONS (Only UB85**, UB93**, UB95**, UC97**, UD97**) Wireless module(LGSBW41)Specifications Wireless LAN Bluetooth Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0 2400 to 2483.5MHz Frequency ragne 5150 to 5250 MHz Frequency ragne 2400 to 2483.5MHz 5725 to 5850 MHz (for Non EU) 802.11a: 13 dBm 802.11b: 15 dBm Output...
  • Page 42 SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product. 49UB85** 55UB85** 60UB85** MODELS 49UB850T-TA 55UB850T-TA 60UB850T-TA 49UB859Y-TA 55UB859Y-TA 60UB859Y-TA Dimensions With stand (mm) 1093 x 689 x 242...
  • Page 43 SPECIFICATIONS 79UD97** 105UC9* MODELS 79UD970T-TA 105UC9T-TA 79UD979Y-TA 105UC9Y-TA With stand (mm) 1769 x 1077 x 364 2254 x 1272 x 352 Dimensions (W x H x D) Without stand(mm) 1769 x 1032 x 76 2254 x 1213 x 90 With stand (kg) 61.4 Weight Without stand (kg)
  • Page 44 Record the model number and serial (Only DTV) number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 45 OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 46: Note

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 47 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 48 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 49: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 50: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 51 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 52 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 53 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 54 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 55 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 56 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
