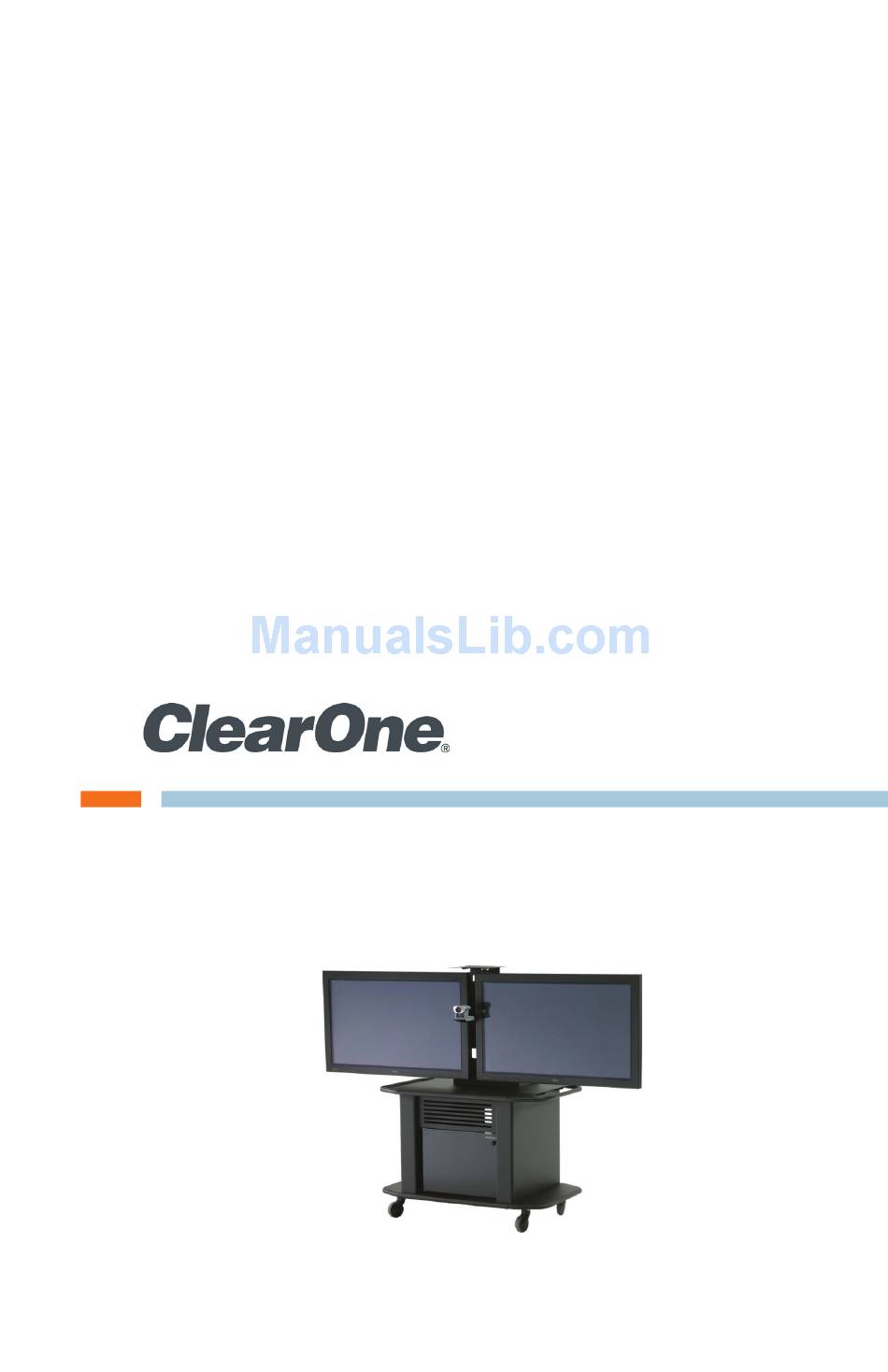

  • Page 1 Titan™ Media Cart nstallatIon and peratIon anual...

  • Page 2: Table Of Contents

    TITAN MEDIA CART INSTALLATION AND OPERATION MANUAL CLEARONE PART NO. 800-300-101 JANUARY 2012 (REV. 4.1) © 2012 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications.

  • Page 3: Service And Support

    If you need additional information on how to install, set up or operate your Titan Media Cart, please contact us. We welcome your comments so that we can continue to improve our products and better meet your needs. Support Tel: 1.800.283.5936...

  • Page 4: Titan Single Media Cart

    itAn ingle ediA Universal Base with Support Top Manual 8-32 Pan Head Screws Qty: 2 Vertical Support Codec Shelf 1/4-20 Screw 5/16 Bolts 5/16 Washers 5/16 Nuts Qty: 1 Qty: 20 Qty: 12 Qty: 12 » NOTE: Depending on your options, not all included hardware will be used when assembling the Titan Single Media Cart.

  • Page 5: Before You Begin

    Before you begin assembling your Titan Media Cart, be sure to have the following: • OmniMount 1N1-L screen mount (single screen configuration) OmniMount VB150F (X2) screen mounts (dual screen configuration) • 1/2” wrench • Socket wrench with 1/2” socket • Phillips screw driver...

  • Page 6: Assembly

    Assembly itAn ingle ediA ASSEMBLING THE HARDWARE 1. Align the Vertical Support over the self-clinching nuts in the Universal Base. NOTE: The self-clinching nuts are attached to the top of the » Universal Base. 2. Secure the Vertical Support using six 5/16 Bolts. Bolts Vertical Support Support Top...
  • Page 7 3. Remove and set aside the Locking Bar from the OmniMount 1N1-L Flat Panel Mount assembly (not supplied), then securely anchor the mount to the Vertical Support using four 5/16 Bolts, four 5/16 Washers and four 5/16 Nuts. » NOTE: The Flat Panel Mount can be attached higher or lower on the Vertical Support depending on desired position and size of screen.

  • Page 8: Mounting The Screen

    MOUNTING THE SCREEN 1. With the aid of another person, lift the screen up to the Flat Panel Mount and align the tabs on the Vertical Rails with the top and bottom horizontal bars of the Flat Panel Wall Mount that is mounted on the vertical support.

  • Page 9: Titan Dual Media Cart

    itAn ediA ASSEMBLING THE HARDWARE 1. Align the Vertical Support over the self-clinching nuts in the Universal Base. » NOTE: The self-clinching nuts are attached to the top of the Universal Base. Bolts Vertical Support Support Top Universal Base 2. Secure Vertical Support using six 5/16 Bolts. 3.
  • Page 10 5. Attach the Rail Track to the Horizontal Support using two 8-32 Pan Head Screws. 6. Slide the Camera Bracket down over rail. NOTE: Attaching the Camera Bracket is optional. The bracket is » normally used with codecs that have a detachable camera or with a small PTZ camera.

  • Page 11: Mounting The Screens

    8. Using hardware supplied with the Wall Mount, attach the Vertical Rails with the Rubber Stops to the back of the screen. (See OmniMount VB150F instructions for more information.) » NOTE: Titan Media Carts require one OmniMount VB150F Wall Mount (not supplied) for each screen that is to be secured to the support.

  • Page 12: Attaching A Ptz Camera

    2. Lower the screen into place with the Vertical Rails hooking over the Wall Plate. 3. Thread the Locking Bar from the side through the Wall Plate and both Vertical Rails. When fully inserted, turn in place to position locking tab.. »...

  • Page 13: Attaching The Codec Shelf

    ttAching the odec helf » NOTE: The Codec Shelf supports a set-top codec or PTZ camera; using the shelf is optional. 1. Align the Codec Shelf with the guiding holes on the Vertical Support. Codec Shelf Washer Support Top and Nut (Screen Mounting Hardware Not Shown.) 2.

  • Page 14: Appendix

    Appendix pecificAtions Dimensions (W x H x D) 45” x 31” x 28” Assembled Dimensions without screens (W x H x D) Single: 45” x 72” x 28” Dual: 72” x 72” x 28” Integrated Rack Height: 9 space, 15.75” (40 cm) Depth: 22”...
  • Page 15 Appendix...
