BMA VESA-Mount Bracket
This document provides information about how to install the BMA VESA-Mount Bracket. Product
Specifications, including dimensional drawings, are included.
Before you begin installation, please note the following important information:
Examine shipment and report damage
1.
to your transportation carrier.
Included components
2.
Bracket, part number 910-3200-211
or 910-3200-211-I (Internatonal)
M3x8 Screw (8)
M3 Flat Washer (8)
M3 Lock Washer (8)
M4x12 Screw (4)
M4 Flat Washer (4)
M4 Lock Washer (4)

Required Tools

3.
Phillips Screwdriver

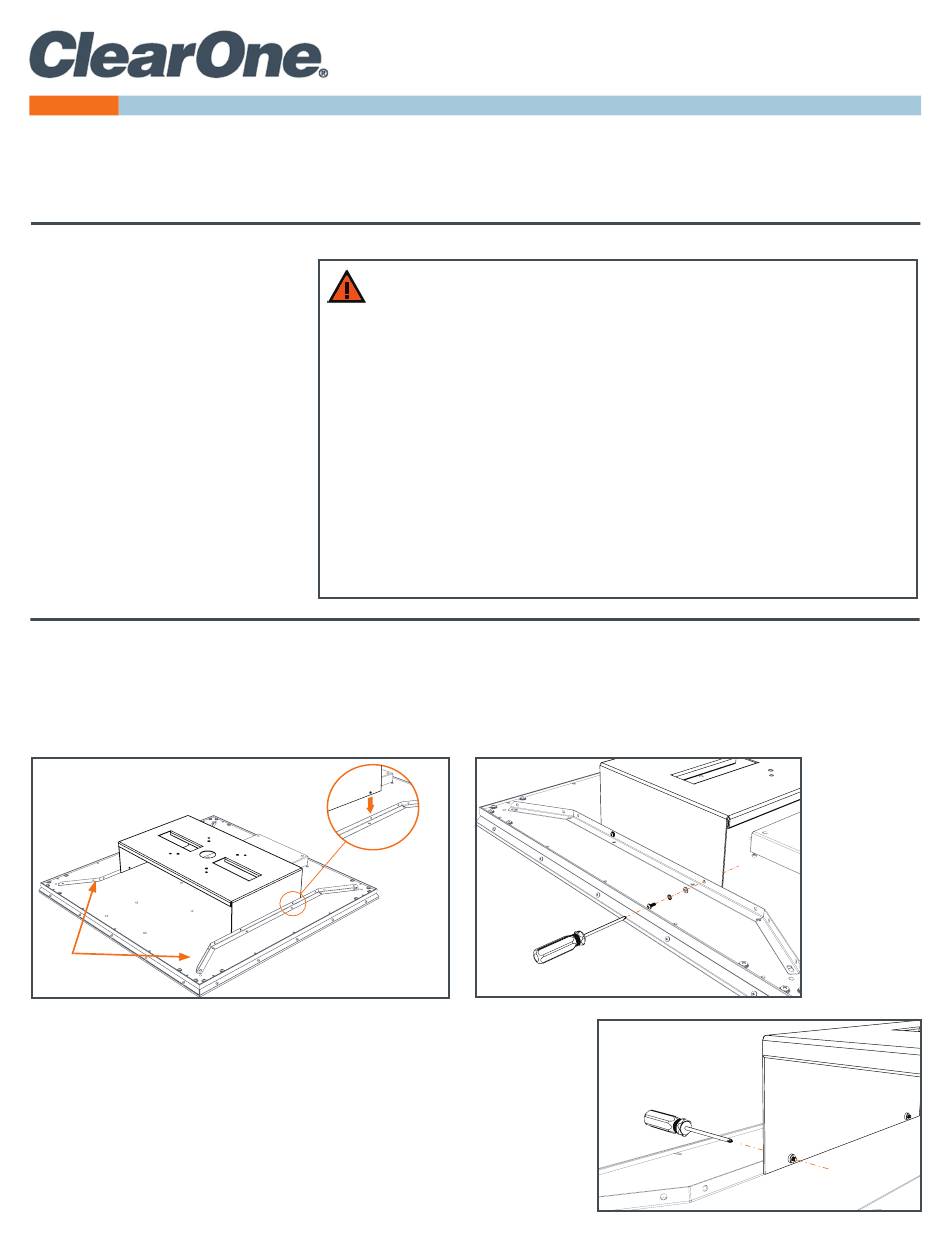

To attach the VESA-Mount bracket to the back of a BMA, complete the following steps:
Step 1
Place the bracket in position with both of the BMA's
stiffeners so the four holes align.
Stiffeners
Information in this document is subject to change without notice.
Caution!
• Install in accordance with all applicable local codes.
• Ensure that power is off before you attach the bracket.
• The installer is responsible for ensuring the following:
The BMA is firmly attached to sturdy support (studs, or other mounting hardware) to hold
the weight of the BMA and its mounting hardware.
The ceiling structure can support five times the combined weight of all equipment. Before
installing cables, reinforce ceiling structure as necessary.
Anchors are installed into structurally sound solid concrete with a minimum thickness of
1.75" (44.5mm). Installation into hollow concrete block, mortar, or concrete that exhibits
cracking, spalling, or other defects may result in failure of anchor and serious personal
injury or damage to equipment!
Anchors are installed into wood with a minimum thickness of 1.5" (38.1 mm).
• Failure to properly set anchor may result in failure of anchor and serious personal injury or
damage to equipment!
Step 2
With four sets of M3 screws and washers, use a screwdriver
to attach the bracket to both stiffeners.
Important!
Do not overtighten.
© 2020 ClearOne
Installation Guide
QSG-0110-001v1.0 November 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ClearOne BMA

  • Page 1 • The installer is responsible for ensuring the following: M3x8 Screw (8) • • The BMA is firmly attached to sturdy support (studs, or other mounting hardware) to hold M3 Flat Washer (8) • the weight of the BMA and its mounting hardware.
  • Page 2 To connect a third party VESA mount, make sure that the mount supports a 100 mm x 100 mm hole pattern. Follow the installation instructions for that mounting system. To attach a ClearOne BMA 2 ceiling mount, first use the remaining M3 components to attach the BMA2 interface plate to the VESA-Mount bracket.
  • Page 3 BMA VESA-Mount Bracket Installation Guide Dimensions 5.0 in (127 mm) 3.94 in (100 mm) 4.9 in 3.94 in 9.09 in (124.46 mm) (100 mm) (230.8 mm) Ø 1.50 in (38 mm) For 24 in model: 15.94 in (404.90 mm) For 600 mm model: 15.78 in (400.71 mm) 3.76 in...
