12V DC EXT POWER
A special jack used to connect an external 12 Volt DC source to the unit to substitute for the "on-board" battery pack.
It is most commonly used for connecting the LONG RANGER III to a vehicle cigarette lighter receptacle. When an
external power source is connected to this jack, the on-board battery pack is automatically disconnected.
EXTERNAL 8 OHM SPEAKERS
Two jacks which are used to connect external 8 ohm horns or speakers such as the Lectrosonics H300 horn or
ES300 column speaker.
12V DC
OUTPUT
WIRELESS
MICROPHONE
VOLUME
RF
MOD
OFF
LEVEL
POWER

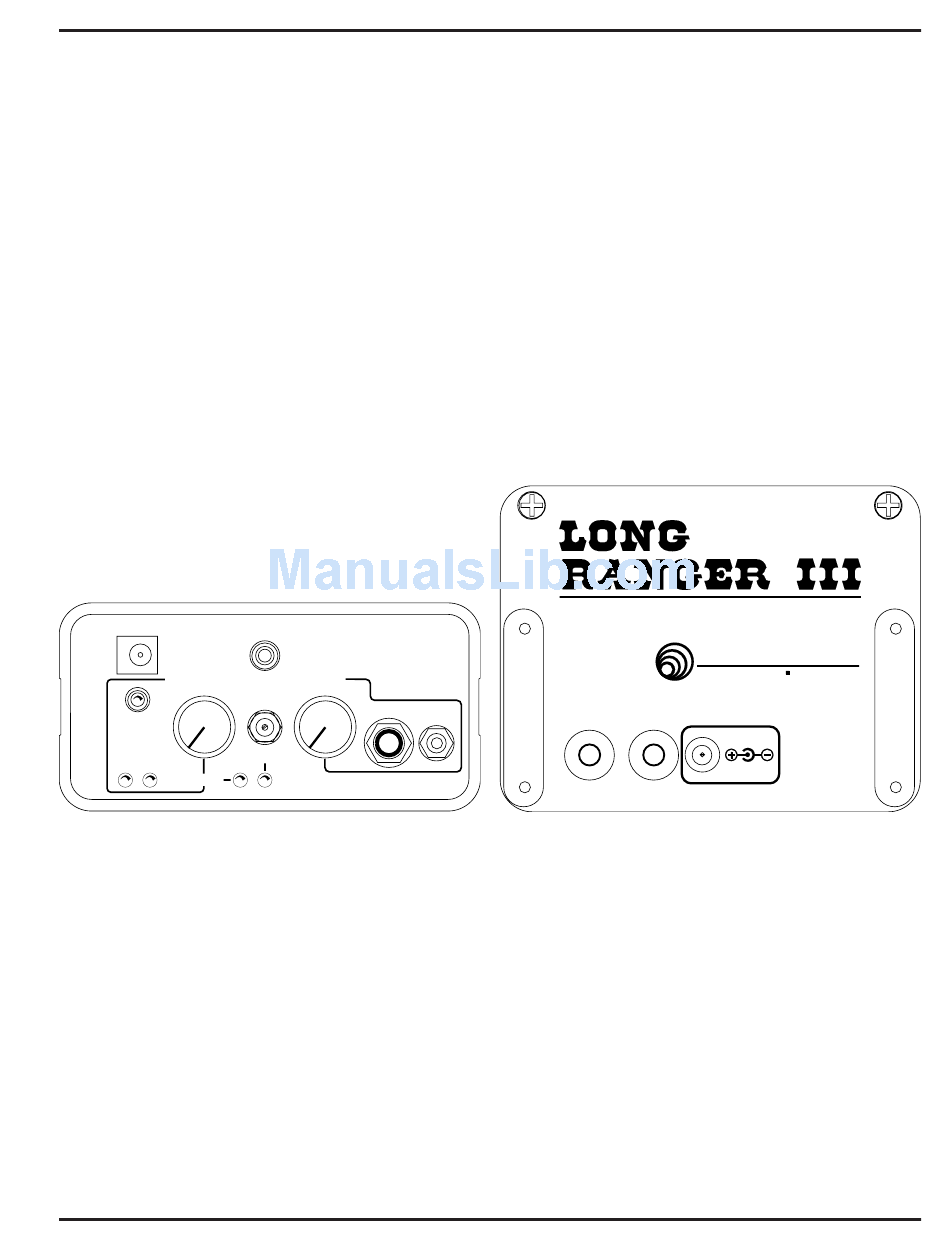

Figure 1 - Long Ranger III Control Panel

FRONT PANEL

AUX IN/OUT
AUXILIARY
INPUT
VOLUME
MIC
CH-40
CHARGER
CHARGE UNTIL
LAMP GOES OUT
Rio Rancho, NM – USA
DUAL – CHANNEL READY
EXTERNAL
LINE
8 OHM SPEAKERS
MAIN HORN
DISCONNECT
Figure 2 - Long Ranger III Front Panel
Portable Wireless Sound System
LECTROSONICS
RIO RANCHO, NM MADE IN USA
12V DC
EXT POWER
5
