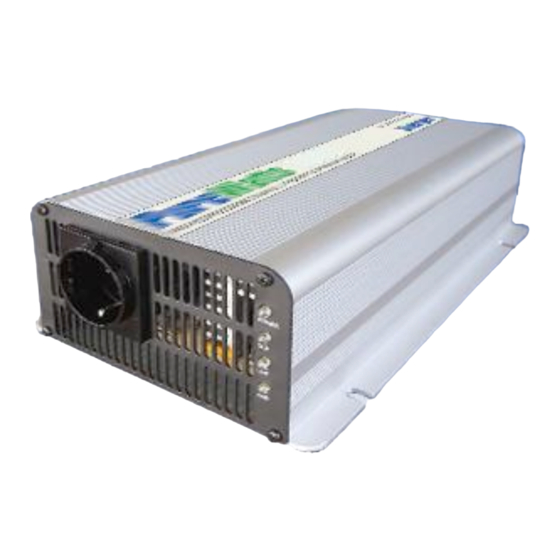

Related Manuals for Sinergex PureWatts Elite PWE-1000
Summary of Contents for Sinergex PureWatts Elite PWE-1000
- Page 1 PureWatts Elite Power Inverter Instruction Manual 1000 / 2000 WATTS www.sinergex.com...
-
Page 2: Table Of Contents
CONTENTS Introduction _____________________________________ Important Safety Information _________________________ Features & Applications _____________________________ Electrical Performance _____________________________ Mechanical Drawings _____________________________ DC Wiring Connections _____________________________ Battery to Inverter Cable Connection _________________ Installation _____________________________________ Troubleshooting _________________________________ Maintenance & Warranty _____________________________... -
Page 3: Introduction
INTRODUCTION Thanks for choosing Sinergex to help you with your power needs. The Sinergex PureWatts Elite inverters are members of the family of advanced mobile power products manufactured by Sinergex Technologies. PureWatts inverters will deliver you efficient AC power allowing you to run your equipment anywhere, anytime. -
Page 4: Features & Applications
FEATURES & APPLICATIONS Regulated Modified Sine Wave Output Output frequency 50 / 60Hz Input & Output Fully Isolated High Efficiency >80% LED Power and Protection Display Load Controlled Cooling Fan Protection Input Low Voltage Short Circuit Reverse Polarity (Fuse) Input over voltage Over Temperature Overload Applications Power Tools –... -
Page 5: Electrical Performance
ELECTRICAL PERFORMANCE PWE-1000 Specifications PWE-1000 Item PWE-1000-112 PWE-1000-124 PWE-1000-212 PWE-1000-224 Continuous Output Power 1000W Surge Rating 2000W Input Voltage 12VDC 24VDC 12VDC 24VDC Output Voltage 100 / 110 / 115 / 120VAC 220 / 230 / 240VAC Frequency 50 / 60Hz... -
Page 6: Specifications
PWE-2000 Specifications PWE-2000 Item PWE-2000-112 PWE-2000-124 PWE-2000-212 PWE-2000-224 Continuous Output Power 2000W Surge Power 4000W Input Voltage 12VDC 24VDC 12VDC 24VDC Output Voltage 100 / 110 / 115 / 120VAC 220 / 230 / 240VAC Frequency 50 / 60Hz 50 / 60Hz Efficiency (Full Load) No Load Current Draw 0.6A... -
Page 7: Mechanical Drawings
MECHANICAL DRAWINGS 1000W UNIT:mm... - Page 8 MECHANICAL DRAWINGS 2000W UNIT:mm...
-
Page 9: Dc Wiring Connections
The longer and narrower the cables, the greater the voltage drop and decreased performance. Increasing DC cable size helps improve the situation. Sinergex recommends the following cables for optimum inverter performance. (Apply both 120V and 230V versions) Model No... -
Page 10: Battery To Inverter Cable Connection
BATTERY TO INVERTER CONNETION 1000W Series 2000W Series... -
Page 11: Installation
INSTALLATION The Sinergex PureWatts Elite inverters are some of the most advanced mobile AC power systems available. To ensure the power inverter functions correctly, please read and follow these instructions before and during installation. Before installing the inverter, ensure the inverter’s power switch is “OFF”. Connect the DC cables to the 12V / 24V battery or the other DC power source. -
Page 12: Troubleshooting
TROUBLESHOOTING WARNING! Do not open or disassemble the power Inverter. Attempting to service the unit yourself may cause an electrical shock or fire and void warranty. Problems and Symptoms Possible Cause Solutions Load LED bar flashing Overload (OLP) Reduce load. No output voltage. -
Page 13: Maintenance & Warranty
Always ensure the connecting screws at the battery and inverter terminals are tight and secure WARRANTY Sinergex Technologies warrants this product for a period of 2 years from the date of purchase to the original purchaser. Warranty is not transferable. Warranty covers defect against workmanship and materials only.
