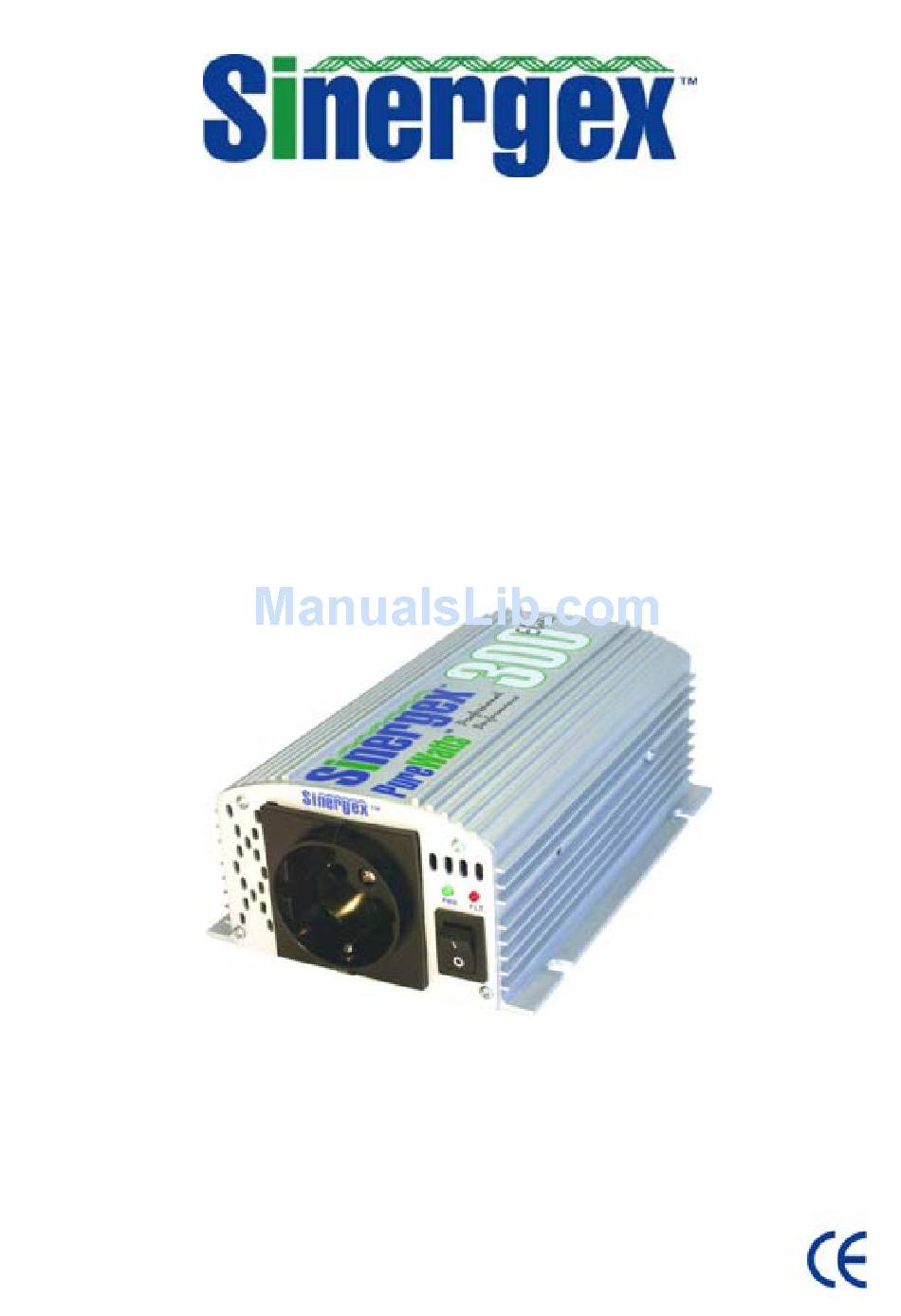

- Page 1 Elite PureWatts DC to AC POWER INVERTER USER MANUAL Sinergex Technologies 10288 South Jordan Gateway, South Jordan, Utah 84095, USA Tel: 801 523 3866 Fax: 801 763 1221 Website: www.sinergex.com...

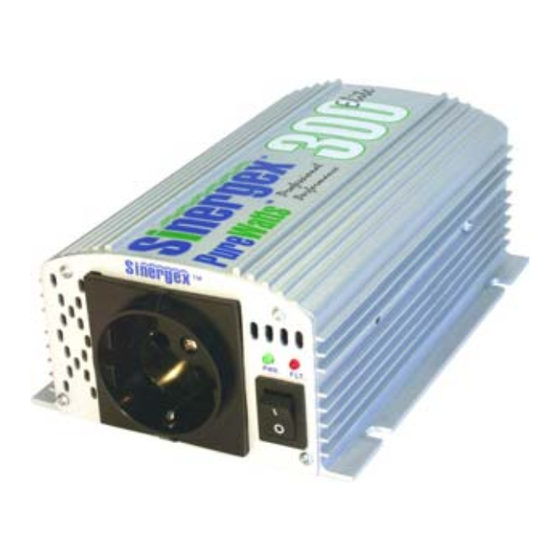

- Page 2 WELCOME Thank you for purchasing a Sinergex PureWatts Elite 300 Power Inverter. Sinergex products are manufactured to the highest possible standards incorporating the latest power conversion techniques. Please take a few moments to read this manual as it contains hints and tips to ensure correct operation and extended life of your inverter.
- Page 3 CONTENTS Page 4……………. …………How Your Inverter Works Page 5………………………..Modified Sine Wave Vs Sine wave Page 6 – 7 …………………. Operation of Your PureWatts Elite 300 Page 8 – 10 …………….……Inverter Features Page 11 – 12 ……………….. Protection Features Page 13 ..…………………… Specifications Page 14 –...
-
Page 4: How Your Inverter Works
– providing cleaner, more reliable AC power and extended inverter life. Your Sinergex PureWatts Elite 300’s output is known as Modified Sine Wave (MSW). This is an approximation of household grid power. It is suitable for most AC appliances. - Page 5 CAUTION: Care must be taken when operating certain types of equipment to ensure that they are compatible with your Sinergex PureWatts Elite 300’s output waveform. Such equipment includes chargers for some electric toothbrushes, razors, mini vacuum cleaners and some power tool chargers.
-
Page 6: Operation Of Your Purewatts Elite 300
OPERATION OF YOUR PUREWATTS ELITE 300 Your PureWatts Elite 300 is designed to be easy to use. 1. Before connecting your load, please ensure that it is properly rated for your Sinergex Elite 300. Your load should be rated at 230V AC 50Hz or 110V AC 60 Hz, up to a maximum power consumption of 300 watts (1.3A). - Page 7 (-) terminal. 4. Connect the DC cable set to your battery/cigarette lighter socket. CAUTION: The Sinergex PureWatts Elite 300 is designed for use with standard automotive/marine 12V negative ground systems. If in doubt, consult your local Sinergex dealer for help.
-
Page 8: Inverter Features
INVERTER FEATURES Power ON/OFF Switch. This switch turns the inverter ON or OFF for operation. When in the ON position the inverter will deliver power to the AC outlet. (CONT’D) Sinergex Pure Watts 300 Elite Manual... - Page 9 2. AC Outlet. The AC outlet design will vary from country to country. This is where you plug in your appliance or equipment for operation. Be sure to treat with extreme care just like you would at your home or office. 3.
- Page 10 1. Negative (-) DC Terminal. 2. Positive (+) DC Terminal. 3. Thermostatic Controlled Cooling Fan. Automatically turns on to cool the inverter when inverter reaches set temperature. Sinergex Pure Watts 300 Elite Manual...
-
Page 11: Protection Features
Low/High Battery Voltage Protection In the event of battery voltage going outside of the normal operating voltages of the Sinergex PureWatts Elite 300 (11- 15VDC), an audible alarm will sound and the unit will shut down. This protects internal circuitry of the inverter and the battery from excessive discharge. - Page 12 CAUTION: Do not connect your 12V PureWatts Elite 300 to 24V systems, damage will result and void warranty. Overheat Protection Inverters heat up during operation – this is normal. However, if the unit’s internal temperature reaches excessive levels, a protection system shuts the unit down. Once it cools to within operating limits it will restart.
-
Page 13: Specifications
SPECIFICATIONS Model PWE-300-12 PWE-300-24 AC Output (Continuous) 300 Watts AC Output (Surge) 600 Watts AC Output Voltage 110 or 230 Volts AC Output Frequency 50 or 60 Hz. AC Output Waveform Regulated MSW DC Input Voltage 10 - 15 VDC 20 - 30 VDC Peak Efficiency >90%... -
Page 14: Troubleshooting Guide
TROUBLE SHOOTING GUIDE No Output Has the cigarette lighter socket fuse blown? Many cigarette lighter sockets have small fuses to protect against accidental short-circuits. Also, Sinergex Inverters have an inline fuse within their cigarette lighter plug – check that this hasn’t blown. Is the cigarette lighter socket clean? If you are a smoker and use your cigarette lighter socket, ash and dust can build up in the socket. - Page 15 Alarm Operates Continuously Has one of the inverter’s protection features activated? Your inverter is fitted with a variety of protection features: Overload – remove the load (if alarm turns off, it’s likely that the unit was overloaded). Overheat – if the unit is warm/hot to touch and was functioning normally, it’s likely that the overheat protection has activated.
- Page 16 Unit gets excessively hot Your inverter will operate at beyond its continuous rating for (sometimes) lengthy periods of time – the limiting factor is heat build up within the inverter unit. If your load exceeds 300 watts – the overload or overheat protection will eventually cut Your inverter is rated for use in normal ambient temperatures.
- Page 17 Battery runs flat quickly Your battery should operate for a reasonable amount of time (generally several hours). As batteries age, they lose capacity. If the battery continuously runs flat, you should consider having it tested. If replacement is recommended, try to acquire a deep cycle battery that is happier being used with an inverter.
-
Page 18: Warranty And Warranty Procedure
WARRANTY AND WARRANTY PROCEDURE Installation, Operation, Technical Support, Warranty and Service Issues should, in the first case be directed towards the outlet at which you purchased your Sinergex Pure Watts Elite inverter. CAUTION & WARNING: DO NOT USE OR ATTEMPT TO USE THIS PRODUCT UNTIL YOU HAVE READ THIS OWNERS... - Page 19 This warranty is void and will not be applied if: 1. The unit has been used against the recommendations of this manual. 2. The unit has been used in an application outside of general automotive, solar, industrial or marine without the agreement of Sinergex. 3.
- Page 20 Telephone your Sinergex Dealer for an Authorisation Number prior to dispatch – do not send without an Authorisation Number. Once this number has been obtained, please carefully package your unit and send (Freight Paid) to the Sinergex Dealer. Sinergex Pure Watts 300 Elite Manual...
- Page 21 Sinergex Technologies 10288 South Jordan Gateway, South Jordan, Utah 84095, USA Tel: 801 523 3866 Fax: 801 763 1221 Email: info@sinergex.com Website: www.sinergex.com Sinergex Pure Watts 300 Elite Manual...
