Summary of Contents for Sinergex PureWatts Elite 150

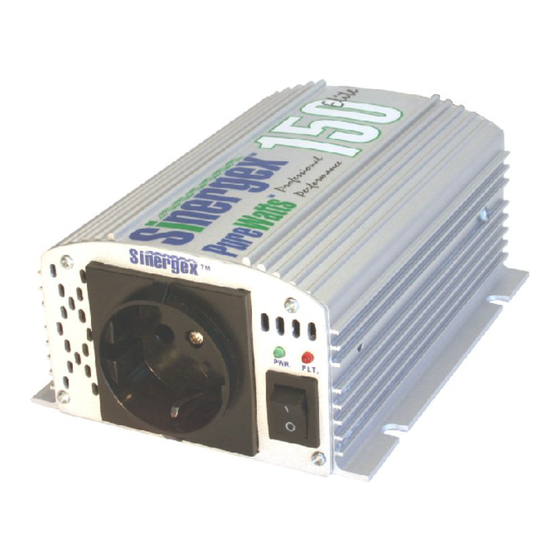

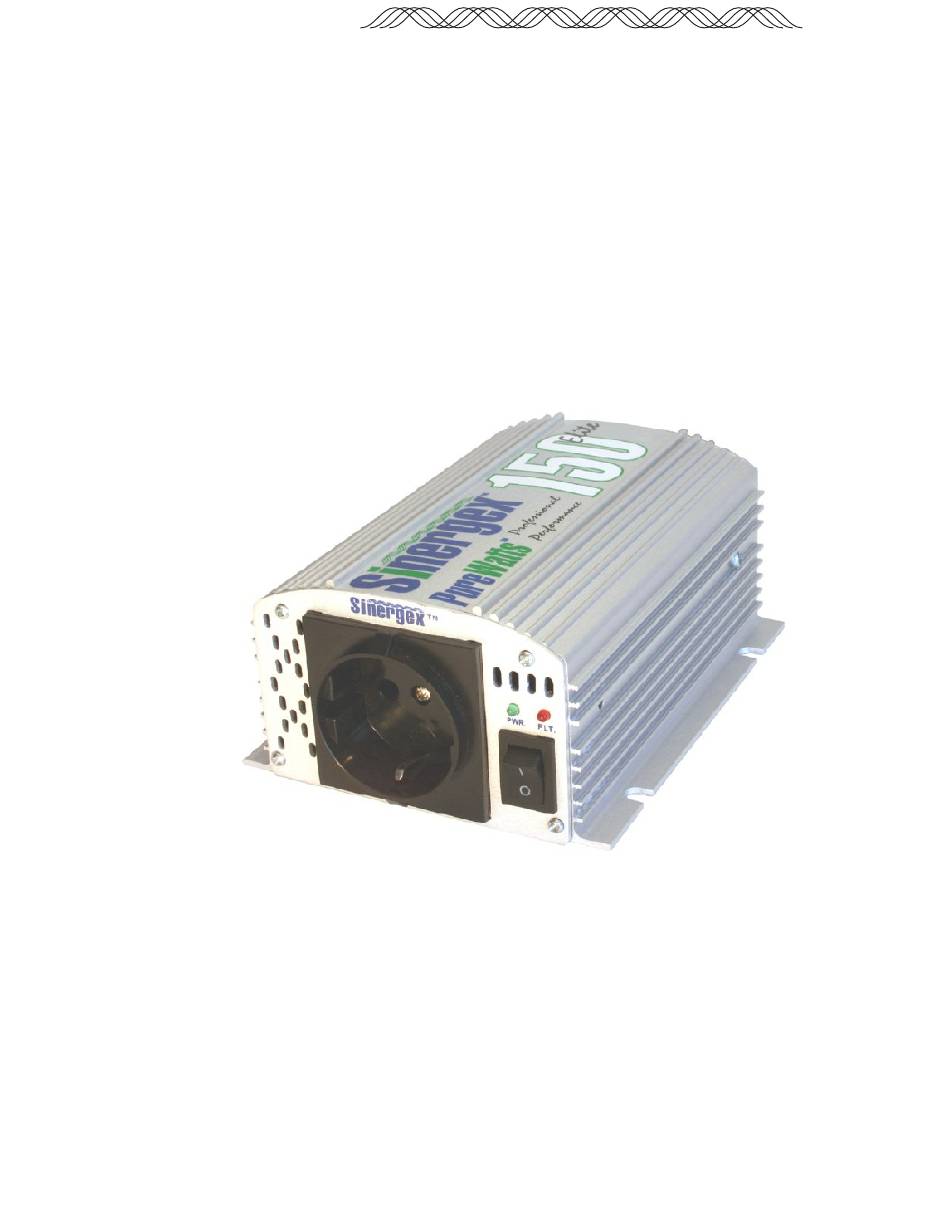

- Page 1 Sinergex Elite PureWatts User's Manual Sinergex Technologies L.L.C. (USA) Website: www.sinergex.com Email: info@sinergex.com...
- Page 2 Sinergex WELCOME Thank you for purchasing a Sinergex PureWatts Elite 150 power inverter. Sinergex products are manufactured to the highest possible standards incorporating the latest power conversion techniques. Please take a few moments to read this manual as it contains hints and tips to ensure correct operation and extended life of your inverter.
-
Page 3: Table Of Contents
Sinergex CONTENTS Page 3 ..How Your Inverter Works Page 4 ..Modified Sine Vs. Pure Sine Page 5-6..Operation Page 7-8 ..Inverter Features Page 9-10 ..Protection Features Page 11 ..Specifications Page 12-14..Trouble Shooting Page 15-16 ... Warranty and Procedure... -
Page 4: How Your Inverter Works
- providing cleaner, more reliable AC power and inverter life. Your Sinergex PureWatts Elite 150's output is known as Modified Sine Wave (MSW). This is an approximation of household grid power. It is suitable for most AC appliances. -
Page 5: Modified Sine Vs. Pure Sine
MODIFIED SINE VS. PURE SINE WAVE Modified Sine Wave inverter are compact and cost effective. However, they do have a few minor disadvantages compared to Pure Sine Wave output models (such as the Sinergex PureSine series). CAUTION: Care must be taken when operating certain types of equipment to ensure that they are compatible with your Sinergex PureWatts Elite 150's output waveform. -
Page 6: Operation
Sinergex OPERATION OF YOUR INVERTER Your Sinergex PureWatts Elite 150 is designed for simple and easy operation! Before connecting your load, please ensure that it is properly rated for your inverter. Your load should be rated at 230V 50 Hz or 110V 60 Hz, up to a maximum power consumption of 150 watts (0.65 Amps). - Page 7 Sinergex CAUTION: The Sinergex PureWatts Elite 150 is designed for use with standard auto/marine 12V negative ground systems. If in doubt contact your local Sinergex dealer for further instructions. Switch the inverter ON using the power ON/OFF switch on the front panel of the inverter.
-
Page 8: Inverter Features
Sinergex INVERTER FEATURES 1. Power ON/OFF Switch. This switch turns the inverter ON or OFF for operation. When in the ON position the inverter will deliver power to the AC outlet. (cont'd) Page 7... - Page 9 Sinergex 2. AC Outlet. The AC outlet design will vary from country to country. This is where you plug in your appliance or equipment for operation. Be sure to treat with extreme care just like you would at your home or office.
-
Page 10: Protection Features
Sinergex PROTECTION FEATURES Overload Protection The Sinergex PureWatts Elite 150 is protected against reasonable overloading. This means that you can, within reason, attempt to run loads that are oversized for the inverter (up to double the inverter's maximum continuous output) without damage. In the event of overload, the unit will sound an audible warning and shut down. - Page 11 Sinergex Once battery voltage returns to the inverter's normal voltage operating range, it will automatically restart. CAUTION: Do not connect your 12 VDC input PureWatts Elite inverter to 24 VDC systems. Damage will result and void warranty. Overheat Protection Inverters heat up during operation - this is normal. However, if the inverter's internal temperature reaches excessive levels, a protection systems will shut down the inverter.
-
Page 12: Specifications
Sinergex SPECIFICATIONS Model PWE-150-12 PWE-150-24 AC Output (Continuous) 150 Watts AC Output (Surge) 300 Watts AC Output Voltage 110 or 230 Volts AC Output Frequency 50 or 60 Hz. AC Output Waveform Regulated MSW DC Input Voltage 10 - 15 VDC... -
Page 13: Trouble Shooting
Has the Cigarette lighter socket fuse blown? Many cigarette lighter sockets have small fuses to protect against accidental short-circuits. Also, Sinergex inverters have an in line fuse within their cigarette lighter plug - check that either fuse had not blown. - Page 14 Sinergex Overheat: if the inverter is warm/hot to touch and was functioning normally, it likely the that the inverter the overheat protection has activated. Allow the inverter to cool. (The inverter can be either left connected or disconnected to the DC supply during this period.
- Page 15 There is no option but to change your appliance for one that will accept MSW or swap the inverter for one that provides pure sine wave power. Providing that your inverter is in "as new" condition, your local Sinergex dealer will normally part exchange your inverter for Sinergex PureSine model.
- Page 16 Sinergex For further trouble shooting/technical information, please contact your local Sinergex dealer or Sinergex direct. If in doubt as to the suitability for use, application or as to how to wire your inverter, contact your Sinergex dealer or a qualified electrical engineer before use.
- Page 17 WARRANTY. Sinergex warrants, to the original purchaser only, for a period of 24 months from the date of purchase, that the Sinergex PureWatts Elite inverter will be in good working order when properly installed and operated as described in this manual.
- Page 18 Sinergex Technologies. 3. The inverter has been modified or repaired without written authorization of Sinergex Technologies. 4. Reverse polarity, excessive overloading, general abuse, neglect, wear & tear, ingress of liquids...
- Page 19 4. Brief description of application and problem Telephone your Sinergex dealer for an authorization number prior to dispatch - do not send without authorization. Once this number has been obtained, please carefully package your inverter and send (freight paid) to the Sinergex dealer. Page 18...
- Page 20 Sinergex Sinergex Technologies L.L.C. (USA) Website: www.sinergex.com Email: info@sinergex.com...
