IRiver SlimX iMP-400 User Manual

Multi - codec cd player / fm tuner
Hide thumbs

Advertisement

Table of Contents

User Manual
MULTI - CODEC CD PLAYER / FM TUNER
Model iMP-400
TM
Model iMP-400
Thank you for purchasing the product.
Please read the manual carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlimX iMP-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IRiver SlimX iMP-400

Summary of Contents for IRiver SlimX iMP-400

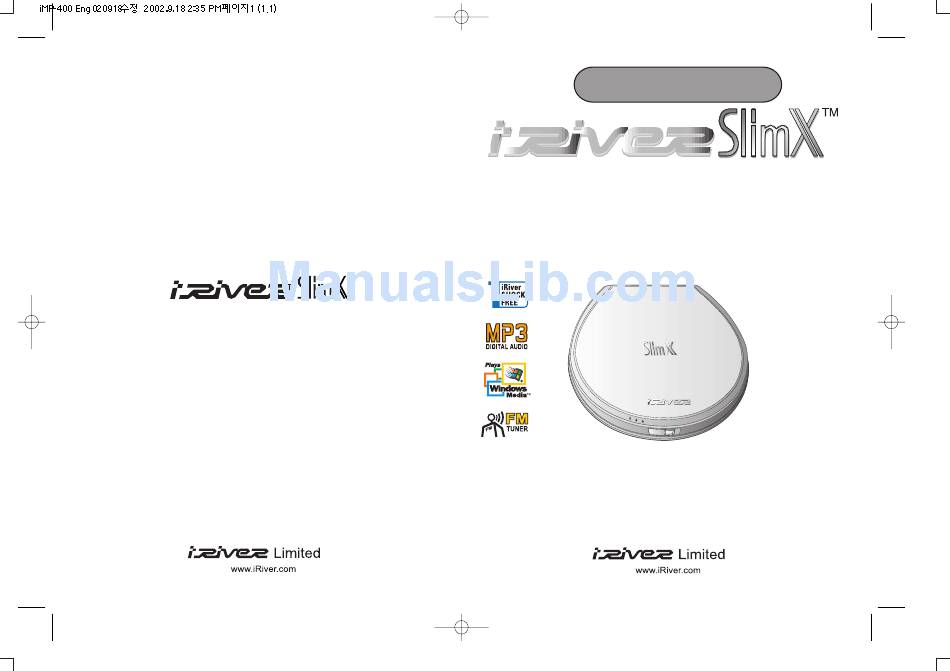

  • Page 1 User Manual MULTI - CODEC CD PLAYER / FM TUNER Model iMP-400 Model iMP-400 Thank you for purchasing the product. Please read the manual carefully before use.
  • Page 2 Limited in the Republic of Korea and /or other countries and is used under license. Microsoft Windows Media and the windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and /or other countries.

  • Page 3: Table Of Contents

    Table of Contents 1. Locating the Controls Player Front & Back... Player Side... Remote Control, LCD Window... 2. Getting started Power Supply(Batteries)... Playing Disc Media... Playing FM Tuner... Operating Remote Control... 3. Useful Features Navigation Mode... Playback Mode... Program Mode... -10,+10/Equalizer Mode...

  • Page 4: Locating Controls(Player)

    Locating Controls(Player) Side REMOTE CONTROL/ EARPHONE Inside EXTENSION BATTERY PORT DC IN 4.5V - 5 - Locating Controls(Remote Control) Remote Control NAVI / MENU, PRESET LINE OUT LCD Window BATTERY COMPARTMENT PLAY / PAUSE/MUTE STOP - 6 -...

  • Page 5: Power Supply(Batteries)

    Power Supply(Battery) Using Rechargeable Batteries Lift the cover of player and remove the covers of batteries compartment. Insert two rechargeable batteries (stick type) by matching the + and - polarity (see diagram below) in the battery compartments and close the covers.

  • Page 6: Operating The Fm Tuner

    Playing a Disc Play/Pause Play Next Folder FM Changing Play Previous Folder GO Forward Quickly STOP Go Backward Quickly Play Next Track Play Previous Track Power Off File Format displayed as below Conventional Audio CD - 9 - Operating the FM Tuner While playing a CD, you can switch back and forth between CD and FM mode with a long click of the Mode/CD/FM Stereo button.

  • Page 7: Operating The Remote Control

    Operating the FM Tuner Memory Function (Save channels) Select the channel by pushing the jog switch Push again and select the desired channels. Save complete Select CH02 Up to 20 channels can be memorized. Auto memory function : Automatically select channels and save them in sequential orders.(It only activates while the player is not in PRESET mode) Note : Auto memory may not work within weak transmission areas.

  • Page 8: Basic Operation

    Operating the Remote Control Basic Operation Volume Control: Slide jog lever to the right to increase volume or to the left to decrease volume. Changing Mode : (Refer to page 27) FM Changing : NAVIGATION Press the Navi/Menu jog lever with a short click and find the desired track by pressing To play the track, press Navi/Menu(or )with a short click.

  • Page 9: Playback Mode

    Mode You can enjoy various ways of playing by using playback mode. Please refer to the function controls (page 27) for user-defined configurations. When MODE/CD/ FM jog switch is pushed, icon in the playback mode indicator is changed. REPEAT Play a single track repeatedly. Play all tracks in the folder and stop.
  • Page 10 ShockFree Toggle On/Off by sliding "PROG/EQ/MEMORY" button +10 side during PLAY mode. Caution: Poorly recorded CDs may have inferior disc readability while the iRiver ShockFree mode is activated. In this case, please disable the iRiver ShockFree mode. EQ MODE Long click of PROG/EQ jog switch displays the current EQ.

  • Page 11: Menu Operation

    PLAYER’S CONTROLS 1. Earphones Jack : Connect Earphones/Remote Control. 2. Line Out Jack : To record from the iMP-400 to other equipment or to connect the car kit or other audio equipment(speaker etc.).. CD conversion FM : To select FM channel Click buttons.

  • Page 12: Function Control Mode

    Menu (Function Controls) Scroll between Menu Press main menu and sub menu. From Main Menu to Sub Menu Enter Sub Menu Each control option is configured by three buttons( Exit Sub Menu Exit Function Control mode - 21 - Menu(General) GENERAL to move within BEEP VOLUME...

  • Page 13: Menu Display

    Menu(Display) DISPLAY BACK-LIGHT(SEC) BUTTON : Backlight is on. ADAPTER : If the adapter is connected, backlight is always on and if the adapter is disconnected, backlight is on whenever you press the button. 0 : Backlight is off. 21 : Backlight is always on. Select BUTTON or ADAPTER by using button and adjust the lighting time by using LCD CONTRAST...

  • Page 14: Menu Control

    Menu(Control) FF/RW SKIP OFF: No use of FF/RW skip. 10 : Playback previous or next 10th track. Folder : Skip to previous or next directory. FF/RW SCAN SPEED The fast scan speed can range from 1x/2x/ 4x/6x. It is useful when studying a language.
  • Page 15 Menu(Playback Mode) MODE REPEAT MODE / SHUFFLE MODE (Page15) : A number of Repeat and Shuffle modes are available. Select the one you want by pressing Navi/Menu to enter the Mode menu. Selection Method Press button to enter The MODE function is only operated according to Mode setting on the MENU.
  • Page 16 Menu(Playback Mode) MODE NAME : You can input your name or text. Button Operation Select the character by using button and press Navi/Menu button to input the character. To delete the character, push MODE switch. To scroll between English Save and Exit and your preferred language, use STOP button To move the cursor in...

  • Page 17: Support Winamp Play List

    2. Press List OPTS button in the right button and open SAVE LIST. Click SAVE LIST Button 3. Input file name(ex: iriver.m3u) and press SAVE button to create new play list. Burn the disc with WinAmp play list and related files.

  • Page 18: Power Supply(Adapter & Rechageable Batteries)

    Power Supply(Adapter) Using AC POWER ADAPTER Use only the AC Power Adapter supplied with the player. Connect the adapter to the 4.5V DC jack on the player and into an AC outlet. Disconnect Adapter when not in use. - 33 - Power Supply(Rechargeable Batteries) Recharging Method Rechargeable function can be activated while the rechargeable batteries are...

  • Page 19: Trouble Shooting

    Trouble Shooting Should any problem persist after you have checked these symptoms, consult your iRiver dealer. Connect adapter to test the battery life. Check whether the HOLD switch on player or remote is ON (Switch to OFF position) No Power On Check whether the player lid is opened.

  • Page 20: Precautions

    Precautions Disc On Handling Disc Avoid touching the surface(bright side) where data is stored. Disc Cleaning Avoid cleaning the disc surface. necessary, clean with a soft cloth in directions described. Do not stick papers or tape labels onto the surface(bright side). Avoid using chemicals to clean the surface.

  • Page 21: Accessories

    Notes During playback, CDs damaged with dirt or a scratch may make a pop sound, clipping sound, or cut off. Tracks with damaged or corrupted parts are skipped or forwarded to next track. Supported file types will have the extension MP3, WMA or ASF. Directories and files are sorted in alphabetical order.

  • Page 22: Product Specifications

    Product Specifications - 41 - Regulatory Information Federal Communications Commission(FCC) The device manufactured and found to comply with limits for a Class B computing device according to the specifications in FCC rules Part 15. Operation is subject to the following two conditions; 1.

  • Page 23: Safety Warning

    Safety Warning Use of controls, adjustments or performance CLASS 1 LASER PRODUCT of procedures other than those specified KLASSE 1 LASER PRODUKT herein may result in hazardous radiation exposure. LUOKAN 1 LASER LAITE CAUTION-INVISIBLE LASER RADIATION KLASS 1 LASER APPARAT WHEN OPEN AND INTER LOCKS PRODUCTO LASER CLASE 1 DEFEATED, AVOID EXPOSURE TO...
