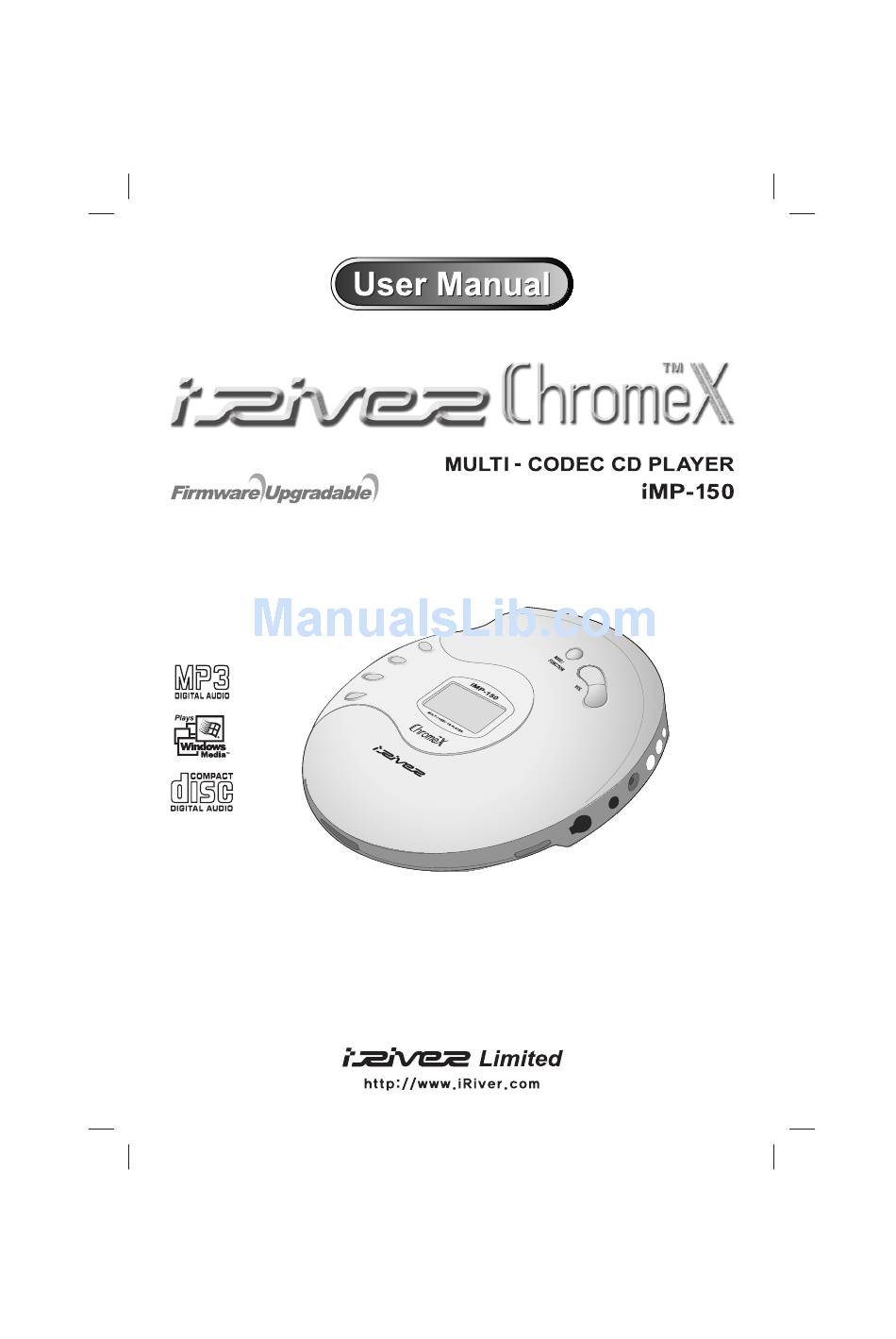

- Page 1 Thank you for purchasing an iRiver Product. Please read carefully before using the player.
- Page 2 Limited does not assume any responsibility for errors or omissions in this document or make any commitment to update the information contained herein. iRiver is a registered trademark of iRiver Limited in the Republic of Korea and/or other countires and is used under license.
- Page 3 : 40 Sec for conventional Audio CD/120Sec for MP3 (44.1KHz, 128kbps standard)/240 Sec for WMA(44.1KHz, 64kbps) Enhanced Anti-shock mode : By applying iRiver's own special algorithm, the iMP-150 provides better performance against shock. At the same time, iRiver maximized the anti-shock function at the beginning of songs by adopting pre-buffering.
-
Page 4: Table Of Contents
Table of contents 1.Locating the controls Player Front, Rear Player Side and LCD Window Remote Control 2. Getting started Playing Disc Media Operationg Remote Control 3. Useful Features Navigation Mode Program Mode +10/EQ Function Function 4. Additional Information Additional Features Power Supply Trouble shooting Precautions... -
Page 5: Locating Controls
Locating Controls Front PLAY STOP NEXT PREV Rear Serial Number - 4 - NAVI/ FUNCTION VOLUME Battery cover... -
Page 6: Locating The Controls
Locating the controls Side OPEN LCD Window The order of song Played time KBPS Media type Bit Rate Sample Rate Program/Play list MODE PRGM +10/EQ DC IN 4.5V LINE OUT REMOTE CONTROLLER / EARPHONE HOLD Play mode Hold Battery indicator Folder name(ALBUM) Artist and song title Volume/EQ/Level Meter... -
Page 7: Remote Control
4) The wrong setting of Sound Balance - Set the sound balance to the center. In the case of number 1), replace the earphones. In the case of numbers 2) and 3), please ask iRiver Sales Representative for repair or replacement of the player or the remote control. -
Page 8: Playing Disc Media
Playing Disc Media As in the figure below, push the open button on the rear side of the player and insert the disc.. Please connect the remote control and earphones. - 7 - Please position HOLD button to off. With Hold button on, you can't manipulate the controls on the player. -
Page 9: Playing Disc Media
Playing Disc Media PLAY STOP NEXT PREV Play NEXT Track Track Play PREVIOUS Track Play NEXT Folder Play PREVIOUS Folder GO Forward Quickly Go Backward Quickly Power Off Ti p Ti p File Format displayed as below . A S F W M A A u d i o C D M P 3... -
Page 10: Operating Remote Control
Operating Remote Control The Remote Control operates every function using 2 buttons and 2 jog levers. Additionally, each jog lever can function like 3 buttons, for a total of 8 buttons, making it easy to use. The basic operation is below: PREV NEXT Play and Pause/STOP and Power Off... - Page 11 Operating Remote Control NAVI/FUNCTION Click NAVI/FUNCTION to operate. NAVIGATION Navigate the music in CD FUNCTION Configure the settings Volume Control Slide the jog lever to right/left side to adjust the volume. MODE / EQ MODE While playing, a short click of the mode button will change the playing mode that you set on the function.
-
Page 12: Navigation
NAVIGATION Navigation is the function that allows you to navigate through the files in the CD. Pressing NAVI/FUNCTION button shows you the list of songs and current song playing. F o l d e r A Tr a c k 0 1 Tr a c k 0 2 To move to the Upper folder. -
Page 13: Mode
Mode ( Playing mode/ Enhanced Anti-shock function ) The various functions provided, when you press the MODE button, are described below. For the user's setting, please refer to Page 25. KBPS REPEAT Play a single track repeatedly. Play whole tracks in the directory and stop. Play whole tracks in the directory repeatedly. -
Page 14: Program Mode
While playing, PRGM button works as interval repeat (Repeat button or +10 button (you can use NAVI/FUNCTION) to select the song you'd like to program and I Love iRiver Love is over Tree Song To reserve all the songs in a certain folder, use NAVI/FUNCTION button and select the folder. -
Page 15: Program Mode
At stop mode Click stop button Interval Repeat While playing, you can use interval repeat for listening to your favorite interval. ROOT I LOVE iRiver KBPS ROOT I LOVE iRiver KBPS It will repeat the interval A-B section. Ti p... -
Page 16: 10/Eq Function
EQ function NORMAL ROOT CLASSIC I Love iRiver NORMAL U BASS of +10/EQ button shows you the present EQ and it will change whenever you press the button. Player has only +10 button, not -10 button. - Page 17 Multi-Codec CD player that can play MP3, WMA and ASF as well as conventional AudioCD. Conventional Audio CD - 16 - The iRiver Clam, due to the formats it Compressed Digital Audio Format in MP3, WMA, ASF, Etc.
-
Page 18: Function
FUNCTION By using function controls, you can set your own preferred way of playing songs. The Main Menu GENERAL DISPLAY beep volume back light resume lcd contrast fade in visualization language scroll type load default tag information time CONTROL MODE fast skip repeat scan speed... - Page 19 FUNCTION Move between menus PREV NEXT general display GENERAL VER 1.00 mode control To enter menu Navigate using buttons and press the play button. A sub menu will be displayed like the one at right. How to set user's preference button to select.
- Page 20 FUNCTION(GENERAL) GENERAL BEEP VOL : Configure beep sound (ON/OFF) with volume level. RESUME : When activated, player resumes playing at the same spot played last after Power OFF. SOUND FADE IN : When activated, volume steadily increases when you begin playing. It can prevent sudden loudness when you play the song after stopping.
- Page 21 FUNCTION(DISPLAY) DISPLAY BACK LIGHT OFF : Backlight is always off. BUTTON ON works as below : 1 : about 3~10 seconds 2 : 10 seconds 3 : 20 seconds ADAPTER ON : 1 : about 3~10 seconds 2 : 10 seconds 3 : 20 seconds 4 : Always While playing, long pressing the play( ) button will turn on the Backlight as you...
- Page 22 FUNCTION (TIMER and CONTROL) TAG INFORMATION : When ON, tag information is displayed and when OFF, only the file name is displayed Setting the tag information to OFF while playing may show the track is playing and the NEXT track with tag information.
- Page 23 FUNCTION (CONTROL) CONTROL (Setting Button Operation) FF/RW SKIP function Off : The skip does not activate. 10: Plays the previous 10th or the next 10th song. Directory: Jump to the Previous/Next directory. SPEED (FF/RW SCAN SPEED) : The fast scan speed can range from 1x/2x/4x/6x. It is useful when studying a language.
- Page 24 FUNCTION (MODE) MP3 BUFFER Only applies to MP3/WMA/ASF files. 30 SEC: Anti-shock protection lasting between 30~120 seconds. 60 SEC: Anti-shock protection lasting between 60~120 seconds. Note : 60 SEC BUFFER provides more shock protection than 30 SEC BUFFER; however, the battery is depleted faster. ADAPTER VOLUME ON: When the Adaptor is connected, the volume always remains at level 35.
- Page 25 Upgrade your firmware at the iRiver and iRiver America/iRiver HongKong websites What is FIRMWARE? : It is the operating system used to work the iMP-150. iRiver provides you with the latest and best features through Firmware Upgrade. Visit www.iriver.com.hk to upgrade your Firmware. How to UPGRADE? 1.
- Page 26 FUNCTION (MODE) NAME : You can input your name or text (maximum 12 bytes). NAME RiveM @ABCDEFGHIJKL To move the cursor in the name window, please use + and - on Volume button. To shift between English and your preferred language, use STOP button. To save the text and exit, use PLAY button The saved text is displayed during initial loading of disc and at stop mode during play.
-
Page 27: Function
FUNCTION (USER EQ) USER EQ MODE SETTING B.BOOST(BASS BOOST) : Bass Boost lever is from 0 to 12dB. B.C.FREQ(BASS CORNER FREQUENCY) : Bass Boost frequencies are 50HZ, 100Hz and 200Hz. Bass boost function is effective under the frequency range configured (maximized at 200Hz). T.BOOST(TREBLE BOOST) : Treble boost level is from o to 12dB. -
Page 28: Additional Features
You can find the playlist you want by using the button. press "SAVE LIST" 3. Type the file name (ex: iriver.m3u) and press "SAVE" to save the list. PROGRAM iriver.m3u - 27 -... - Page 29 P r e s s N AV I / F U N C T I O N PROGRAM iriver.m3u ROOT I Love iRiver KBPS b u t t o n d u r i n g p l a y, To m o v e , u s e...
-
Page 30: Power Supply 29~30
ABOUT POWER SUPPLY (ADAPTOR) Using AC POWER ADAPTOR Use only the AC Power Adaptor supplied with the player. Connect the Adaptor to 4.5V DC jack in the player and AC outlet. Disconnect Adapter when not in use - 29 -... - Page 31 ABOUT POWER SUPPLY (BATTERY) Using general batteries: Open the battery cover on the back of the player. Insert batteries matching + and - and close the battery cover. Manganese batteries are not recommended as they run out quickly. For the best playing duration, Alkaline batteries are recommended.
-
Page 32: Faq
PLAYER The Backlight is not working. Check whether the Backlight on LCD is set to OFF. How long does Anti-Shock last? With MP3 files, Anti-Shock lasts 120 seconds. With Audio CD, it is 40 seconds. What is the Line Out terminal? Line Out is used for speaker or car kit output. - Page 33 The burning way to delete and record data in CD as you do with hard disc is called packet writing. Single session and Multi session is allowed with CD-R and packet writing is only possible with CD-RW. iRiver player can recognize CD-RW using packet writing.
- Page 34 Can I burn a CD using an iRiver product? iRiver products do not have Recording CD function, iRiver products only play the data on CD. Thus, you need to purchase a blank disc to make a CD. To know 'how to burn a CD' , please refer to the Beginner's Guide The CD recognition is not good and a 'No disc' message is displayed.
- Page 35 Can I add songs to the CD? Using multi-session or packet writing allows you to add songs to a CD. PLAYING How do I listen to music from the spot I last listened to? The iMP-150 provides a RESUME function. Go to Function, General and enter into RESUME menu.
- Page 36 The sound cuts out when the player skips. If the player is shaken in a sudden or violent manner, or shaken excessively, skipping may occur. Under normal circumstances, skipping will not occur. Please carry and handle the player under normal circumstances (i.e., without excessive shaking).
- Page 37 I can't hear the ASF file. There are two kinds of ASF files, Audio and Video. The iMP-150 supports Audio ASF file only. Is the sound better if I convert an MP3 file into WAV? There are two groups of audio data, compressed and uncompressed. MP3 is a diminished compression format in the compressed group, meaning it is not possible to create the original audio file 100%, partly due to the fact that there are frequencies missing.
-
Page 38: Trouble Shooting
TROUBLE SHOOTING Should any problem continue after you have checked these symptoms, please contact iRiver sales representatives. No Power On Loading stopped or 'No DISC' displayed on LCD No Sound or noise is heard Check whether the batteries have been inserted... - Page 39 TROUBLE SHOOTING Should any problem continue after you have checked these symptoms, please contact iRiver sales representatives. AC adaptor does not work. Remote control does not work. Battery lifetime differs. Characters in LCD are corrupted. Check that the voltage is correct.
-
Page 40: Precautions
(bright side). On Safety Should any solid objects or liquid fall into the CD player, unplug it and have it checked by qualified personnel before operating it any further. Do not put objects in the DC IN 4.5V jack (External Power output). - Page 41 Keep the lens on the CD player clean and do not touch it. If you do so, the lens may be damaged and the CD player will not operate properly.
-
Page 42: Reference
CD-TEXT discs are displayed with track names within the TOC (Table of contents) of the disc. Battery indicator may vary depending on battery type. iRiver does not support MP3, WMA and ASF files with 48 KHz sample rate. - 41 -... -
Page 43: Accessories
Accessories Remote control AC Adaptor Battery ( Optional ) - 42 - Earphone User Manual... -
Page 44: Product Specifications
Specifications Category ITEM NO of channels Frequency/Range Headphone output Audio Line Out Level (CD) S/N ratio Frequency Characteristics CD Type CD SUPPORT CD-R/RW Readability File TYPE Bit Rate FILE SUPPORT Sample Rate Tag Info AC adapter POWER SUPPLY Battery Dimension GENERAL Weight Operational Temperature... -
Page 45: Regulatory Information
Problems" (Stock No. 004-000-00345-4), prepared by the FCC and available from the U.S Government Printing Office, Washington, DC 20402. See individual devices FCC ID and registration numbers. For the customers in Europe The CE mark on the CD player is valid only for products marketed in the European Union. - 44 -... - Page 46 8F Posgen VentureTower, 1586-7 Seocho-dong, Seocho-gu, Seoul, Korea Zip ; 137-070 Tel : +82 080 3486 3838 / Fax : +82 2 3019 1888...
