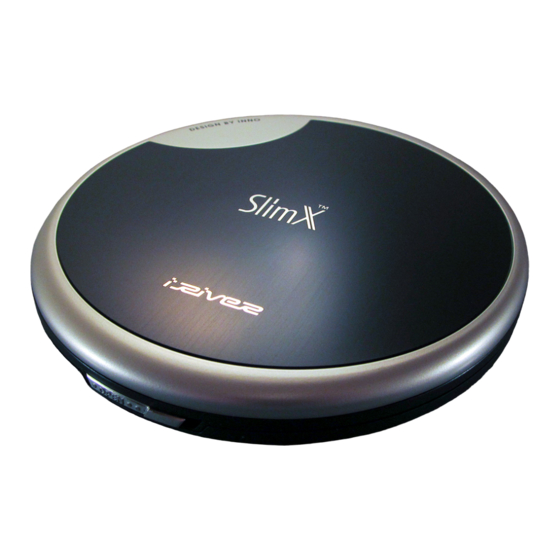

IRiver SlimX iMP-550 User Manual

Multi-codec cd player/fm tuner
Hide thumbs Also See for SlimX iMP-550:
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com

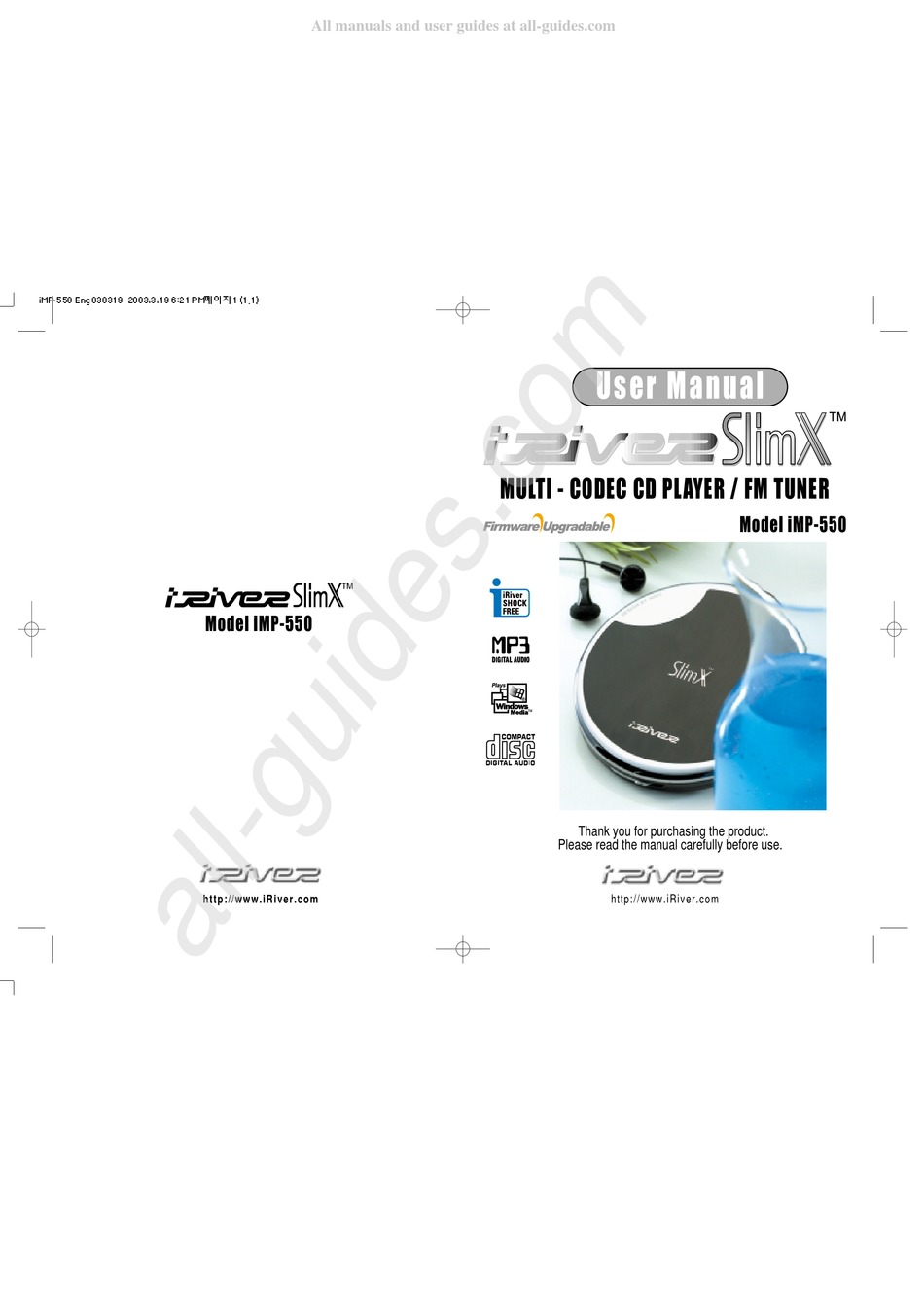

User Manual
MULTI - CODEC CD PLAYER / FM TUNER
Model iMP-550
TM
Model iMP-550
Model iMP-350
Thank you for purchasing the product.
Please read the manual carefully before use.
http://www.iRiver.com
http://www.iRiver.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlimX iMP-550 and is the answer not in the manual?

Questions and answers

Related Manuals for IRiver SlimX iMP-550

Summary of Contents for IRiver SlimX iMP-550

  • Page 1 All manuals and user guides at all-guides.com User Manual MULTI - CODEC CD PLAYER / FM TUNER Model iMP-550 Model iMP-550 Model iMP-350 Thank you for purchasing the product. Please read the manual carefully before use. http://www.iRiver.com http://www.iRiver.com...
  • Page 2 All manuals and user guides at all-guides.com FCC CERTIFICATION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
  • Page 3 Firmware Upgrade : Provides the latest updated features via free downloads from our website. New formats such as AAC, MP3Pro and Ogg Vorbis, (if supported by iRiver in the Unique feature of "Firmware (system software) Upgrade" is available for future) can be added to the player with a simple firmware upgrade.

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com LOCATING CONTROLS TABLE OF CONTENTS (PLAYER) 1. Locating the Controls Front Player Front & Back............Player Side, Inside............Remote Control, LCD Window.......... 2. Getting started Playing a Disc..............Operating the FM Tuner............ 10~11 Operating the Remote Control..........
  • Page 5 All manuals and user guides at all-guides.com LOCATINGCONTROLS LOCATING CONTROLS (REMOTECONTROL) (PLAYER) Side Remote Control OPTICAL/LINE OUT : Use to record to another audio STOP equipment or to listen through external audio PLAY / PAUSE / MUTE equipment(Speaker etc.) REMOTE CONTROL/EARPHONE :Connect the Remote control/Earphone.

  • Page 6: Playing A Disc

    All manuals and user guides at all-guides.com PLAYING A DISC PLAYING A DISC Slide the open button on the side of the player and Insert the disk with the disk label facing out. Connect Remote Control and Earphone. Play/Pause Play Next Folder FM Changing Play Previous Folder Slide HOLD Switch to Off position.

  • Page 7: Operating The Fm Tuner

    All manuals and user guides at all-guides.com OPERATING THE FM TUNER OPERATING THE FM TUNER While playing a CD, you can switch back and forth between CD and FM Memory Function (Save channels) mode with a long click of the Mode/CD/FM Stereo button. push the Navi/Menu jog switch to release PRESET, select the channel by pushing the jog switch To select Stereo/Mono...

  • Page 8: Operating The Remote Control

    HOLD Push -10 button to go back to the previous 10th track. Push +10 button to go back to the next 10th track. Push and hold +10 button to activate/release the iRiver Shock Basic Operation Function Free or Etiquette function.

  • Page 9: Mode(Playback Mode)

    All manuals and user guides at all-guides.com NAVIGATION MODE(PLAYBACK MODE) You can enjoy various ways of playing by using playback mode. Please refer to the function controls (page 28) for user-defined Navigation is the function used to search tracks. configurations. When MODE button To start NAVIGATION switch is pushed, icon in...

  • Page 10: Program Mode

    All manuals and user guides at all-guides.com PROGRAM MODE PROGRAM MODE Program play Program mode: Play tracks in your own playlists. After programming, press to play the tracks in sequential order. Select Program/Playlist: Playback play lists if the disc contains WinAmp play list The program mode icon appears *.m3u files.

  • Page 11: 10/+10,Etiquette

    When moving or jolting : activate the iRiver Shock Free During stop mode, push and hold the When playing poorly recorded CDs : disable the iRiver Shock Free When listening at the clam place, to lessen a mechanical noise :...

  • Page 12: Menu

    All manuals and user guides at all-guides.com MENU (FUNCTION CONTROLS) MENU Push the button to move Shift between Menus Function Control is subject to change with different firmware versions. to previous menu, push the Users can configure their own settings. button to move to next menu.
  • Page 13 All manuals and user guides at all-guides.com MENU(GENERAL) MENU(GENERAL) GENERAL SORT GENERAL : It is useful when you sort files on CD . BEEP VOLUME If directory structure is like as right picture, the : Configure beep sound with volume level. setting order is like as follows.
  • Page 14 All manuals and user guides at all-guides.com MENU (DISPLAY) MENU (TIMER & CONTROL) DISPLAY BATTERY INDICATOR Adjust level of battery indicator. BACK-LIGHT(SEC) If select lower number, the level of battery Select the back-lighting time indicator is higher. And if select higher ADAPTER ALWAYS ON : Select it by using number, the level of battery indicator is lower.
  • Page 15 All manuals and user guides at all-guides.com MENU(CONTROL) MENU(CONTROL) ADAPTER VOLUME FF/RW SKIP 35 ON : When the Adapter is connected, the Off : Disables the skip feature. volume always remains at level 35. 10: Plays the previous 10th or the next 10th OFF : No use of Adapter volume.
  • Page 16 All manuals and user guides at all-guides.com MENU(PLAYBACK MODE) MENU(PLAYBACK MODE) PLAYBACK MODE STUDY BEEP MODE REPEAT MODE / SHUFFLE MODE This is the function to make beep sound : The setting value changes when you press whenever operating the buttons for blind the MODE button.(Multi selection capable) persons, the function is same as 5 SEC MODE.
  • Page 17 All manuals and user guides at all-guides.com MENU(PLAYBACK MODE) MENU (Xtreme EQ) MODE Xtreme EQ NAME Xtreme EQ : You can input your name or text. : You can set EQ pattern(Bass or treble) to your liking. Button Operation Select the character by It is set from -12dB to +12dB by 3dB stepping.

  • Page 18: Support Winamp Playlist

    Click the SAVE LIST button. Press NAVI/MENU button during playback to select the next song to be played, then press PROGRAM button to queue that song. 3. Name the file name (ex: iriver.m3u) and click "SAVE" to save the list. Example Press NAVI/MENU button during playback.

  • Page 19: Power Supply(Adapter)

    Using AC POWER ADAPTER Lift the cover of player and remove the covers of batteries compartment. Use only an AC adapter purchased from iRiver designed for the iMP-550. Insert two rechargeable batteries (stick type) by matching the + and - Connect the Adapter to 4.5V DC jack on the player and AC outlet.
  • Page 20 All manuals and user guides at all-guides.com POWERSUPPLY POWERSUPPLY (RECHARGEABLEBATTERIES) (RECHARGEABLEBATTERIES) Recharging Method Discharge & Charge Install rechargeable batteries.(Refer to page 35). Install rechargeable batteries.(Refer to page 35). Connect the AC adapter to the player.(Refer to page 34). Connect the AC adapter to the player.(Refer to page 34). Press PLAY button to power on the player and then it starts to charge.

  • Page 21: Trouble Shooting

    Should any problem continue after you have checked these symptoms, Should any problem continue after you have checked these symptoms, please contact iRiver sales representatives. please contact iRiver sales representatives. Be sure that the power supply voltage of the area...

  • Page 22: Precautions

    All manuals and user guides at all-guides.com PRECAUTIONS PRECAUTIONS On Handling Disc On Player On handling Disc Do not leave the SlimX in a location near heat sources, or in a place Avoid touching the surface (bright side) where subject to direct sunlight, excessive dust or sand, moisture, rain, data is stored.

  • Page 23: Notes

    All manuals and user guides at all-guides.com NOTES ACCESSORIES Earphone and Earphone Sponge Remote control During playback, CDs damaged with dirt or a scratch may make a pop sound, clipping sound, or cut off. Tracks with damaged or corrupted parts are skipped or forwarded to next track.

  • Page 24: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS REGULATORY INFORMATION Category Item Specifications Federal Communications Commission(FCC) Frequency/Range 20Hz~20KHz 12mW(L) +12mW(R) at 16 Max. Volume The device manufactured and found to comply with limits for a Class B computing Headphone output 8mW(L) + 8mW(R) at 32 Max.

  • Page 25: Safety Warning

    All manuals and user guides at all-guides.com SAFETY WARNING Use of controls, adjustments or performance CLASS 1 LASER PRODUCT of procedures other than those specified KLASSE 1 LASER PRODUKT herein may result in hazardous radiation exposure. LUOKAN 1 LASER LAITE CAUTION-INVISIBLE LASER RADIATION KLASS 1 LASER APPARAT WHEN OPEN AND INTER LOCKS...
