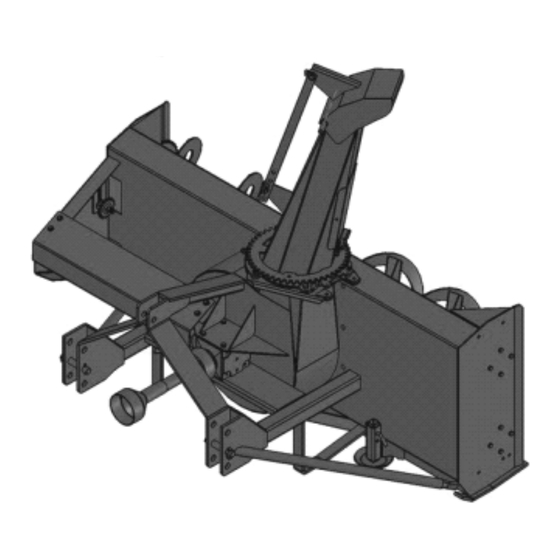

M K Martin Enterprise Meteor 97D Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Snowblowers
Owners Manual
Parts List for 97D - 108 Double Auger) Snowblower
M K Martin Enterprise
3950 Steffler Rd Elmira Ont N3B 2Z3
(519) tel 664-2752 / fax 664-3695
E-mail: sales@mkmartin.ca
rev:12-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meteor 97D and is the answer not in the manual?

Questions and answers

Related Manuals for M K Martin Enterprise Meteor 97D

Summary of Contents for M K Martin Enterprise Meteor 97D

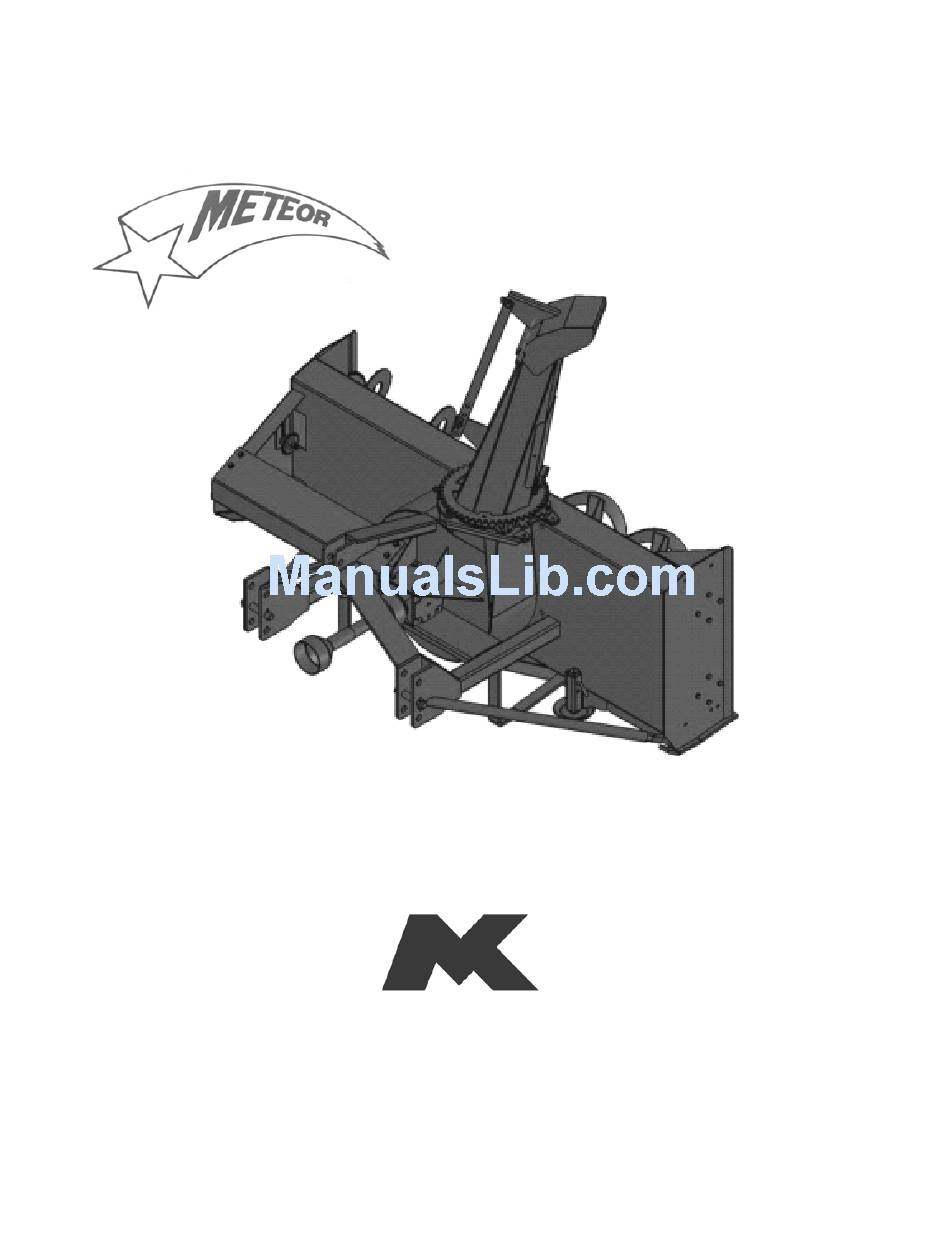

  • Page 1 Snowblowers Owners Manual Parts List for 97D - 108 Double Auger) Snowblower M K Martin Enterprise 3950 Steffler Rd Elmira Ont N3B 2Z3 (519) tel 664-2752 / fax 664-3695 E-mail: sales@mkmartin.ca rev:12-1...

  • Page 2: Table Of Contents

    97D - 108 Meteor Snowblower Table of Contents 1. Registration and Warranty 2. Safety Introduction 3. Safety 4. Decal Location 5. Assembly Information 6. Operation 7. Main Parts 8. Chute Rotator 9. Gearbox Parts 10. Comer T 80 540 RPM PTO 11.
  • Page 3 Meteor Snowblower. Warranty and Limitation Of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Enterprise Inc. (hereafter called the company) to be free of any defects of material and workmanship. But the company shall not be liable for special, indirect or consequential, damages of any kind under this contract or otherwise.

  • Page 4: Safety

    Indicates a hazardous situation that needs to be avoided. It is you the operator that needs to be aware of these dangers. If you have any questions not answered in this manual, please contact your dealer or M K Martin Enterprise Inc. 3950 Steffler Rd Tel; 519-664-2752 Elmira On Ca Fax;...
  • Page 5 Safety – It’s in your interest Safety Guidelines. Safety of the operator is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those working with you to follow them.

  • Page 6: Decal Location

    97D – 108 Meteor Decal Location Part # 806 Part # 404 Part # 104 Part # canada2x2 Part # meteor17 “A” Decal is Located on both sides “B” Decal is located on the cross shaft shield “C” Decal is located on the PTO shield “D”...

  • Page 7: Assembly Information

    75-108 Meteor Snowblower Assembly Information 1. 2 set Hood Bearing Assembly 2. 4 pc 5/8 Wavewasher (thin) 3. 2 pc 5/8 x 2 UNF Bolts 4. 2 pc 5/8 UNF Locknut 5. 1 pc 2 hole Chute Clamp 6. 1 Assembly Instructions Upon Receiving the Meteor Snowblower The blowers are shipped in a packaged state These blowers are packaged without hood turner device.
  • Page 8 108 Hydraulic Rotator The hydraulic chute rotator uses a hydraulic motor, controlled by the tractor hydraulics to rotate the chute. The kit includes a safety shield that also keeps the snow and ice form building up on top of the gears. The motor kit is bolted to the base with 2, 1/2-20 UNF bolts.
  • Page 9 97D - 108 Meteor® Snowblower This Blower is ideal for tractors 100 - 120 HP Cat #2 3PH. Attaching the Meteor® Blower for the first time. Set the blower on a level surface and back the tractor up to it. Place the lower 3PH arms of the tractor between the lower hitch plates on the blower and insert the hitch pins that came with the blower, secure these with the Lynch Pins.
  • Page 10 Operating the Meteor® Snowblower This blower is on the back of the tractor facing toward the rear. While blowing snow the tractor has to be backed into the snow. Stay in the seat of the tractor all the time that the blower is running. Make sure the area is clear of people while blowing snow.

  • Page 11: Operation

    Sign-Off Form M. K. Martin Enterprise Inc. follows the general Safety Standards specified by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the Cutter must read and clearly understand ALL Safety Operating and Maintenance presented in his manual.
  • Page 12 97D-108 Parts...
  • Page 13 97D-108 Meteor Snowblower Model 97D Model 108 Item No Description Part No Part No Bolt 1/2x11/2 c/w lw, n Main Body 519-21684 519-21587 Option -Bent Pin 1/2" Option- Skid Shoe 519-21592 519-21592 Option - Hair Pin 1/8 Hitch Pin 519-21838...

  • Page 14: Chute Rotator

    97D-108 Meteor Snowblower Model 97D Model 108 Item No Description Part No Part No Rubber Latch 519-099-460 519-099-460 519-099-012 519-099-012 Cotter Pin 1/16x1/2 519-108115208 519-108115208 Fan Key 519-1081162 519-1081162 Bolt 5/8x1 1/2 c/w lw Fan Plate 519-20900 519-20900 Carriage Bolt 3/8x1 c/w ln...
  • Page 15 97D-108 Hydraulic Chute Rotator 2011 Hydraulic Rotator Item No Description Part No Motor Bracket 519-511703 Motor 519-511704 O Ring 3/32x.755id 519- Crossover Relief Valve 519-511705 Socket Head Cap Screw 5/16x1 1/2 Small Gear 519-511706 Right Shield 519-108170709 Left Shield 519-108170809...

  • Page 16: Gearbox Parts

    T279-A Gearbox Item # Description Part # Req’d Casing T4 519-0.279.0300.00 Snap Ring 519-8.5.1.00533 Bolt M10 x 32 519-8.1.1.00501 Shim 70.3 519-0.712.7500.00 Parallel Key 519-8.4.1.00978 Shaft 519-0.279.3010.00 Oil Seal 50x72x8 519-8.7.1.01097 Bearing 30210 519-8.0.9.00469 Cover 519-0.279.1300.00 Gear Z21 M7.14 519-0.279.6000.00 Gasket 519-0.248.7200.00 Gear Z21 M7.14...

  • Page 17: Comer T80 540 Rpm Pto

    Comer T80 540 RPM PTO Note: This PTO has 1 3/8 - 6 tooth yoke on one end and 1 3/4 - 20 tooth yoke on other end Cross Bearing is 35mm or approx 1 3/8" dia...
  • Page 18 Comer T80 540 RPM PTO Item # Description Part# Complete Collar Yoke 1 3/8 - 6 T 141.028.423 Cross Journal Set 35x106.5 180.018.130 Outer Yoke 151.018.133 Roll Pin for outer Yoke 190.000.243 Bushing with Grease Fitting 180.018.210 Complete Outer Tube 152.198.174.0720 Inner Tube 159.190.026...

  • Page 19: Comer T90 540 Rpm Pto

    Comer T90 540 RPM PTO Note: This PTO has 1 3/8 - 6 tooth yoke on one end and 1 3/4 - 20 tooth yoke on other end Cross Bearing is 41mm or approx 1 5/8" dia...
  • Page 20 Comer T90 540 RPM PTO Item # Description Part# Complete Collar Yoke 1 3/8 - 6T 141.025.319 Cross Journal Set 41x108 180.019.130 Outer Yoke 151.019.127 Roll Pin for Outer Yoke 190.000.243 Bushing with Grease Fitting 180.018.210 Complete Outer Tube 152.198.520.0720 Inner Tube 153.190.507 Roll Pin for Inner Tube...
  • Page 21 1000 RPM Option Gearbox Item No Description Part no Casing with Plug 519-1084050 Bearing 519-1084051 Seal Cover 519-1084052 Sprocket 80-3A14 519-1084053 Chain 80-3 x36 519-1084054 Bearing 519-1084055 Input cover with hole 519-1084056 Sprocket 80-3A14 519-1084057 Input Shaft 1 ¾-20 spline 519-1084058 Oil Seal 45x65x8 519-1084059...

  • Page 22: Comer T80 1000 Rpm Pto

    Comer T80 1000 RPM PTO Note: This PTO has 1 3/8 21 tooth yoke on one end and 1 3/4 - 20 tooth yoke on other end Cross Bearing is 35mm or approx 1 3/8" dia...
  • Page 23 Comer T80 1000 RPM PTO Item # Description Part# Complete Collar Yoke 1 3/8"-21T 141.028.426 Cross Journal Set 108.018.130 Outer Yoke 151.018.133 Roll pin for outer tube 190.000.243 Bush with grease fitting 180.018.210 Complete outer tube 152.198.171.0720 Inner tube 159.190.025 Roll pin fot inner tube 190.000.271 Inner yoke...
  • Page 24 PTO Installation Instructions for Snowblower...
  • Page 25 PTO Installation Instructions for Snowblower For Better PTO Shaft and Gearbox Operation A proper initial installation will give you years of satisfactory service on your equipment. Please read carefully, following instructions which have been specially made to help you and make you satisfied of your purchase.
  • Page 26 Previous examples clearly demonstrate that universal joint angle is directly related with life of PTO. In order to reduce angle, it is necessary to increase the angle between snowblower and tractor. Too Large Angles at PTO Joints Reasonable Angles at PTO Joints To Avoid Acceptable If it is impossible to increase the distance between snowblower and tractor, in order to maintain a...

  • Page 27: Shear Bolts

    Shear Bolts Shear bolts are built to break under shock loads on the fan or auger. However under certain circumstances this security is not adequate. Example: a sudden high impact shock on the fan may, in some cases break the fan shaft without breaking the shear bolt. If the shear bolt breaks, make sure to always replace it with the same grade of category bolt (grade 5 for PTO series 20-40-50-60, and grade 8 for PTO series 80) it is necessary to always maintain this bolt very tight in order to keep the efficiency of the shearing mechanism.
  • Page 28 Effective PTO Drive Shaft Maintenance...
  • Page 29 Avoidable Damage Possible Causes Corrective Actions Quick-disconnect yoke Quick-disconnect pin tight or Quick-disconnect pin Clean, oil and follow completely seized dirty (insufficient service instruction Quick-disconnect pin damaged maintenance) Replace Quick- (broken or bent) disconnect pin Quick-disconnect pin damaged Quick-disconnect pin Shorten shaft length in locking position defective (forced into...
  • Page 30 Avoidable Damages Possible Causes Corrective Actions Cross Arms broken Extreme torque peak or Use appropriate safety Cross Kit shock load device Change to a larger PTO size Axial loads too large Shorten PTO shaft Replace defective cross bearings Bearing caps turning in their Excessive continuous Verify compatibility cross journal...
  • Page 31 Avoidable Damages Possible Causes Corrective Actions Excessive wear of shield Insufficient lubrication Follow lubrication Shield bearings instructions Incorrect chain mounting Mount chain to allow maximum angularity Shield interfering with Avoid shield contact with implement machine or tractor Replace shield bearings Chain failure Shield interfering with Avoid shield contact with...

  • Page 32: Bolt Torque

    Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5...
  • Page 33 97D - 108 Meteor Snowblower Maintenance • PTO Shearbolt – refer to PTO assembly • Auger Shearbolts – 5/16 x 1 1/4” Gr #2 • Auger Drive Chain Tightener – tighten chain allowing ¼” sag in the bottom span of chain (between drive and driven sprocket).

This manual is also suitable for:

Meteor 108
