M K Martin Enterprise 87D Owner's Manual

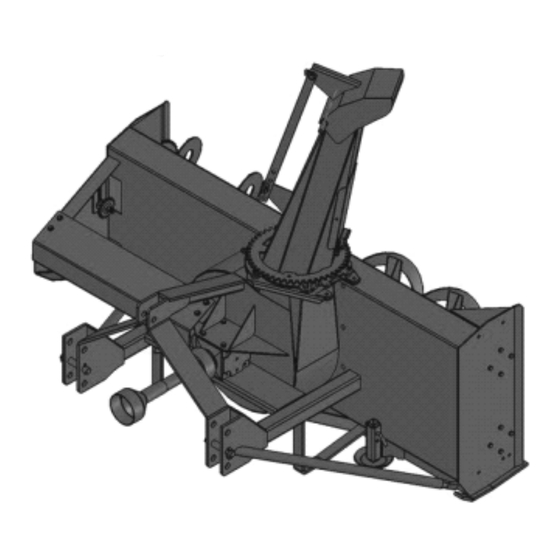

87" double auger
Hide thumbs
Table of Contents

Advertisement

Quick Links

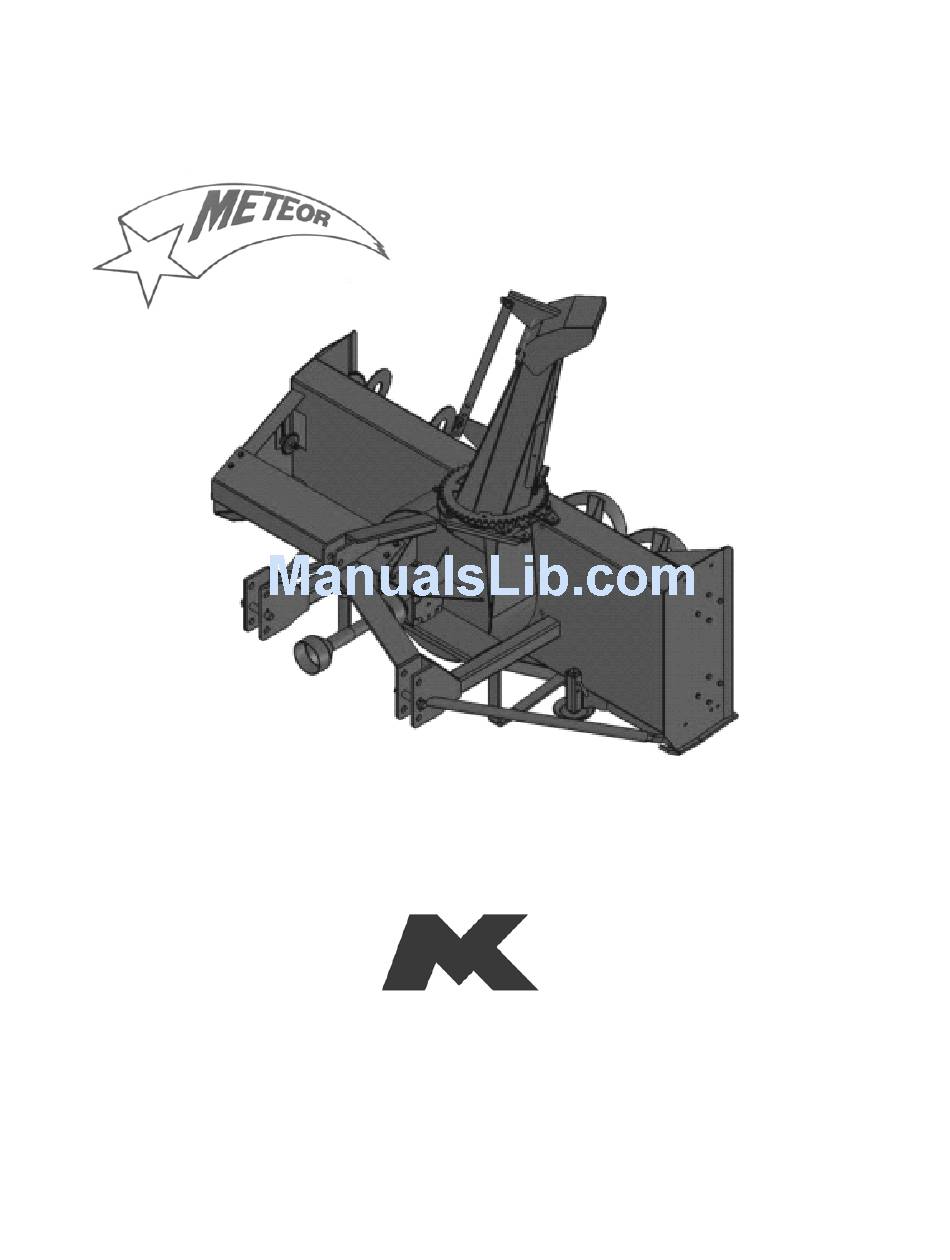

Snowblowers
Owners Manual
Parts List for 87D (87" Double Auger) Snowblower
M K Martin Enterprise
3950 Steffler Rd Elmira Ont N3B 2Z3
(519) tel 664-2752 / fax 664-3695
E-mail: sales@mkmartin.ca
rev:12-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 87D and is the answer not in the manual?

Questions and answers

Related Manuals for M K Martin Enterprise 87D

Summary of Contents for M K Martin Enterprise 87D

  • Page 1 Snowblowers Owners Manual Parts List for 87D (87” Double Auger) Snowblower M K Martin Enterprise 3950 Steffler Rd Elmira Ont N3B 2Z3 (519) tel 664-2752 / fax 664-3695 E-mail: sales@mkmartin.ca rev:12-1...
  • Page 2 87D Meteor Snowblower Table of Contents 1. Registration and Warranty 2. Safety Introduction 3. Safety 4. Decal Location 5. Sign Off Form 6. Assembly Information 7. Operation 8. Installing manual Chute Rotator 9. Installing Hydraulic Chute Rotator 10. Main Parts 11.
  • Page 3 Meteor Snowblower. Warranty and Limitation Of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Enterprise Inc. (hereafter called the company) to be free of any defects of material and workmanship. But the company shall not be liable for special, indirect or consequential, damages of any kind under this contract or otherwise.
  • Page 4 Indicates a hazardous situation that needs to be avoided. It is you the operator that needs to be aware of these dangers. If you have any questions not answered in this manual, please contact your dealer or M K Martin Enterprise Inc. 3950 Steffler Rd Tel; 519-664-2752 Elmira On Ca Fax;...
  • Page 5 Safety – It’s in your interest Safety Guidelines. Safety of the operator is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those working with you to follow them.
  • Page 6 Sign-Off Form M. K. Martin Enterprise Inc. follows the general Safety Standards specified by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the Cutter must read and clearly understand ALL Safety Operating and Maintenance presented in his manual.
  • Page 7 75-108 Meteor Snowblower Assembly Information 1. 2 set Hood Bearing Assembly 2. 4 pc 5/8 Wavewasher (thin) 3. 2 pc 5/8 x 2 UNF Bolts 4. 2 pc 5/8 UNF Locknut 5. 1 pc 2 hole Chute Clamp 6. 1 Assembly Instructions Upon Receiving the Meteor Snowblower The blowers are shipped in a packaged state These blowers are packaged without hood turner device.
  • Page 8 75-108 Installing the Hand Crank The Crank package consists of Bolts  Tail Bracket --- (1) 2 pc 3/8x1  Upper Bracket- (2) 2pc 3/8 Lockwasher 2pc 5/8 x 2 1/4 UNF Bolt  Worm Gear ---- (3) to replace 5/8 x 2 ...
  • Page 9 Hydraulic Rotator (Accessory) The hydraulic chute rotator uses a hydraulic motor, controlled by the tractor hydraulics to rotate the chute. The kit includes a safety shield that also keeps the snow and ice form building up on top of the gears. The motor kit is bolted to the base with 2, 1/2-20 UNF bolts.
  • Page 10 87D Meteor® Snowblower This Blower is ideal for tractors 60 HP Cat #2 3PH. Attaching the Meteor® Blower for the first time. Set the blower on a level surface and back the tractor up to it. Place the lower 3PH arms of the tractor between the lower hitch plates on the blower and insert the hitch pins that came with the blower, secure these with the Lynch Pins.
  • Page 11 Operating the Meteor® Snowblower This blower is on the back of the tractor facing toward the rear. While blowing snow the tractor has to be backed into the snow. Stay in the seat of the tractor all the time that the blower is running. Make sure the area is clear of people while blowing snow.
  • Page 12 87D Meteor Parts 87D Meteor Snowblower Item No Description Part No Main Body 519-8711505D 519-87115208 Hexbolt 5/8x1 1/2 #2 c/w lw Chute 519-87116009 Deflector 519-87115608 Hinge Pin 519-87115808 Cotter Pin 1/8x1 Hair Pin 5/32 Adjuster 519-871155 Adjuster Pin 519-871154 Antifriction Ring...
  • Page 13 87D Meteor Snowblower Item No Description Part No 3 Hole Chute Clamp 519-87116209 2 Hole Chute Clamp 519-87116309 Hexbolt 1/2x2 unf c/w ln 5/8 Wave Washer 519-871702 5/8 Bearing 519-870711 Auger 519-871164D Auger Sprocket 519-871165 Complete Bearing 519-871169 Bearing Insert Only...
  • Page 14 87-97 Meteor Chute Rotator Manual Chute Rotator 2010 Manual Rotator Item No Description Part No Crank Tail Bracket 519-87719109 Upper Hand Crank Bracket 519-87109009 Crank 519-68109109 Crank Worm 519-68719209 5/16x1 1/2 Spring Pin 5/16x3/4 sq h Setscrew 5/8-11x2 1/2 Bolt c/w ln 3/8x1 1/4 Bolt c/w n, lw...
  • Page 15 Hydraulic Chute Rotator 2010 Hydraulic Rotator Item No Description Part No Motor Bracket 519-511703 Motor 519-511704 O Ring 3/32x.755id Crossover Relief Valve 519-511705 Socket Head Cap Screw 5/16x1 1/2 Small Gear 519-511706 Right Shield 519-87170709 Left Shield 519-87170809 Elbow 519-9515-10-6 Hose 519-871709 Hexbolt 3/8x1 c/w lw...
  • Page 16 75 – 87 – 87D - 97 Meteor Snowblower Main Gearbox T 27D Gearbox Item Description Part # Double Lip Seal 40x80x12 519-87100748 Snap Ring 519-85200030 Bearing 30208 519-80900024 Shim 515 519-02447500 Gear Z18 M6.15 519-01325002 Gear Z18 M6.15 519-02675000...
  • Page 17 Comer T50 PTO Item # Description Part# Complete Collar Yoke 141.025.363.1 Cross Journal Assy 180.015.130 Complete Shear Yoke 143.250.016.1 Guard Retaining Collar for Outer Tube 8180.015.288 Special Plastic Bolt 8180.014.240 Guard Retaining Collar of Inner Tube 8180.015.289 Safety Chain 180.016.025 Complete Guard with Instruction Manual 142.250.372.7521 Special Grease Nipple...
  • Page 18 PTO Installation Instructions for Snowblower...
  • Page 19 PTO Installation Instructions for Snowblower For Better PTO Shaft and Gearbox Operation A proper initial installation will give you years of satisfactory service on your equipment. Please read carefully, following instructions which have been specially made to help you and make you satisfied of your purchase.
  • Page 20 Previous examples clearly demonstrate that universal joint angle is directly related with life of PTO. In order to reduce angle, it is necessary to increase the angle between snowblower and tractor. Too Large Angles at PTO Joints Reasonable Angles at PTO Joints To Avoid Acceptable If it is impossible to increase the distance between snowblower and tractor, in order to maintain a...

  • Page 21: Shear Bolts

    Shear Bolts Shear bolts are built to break under shock loads on the fan or auger. However under certain circumstances this security is not adequate. Example: a sudden high impact shock on the fan may, in some cases break the fan shaft without breaking the shear bolt. If the shear bolt breaks, make sure to always replace it with the same grade of category bolt (grade 5 for PTO series 20-40-50-60, and grade 8 for PTO series 80) it is necessary to always maintain this bolt very tight in order to keep the efficiency of the shearing mechanism.
  • Page 22 Effective PTO Drive Shaft Maintenance...
  • Page 23 Avoidable Damage Possible Causes Corrective Actions Quick-disconnect yoke Quick-disconnect pin tight or Quick-disconnect pin Clean, oil and follow completely seized dirty (insufficient service instruction Quick-disconnect pin damaged maintenance) Replace Quick- (broken or bent) disconnect pin Quick-disconnect pin damaged Quick-disconnect pin Shorten shaft length in locking position defective (forced into...
  • Page 24 Avoidable Damages Possible Causes Corrective Actions Cross Arms broken Extreme torque peak or Use appropriate safety Cross Kit shock load device Change to a larger PTO size Axial loads too large Shorten PTO shaft Replace defective cross bearings Bearing caps turning in their Excessive continuous Verify compatibility cross journal...
  • Page 25 Avoidable Damages Possible Causes Corrective Actions Excessive wear of shield Insufficient lubrication Follow lubrication Shield bearings instructions Incorrect chain mounting Mount chain to allow maximum angularity Shield interfering with Avoid shield contact with implement machine or tractor Replace shield bearings Chain failure Shield interfering with Avoid shield contact with...
  • Page 26 Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5...
  • Page 27 87D Meteor Snowblower Maintenance • PTO Shearbolt – M10x50 - - 8.8 • Auger Shearbolt – 5/16 x 1 1/4” Gr #2 • Auger Drive Chain Tightener – tighten chain allowing ¼” sag in the bottom span of chain (between drive and driven sprocket).
