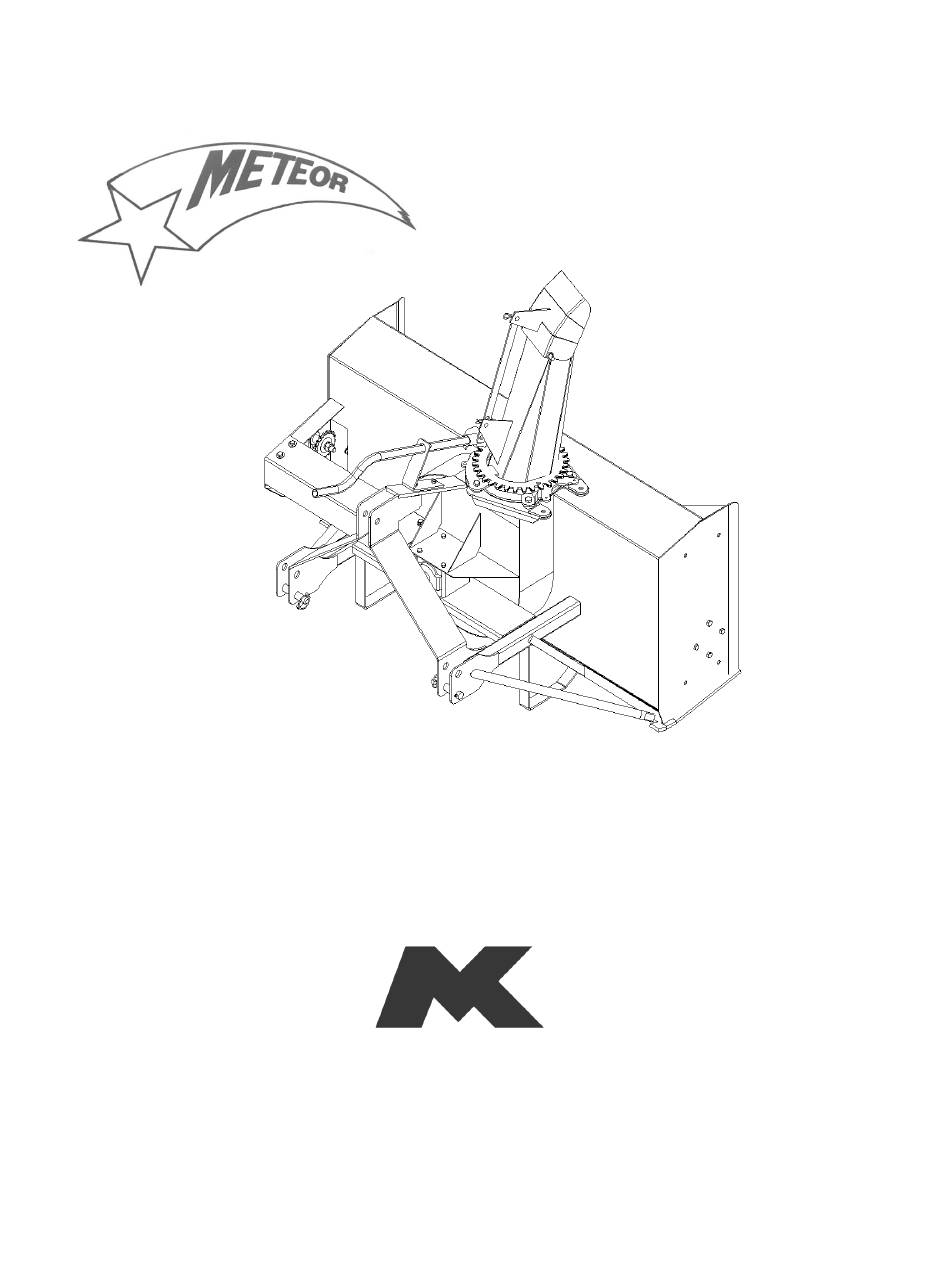

- Page 1 Snowblowers Owners Manual Parts List for 51-60 Snowblower 2009 M K Martin Enterprise 3950 Steffler Rd Elmira Ont N3B 2Z3 (519) tel 664-2752 / fax 664-3695 E-mail: sales@mkmartin.ca...
- Page 2 New for 2009 Meteor Snowblower Manual hood turner -- changed from a crank operated cable to a worm running on the chute ring- gear. Chute hold-down clamp redesigned to accommodate worm mount, clamp bearing shifted off- center). New gear shield for power turner.
- Page 3 51-60 Meteor Snowblower Table of Contents 1. Registration and Warranty 2. Safety Introduction 3. Safety 4. Decal Location 5. Assembly Information 6. Operation 7. Main Parts 8. Gearbox Parts 9. Canimex PTO Instructions 10. Bolt Torque 11. Maintenance – Lubrication - Storage – Notes...
- Page 4 Meteor Snowblower. Warranty and Limitation Of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Enterprise Inc. (hereafter called the company) to be free of any defects of material and workmanship. But the company shall not be liable for special, indirect or consequential, damages of any kind under this contract or otherwise.
- Page 5 Indicates a hazardous situation that needs to be avoided. It is you the operator that needs to be aware of these dangers. If you have any questions not answered in this manual, please contact your dealer or M K Martin Enterprise Inc. 3950 Steffler Rd Tel; 519-664-2752 Elmira On Ca Fax;...
- Page 6 Safety – It’s in your interest Safety Guidelines. Safety of the operator is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those working with you to follow them.
- Page 7 Meteor Decal Location “A” Decal is located on both ends of the Meteor® Snowblower The Serial Plate is located above the Made In Canada Decal...
- Page 8 51-60 Meteor Snowblower Assembly Information Parts list in component package 2 pc 3/8x11/4 bolts 2 pc 1/2-20 lockwasher, nut 2 pc 3/8 lockwasher 1 pc 2 hole Chute Clamp 2 pc 3/8 nut 2 pc Cat #1 Hitch Pin c/w 2 pc Chute Bearing 7/16 Lynch Pin 2 pc 1/2"...
- Page 9 51-60 Meteor® Snowblower This Blower is ideal for small tractors 15-20 HP Cat #1 3PH. Hitching up the Meteor® Blower for the first time. Set the blower on a level surface and back the tractor up to it. Place the lower 3PH arms of the tractor between the lower hitch plates on the blower and insert the hitch pins that came with the blower, secure these with the Lynch Pins.
- Page 10 Operating the Meteor® Snowblower This blower is on the back of the tractor facing toward the rear. While blowing snow the tractor has to be backup into the snow. Stay in the seat of the tractor all the time that the blower is running. Make sure the area is clear of people while blowing snow.
- Page 11 51-60 Meteor Snowblower Parts 51-60 Meteor Snowblower Item No Description Model 51 Model 60 Main Body 519-51115009 519-60115009 519-51115208C 519-51115208C Hexbolt 3/8x1 #5 c/w lw Hairpin 5/32 Deflector Control 519-511081 519-511081 Hinge Pin 519-51108708 519-51108708 Cotter Pin 1/8x1 10 ...
- Page 12 51-60 Meteor Snowblower Item No Description Model 51 Model 60 Deflector 519-51115608 519-51115608 Chute 519-51116009 519-51116009 Hexbolt 1/2-20x1 3/4 c/w n,lw 3 Bolt Chute Clamp 519-51116209 519-51116209 2 Bolt Chute Clamp 519-51116309 519-51116209 Auger 519-511164 519-601164 Auger Sprocket 519-511165 519-511165 Hexbolt 3/8-16x1 c/w lw,n Complete Bearing 519-751169...
- Page 13 Optional Chute Rotator Item No Hydraulic Model 51 Model 60 Hydraulic Motor Mount 519-511703 519-5111703 Hydraulic Motor 519-511704 519-511704 Hydraulic Relief Valve 519-511705 519-511705 Socket head cap screw 5/16x1 1/2 Small Gear 519-511706 519-511706 1/2-20 x1 13/4 c/w ln Hood Turner Shield 519-51170709 519-51170709 Hood Turner Shield...
- Page 14 51-60 Meteor Snowblower Main Gearbox (Comer) T281 Gearbox Item Description Part 3 Casting 519-1.281.0300.00 Shaft 1 ¼ 519-0.281.2207.00 Shim 48.0 519-0.259.7500.00 Bearing 6207 519-8.0.1.00025 Parallel Key 10x8x30 519-8.4.1.00057 Pinion Shaft Z13MS 519-0.281.6200.00 Oil Seal 35x52x7 519-8.7.3.00028 Gear Z19 MS 519-0.259.6000.00 Shim 35.3x0.5 519-0.259.7505.00 Snap Ring 35 UN17435...
- Page 15 B20 Binacchi PTO (Comer Gearbox) Item No Description Part No Tractor Yoke 0800203 Cross Journal Assy 08202 Circlip 098020224 Grease Nipple 09840081002 Outer Tube Yoke 08002021 Spring Pin 098700855 Outer Tube Shaft 09881363100 Inner Tube Shaft 09881294100 Spring Pin 098700850 Inner Tube Yoke 08002011 Shear Yoke...
- Page 24 Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5...
- Page 25 51-60 Meteor Snowblower Maintenance • PTO Shearbolt – M6x40 - 8.8 • Auger Shearbolt – ¼ x 1” Gr #2 • Auger Drive Chain Tightener – tighten chain allowing ¼” sag in the bottom span of chain (between drive and driven sprocket). Lubrication •...
