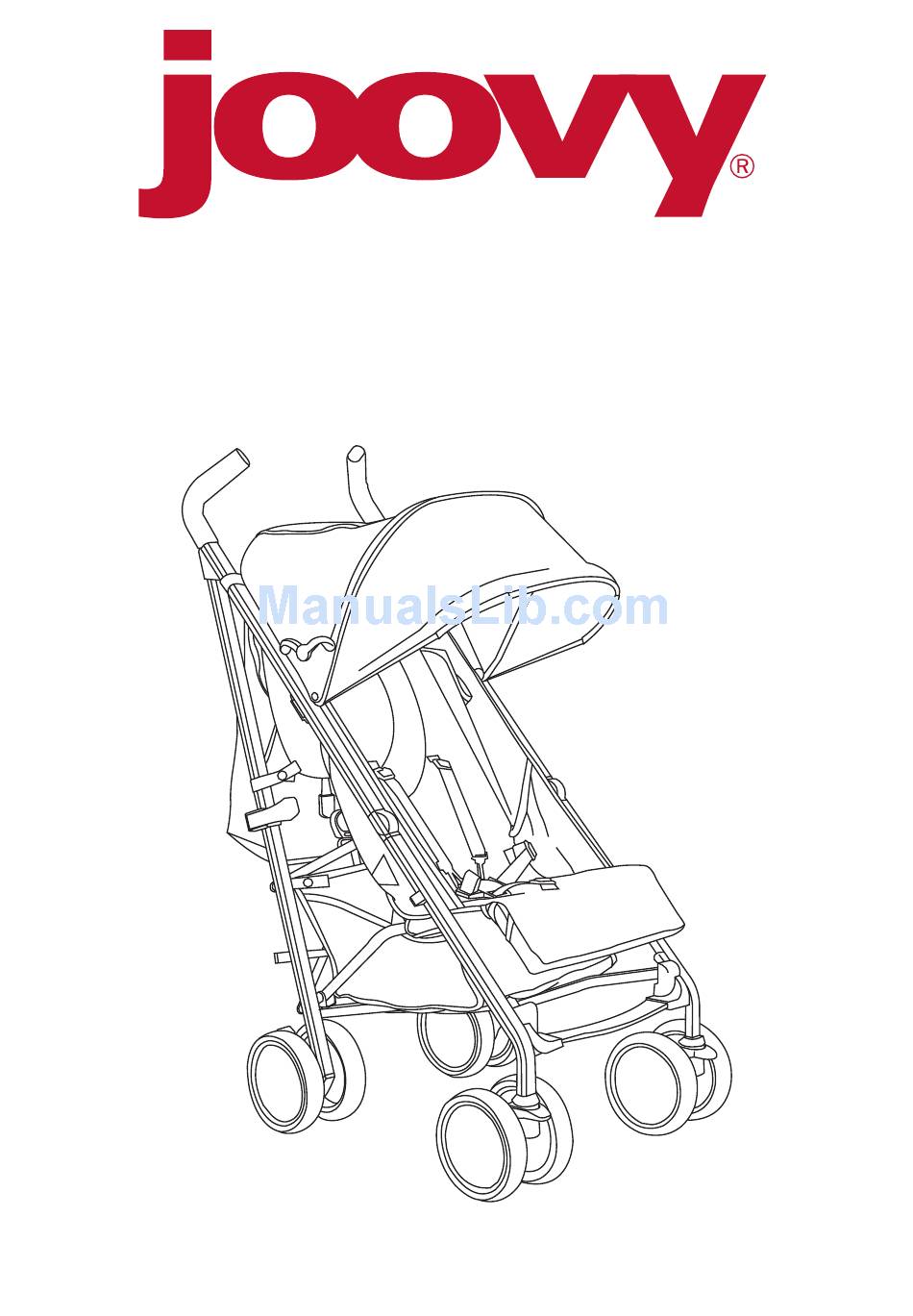

- Page 1 Groove Ultralight 0081X ©joovy 2013 • Document Version 012813...
-
Page 2: Unpacking The Product
• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis. • Discontinue use of the stroller should it malfunction or become damaged. If you have a question regarding these instructions, please contact our Customer Service Department at customerservice@joovy.com or your local distributor. To locate your local distributor, go to www.joovy.com/locator.aspx. 1 Unpacking the Product • Remove everything from the box and identify the parts using Figure 1.1. (not to scale) A: stroller, B: two front wheels sets, C: canopy, D: shoulder carry strap and documents (not shown). -
Page 3: Adjusting The Leg Support
4 Front Wheel Locks The front wheels can be set to swivel or lock. • To lock the front wheels, push down on the locking lever located between the wheels until a click is heard. See Figure 4.1. Rotate the wheel set until it locks automatically in the straight position. • To unlock the wheels (swivel mode) pull up on the lever. 5 Installing and Operating the Canopy • Locate the plastic slide locks on the bottom of each side of the canopy and slide them onto the plastic fittings on each side of the stroller. Ensure that the clips are secure. See Figure 5.1. • Secure the Velcro® tabs at the top of the canopy to the handle tubes. See Figure 5.2. • The canopy can be adjusted forward and back, and locked open using the canopy locks on BOTH sides. See Figure 5.3. NOTE: The top rear portion of the canopy has a roll back window. To open, pull the forward edge up, roll the flap back and secure it using the Velcro® tabs. • To close the canopy, unlock the sides, then collapse. See Figure 5.4. • To remove the canopy, unfasten the Velcro® tabs from the handle tubes. Then, slide the canopy up off both fittings on the sides of the seat. See Figure 5.5. WARNING Possible pinching hazard - Be careful of the side hinges when opening and closing the canopy. -
Page 4: Folding The Stroller
9 Using and Adjusting the Restraint System • There are three height adjustment positions for the shoulder harness. Adjust the height to the closest height of your child’s shoulders. • To remove the shoulder harness, turn the plastic ends sideways and push them through the slots in the seat back. Re-attach the harness at the proper height by reinserting the plastic ends through the slots. See Figure 9.1. • To remove the crotch strap, push the plastic end up through the slot in the seat bottom. Re-attach the crotch strap by pushing the plastic end down through the slot. • Remove the waist straps by sliding the strap through the small opening in the metal D-ring, then pull the strap away from the seat. See Figure 9.2. Re-attach by pushing the metal-D ring through the slot in the seat, wrap the strap around the seat rear tube. Slide the strap through the small opening of the metal D-Ring and pull the strap to secure it to the tube. Repeat for the other end of the strap. • Ensure that BOTH shoulder straps are attached to the waist strap buckles. See Figure 9.3. • Unlatch both sides of the waist buckle by squeezing the latch releases. • Place the child in the seat with the shoulder straps over their shoulders and the crotch strap between the child’s legs. • Attach the waist belt to the crotch strap. See Figure 9.4. Tighten the belts to be snug around the child’s waist/crotch/shoulders. • Both the shoulder straps and the waist/crotch straps may be adjusted using the sliding buckles on these straps. See Figures 9.5 and 9.6. WARNING Avoid serious injury from falling or sliding out. Always use the safety harness. -
Page 5: Maintenance
Any missing, broken, or worn components should be replaced immediately, and the stroller should not be used until they are replaced. Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Cleaning The fabric material on this stroller can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. Always allow the fabric to completely air dry before using the stroller. The frame and wheels should always be kept clean and free of dirt and foreign matter, especially after operating the stroller in rain, snow, or other harsh environments. Use a sponge or cloth dampened with warm water and a mild detergent cleaner to clean the wheels after such use. SATISFACTION GUARANTEED We want you to be completely satisfied with your purchase of this product. Should you experience any difficulty in assembling or using this product, or if you have any questions, please contact our Customer Service Department at (877) 456-5049 between the hours of 8:30 am and 5:00 pm Central Time. Please log onto www.joovy.com to register your new Joovy product. - Page 6 mo on Groove Ultralight Instruction Manual...
- Page 7 to o...
