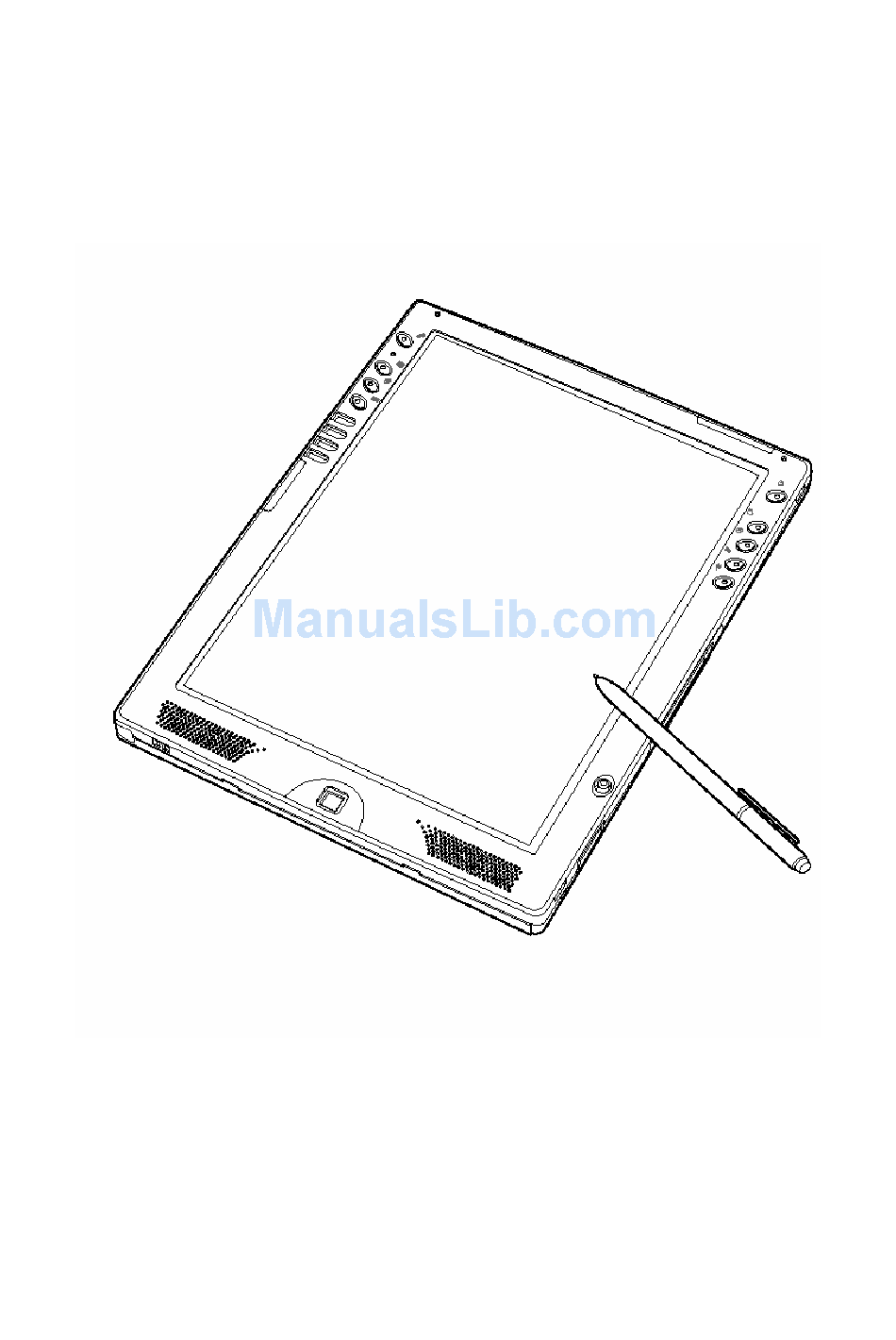

- Page 1 TTAB-B12D USER MANUAL...
-
Page 2: Table Of Contents
TABLET PC RTAB912 Table of Contents TTAB-B12D Highlights Accessory Checklist Introduction to the Tablet PC Exterior Indicators Using Your Tablet PC Specifications Button Functions Primary Functions Secondary Functions How to use Secondary Functions How to Assign Secondary Functions to Buttons... - Page 3 TABLET PC RTAB912 Upgrading Your Tablet PC Upgrading the Memory How to Replace the Hard Drive How to Recover Your Operating System How to Use the Recovery CD Safety Guidelines Safety Information Safety and Regulatory Information Power Cord and Power Supply Usage Guidelines Battery Safety Guidelines Operating Specifications Contacting Technical Support...
-
Page 4: Ttab-B12D Highlights
TABLET PC RTAB912 TTAB-B12D Highlights Even Lighter and Thinner: At 1.4kg and 1.87cm thick, the ultra-thin design makes taking the Tablet with you even easier. Longer-lasting Battery: The long-life battery lasts up to five hours. Fingerprint Recognition: The unique fingerprint recognition system makes the Tablet PC even more secure. -
Page 5: Accessory Checklist
TABLET PC RTAB912 Accessory Checklist Standard Accessories (dependent upon model and configuration) • Power Cord • AC Adapter • Stylus • Stylus Tether • Recovery CD • Wire Stand • Modem cable... -
Page 6: Introduction To The Tablet Pc
TABLET PC RTAB912 Introduction to the Tablet PC Exterior: Tablet PC at a Glance... -
Page 7: Indicators
TABLET PC RTAB912 Indicators A steady green light indicates the computer is turned on; when the computer is in Standby mode, the light will shine orange. When the light is off, the computer is either off or in Hibernate mode. Power Indicator A slowly flashing green light indicates the computer is accessing the hard drive. -
Page 8: Using Your Tablet Pc
TABLET PC RTAB912 Using Your Tablet PC Specifications ● Processor Intel Pentium M Processor ● Memory 256MB (or 512MB, upgradeable to 768MB) ● Hard Drive 30G or 60GB ● Display 12.1" TFT LCD, resolution 1024x768 ● External Interface External Monitor Port IEEE 1394 Port MIC In Headphone Out... -
Page 9: Button Functions
TABLET PC RTAB912 Button Functions This product comes with fourteen different function buttons that can be used after entering Windows. To enable the user to access applications quickly, some of these fourteen function buttons offer additional functions. Four of the functions can be defined by the user. -
Page 10: Primary Functions
TABLET PC RTAB912 Primary Functions Each button has a basic primary function that has already been defined. These basic functions are described as follows: Icon Function Function Description Power On/Off Computer power switch Rotate Rotates the screen between two types of pre-set orientations (user-programmable, see page 20) The same as a normal keyboard [ESC]... -
Page 11: Secondary Functions
TABLET PC RTAB912 1. The power button can be set to make the computer enter Standby or Hibernate mode. (Go to "Control Panel" > "Power Options" > "Advanced" > "Power Buttons" and set as Standby or Hibernate.) 2. To activate or shut down the wireless network, hold down the Wireless Network Button for two to five seconds. -
Page 12: How To Use Secondary Functions
TABLET PC RTAB912 How to Use the Secondary Functions Press the [Fn] button to activate a secondary button function. When this is pressed, the Windows icon taskbar in the lower right-hand corner of the desktop will display the following message: Note: "User-programmable"... - Page 13 TABLET PC RTAB912 2. From among the four available buttons, select an appropriate one to add a secondary function. Below the "Tablet Buttons" heading, there are the following four options: Fn + Hot1 Button Fn + Journal Button Fn + Input Panel Button Fn + Rotate Button 3.
-
Page 14: Battery
TABLET PC RTAB912 Battery How to Replace the Battery The following diagrams explain how to replace the battery correctly:... -
Page 15: How To Charge The Battery
TABLET PC RTAB912 Using Your Tablet PC How to Charge the Battery When using the Tablet PC for the first time, charge the new battery continuously for at least four hours with the computer off in order for the battery to get the maximum charge Battery Charging Time The longest that the standard Lithium battery can last is five hours. -
Page 16: How To Conserve Power
TABLET PC RTAB912 How to Conserve Power Here are three tips that can help conserve power:... -
Page 17: How To Prolong The Battery Life
TABLET PC RTAB912 How to Prolong the Battery Life 1. It is recommended that the battery is used until it is fully drained before recharging it. This will prolong the useful lifetime of the battery. 2.New batteries must go through a few cycles of being completely charged and drained before obtaining the maximum battery discharge time. -
Page 18: Use And Setup Of The Fingerprint Recognition Device
TABLET PC RTAB912 Use and Setup of the Fingerprint Recognition Device How to Register to Use the Fingerprint Recognition Device... - Page 19 TABLET PC RTAB912 Green indicates successful fingerprint registration. Red indicates unsuccessful registration.
-
Page 20: How To Set Up Fingerprint Recognition For Login
TABLET PC RTAB912 How to Set Up Fingerprint Recognition for Login Go to "Control Panel" > "Switch to Classic View" > "User Accounts" > "Choose an Account to Change" > "Create a Password". How to Use Fingerprint Recognition to Restrict File Access •... - Page 21 TABLET PC RTAB912 OmniPass will ask for the User Name and Master Password or • fingerprint • If a folder contains many encrypted files, a window listing the folder's files and their encryption status will appear. After encryption is complete, tap "OK." •...
-
Page 22: Calibrating The Screen
TABLET PC RTAB912 Before Encryption After Encryption Calibrating the Screen The following method will help the Tablet PC respond more effectively to the stylus. First choose the screen orientation that needs to be calibrated: Go to "Start" "Control Panel" "Tablet and Pen Settings" "Settings" 1. -
Page 23: Adjusting The Screen Brightness
TABLET PC RTAB912 Adjusting the Screen Brightness 1. Go to "Start" "Control Panel" "Tablet and Pen Settings" "Display" "Screen Brightness" 2. Alternatively go to the taskbar in the lower right-hand corner of the desktop and double-tap on "Change Tablet and Pen Settings." When the "Tablet and Pen Settings"... -
Page 24: Setting The Screen Orientation
TABLET PC RTAB912 Setting the Screen Orientation The screen has the following four orientations: "Portrait" refers to the vertical displays; "Landscape" refers to the horizontal displays. Go to "Start" "Control Panel" > "Tablet and Pen Settings" > "Display" > "Screen Orientation" "Change" to change the setting. -
Page 25: How To Connect To External Projectors And Monitors
TABLET PC RTAB912 How to Connect to External Monitors and Projectors When an external monitor or projector is connected, tap on the taskbar in the lower right-hand corner of your desktop and choose from "Intel (R) Extreme Graphics" options to enable the external display: Select "Graphics Options"... -
Page 26: Upgrading Your Tablet Pc
TABLET PC RTAB912 Upgrading Your Tablet PC Upgrading the Memory... -
Page 27: How To Replace The Hard Drive
TABLET PC RTAB912 How to Replace the Hard Drive... - Page 28 TABLET PC RTAB912...
-
Page 29: How To Recover Your Operating System
TABLET PC RTAB912 How to Recover the Operating System 1. Connect the Tablet PC to the USB keyboard. 2. When the computer is turned on, press [F10] before entering the operating system to carry out system recovery. Or, after entering the operating system, go to "Start"... -
Page 30: Safety Guidelines
TABLET PC RTAB912 Safety Information Please pay attention to the following two symbols that appear in the User Manual. Each symbol is followed by important, useful information that will help you operate your Tablet PC. This symbol warns of incorrect usage of equipment Warning ! and/or a violation of the instructions for usage that will damage the Tablet PC or impair its performance. -
Page 31: Power Cord And Power Supply Usage Guidelines
TABLET PC RTAB912 Power Cord and Power Supply Usage Guidelines: Use together with the designated AC adapter. Keep away from cold. Keep away from high temperatures or fire hazards. Do not short-circuit the power-out. Do not use in water. Do not use in humid areas. Do not pull on the power cord. -
Page 32: Battery Safety Guidelines
TABLET PC RTAB912 Battery Safety Guidelines: The battery is restricted to usage with this computer. Do not dismantle the battery. Do not expose the battery to fire or water. Avoid fire, heat, and any sort of damage to the battery. Do not touch either end of the battery with anything metallic. -
Page 33: Contacting Technical Support
TABLET PC RTAB912 Contacting the Manufacturer Before contacting the manufacturer's technical support, please carry out the preliminary examination described below. • Disconnect all of the external accessories. • Check to see whether all of the power cords are correctly plugged into the power supply and the computer. -
Page 34: Declaration Of Conformity (Safety Standards)
TABLET PC RTAB912 Declaration of Conformity (Safety Standards) Product name: Tablet PC Model: TTAB-B12D Conforms to the following safety Singapore standards: IDA-Telecom Safety: TUV, CB, UL, CSA IDA-RF Standard Japan TUV EN 60950:2000 VCCI:VCCI/2002 (15th Edition) CB IEC 60950:1999 TELEC... -
Page 35: Appendices
TABLET PC RTAB912 Appendices Pointers for Using the Operating System When using Microsoft Windows XP Tablet PC Edition, the stylus can be used to open practical information about using the operating system. This can help the system user quickly understand how to use the new software features... -
Page 36: Help And Support Centre
TABLET PC RTAB912 Help and Support Under "Help and Support Centre," there is further information about the Tablet PC operating system... -
Page 37: Using Your Accessories
TABLET PC RTAB912 Using Your Accessories... -
Page 38: Eraser Setup
TABLET PC RTAB912 Eraser Setup 1. Go to "Start" "Control Panel" > Tablet and Pen Settings" > "Pen Options" "Use Top of the Pen to Erase". 2. Alternatively go to the taskbar in the lower right-hand corner of the desktop and double-tap on "Change Tablet and Pen Settings."... -
Page 39: Using The Eraser
TABLET PC RTAB912 Using the Eraser Flip the stylus over, and the head can be used as an eraser. -
Page 40: Maintaining Your Lcd Display
TABLET PC RTAB912 Maintaining the LCD Display • When cleaning the LCD display surface, use a fine, soft, cleaning cloth to remove dust and fingerprints from the screen. • Avoid cleaning the computer while it is in use (hot). • When using a liquid cleaner, do not spray it directly onto the screen. You should spray an appropriate amount of cleaning solution onto the cloth and then wipe gently.
