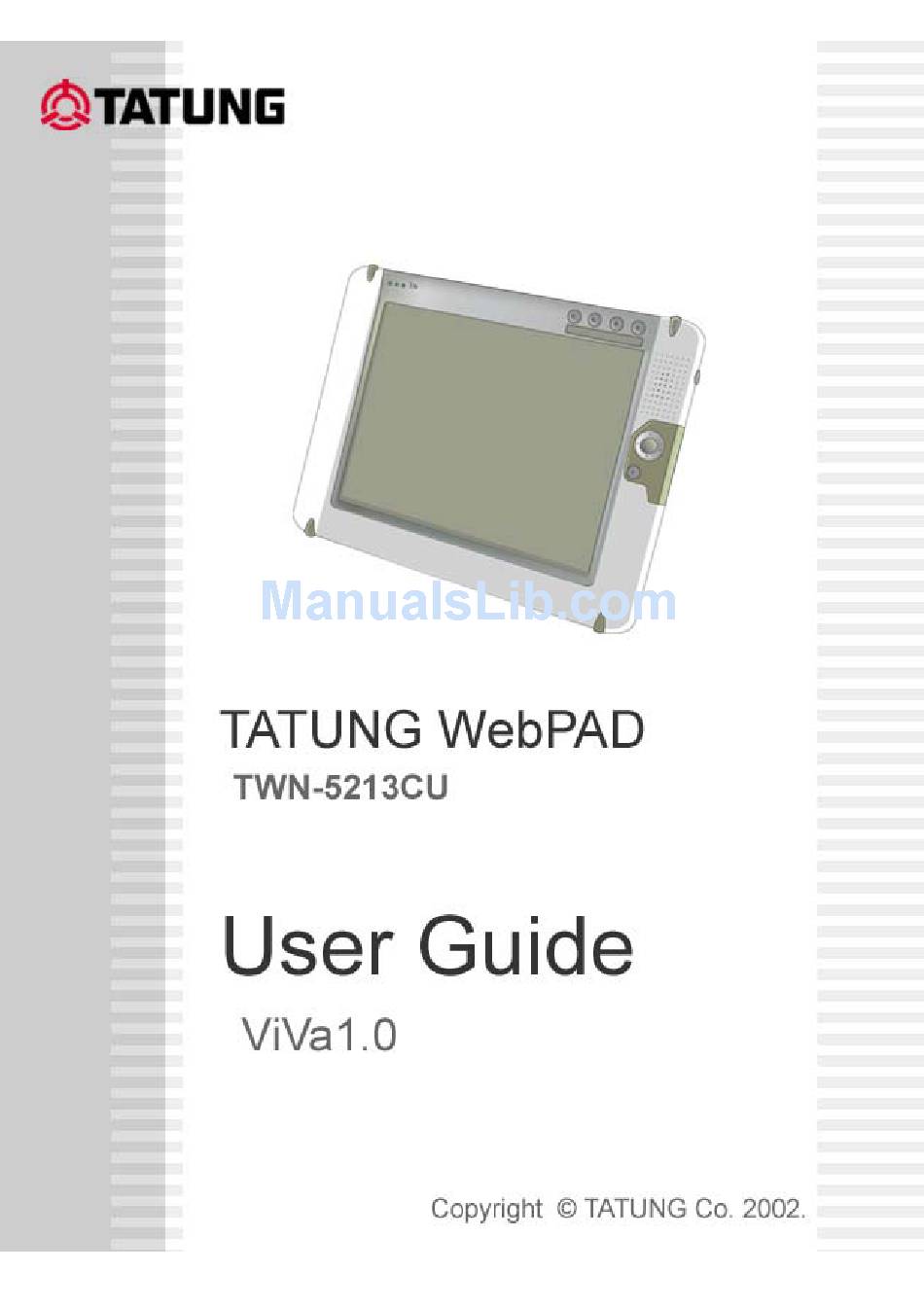

TWN-5213CU ViVa1.0

User Guide

Revision 1.6
2002/9/3
page1

Advertisement

Table of Contents
loading

Related Manuals for Tatung WEBPAD TWN-213CU

Summary of Contents for Tatung WEBPAD TWN-213CU

  • Page 1: User Guide

    TWN-5213CU ViVa1.0 User Guide Revision 1.6 2002/9/3 page1...
  • Page 2 The information contained in this document is provided “as is” and is subject to change without notice. Tatung Company makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Tatung Co. shall not be liable for any errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples herein.
  • Page 3 WARNING! : A warning informs you that improper use of equipment or failure to follow safety instructions may cause bodily injury. NOTE! : A note is an advice that helps you to make best use of your TATUNG WebPAD. Safety Instructions The user must read through all safety instructions before using the TATUNG WebPAD (TWN-5213CU).
  • Page 4 CAUTION! ● Always use the battery pack that is provided with this WebPAD by TATUNG because other battery packs may have different specifications. Potential hazards and damages may occur to the WebPAD. ● Do not expose the battery pack to other metal objects. Store it in a cool and dry place.

  • Page 5: Table Of Contents

    4.4 Right View of the WebPAD ........................... 13 4.5 Back View of the WebPAD............................ 14 5. Quick-Start Procedure ..........................15 5.1 Starting TATUNG WebPAD ..........................15 5.2 Booting Logo ................................. 17 5.3 Booting Options..............................17 5.4 Changing the Image from the CompactFlash Card ....................18 5.5 Using a Storage CompactFlash Card........................
  • Page 6 7.7 Utilities................................... 44 8. Restrictions ...............................47 9. Troubleshooting ............................48 10. Hardware Compatibility List ........................50 11. Support and Service..........................51 12. Warranty ..............................52 13. Regulatory and Safety Notices ......................57 TATUNG WebPAD (TWN-5213CU) User Guide Page 6...

  • Page 7: Overview

    1. Overview ................ Welcome to TATUNG WebPAD – TWN-5213CU! This wireless WebPAD is designed to provide the ViVa application execution environment to support the customers to build-up a customizable product for different vertical markets. This set demos one example for full Web browsing capabilities, information management, rich multimedia streaming, and e-mail functionalities.

  • Page 8: Equipment Checklist

    2. Equipment Checklist............. Carefully unpack your TWN-5213CU WebPAD from the box. Check to make sure the following accessories are included in the box. If you find any accessory that appears damaged or missing, please contact TATUNG representatives immediately. TWN-5213CU WebPAD x 1...

  • Page 9: System Specification

    Battery Charging Time: At Least 2.5 Hours Weight 1.43 kg Dimension 290mm (W) X 220mm (D) X 30.5 (min.) - 41mm (max.) (H) Power LED LED Indicators Battery Charge LED RF Strength LED TATUNG WebPAD (TWN-5213CU) User Guide Page 9...

  • Page 10: Webpad Outlook

    Direction Key; it is the same with UP/DOWN/LEFT/RIGHT keys. Enter Key Power LED Battery Charge LED RF Strength LED Built-In Microphone Built-In Speaker TFT Touch-Screen: Perform operations and input data by tapping and writing directly on the screen. TATUNG WebPAD (TWN-5213CU) User Guide Page 10...
  • Page 11 Signal Strength =4,5 Green (Excellent) Low Battery Charging Signal Strength =2,3 Amber <=8% (Good) Extremely Low Battery Signal Strength =1 (Auto Suspend) (Very low) <=4% Charge Error Blinking Red (Or no battery installed) TATUNG WebPAD (TWN-5213CU) User Guide Page 11...

  • Page 12: Top View Of The Webpad

    PC Card Slot (PCMCIA Type II) Wireless LAN card and built-In TATUNG patent-pending antenna module. 4.3 Left View of the WebPAD PC Card Slot (PCMCIA Type II) Default is for external Storage Card Headphone Jack Microphone Jack TATUNG WebPAD (TWN-5213CU) User Guide Page 12...

  • Page 13: Right View Of The Webpad

    RAM will be saved. Stylus Data input and virtually all other operations are performed using a stylus. USB Port USB Host DC-In Jack Input for the AC adapter which directly supplies power to the TWN-5213CU. TATUNG WebPAD (TWN-5213CU) User Guide Page 13...

  • Page 14: Back View Of The Webpad

    4.5 Back View of the WebPAD Battery Connector Cover Battery Pack Battery Latch Battery Release Switch IDE CompactFlash Card Slot Cover Backup Battery and RTC Battery Cover Back Stand / Handle TATUNG WebPAD (TWN-5213CU) User Guide Page 14...

  • Page 15: Quick-Start Procedure

    (1) Plug one end of the AC Adapter into the DC-In jack and plug the other end into electrical outlet. (Power Source: 100 - 240 V / 50 or 60 Hz.) (2) Turn on the TWN-5213CU using the power button. (3) Finish. TATUNG WebPAD (TWN-5213CU) User Guide Page 15...
  • Page 16 (1) Insert a fully charged battery pack into the Battery Slot. (2) Lock the battery latch. (3) Finish. NOTE! The system will not power on if the battery latch is not in the locked position. TATUNG WebPAD (TWN-5213CU) User Guide Page 16...

  • Page 17: Booting Logo

    PCMCIA card. (2) Boot from IDE CompactFlash Card (Windows CE.NET) If none of the button combinations above is pressed, the system will boot from IDE CompactFlash Card and load Windows CE.NET. TATUNG WebPAD (TWN-5213CU) User Guide Page 17...

  • Page 18: Changing The Image From The Compactflash Card

    The TWN-5213CU offers several image update methods. Method 1: Replace the system image file (NK.bin) directly from the IDE CompactFlash Card. NOTE! Always check the TATUNG service and support website for image download request. (1) Unscrew to release the IDE Compact Flash Card Cover.

  • Page 19: Using A Storage Compactflash Card

    TWN-5213CU, which means a storage card can be used to port data between the device and a computer or other devices. TATUNG WebPAD (TWN-5213CU) User Guide Page 19...

  • Page 20: Viva1.0 Shell

    (4) Offer the capability to switch to standard CE Shell Off-Line (For factory setting and SI; Not for End- User) Please check advanced user configuration for detailed information, for Shell switch NOTE! information. TATUNG WebPAD (TWN-5213CU) User Guide Page 20...

  • Page 21: Recalibrating The Touch-Screen

    If you find that your TWN-5213CU is not responding properly to your taps, you will need to recalibrate your screen. Follow the instructions below. (1) Start Menu Control Panel (2) Choose Stylus Calibration tab Recalibrate TATUNG WebPAD (TWN-5213CU) User Guide Page 21...
  • Page 22 (3) Screens 1 through 7 of device calibration. TATUNG WebPAD (TWN-5213CU) User Guide Page 22...

  • Page 23: Network Configuration

    IP address, Subnet Mask, Gateway, and DNS information. (5) For Internet browsing, it will ask the user to fill in the proxy setting if necessary. (6) Click “OK” button to finish. TATUNG WebPAD (TWN-5213CU) User Guide Page 23...

  • Page 24: Built-In Storage

    (This is reserved for future use.) The user can also assign it to launch the application of his or her preference. Method 3: Press the Button icon in the Control Panel to setup the button configuration. TATUNG WebPAD (TWN-5213CU) User Guide Page 24...

  • Page 25: Using The Input Method

    TWN-5213CU provides an integrated input method of SoftKeyboard and Handwriting Pad for data input. The user can access the SoftKeyboard by either pressing the Input Methods icon on the desktop or pushing hardware button TATUNG WebPAD (TWN-5213CU) User Guide Page 25...

  • Page 26: How To Reset The Twn-5213Cu

    Because cold boot will wipe out all data in the object stored, remember to back up your data. [Method 2] You can choose to perform a system cold boot from the Control Panel Device Reset Applet Cold Reset. TATUNG WebPAD (TWN-5213CU) User Guide Page 26...

  • Page 27: Warm Boot

    Warm Boot Warm boot will keep all data (system registry) in the RAM. You can choose to perform a system warm reset from the control panel device reset applet warm reset TATUNG WebPAD (TWN-5213CU) User Guide Page 27...

  • Page 28: Advanced Usage

    CompactFlash Card. Both methods are described below: [6.1.1] Upgrading from the Host Step 1: Launch the upgrade from the directory Start File Manager Windows Upgrade TATUNG WebPAD (TWN-5213CU) User Guide Page 28...
  • Page 29 Step 2: Choose “Upgrade from Host” from the system upgrade dialog box. Step 3: Fill in the host computer directory including the folder with the system image file (NK.bin), then press “Next” to continue. TATUNG WebPAD (TWN-5213CU) User Guide Page 29...
  • Page 30 Do you want to continue?“. Click “Yes” to continue. Step 5: Network connection error message The remote host device should make the image folder to be shared. Otherwise, it will NOTE! display a network connection error message. TATUNG WebPAD (TWN-5213CU) User Guide Page 30...
  • Page 31 “OK” button after fill in all the information. Step 7: If all the information is correct, it will start to copy the system image file (NK.bin) from the host device to the RAM of the TWN-5213CU. TATUNG WebPAD (TWN-5213CU) User Guide Page 31...
  • Page 32 Step 8: Once the downloading onto the RAM process is complete, it will start to copy the system image file (NK.bin) from the RAM to the CompactFlash card of TWN-5213CU. Step 9: Click “Finish” to complete the system upgrade. TATUNG WebPAD (TWN-5213CU) User Guide Page 32...
  • Page 33 CompactFlash card has the system image file (NK.bin). Otherwise, the message “No compact flash card found.” error message will pop-up. It will replace the system image file (NK.bin) from the Storage Card to the IDE CompactFlash Card, which will boot up the system. TATUNG WebPAD (TWN-5213CU) User Guide Page 33...

  • Page 34: Customizable Desktop

    6.2 Customizable Desktop Using TATUNG ViVa Application Execution Environment (AEE) technology, solution providers can easily customize this environment with different levels. One critical feature of AEE technology is customizable desktop, which is designed by HTML and Jscript Web technologies. It provides the capability for system integrators to reconfigure the system desktop by adding new web-design without rebuild new image.

  • Page 35: Software Applications

    (ISP) or network. For proxy and LAN setting, please go to View Internet Options Connection and check the “Use LAN (no autodial)” and “Access the Internet using a proxy server” checkboxes. Check with your ISP for detailed networking information (IP address, Proxy setting) NOTE! TATUNG WebPAD (TWN-5213CU) User Guide Page 35...
  • Page 36 It will be more convenient for users when browsing web pages. (1) Launch Internet Explorer To launch Windows Internet Explorer, tap and then tap Internet Explorer or click on the icon of Internet Explorer on the desktop. TATUNG WebPAD (TWN-5213CU) User Guide Page 36...

  • Page 37: Windows Media Player

    Using Microsoft’s Windows Media Player to play digital audio and video files that are stored on the storage card of the unit or on the network. To launch Windows Media Player, tap and then tap Media Player or click the icon of Media Player on the desktop. TATUNG WebPAD (TWN-5213CU) User Guide Page 37...

  • Page 38: Pocket Word

    Messenger or click the icon of Instant Messenger on the desktop. The following provides steps to setup your Instant Messenger service: Step 1: Double-click on the Instant Messenger icon on the desktop and click “Next” to setup the Messenger Passport. TATUNG WebPAD (TWN-5213CU) User Guide Page 38...
  • Page 39 Step 2: Use your Hotmail or MSN account as your passport to register MSN Messenger. Step 3: Get a .NET Passport TATUNG WebPAD (TWN-5213CU) User Guide Page 39...
  • Page 40 Step 4: Get a .NET Passport by filling in passport name and password. Step 5: Finish. TATUNG WebPAD (TWN-5213CU) User Guide Page 40...

  • Page 41: Remote Desktop Connection

    NOTE! Current application execution environment is not optimized for RDP connection such as input methods and buttons. Please contact TATUNG representatives for specific version if your application domain is for RDP area.
  • Page 42 Step 3: After pressing the connect button, filling in proper username and password and click “OK” button. Step 4: During the RDP section, the user can utilize all the applications on the device host from WebPAD. TATUNG WebPAD (TWN-5213CU) User Guide Page 42...

  • Page 43: Input Method

    Once the input method is selected, the user can touch the relevant key as they need. The TWN-5213CU integrates SoftKeyboard and Handwriting Pad so that the user may NOTE! use both input methods simultaneously. TATUNG WebPAD (TWN-5213CU) User Guide Page 43...

  • Page 44: Utilities

    7.7 Utilities Tatung WebPAD comes with a variety of utilities which will help the users to have better and more convenient system configurations based on their requirements. Click on the Brightness icon on the left system tray to adjust the brightness of the TFT screen.
  • Page 45 The time displayed in the icon can only be changed from the Control Panel. Click on the Task Manager icon on the right system tray and it will launch the Task Manager, which allows the user to switch between open applications. TATUNG WebPAD (TWN-5213CU) User Guide Page 45...
  • Page 46 Click on the Start icon on the right system tray to launch the Start Menu. Click on the Desktop icon on the right system tray to switch between the desktop and current display. TATUNG WebPAD (TWN-5213CU) User Guide Page 46...

  • Page 47: Restrictions

    This section describes the current status of firmware and OS image on this platform and it is subject to change without notice. 1. The image was built with Windows CE 4.0 RTM and with TATUNG ViVa 1.0 application execution environment.

  • Page 48: Troubleshooting

    This is normal for LCD screens and is not permanent. Adjust the LCD display brightness by using the brightness control or Screen appear to be blank restart the TWN-5213CU. TATUNG WebPAD (TWN-5213CU) User Guide Page 48...
  • Page 49 (peer-to-peer connection). The user can judge the system wireless status by checking the RF indicator. Make sure you have an Ethernet card that is compatible with the TWN-5213CU while establishing wired network connection. TATUNG WebPAD (TWN-5213CU) User Guide Page 49...

  • Page 50: Hardware Compatibility List

    Wireless Network / Wireless Cisco Systems compatible LAN Adapter [PCMCIA] 11Mbps Wireless LAN Bromax compatible Module [PCMCIA] CompactFlash Card Storage / Flash Hagiwara compatible [CF] Memory SanDisk CF Series CF Card [CF] compatible TATUNG WebPAD (TWN-5213CU) User Guide Page 50...

  • Page 51: Support And Service

    11. Support and Service ........... Website You can obtain product information of Tatung WebPAD from our website (http://www.tatungwebpad.com). This online service is provided free of charge; you pay only for telephone charges and Internet service fees. TATUNG WebPAD (TWN-5213CU) User Guide...

  • Page 52: Warranty

    Should Tatung be unable to repair or replace the product within a reasonable amount of time, the customer’s alternate exclusive remedy shall be a refund of the purchase price upon return of the product.
  • Page 53 Important: Carefully read this License Agreement and the Limited Warranty statement before operating the equipment. This rights to the software and licensed, not sold. Tatung or its licensors continue to own all intellectual property rights to the software, and you will be granted certain rights to use the software upon your acceptance of this license.
  • Page 54 Tatung for some software. You agree that no warranty, free installation or free training is provided by Tatung for any copies or adaptations made by you. All copies and adaptations of the software must bear the copyright notice(s) contained in or on the original.
  • Page 55 Ninety-Day Limited Software Warranty Tatung warrants for a period of 90 days from the date of purchase that the software product will execute its programming instructions when all files are properly installed. Tatung does not warrant that the software will be uninterrupted or error free.
  • Page 56 Notice of Warranty Claims You must notify Tatung in writing of any warranty claim not later than 30 days after the expiration of the warranty period. Limitation of Warranty Tatung makes no other express warranty, whether written or oral, with respect to this product.

  • Page 57: Regulatory And Safety Notices

    Trade Name: TATUNG CO. Responsible Party: TATUNG CO. Address: 22 Chung-Shan N. Rd. Sec. 3, Taipei, Taiwan 104, R.O.C. Telephone number: + 886-2-2586-7714 This device complies with the following Certifications, UL 60950 FCC Part 15 TUV-GSCE TATUNG WebPAD (TWN-5213CU) User Guide Page 57...
  • Page 58 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. TATUNG WebPAD (TWN-5213CU) User Guide Page 58...
