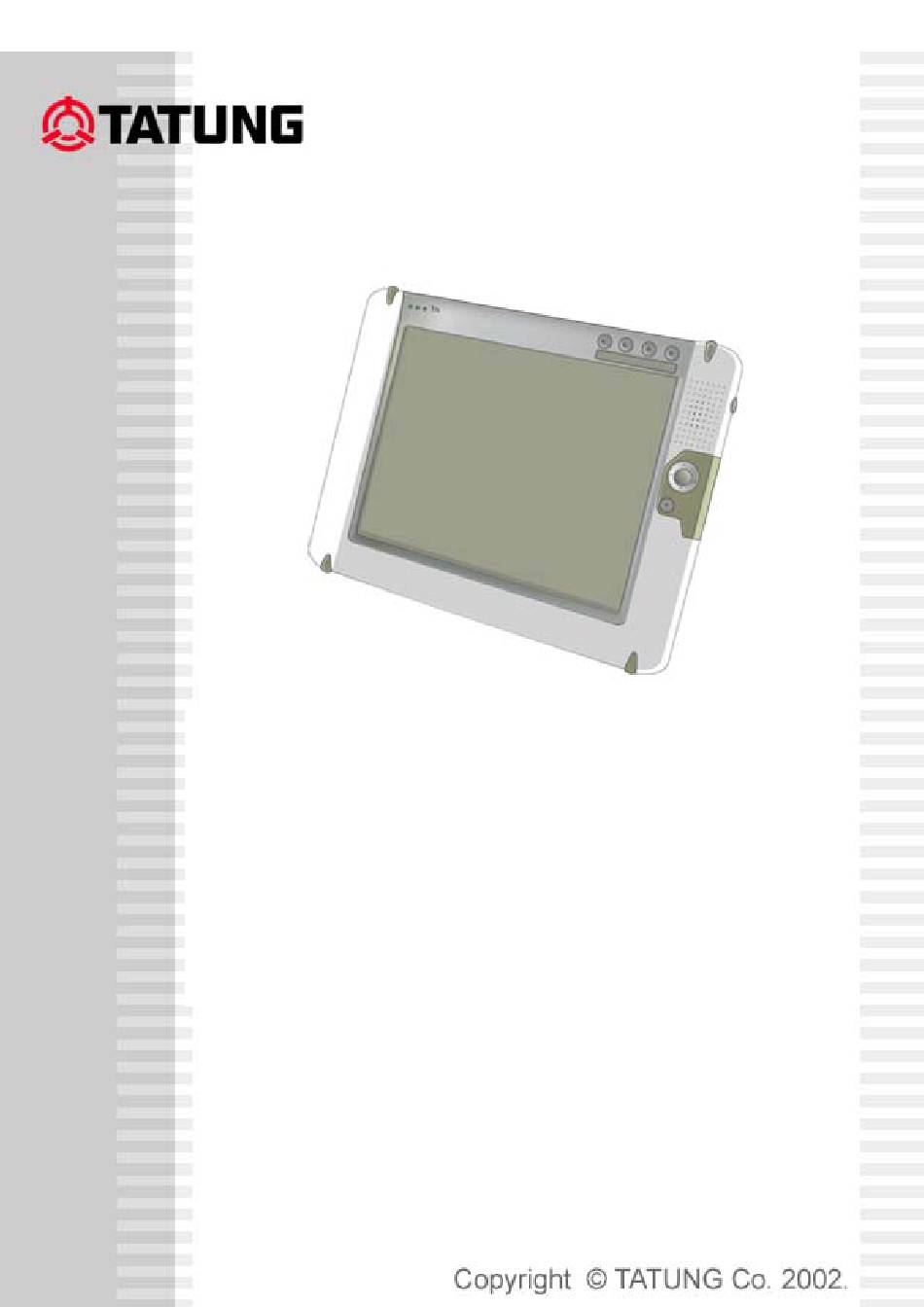

TATUNG
Wireless Thin Client
TWN-5213 CU
2005/6/27
page1

Advertisement

Table of Contents
loading

Related Manuals for Tatung TWN-5213 CU

Summary of Contents for Tatung TWN-5213 CU

  • Page 1 TATUNG Wireless Thin Client TWN-5213 CU 2005/6/27 page1...
  • Page 2 TATUNG Co. makes no warranty of any kind with regard to this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. TATUNG Co. shall not be liable for any errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this document or the examples herein.
  • Page 3 Do not expose the battery pack to other metal objects. • Do not use or place TWN-5213 CU near sources of heat or expose it to direct sunlight for an extended period of time. Store it in a cool and dry place.

  • Page 4: Table Of Contents

    4. TWN-5213 CU Features ............................ 8 4.1 Front View of TWN-5213 CU............................8 4.2 Top View of TWN-5213 CU............................11 4.3 Left View of TWN-5213 CU ............................11 4.4 Right View of TWN-5213 CU............................12 4.5 Back View of TWN-5213 CU ............................13 5.

  • Page 5: Overview

    . This wireless device is designed to support customers in building a customizable product for different vertical markets. Both first-time and experienced users can quickly learn how to operate the TATUNG Wireless Thin Client from this guide. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 6: Equipment Checklist

    2. Equipment Checklist............Carefully unpack the TATUNG Wireless Thin Client from the box. Check to make sure that the following accessories are included in the box. If you find any accessory missing or damaged, please contact TATUNG representatives immediately. TWN-5213 CU...

  • Page 7: Twn-5213 Cu Specification

    Temp.:5 to 35 deg. cent., Humidity: 15 to 85% Storage Temp.:-20 to 60 deg. cent., Humidity:15 to 85% Certification Terminal FCC, CE,CB, UL AC adapter Electrical appliance and Material Safety Law Windows XP Embedded TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 8: Twn-5213 Cu Features

    Push function key 3, and you can execute “File Manager”. Push function key 4, and you can execute “Device setting” utility, which is developed by Tatung. It includes four functions: brightness adduction, double-tap setting, button setting, and touch panel calibration.
  • Page 9 12. TFT Touch-Screen Panel (Perform operations and input data by tapping and writing directly on the screen) TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 10 TWN-5213 CU LED indicators display useful information in the battery’s current status and charge level: Indicator Power LED Battery Charge LED Wireless Signal LED LED Color Power Off or Signal Strength =0 Not Charging Suspend Mode (No signal) Signal Strength =4,5...

  • Page 11: Top View Of Twn-5213 Cu

    4.2 Top View of TWN-5213 CU 1. I/O Connector 2. Reset Button 3. USB 2.0 Port 4. PCMCIA Card Slot 4.3 Left View of TWN-5213 CU 1. PC Card Slot (PCMCIA Type II) 2. Headphone Jack 3. Microphone Jack TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 12: Right View Of Twn-5213 Cu

    (1) Pressing and holding the power button for more than 4 seconds will power off the system. (2) Quickly tapping and releasing the power button will put the system into suspend mode. Re-tap the power button again to resume operation. 2. Stylus 3. USB 2.0 Port 4. DC-In Jack TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 13: Back View Of Twn-5213 Cu

    1. Battery Connector Cover 2. Battery Pack 3. Battery Latch 4. Battery Release Switch 5. IDE Compact Flash Card Slot Cover 1. Backup Battery and RTC Battery Cover 2. Back Stand / Handle TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 14 TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 15: Quick-Start Procedure

    5.1 Starting TATUNG TWN- 5213 CU TWN-5213 CU has two power sources, battery or AC (using the AC/DC converter). To operate the device with AC power, perform the following steps: In order to prevent accidental data lost, we strongly suggest you to insert the battery pack.
  • Page 16 (3) Plug one end of the AC adapter into the DC- In jack and plug the other end into an electrical outlet. The power source can range from 100 to 240 Volts at 50 or 60 Hz. TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 17 (4) Turn on TWN-5213 CU by pressing the power button. (5) The system is turned on. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 18: Booting Logo

    5.2 Booting Logo When the user turns on TWN-5213 CU, the Microsoft Windows XP embedded logo is displayed on the screen while the system is booting up. TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 19 TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 20: Device Settings

    5.3 Device Settings TWN-5213 CU uses the standard Microsoft Windows XP user interface. But we create a new program which will help you to set the TWN-5213 CU easier. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 21: Lcd Panel Setting

    (1) Press the function key 4, and you will see the “Device Setting” window (As in the figure). (2) Please kick the “Brightness” button. (3) You can adjust the brightness level according to your personal preference. TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 22 (1) Press the function key 1, and you will see the “Device Setting” window (As in the figure). (2) Please kick the “Double-Tap Setting” tab. (3) You can adjust the speed and the distance of the double tap according to your personal preference. TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 23 (3) You can change the button setting for your own needs. NOTE! The default settings of these four function keys were shown as follows: Button 1: On Screen Keyboard Button 2: Internet Explorer Button 3: Windows Explorer Button 4: Device Setting TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 24: Recalibrating The Touch-Screen

    5.7 Recalibrating the Touch- Screen If the user finds that TWN-5213 CU is responding bluntly to stylus taps, the user will need to recalibrate his screen. Follow the instructions below. (1) Launch the Device Setting Utility program. (2) Please click the “Calibration” button.
  • Page 25 (3) Screens 1 through 7 of device calibration. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 26: Using The Input Method

    5.8 Using the Input Method TWN-5213 CU provides an integrated Soft Keyboard to ease the data input. You can bring up the Soft Keyboard by pressing the function key 1. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 27: Resetting Twn-5213 Cu

    5.9 Resetting TWN-5213 CU There are two ways of resetting TWN-5213 CU: Hardware Reset and Software Reset Hardware Reset The reset button is located on the top left of TWN-5213 CU. Software Reset You can choose to perform a system cold reset by: Start ->...

  • Page 28: Software Applications

    CU. You can download some programs by your needs. For details on commercially-available software applications, contact your local retailer or visit the Microsoft’s Web site at http://www.microsoft.com TWN-5213 CU might not support applications written for MS-DOS or 16-bits application NOTE! programs. You should check for compatibility before using the applications.

  • Page 29: Restrictions

    This section describes the current status of firmware and OS image on this platform by the time when this user manual was published. Please contact an authorized TATUNG representative to obtain the most recent updates. The system was built with Windows XP Embedded SP1 execution environment.

  • Page 30: Troubleshooting

    Make sure the battery switch is in the lock position. TWN-5213 CU cannot be turned on when not connected to AC The battery power may be too low to run TWN-5213 CU. Try connect to power. AC power again. Display Related Problems...
  • Page 31 Try to reset the system by pressing reset button. The touch screen is damaged. Contact an authorized TATUNG representative. TWN-5213 CU runs out of storage Reallocate TWN-5213 CU storage and program memory management by space doing a cold boot (memory initialization). To turn off the sound in TWN- Disable the volume and notifications functions.

  • Page 32: Support And Service

    9. Support and Service ............Web site You may obtain the Tatung Wireless Thin Clients’ product information from http://www.tatungWebPad.com. This online service is provided free of charge. TATUNG Wireless Thin Client (TX-2000) User Guide...

  • Page 33: Warranty

    One-Year Limited Hardware Warranty Tatung warrants its Wireless Thin Client products to be free from defects in material and workmanship during the warranty period. If the Wireless Thin Client product proves to be defective in material or workmanship during the warranty period, Tatung will, at its sole option, repair or replace the product with a like product.
  • Page 34 Important: Carefully read this License Agreement and the Limited Warranty statement before operating the equipment. The rights to the software are licensed, not sold. Tatung or its licensors continue to own all intellectual property rights to the software, and you will be granted certain rights to use the software upon your acceptance of this license.
  • Page 35 Tatung for some software. You agree that no warranty, free installation or free training is provided by Tatung for any copies or adaptations made by you. All copies and adaptations of the software must bear the copyright notice(s) contained in or on the original.
  • Page 36 Ninety-Day Limited Software Warranty Tatung warrants for a period of 90 days from the date of purchase that the software product will execute its programming instructions when all files are properly installed. Tatung does not warrant that the software will be uninterrupted or error free.
  • Page 37 Tatung shall refund the purchase price upon return of the product and destruction of all other non- removable media copies of the software product. Notice of Warranty Claims You must notify Tatung in writing of any warranty claim not later than 30 days after the expiration of the warranty period. Limitation of Warranty Tatung makes no other express warranty, whether written or oral, with respect to this product.

  • Page 38: Regulatory And Safety Notices

    Address: 22 Chung-Shan N. Rd. Sec. 3, Taipei, Taiwan 104, R.O.C. Telephone number: + 886-2-2586-7714 This device complies with the following Certifications, UL 60950 FCC Part 15 TUV-GSCE TWN-5213 CU FCC ID: BJM-TWN5213BZN TATUNG Wireless Thin Client (TX-2000) User Guide...
  • Page 39 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. TATUNG CO. declares that TWN-5213 ( FCC ID: BJMTWN5213-BZN ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A.
