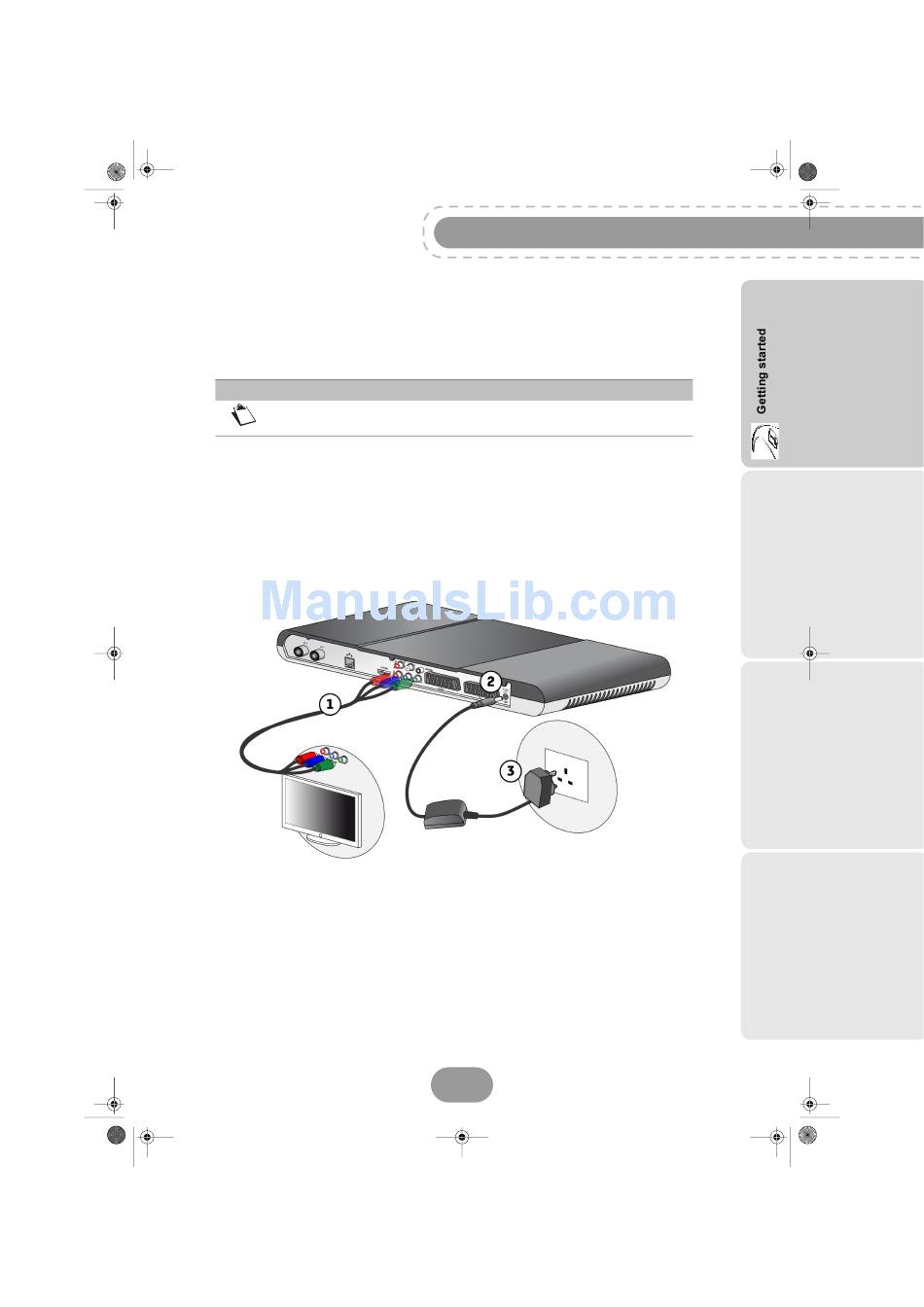

Connection to a High-Definition television using the component video link (Y Pb Pr)
1. Connect the YPbPr connectors (red, blue and green) of your recorder to the YPbPr connectors on
your television set, respecting the connectors colour (cable not supplied).
2. Connect the right and left audio outputs of your recorder to the audio inputs on your television set or
your Hi-Fi system (cable not supplied).
Note
Make sure to connect an audio device (TV set or Hi-Fi) otherwise there will be
no sound output.
3. To connect other devices to the recorder (VCR, home cinema...), refer to the following pages.
4. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the recorder.
5. Plug the power cord into the wall socket.
