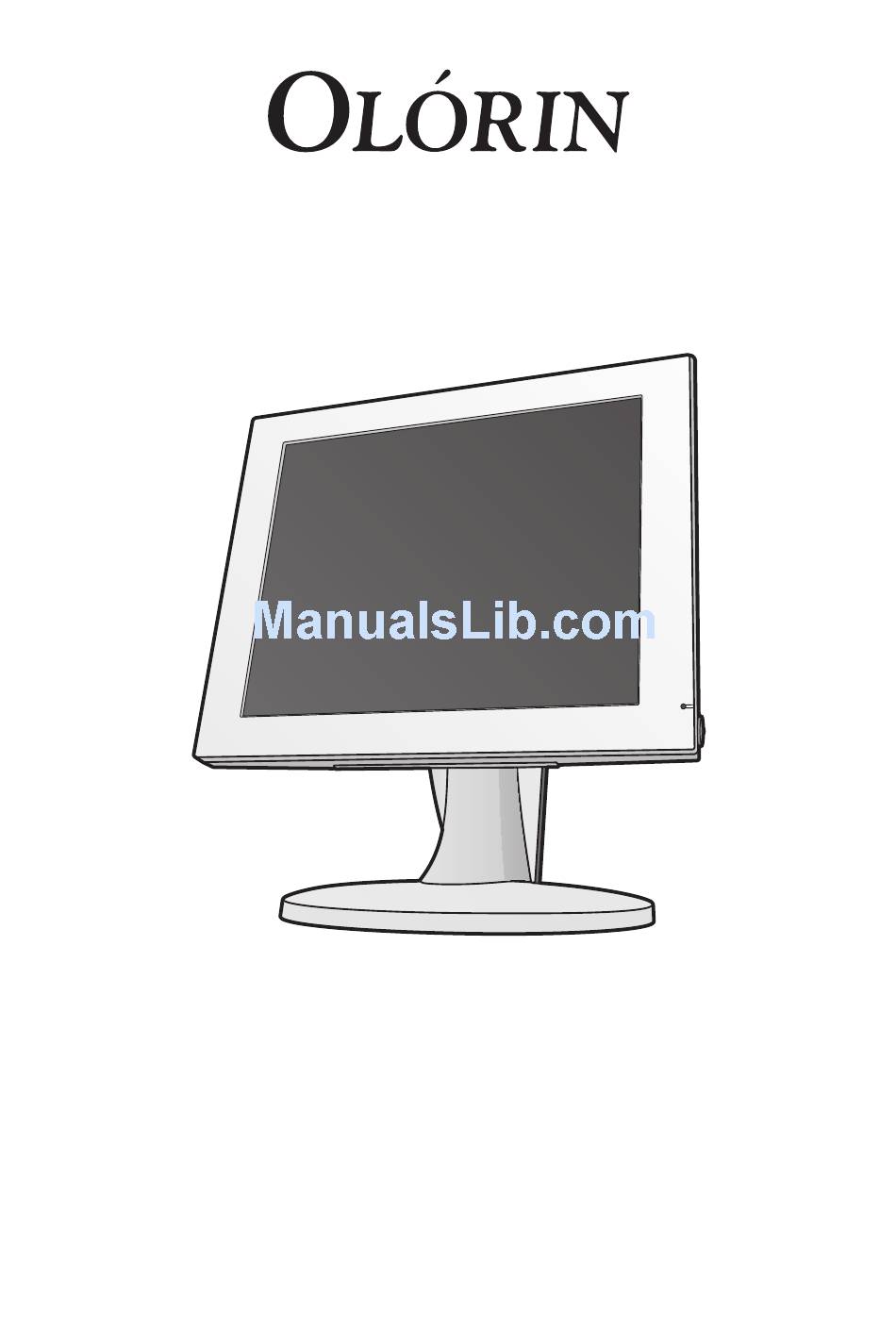

- Page 1 Display User’s Manual VistaLine & MedicLine VL157D, VL177D, VL197D ML157D, ML177D, ML197D www.olorin.com...
-
Page 3: Table Of Contents
Contents 1. Preface 2. Product features 3. Intended use of this product 4. Intended markets 5. Safety Precautions 6. Regulatory Tests and Certifications 7. Test of Medical Power adapter 8. FCC Information 9. Warranty and Limitation of Liability 10. Product identification 11. -
Page 4: Preface
Warning Keep this Users Manual in an easy accessible and safe place for future reading of it. If you lose your copy, you may request a new one by contacting us at our internet home page www.olorin. com. Olorin reserves the right to change the specifications of this product without any notice. Such changes could cause the operation of the product to be slightly different from the descriptions in this copy of the Users Manual. -
Page 5: Product Features
Product Features Standard delivery The product is normally delivered in 2 main parts, which, when mounted together, form a normal monitor for desktop use. • a LCD panel with TFT picture element which also contains the lamps for the backlight along with necessary electronics and cable connectors as well as power connector. -
Page 6: Intended Use Of This Product
Intended Markets Olorin products are developed primarily for sales and installation in countries within Europe and North America. The products comply with all regulations and directives issued by the European Union and by authorities in the United States. -
Page 7: Safety Precautions
Safety Precautions It is important that you read through the following notes of Safety Precautions to avoid any damage to the Product, yourself or other property. Following these precautions will also ensure that you get the best use of the Product. DO NOT OPEN THE PRODUCT. - Page 8 Safety Precautions Do not use the unit turned over on its back, put on its side, or upside down. These positions may cause the heat that the unit generates to accumulate inside the unit. Such overheating can cause damage to the Warning product and eventually start a fire.
- Page 9 Safety Precautions Maintenance Do not remove the plastic cabinet. There are high voltage parts inside that may lead to electric shock. Ask a re-seller for adjustment and inspection. Warning Do not remodel or repair. It may lead to fire, electric shock, or injuries. Warning Clean the dust inside the display once a year.
-
Page 10: Regulatory Tests And Certifications
Approvals are listed by each Regulatory Agency under the name of the manufacturer and model number as specified on the Product Identification Label. Copies of such approvals can be requested by contacting Olorin AB via www.olorin.com. -
Page 11: Test Of Medical Power Adapter
Test of medical power adapter The power supply is Class I. Protective earthed parts are only located inside the power supply enclosure and therefore are not accessible. The accessible parts of the enclosure and output are DOUBLE INSULATED from all mains voltage electrical parts. Ground continuality test is not relevant. -
Page 12: Warranty And Limitation Of Liability
For details of the warranty please see the separate warranty document included with this product. Limitation of Liability Olorin AB, including any of its affiliates, manufacturing partners and sales agents, is not liable for any claim for damages including, but not limited to, loss of business profits, disruption of business, change or loss of saved data, when damage is arising from •... -
Page 13: Cleaning Of The Product
Cleaning of the Product Be careful when cleaning the plastic housing of the panel so that no liquid or other objects will drip down into the product through the ventilation holes. This could cause electric shock and damage the product. Caution Normal dust and lint particles can be easily wiped off with a soft cloth tissue. -
Page 14: Getting Started
Getting started Before operating this monitor, please make sure that all items listed below are present in your delivery. Standard Items • The LCD monitor panel • User’s manual • Warranty booklet • AC/DC adapter • AC Power cord • DVI to DVI cable •... -
Page 15: How To Assemble Panel And Base Unit
How to assemble Panel and Base unit The product normally comes in 2 cartons and you need to assemble the panel and the base unit. A screwdriver and proper screws are included in the box for the base unit. 1. Remove the back of the base unit by grabbing it firmly at the top and pulling it up and backwards. -
Page 16: Mounting On A Wall Or Lcd Arm
Mounting on a wall or LCD arm The Monitor has Video Electronics Standards Association (VESA) standard mounting holes tapped into the rear panel. The standard holes are M4 set 100 mm (for 17” and larger monitors) or 75 mm (12” and 15” monitors) apart. If you intend to mount the monitor on the wall, we strongly recommend that you use wall mount kits with attached M4*10mm screws and which can hold a load of more than the weight of the monitor. -
Page 17: Rotating The Lcd Panel
Rotating the LCD Panel When setting the LCD display to vertical display (portrait orientation), lift the LCD panel to the top of the base unit as shown in the figure below and rotate it by 90 degrees. Procedure 1. Tilt the LCD panel upward.(Perform this procedure before sliding the panel upward.) 2. -
Page 18: Connection Method
Connection Method No tools are required to connect the LCD monitor to your PC or other device. Simply follow the instructions outlined in the next few pages. Connectors for the signal cables and power are located on the back of the panel behind the cover lid. -
Page 19: Input Signals
Input signals 15” & 17” Connections 19” Connections (RJ45 connector placed at bottom of panel) DVI-I to DVI-D & VGA splitter cable... -
Page 20: How To Operate
How to Operate Control Dial The Control Dial is a multi-functional device located behind the LED Indicator on the right side of the front bezel. It has three movements-rotate upward, rotate downward and press inward as a button. 1. Power On/Off Press the Control Dial to power the unit on from the off stage (the display is off). -
Page 21: Osd Adjustment Functions
OSD Adjustment Functions PreVu™ On-Screen Display The LCD monitor features a PreVu™ On-Screen Display(OSD) menu with easily identifiable icons designed to make adjusting your monitor display settings a more user-friendly process. When highlighted, the icon illustrates the control function and a brief instruction to assist the user in identifying which control needs adjustment. -
Page 22: Source Selection
Charts of OSD Adjustment Functions When you enter the OSD you first come to the menu for selection of input so, if you have 2 sources connected (i.e. PC and camera) you can quickly switch from one source to the other. When you click on another source you will leave the OSD system. - Page 23 Charts of OSD Adjustment Functions Main menu continued Management Scaling Scaling of the input signal Full Displays the image on the full screen Will display the input without any scaling. For instance a resolution of 640x480 will be displayed over the corresponding number of pixels in the center of the screen.
-
Page 24: Marine Functionality
Marine functionality The following features are optional. Dimming To lower the brightness to minimum on a monitor without sacrificing contrast values. This is especially useful on ships during night use in order to keep night vision intact. Sunlight readable Polarizing filter that is applied on top of the LCD display, increases color saturation and decreases reflections on the panel in environments where strong sunlight is common. -
Page 25: Applicable Signal Timings
Applicable Signal Timings The display may not work correctly with timings other than listed below. ◎ : Recommended timing ○ : Applied timing ∆ : Pseudo-display timing Resolution Frequency Display mode 15" 17" 19" Horizontal Vertical Horizontal Vertical (kHz) (Hz) 31.5 ○... -
Page 26: Specifications
Automatic adjustment Yes, via OSD. OSD for settings PreVu™ Speakers Luminance compensation Pivot Yes, software required. Protective glass VL157D: Optional, ML157D: Yes Touch panel Optional, ELO SAW USB or RS-232 Dimming Optional Sunlight Readable Optional DICOM pt. 14 preset Clearbase Barten... - Page 27 Specifications VL157D & ML157D Appearance Net. weight Approx. 3.3 kg (w/o base) 5.4 kg (w/ base) Measurements (WxDxH) 375 x 59 x 282 mm (w/o base) *2 375 x 201 x 358 mm (w/ base) Product color Graphite grey or white...
- Page 28 Specifications VL177D & ML177D Display Screen size, Format 17” (337 x 270 mm), 5:4 Brightness, candela/m2 350 cd/m2 (typical value) Contrast 1000:1 (typical value) Resolution, Megapixel 1280x1024 1,3 Mpix Response time 5 ms (Full cycle) Viewing angles, H/V 160 / 150 (typical value at CR 10:1) Color depth 262K / 16,7M Panel type...
- Page 29 Specifications VL177D & ML177D Appearance Net. weight Approx. 5.5 kg (w/o stand) 7.5 kg (w/ base) Measurements (WxDxH) 378mm x 70mm x 314mm (w/o base) 378mm x 201mm x 372mm (w/ base) Product color Graphite grey or white Open frame Optional Base unit Height adjustable...
- Page 30 Specifications VL197D & ML197D Display Screen size, Format 19” (376 x 301 mm), 5:4 Brightness, candela/m2 300 cd/m2 (typical value) Contrast 1000:1 (typical value) Resolution, Megapixel 1280x1024 1,3 Mpix Response time 20 ms (Full cycle) Viewing angles, H/V 178 / 178 (typical value at CR 10:1) Color depth 16,7M Panel type...
- Page 31 Specifications VL197D & ML197D Appearance Net. weight Approx. 5.7 kg (w/o stand) 8.4 kg (w/ base) Measurements (WxDxH) 432 x 65 x 353 mm (w/o base) *2 432 x 251 x 467 mm (w/ base) Product color Graphite grey or white Open frame Optional Base unit...
-
Page 32: Special Considerations For Lcd Panels
Special Considerations for LCD Panels Manufacturing of LCD panels is very delicate with large panel elements being manufactured in one unit and then cut to smaller sizes to be used in different products. In addition a panel consists of several layers of components (back-light lamps, diffusers, electronics and color filters). There are different technologies used with each having its advantages and disadvantages resulting in end user products with different specifications even when taken from the same manufacturing batch. - Page 33 Special Considerations for LCD Panels Olorin products are warranted to follow this Cable length and input signal standard as a Class II product. When using long cables from the video source (PC, camera etc) to the monitor the signal Image sticking...
-
Page 34: Longer Life For Your Monitor
Longer life for your monitor The components that have biggest influence The higher the luminance is set on the on the useful life of the product are the monitor the greater is the wear of the backlight backlight lamps. These are made of CCFL lamps. -
Page 35: Troubleshooting
Troubleshooting Start your trouble shooting with the following actions Possible power problem • Make sure power is connected. If you switch the monitor off and then back on, the diode on the front should show green light. Some models have a main power switch next to the power inlet check that this is set to on. -
Page 36: Reference
Reference Barten curve Curve used to emphasize areas of a digital grayscale where the human eye have trouble discerning similar shades of gray, named after its creator Dr. Peter G.J. Barten. This unit conforms with DDC-2B and VESA * standards. The DDC function reads information stored in the monitor about its capabilities. -
Page 37: Contact Information
Contact Olorin AB Marios gata 11 SE 434 37 Kungsbacka Sweden Phone: +46 (0)300 566 780 Fax: +46 (0)300 566 789 E-mail: info@olorin.com www.olorin.com OLM0002EN_1204...
