Sign Video ENG-44 Operator's Manual page 8

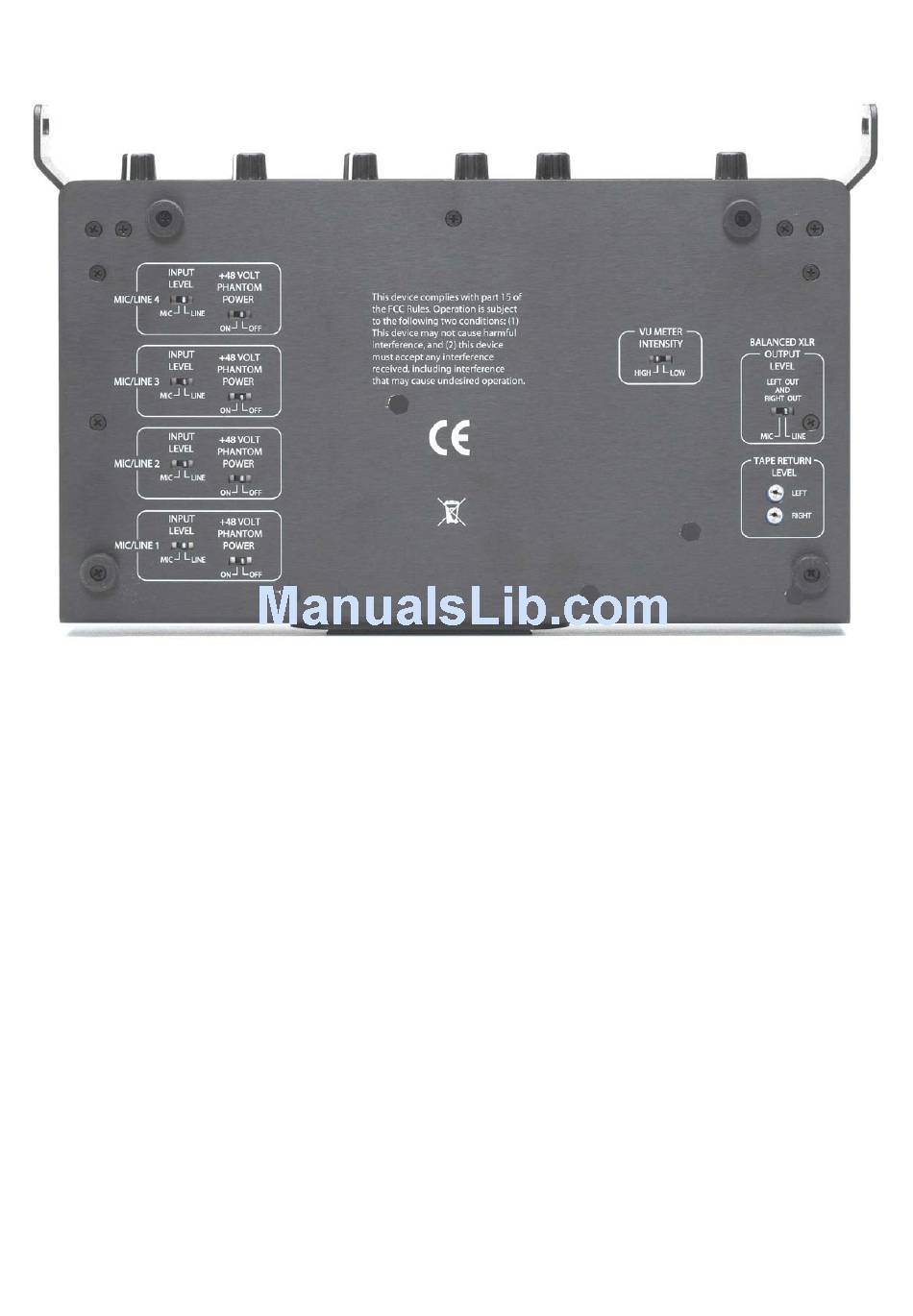

Underside Panel
1. MIC/LINE Input Switches
switch for both XLR outputs switches between mic and line level out.
2. Phantom Power Switches
power. Some microphones require phantom power to operate. However, do not apply phantom power except for
microphones that are equipped to operate on phantom power. Check the microphone operating manual if you are
not certain. For phantom power XLR connector wiring, see Right Panel section of this manual.
3. VU Meter Intensity Switch
HIGH for high visibility outdoors,. Select LOW to conserve battery.
4. Tape Return Level Control
other recording equipment for monitoring tape confidence heads. Use a small flat blade or Phillips screwdriver to
adjust the level for the best match. Many consumer/prosumer DV camcorders may not provide tape confidence
heads. However, tape return is still valuable for checking for bad cable connections etc.
5. Balanced XLR Output Level Switch
MIC and LINE levels.
6. Feet
These are supplied to protect the unit from wear for table top use. If you wish to remove the feet, it is okay to
remove the feet and reinstall the existing screws. While they will screw further into the unit without the feet, they will
not damage anything.
Individual switches for each input channel select between mic and line level in. One
Individual switches for each input channel activate/deactivate +48 Volt phantom
Controls brightness of VU meter LED display located on the front panel. Select
Adjustable amplifiers allow matching to the vast majority of video cameras and
(not shown in the photo above) Switches the XLR Outputs between
8
Version 3.0
